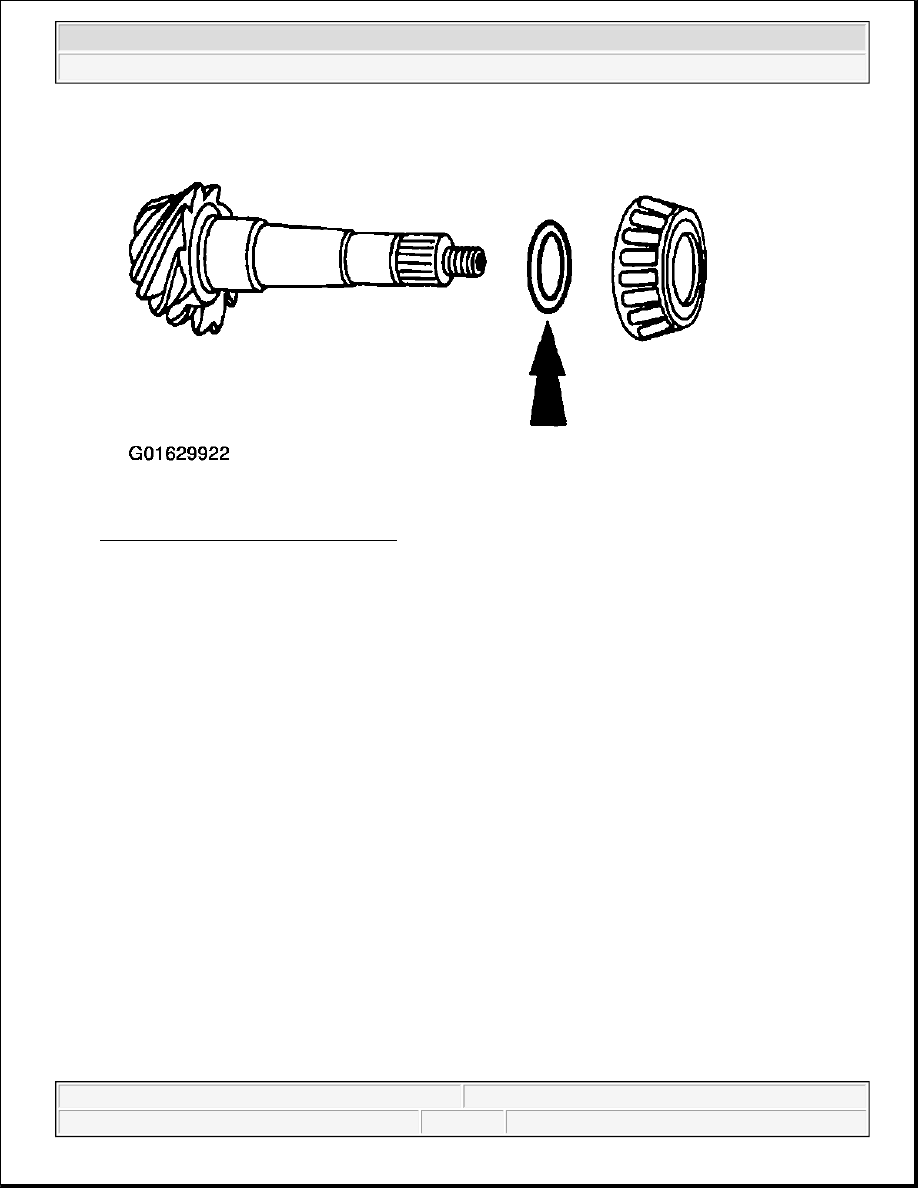

Fig. 105: Identifying Adjustment Shim
Courtesy of FORD MOTOR CO.

36. Remove and measure the drive pinion bearing adjustment shim.

37. Remove the ten bolts and the ring gear (3A397).

z

Use a drift punch to separate the ring gear from the differential case (4205).



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Front Drive Axle/Differential - Ford 8.8-Inch - F150 Pickup



Fig. 106: Removing Ring Gear
Courtesy of FORD MOTOR CO.

38. Using the special tools, remove the differential bearings (4221).



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Front Drive Axle/Differential - Ford 8.8-Inch - F150 Pickup

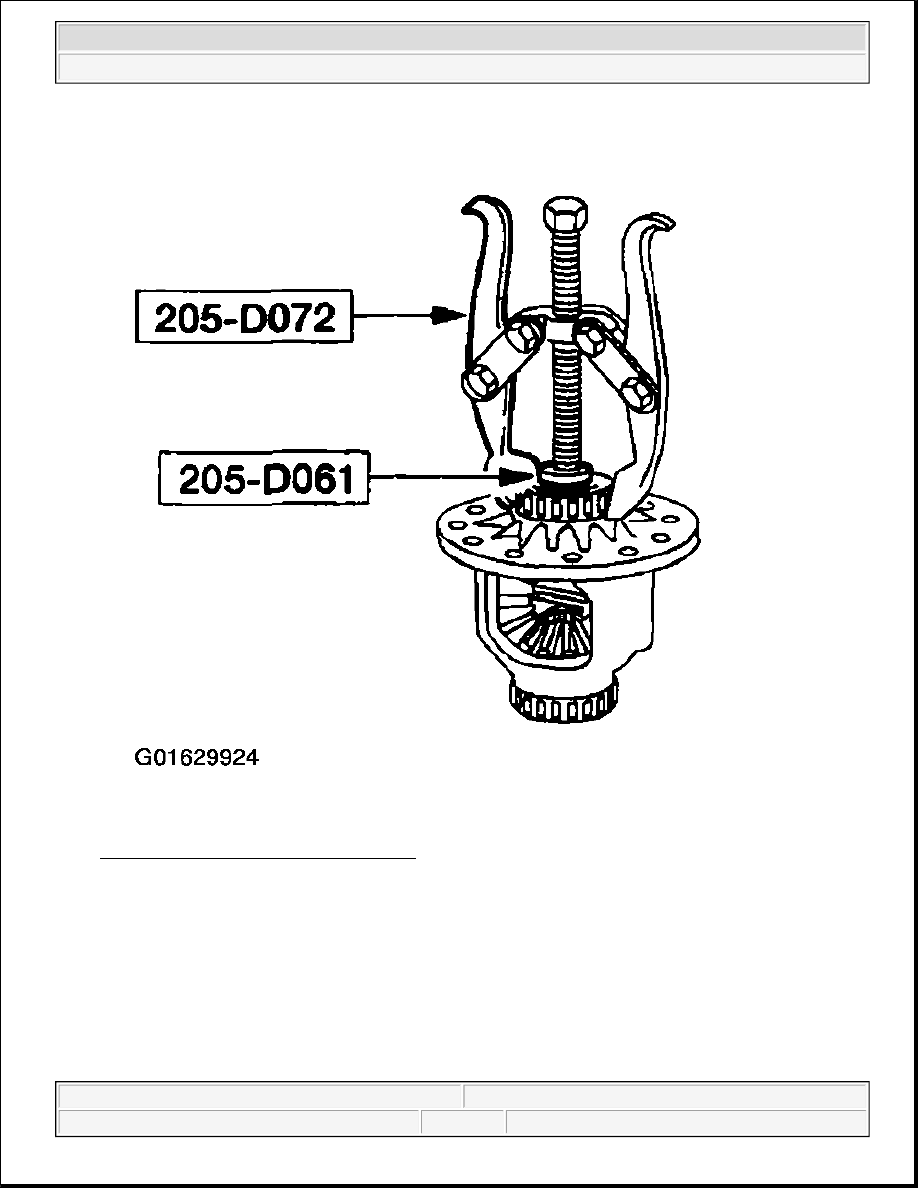

Fig. 107: Removing Differential Bearings
Courtesy of FORD MOTOR CO.

Assembly

CAUTION: Do not omit the pinion bearing oil baffle; bearing failure can result.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Front Drive Axle/Differential - Ford 8.8-Inch - F150 Pickup



Fig. 108: Positioning Baffle On Special Tool
Courtesy of FORD MOTOR CO.

1. If removed, position the baffle on the special tool.

2. Using the special tool, install the baffle.
