Fig. 97: Separating Axle Universal Joint Flange
Courtesy of FORD MOTOR CO.

27. Remove the nut and the flange.

28. Using the special tool and a soft hammer, remove the pinion gear.

1. Install the special tool.

2. Hold the pinion gear inside the carrier housing.

3. Using a soft face hammer, remove the pinion gear from the carrier housing.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Front Drive Axle/Differential - Ford 8.8-Inch - F150 Pickup

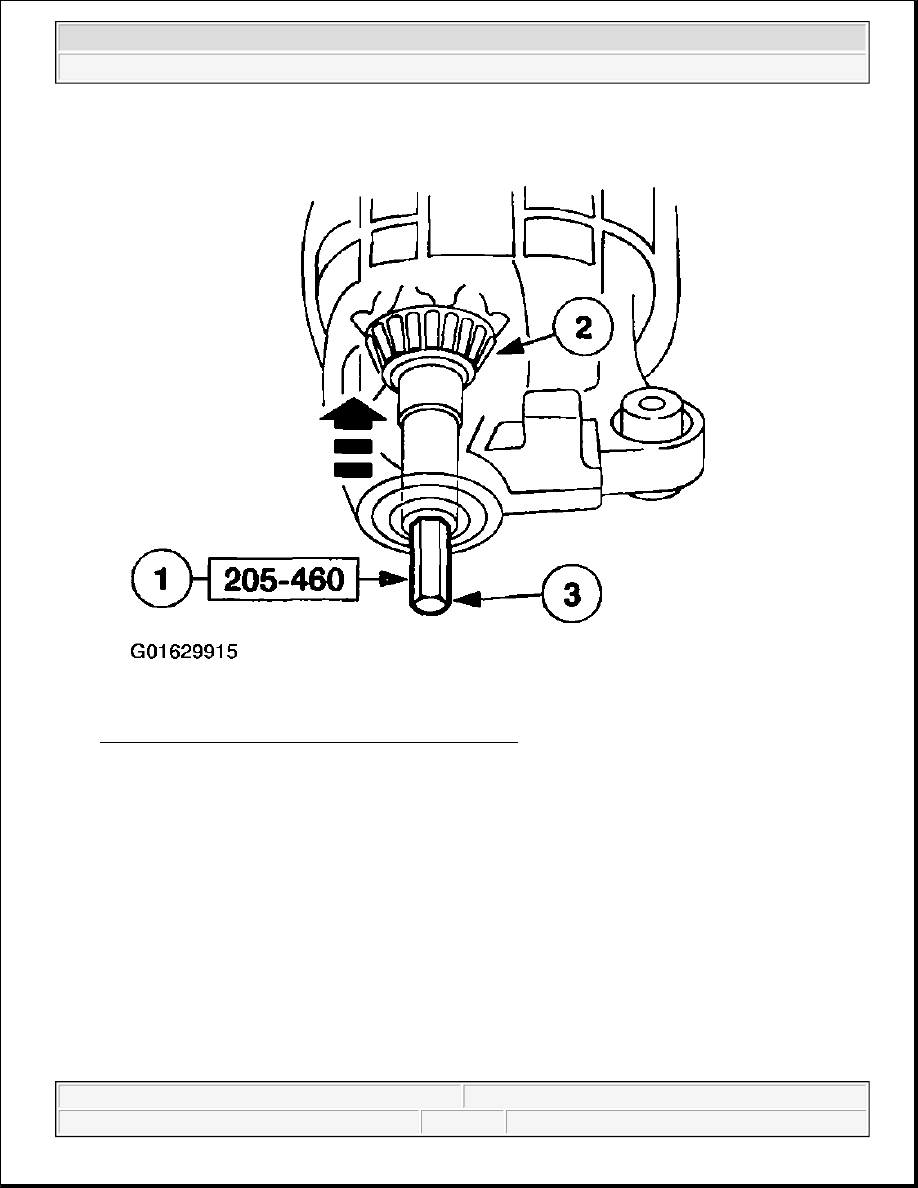

Fig. 98: Removing Pinion Gear From Carrier Housing
Courtesy of FORD MOTOR CO.

29. Discard the drive pinion collapsible spacer (4662).



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Front Drive Axle/Differential - Ford 8.8-Inch - F150 Pickup

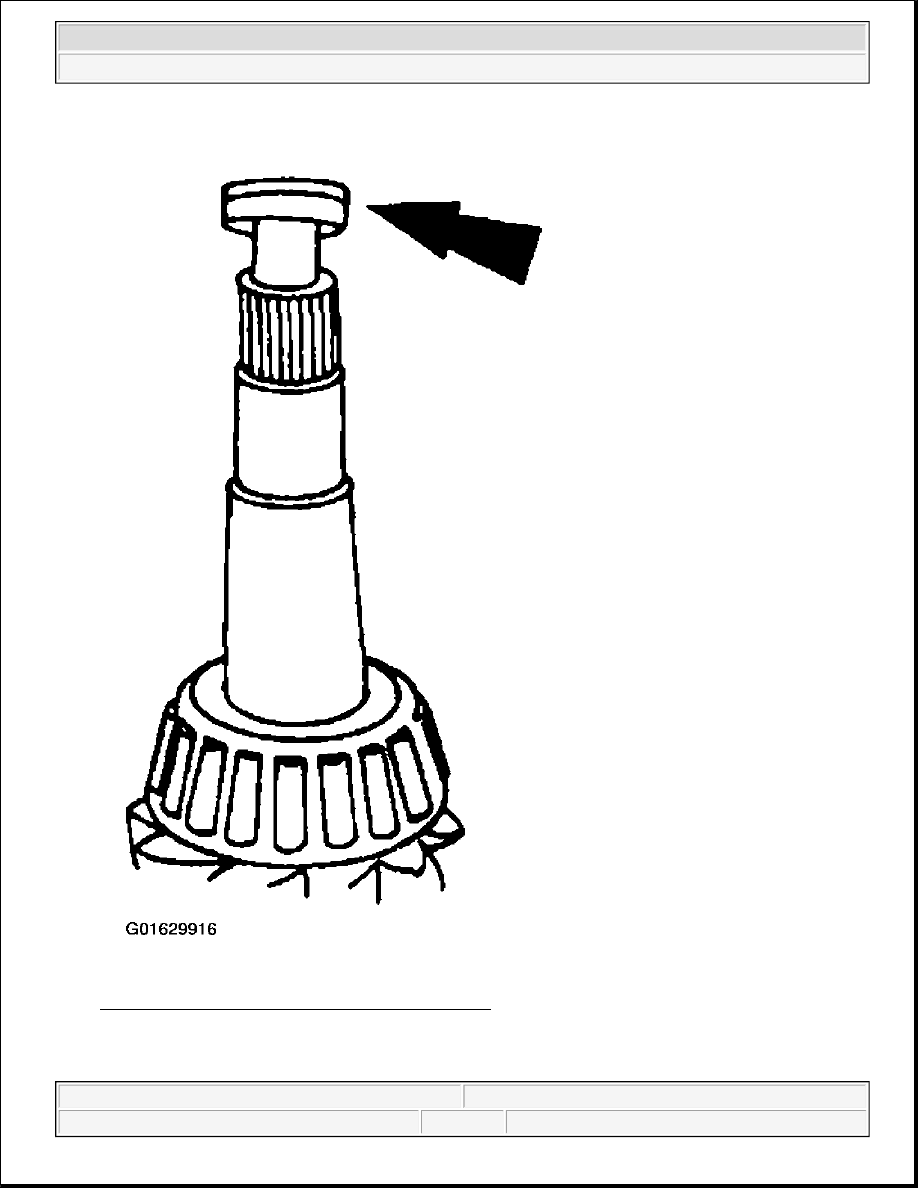

Fig. 99: Removing Drive Pinion Collapsible Spacer
Courtesy of FORD MOTOR CO.

CAUTION: Do not damage the carrier housing while removing the pinion seal.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Front Drive Axle/Differential - Ford 8.8-Inch - F150 Pickup



Fig. 100: Removing Pinion Seal
Courtesy of FORD MOTOR CO.

30. Remove the pinion seal (3N134) and slinger (386989).

z

Pry up on the seal flange. Install gripping pliers, and strike with a hammer to remove the seal.

31. Remove the outer pinion bearing (4621).

32. Using the special tools, remove the inner pinion bearing cup (4628).
