Ford F150 Pickup. Instruction - part 479

Fig. 93: Removing Differential Bearing Caps
Courtesy of FORD MOTOR CO.

CAUTION: Use wood blocks to avoid axle housing damage.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Front Drive Axle/Differential - Ford 8.8-Inch - F150 Pickup



Fig. 94: Removing Differential Assembly From Axle Housing
Courtesy of FORD MOTOR CO.

23. Remove the differential assembly from the axle housing.

1. Position the wood blocks.

2. Position and push down on the two pry bars.

3. Remove the differential assembly.

4. Remove the special tool.

24. Index-mark the axle universal joint flange (4858) to the pinion stem.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Front Drive Axle/Differential - Ford 8.8-Inch - F150 Pickup



Fig. 95: Axle Universal Joint Flange To Pinion Stem Index-Mark
Courtesy of FORD MOTOR CO.

25. Install the special tool, and loosen, but do not remove the pinion nut.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Front Drive Axle/Differential - Ford 8.8-Inch - F150 Pickup

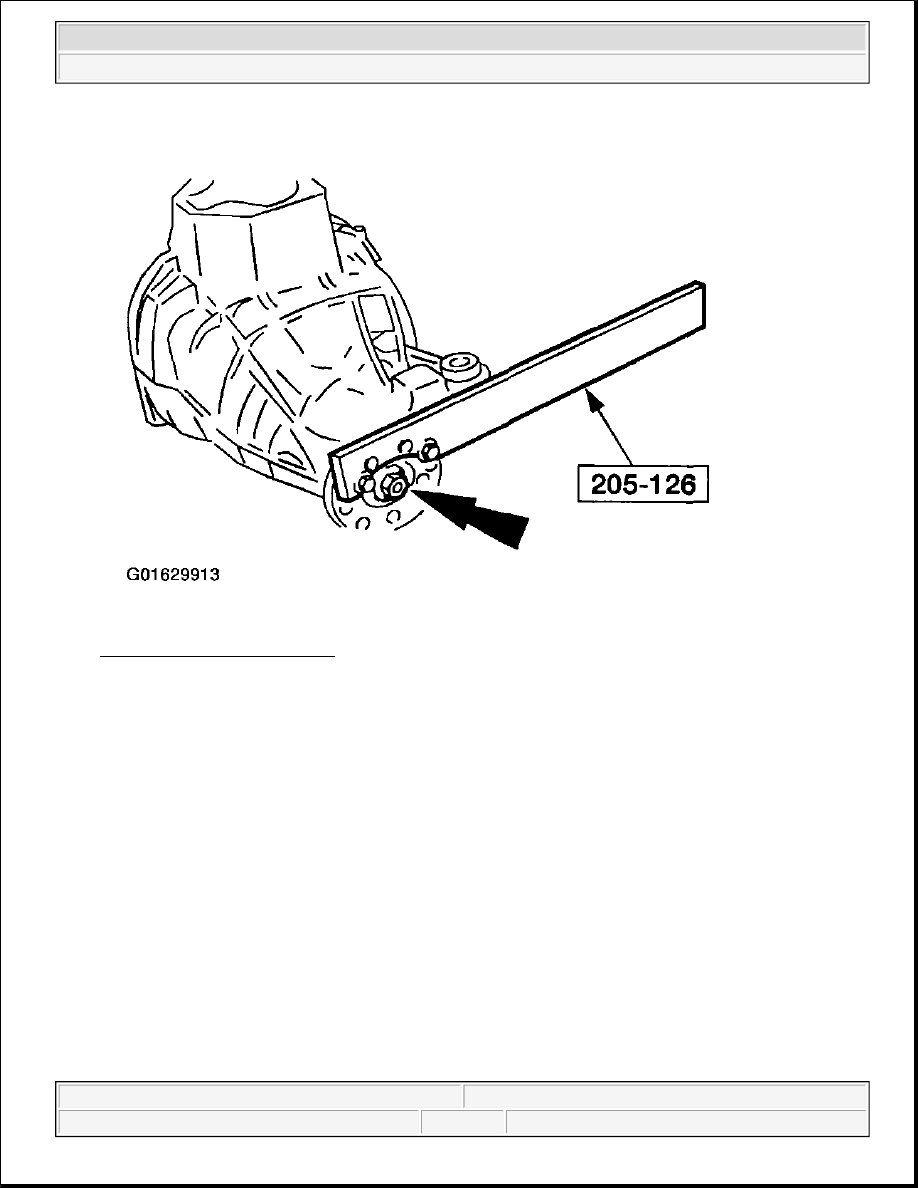

Fig. 96: Installing Special Tool
Courtesy of FORD MOTOR CO.

26. With the pinion nut still engaged by a few threads, use the special tool to separate the axle universal joint

flange from the pinion gear (3N175).
