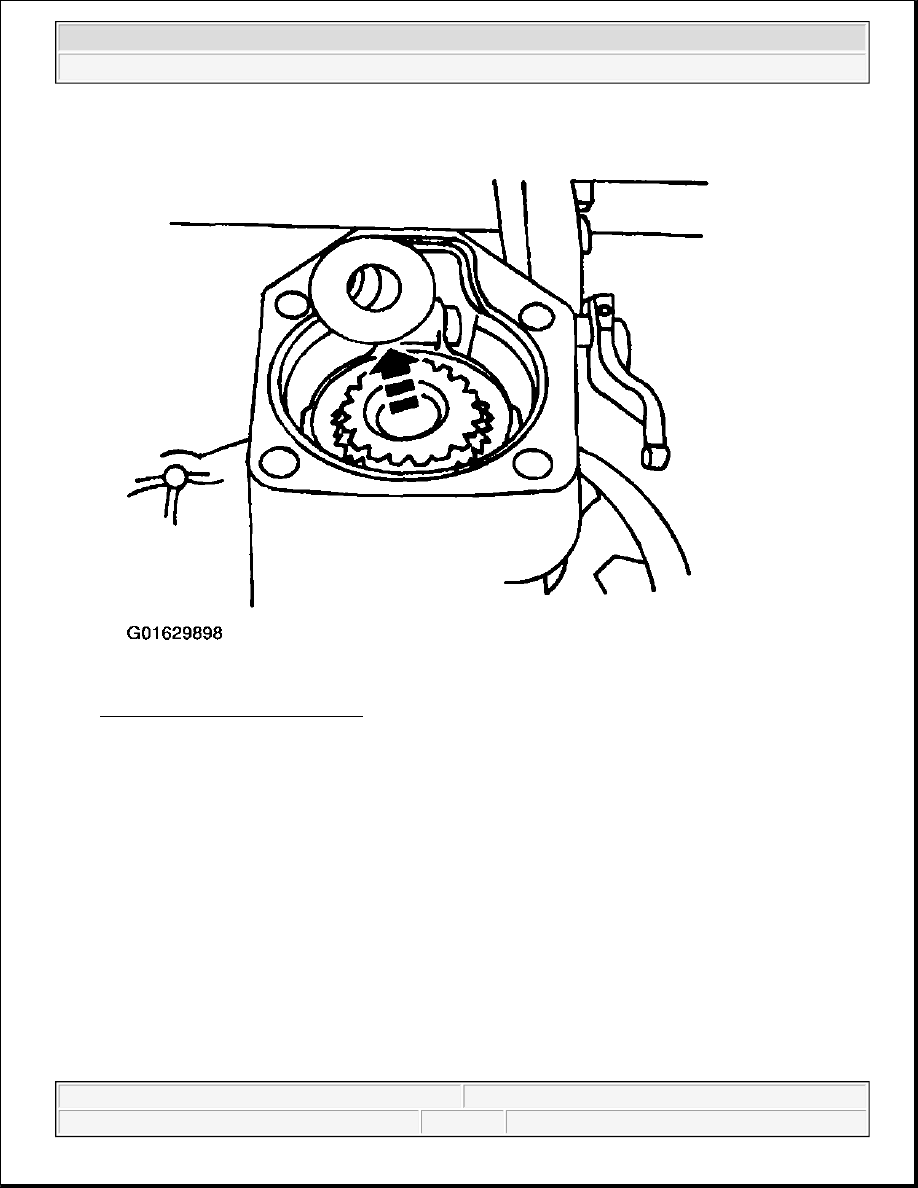

Fig. 81: Removing Thrust Washer
Courtesy of FORD MOTOR CO.

11. Remove the axle cluster gear shaft (7L253).



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Front Drive Axle/Differential - Ford 8.8-Inch - F150 Pickup



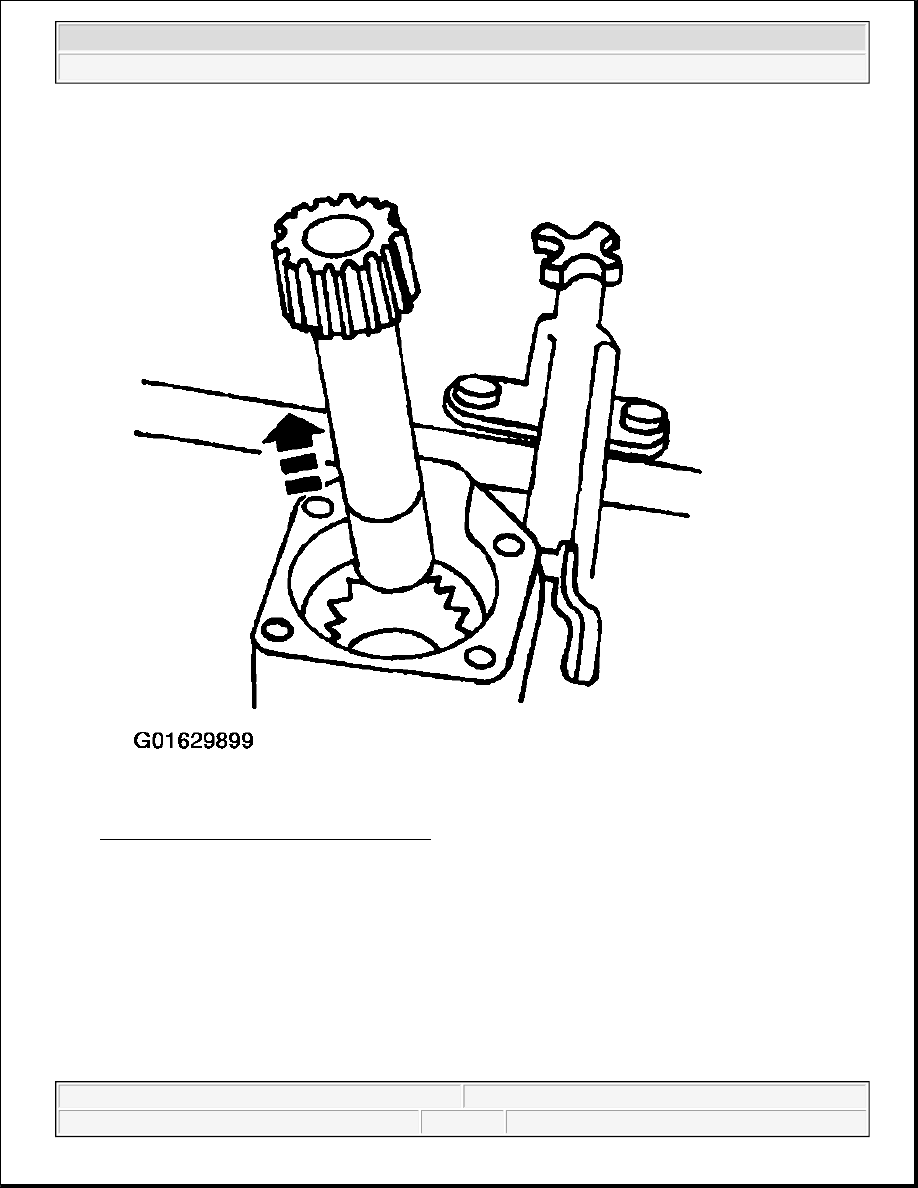

Fig. 82: Removing Axle Cluster Gear Shaft
Courtesy of FORD MOTOR CO.

CAUTION: Use a vise with soft jaws.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Front Drive Axle/Differential - Ford 8.8-Inch - F150 Pickup



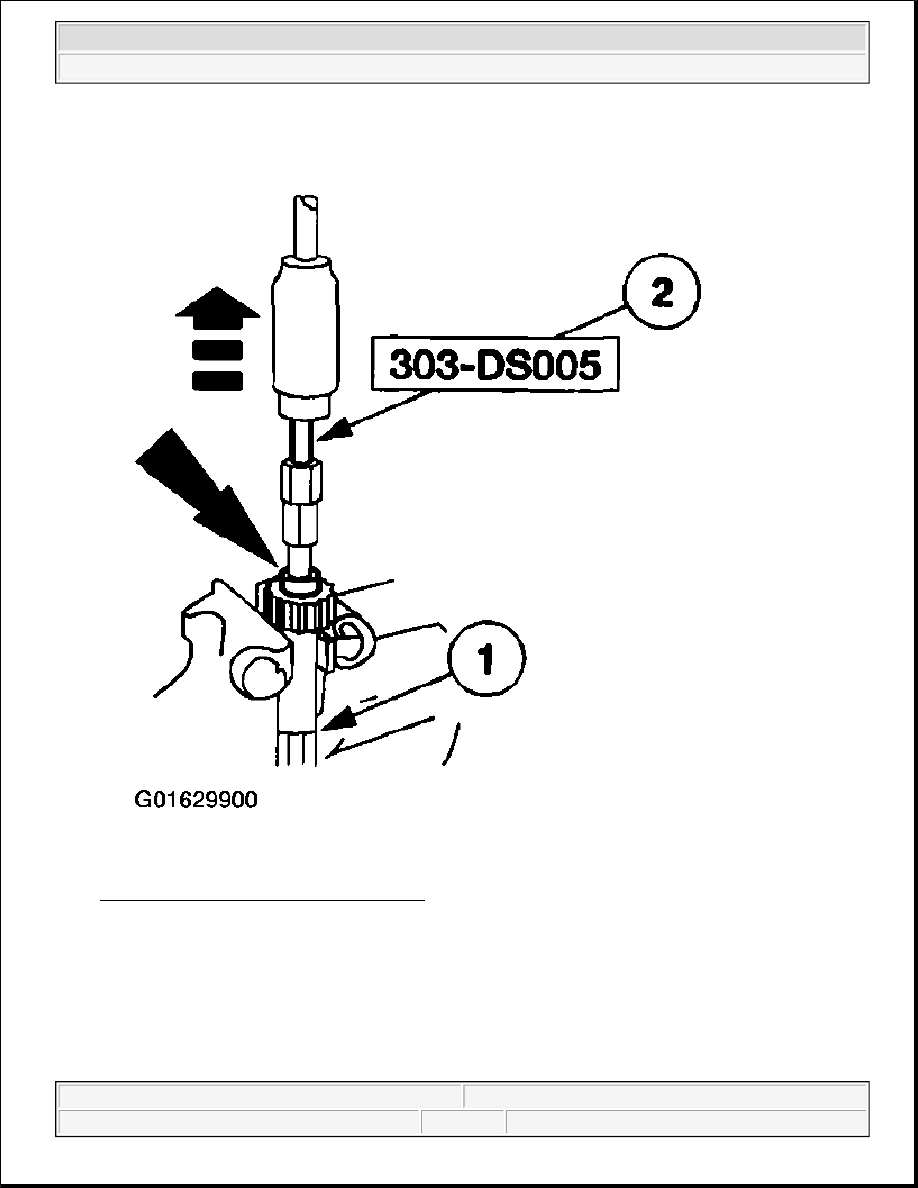

Fig. 83: Removing Pilot Bearing Assembly
Courtesy of FORD MOTOR CO.

12. Using the special tool, remove the pilot bearing assembly (3N106) from the axle cluster gear shaft.

1. Position the axle cluster gear shaft in the vise.

2. Using the special tool, remove the pilot bearing assembly.

13. Lift the shift lever, and remove the coupler shift selector gear (7R262).



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Front Drive Axle/Differential - Ford 8.8-Inch - F150 Pickup

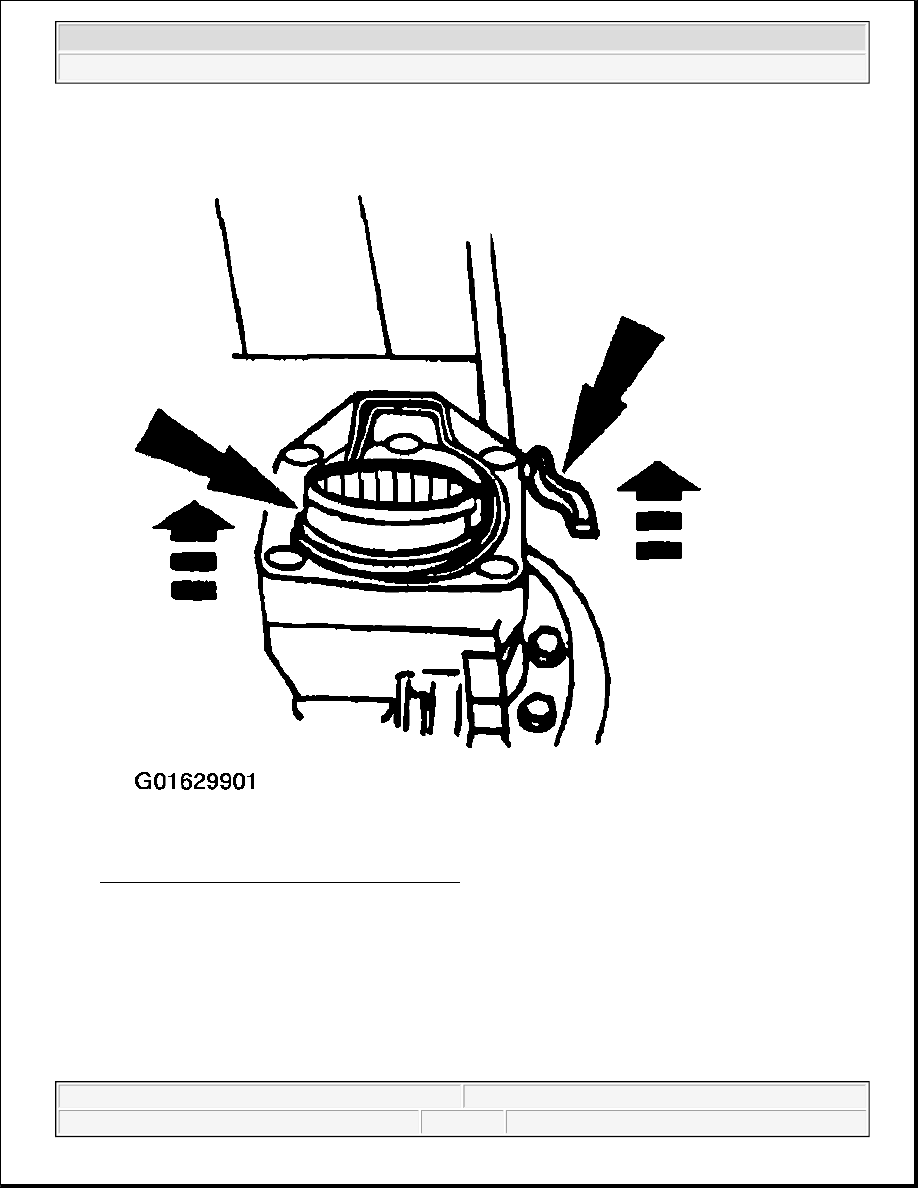

Fig. 84: Removing Coupler Shift Selector Gear
Courtesy of FORD MOTOR CO.

NOTE:

There is enough clearance in the casting to remove the instruction shaft
retaining pin (7G100).
