2. Position the tube bushing removal tools.

1. Position the Bushing Cup Remover/Replacer.

2. Position the Drawbolt.

3. Thread the Bushing Remover on the Drawbolt.

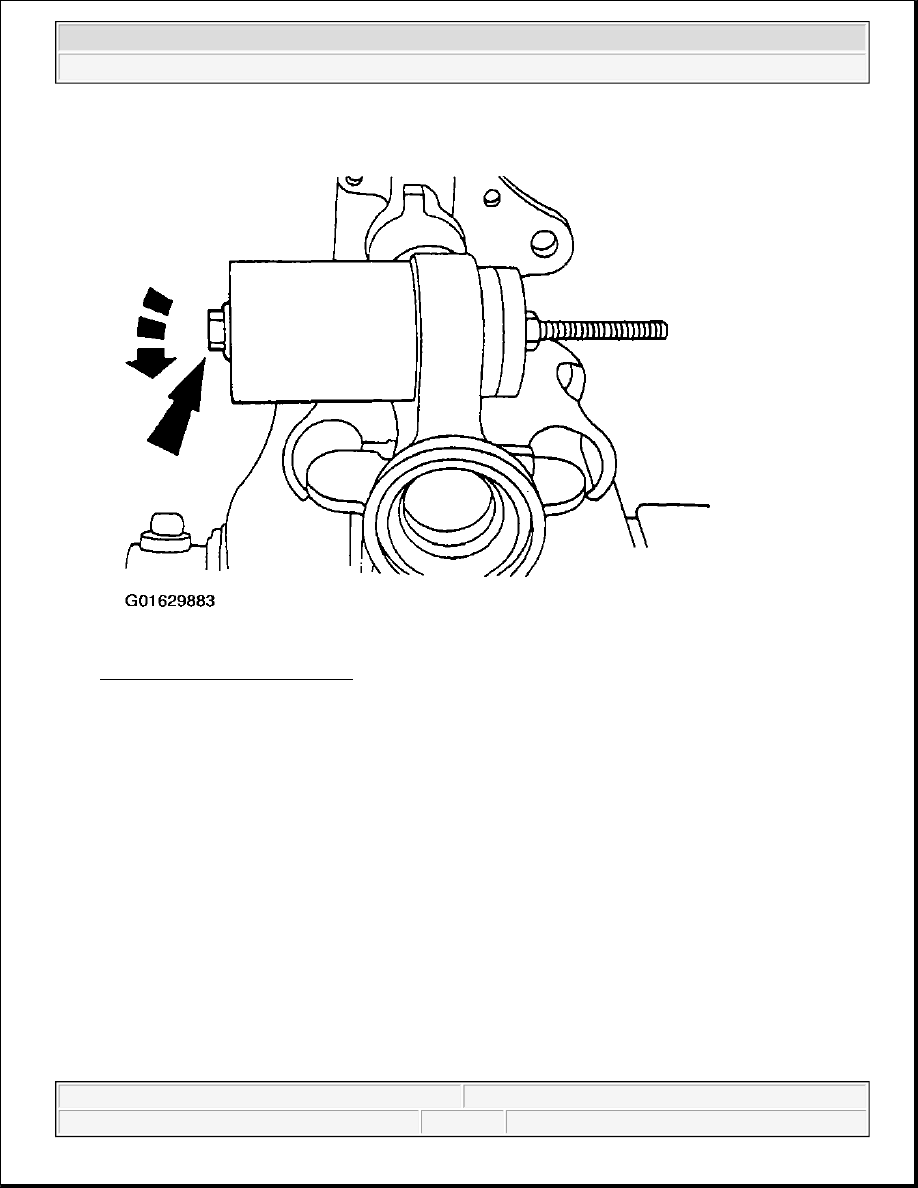

Fig. 65: Positioning Tube Bushing Removal Tools
Courtesy of FORD MOTOR CO.

3. Tighten the Drawbolt to remove the tube bushing.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Front Drive Axle/Differential - Ford 8.8-Inch - F150 Pickup



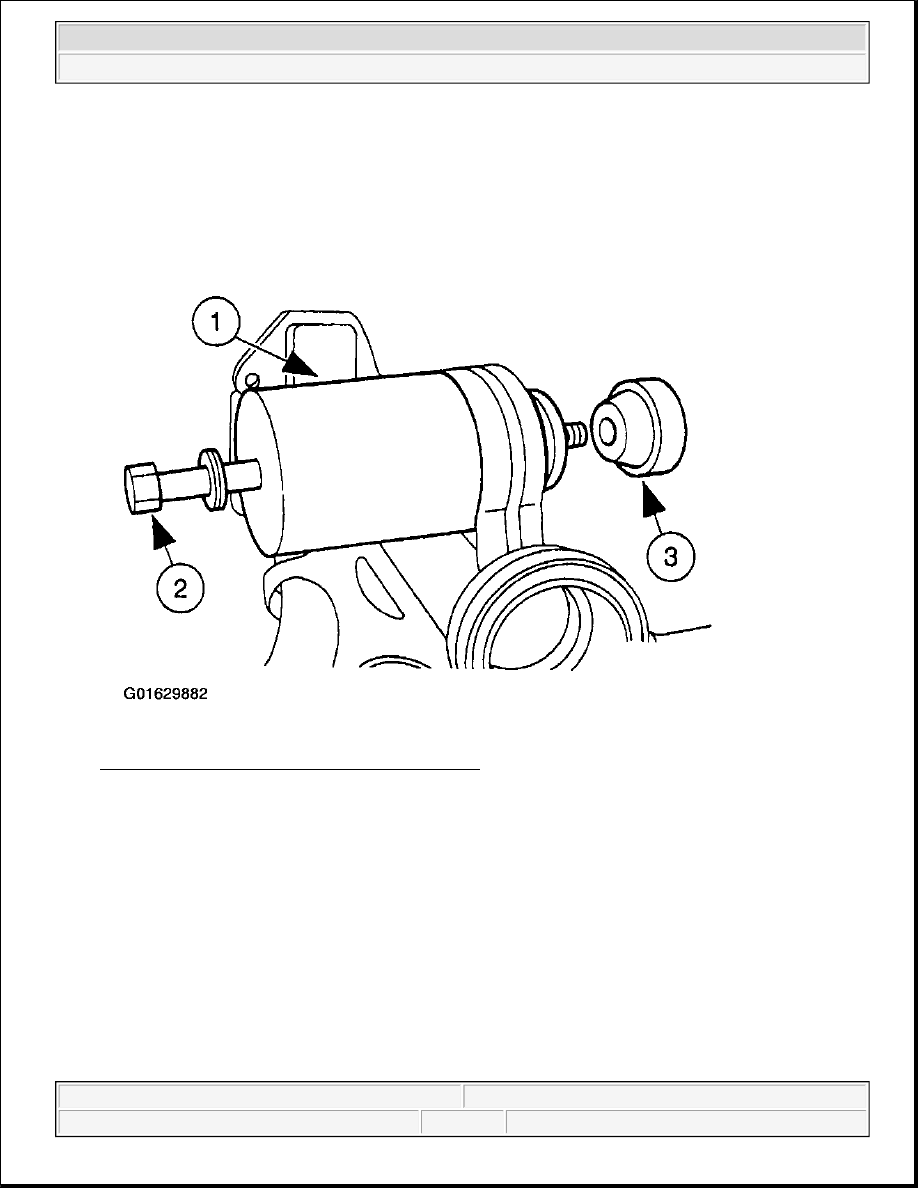

Fig. 66: Removing Tube Bushing
Courtesy of FORD MOTOR CO.

Installation

1. Position the tube bushing and the tube bushing installation tools.

1. Position the tube bushing.

2. Position the Gauge Ring.

3. Position the Bushing Collect Replacer.

4. Position the Bushing Cup Remover/Replacer.

5. Position the Drawbolt.

6. Thread the Bushing Replacer on the Drawbolt.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Front Drive Axle/Differential - Ford 8.8-Inch - F150 Pickup

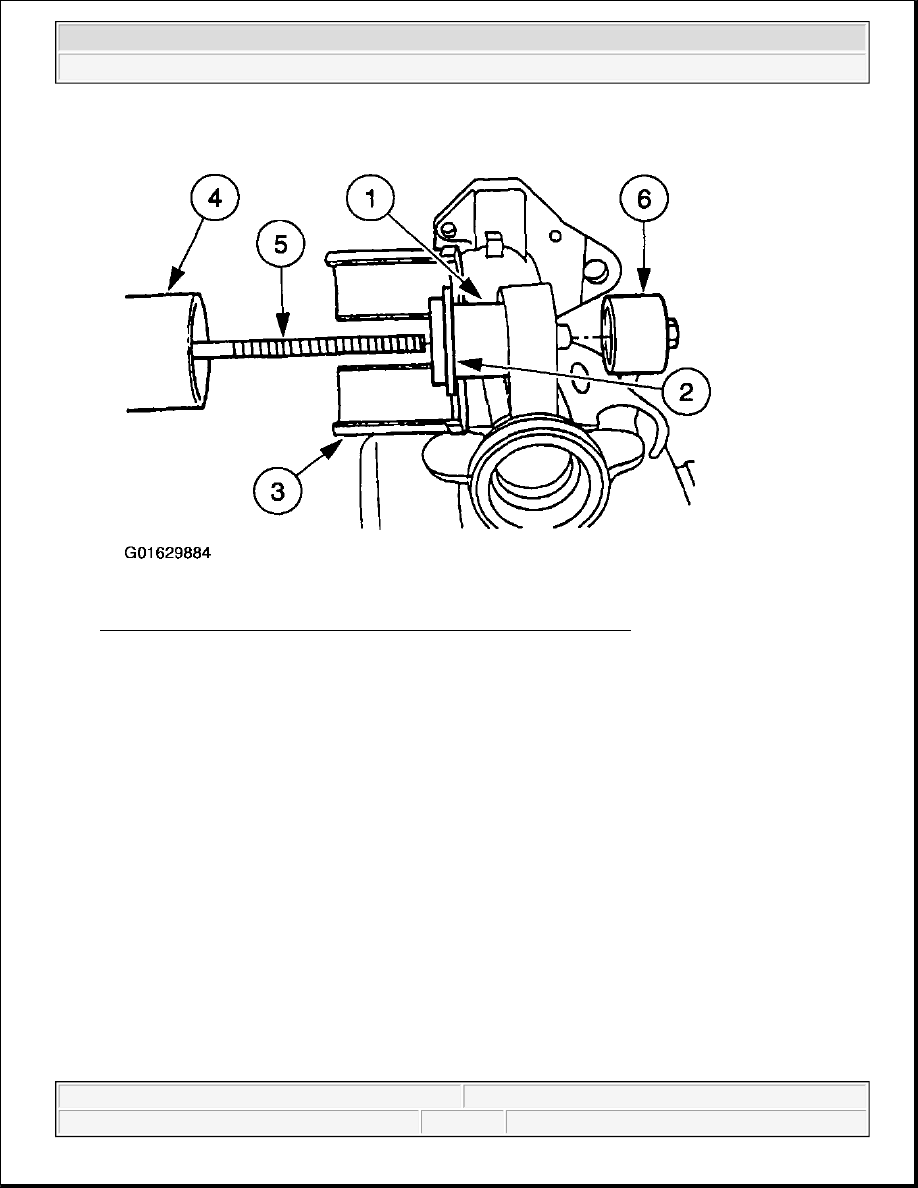

Fig. 67: Positioning Tube Bushing & Tube Bushing Installation Tools
Courtesy of FORD MOTOR CO.

2. Tighten the Drawbolt until the Bushing Collect Replacer contacts the axle tube.

z

Remove the tools.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Front Drive Axle/Differential - Ford 8.8-Inch - F150 Pickup

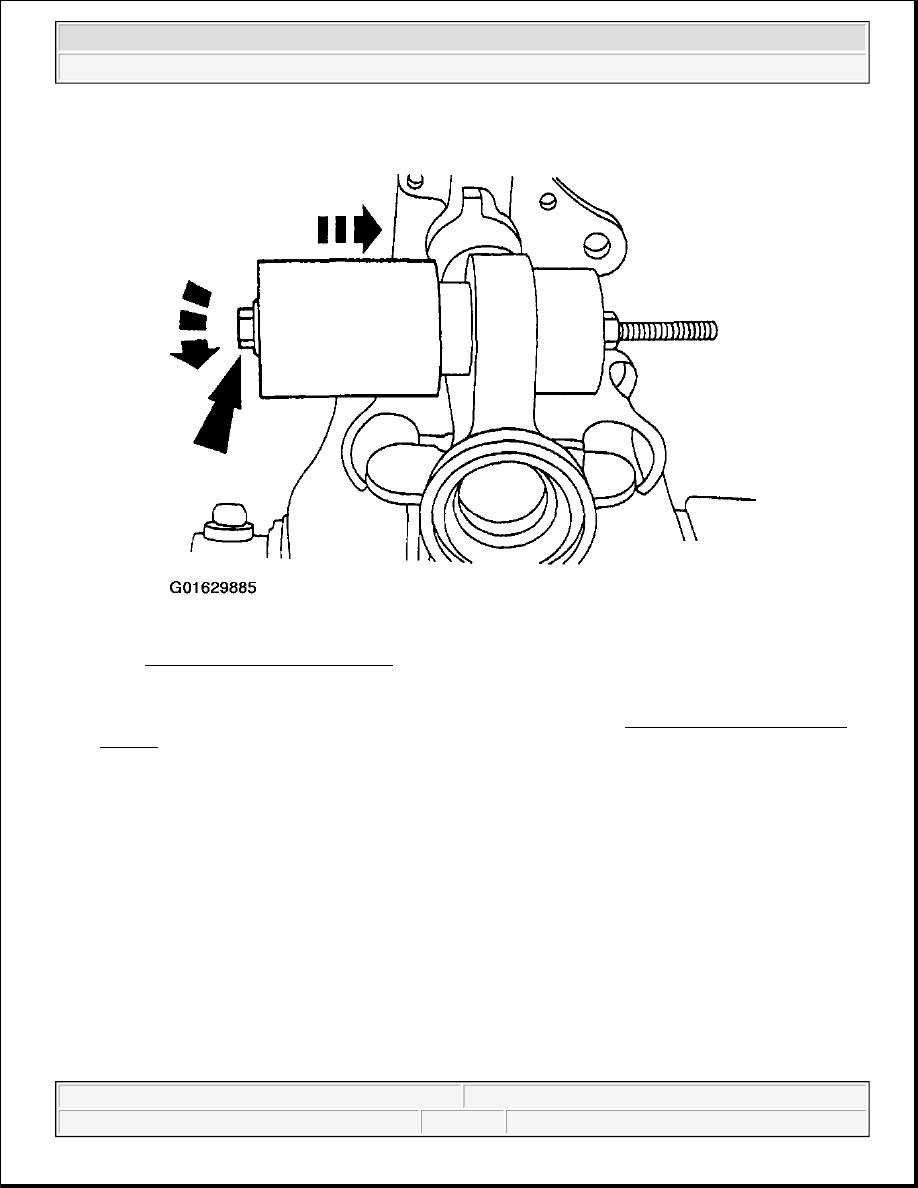

Fig. 68: Installing Tube Bushing
Courtesy of FORD MOTOR CO.

3. Install the front drive axle assembly. For additional information, refer to AXLE ASSEMBLY-FRONT

DRIVE .
