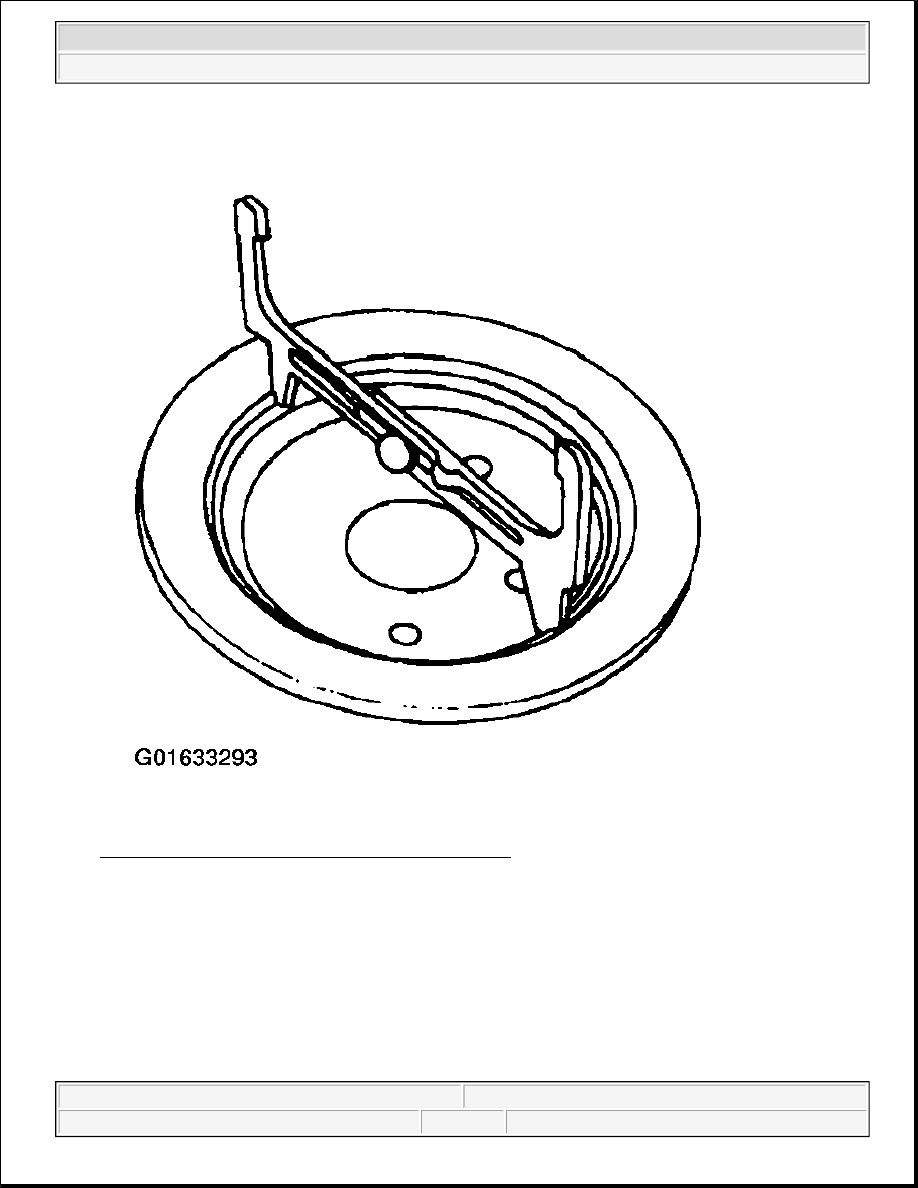

Fig. 42: Measuring Inside Diameter Of Drum Portion
Courtesy of FORD MOTOR CO.

7. Use Brake Adjusting Gauge to set the rear brake shoe and lining diameter to 0.5 mm (0.020 in) less than

the inside diameter to the drum portion of the rear brake disc.



2003 Ford Pickup F150

2003 BRAKES Parking Brake & Actuation - F150 Pickup



Fig. 43: Setting Rear Brake Shoe & Lining Diameter
Courtesy of FORD MOTOR CO.

8. Install the rear brake disc.

9. Install the rear disc brake caliper.

1. Install the rear brake disc caliper.

2. Install the rear brake disc caliper to rear brake disc caliper anchor plate bolts.



2003 Ford Pickup F150

2003 BRAKES Parking Brake & Actuation - F150 Pickup



Fig. 44: Installing Rear Disc Brake Caliper
Courtesy of FORD MOTOR CO.

10. Clean the wheel hub mounting surface.

11. Install the wheel and tire assembly. For additional information, refer to WHEELS & TIRES .

12. Apply tension to the parking brake cable system.

1. Hold the front parking brake cable and conduit taut.

2. Remove the retainer from the parking brake control.
