Ford F150 Pickup. Instruction - part 444





Fig. 26: Removing Cable Support Bracket
Courtesy of FORD MOTOR CO.

8. Remove the rear parking brake cable and conduit.

1. Compress the retainers.

2. Remove the parking brake rear cable and conduit.



2003 Ford Pickup F150

2003 BRAKES Parking Brake & Actuation - F150 Pickup



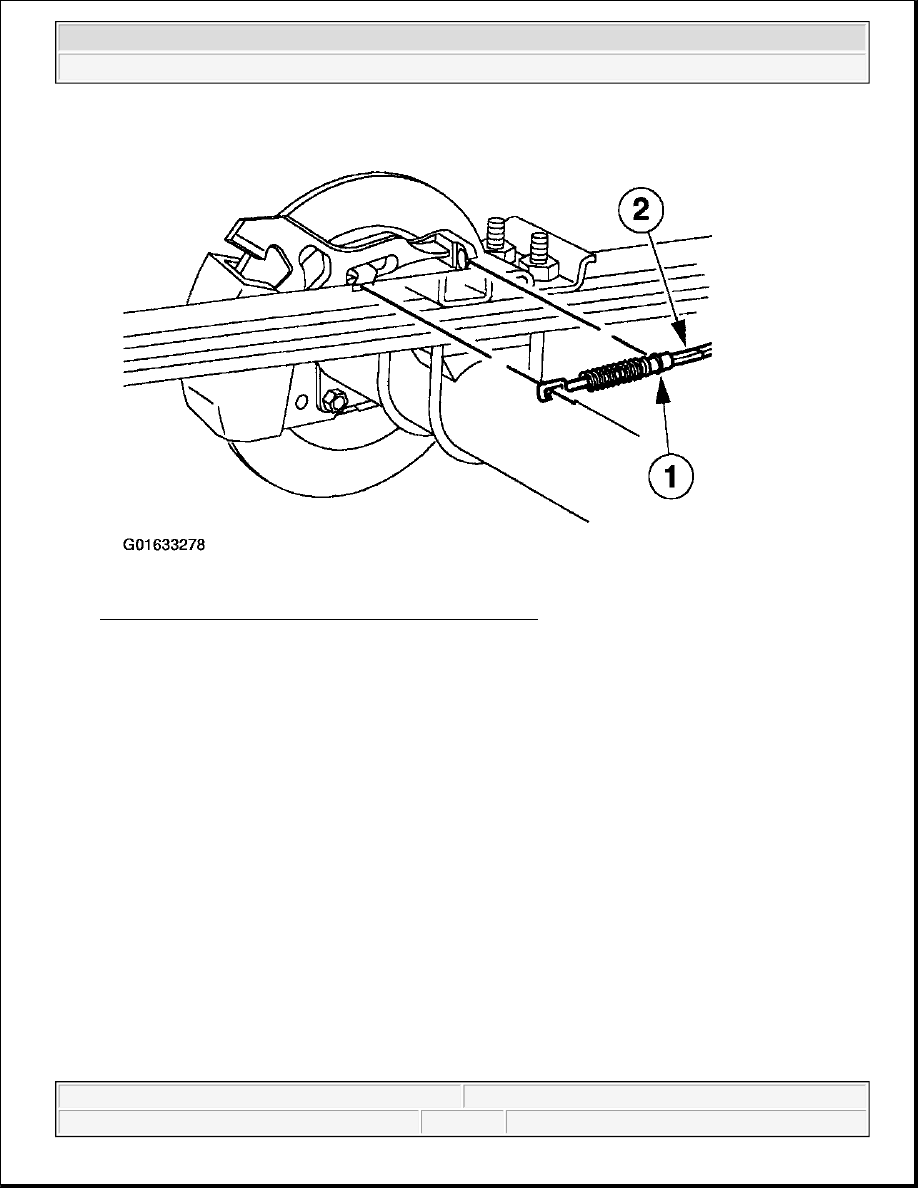

Fig. 27: Removing Rear Parking Brake Cable & Conduit
Courtesy of FORD MOTOR CO.

9. To install, reverse the removal procedure.

SHOES - REAR DISC BRAKES

Special Tool(s)



2003 Ford Pickup F150

2003 BRAKES Parking Brake & Actuation - F150 Pickup



Fig. 28: Rear Disc Brakes Special Tool
Courtesy of FORD MOTOR CO.

Removal

NOTE:

Make sure the parking brake control (2780) is fully released.



2003 Ford Pickup F150

2003 BRAKES Parking Brake & Actuation - F150 Pickup





2003 Ford Pickup F150

2003 BRAKES Parking Brake & Actuation - F150 Pickup
