Ford F150 Pickup. Instruction - part 427

Fig. 66: Installing Stoplight Switch Hairpin Clip
Courtesy of FORD MOTOR CO.

16. Install the instrument panel opening cover (04459). For additional information, refer to INSTRUMENT

PANEL AND CONSOLE .

BRAKE PEDAL MOTOR

Removal & Installation

1. Place the gearshift lever in first gear.

2. Disconnect the brake pedal motor electrical connector.



2003 Ford Pickup F150

2003 BRAKES Hydraulic Brake Actuation - F150 Pickup



Fig. 67: Disconnecting Brake Pedal Motor Electrical Connector
Courtesy of FORD MOTOR CO.

3. Disconnect the brake pedal motor-to-accelerator pedal cable from the accelerator pedal by pulling the

cable retainer outward.



2003 Ford Pickup F150

2003 BRAKES Hydraulic Brake Actuation - F150 Pickup



Fig. 68: Disconnecting Brake Pedal Motor-To-Accelerator Pedal Cable
Courtesy of FORD MOTOR CO.

4. Disconnect the brake pedal motor-to-brake pedal cable from the brake pedal by pulling the cable retainer

outward.



2003 Ford Pickup F150

2003 BRAKES Hydraulic Brake Actuation - F150 Pickup



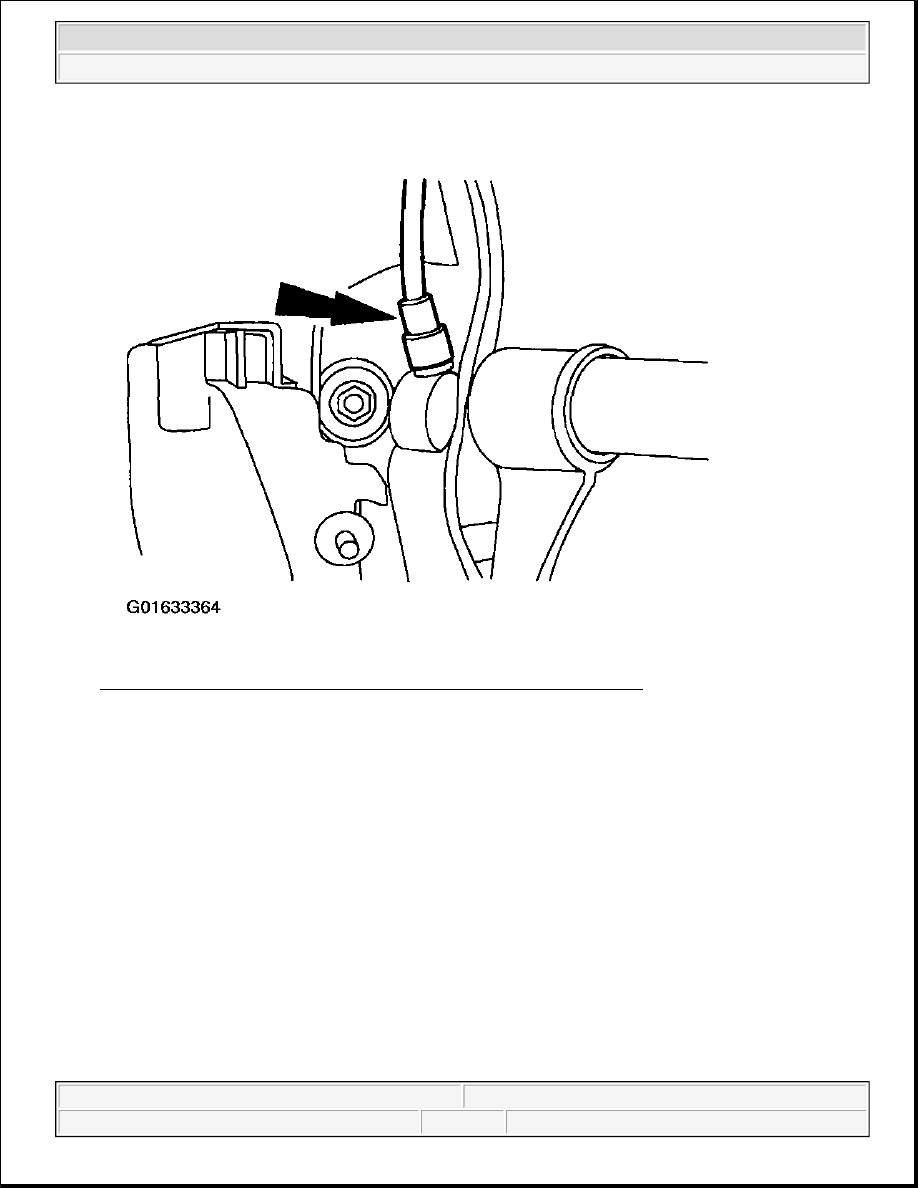

Fig. 69: Disconnecting Brake Pedal Motor-To-Brake Pedal Cable
Courtesy of FORD MOTOR CO.

5. Disconnect the transmission shift cable from the steering column shift tube lever.
