Fig. 58: Loading Pedal Spring
Courtesy of FORD MOTOR CO.

6. Connect the brake pedal motor (2C429) electrical connector.



2003 Ford Pickup F150

2003 BRAKES Hydraulic Brake Actuation - F150 Pickup



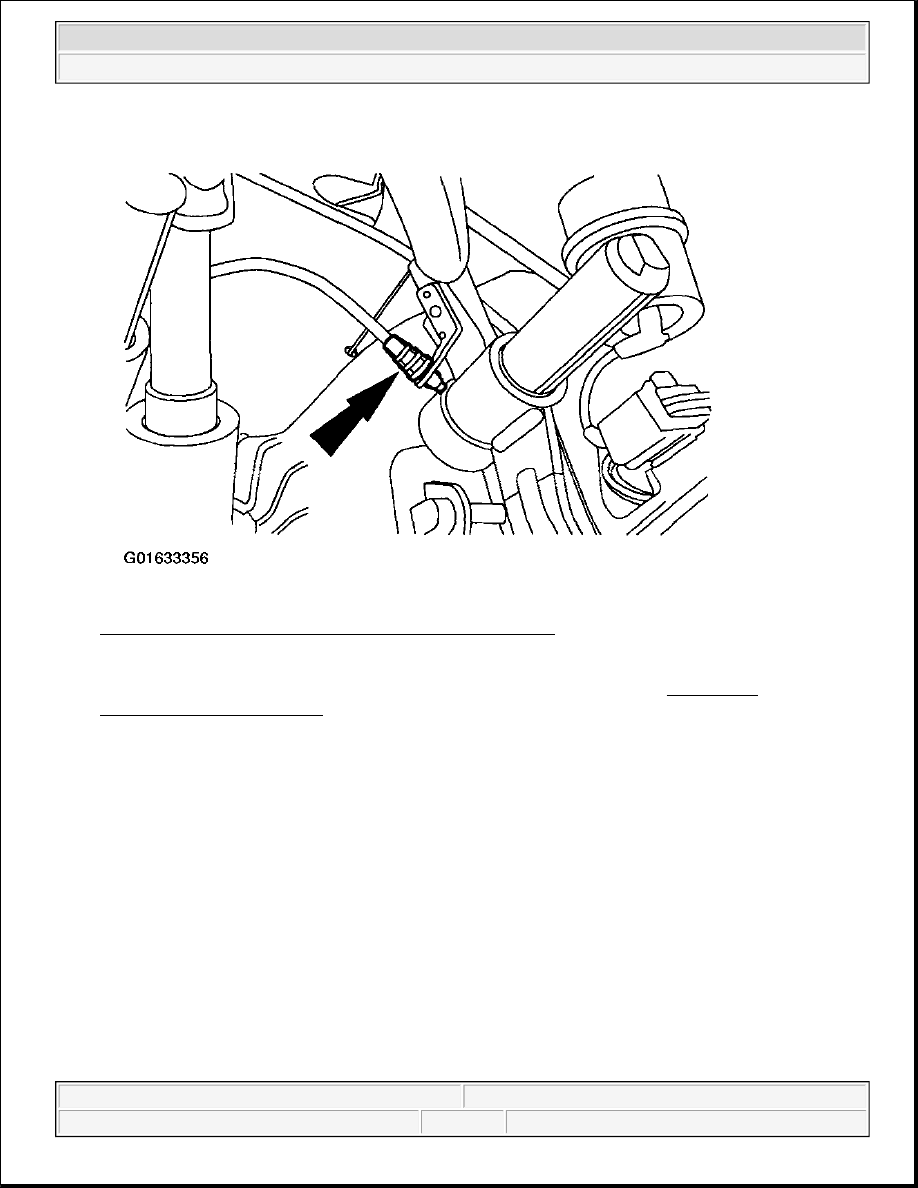

Fig. 59: Connecting Brake Pedal Motor Electrical Connector
Courtesy of FORD MOTOR CO.

7. Install the brake pedal-to-accelerator pedal cable (2C430) in the accelerator pedal (2453).



2003 Ford Pickup F150

2003 BRAKES Hydraulic Brake Actuation - F150 Pickup



Fig. 60: Installing Brake Pedal-To-Accelerator Pedal Cable
Courtesy of FORD MOTOR CO.

8. Connect the battery ground cable (14301). For additional information, refer to BATTERY,

MOUNTING AND CABLES .

CAUTION: When installing the brake pedal-to-accelerator pedal cable, the brake

pedal and the accelerator pedal (9725) must be in the same position,
all the way forward or all the way rearward.



2003 Ford Pickup F150

2003 BRAKES Hydraulic Brake Actuation - F150 Pickup



Fig. 61: Positioning Accelerator Pedal Using Brake Pedal Motor (Forward)
Courtesy of FORD MOTOR CO.
