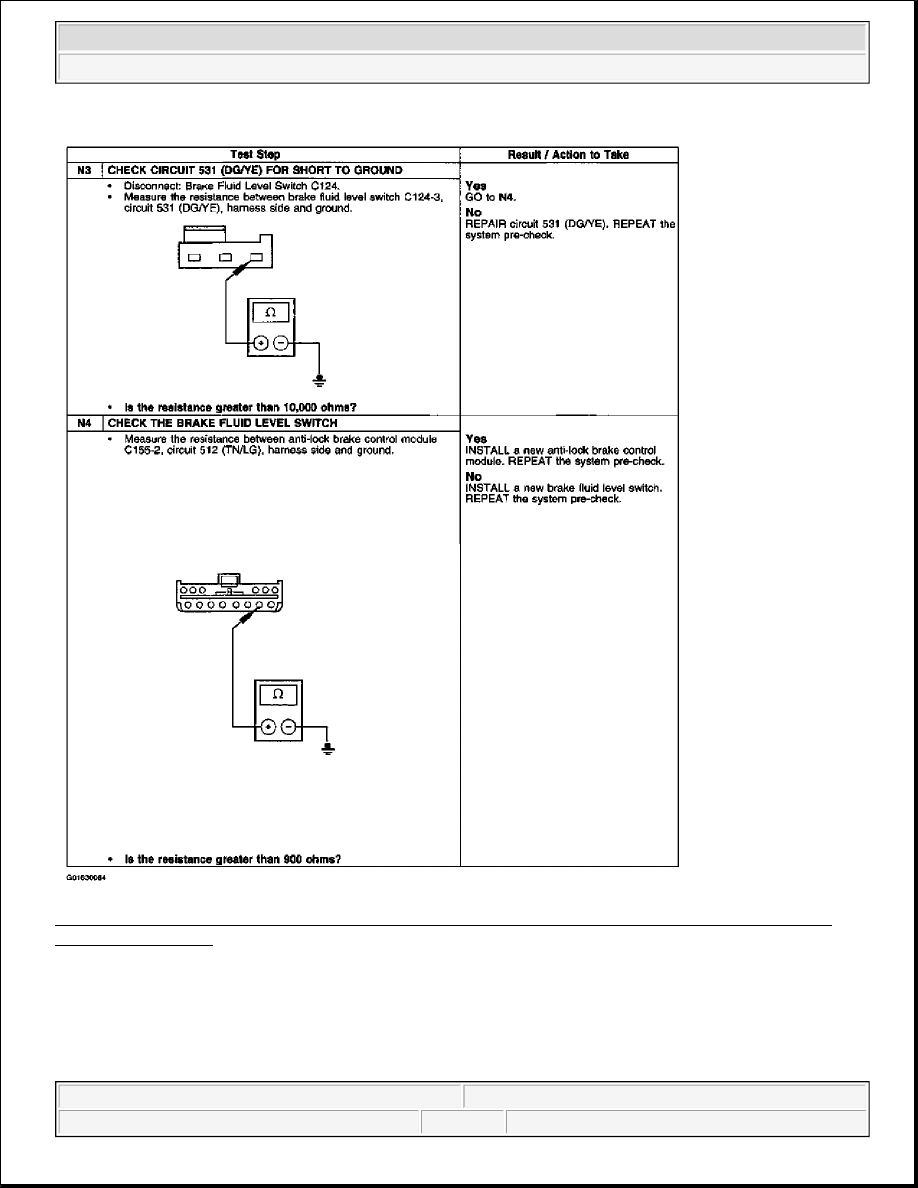

Fig. 37: Pinpoint N: DTC 12 - Loss Of Hydraulic Brake Fluid During An Anti-Lock Stop - Diagnostic
Chart (Steps N3-N4)
Courtesy of FORD MOTOR CO.

Pinpoint Test O: Verification Drive Test



2003 Ford Pickup F150

2003 BRAKES Anti-Lock Control-Rear - F150 Pickup



Fig. 38: Pinpoint Test O: Verification Drive Test - Diagnostic Chart
Courtesy of FORD MOTOR CO.

Pinpoint Test P: Intermittent Problem Diagnosis

Fig. 39: Pinpoint Test P: Intermittent Problem Diagnosis - Diagnostic Chart
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 BRAKES Anti-Lock Control-Rear - F150 Pickup



REMOVAL & INSTALLATION

VALVE

Removal & Installation

Fig. 40: Removing Rear Anti-Lock Brake System Valve
Courtesy of FORD MOTOR CO.

1. Remove the rear anti-lock brake system (RABS) valve.

1. Disconnect the RABS valve electrical connector.

WARNING:

Brake fluid contains polyglycol ethers and polyglycols. Avoid
contact with eyes. Wash hands thoroughly after handling. If brake
fluid contacts eyes, flush eyes with running water for 15 minutes.
Get medical attention if irritation persists. If taken internally, drink
water and induce vomiting. Get medical attention immediately.

CAUTION: Brake fluid is harmful to painted and plastic surfaces. If brake fluid is

spilled onto a painted or plastic surface, immediately wash it with
water.



2003 Ford Pickup F150

2003 BRAKES Anti-Lock Control-Rear - F150 Pickup



2. Remove the two hydraulic lines and plug them.

3. Remove the two RABS valve nuts.

4. Remove the RABS valve.

2. To install, reverse the removal procedure.

z

Bleed the brakes. For additional information, refer to BLEEDING BRAKE SYSTEM .

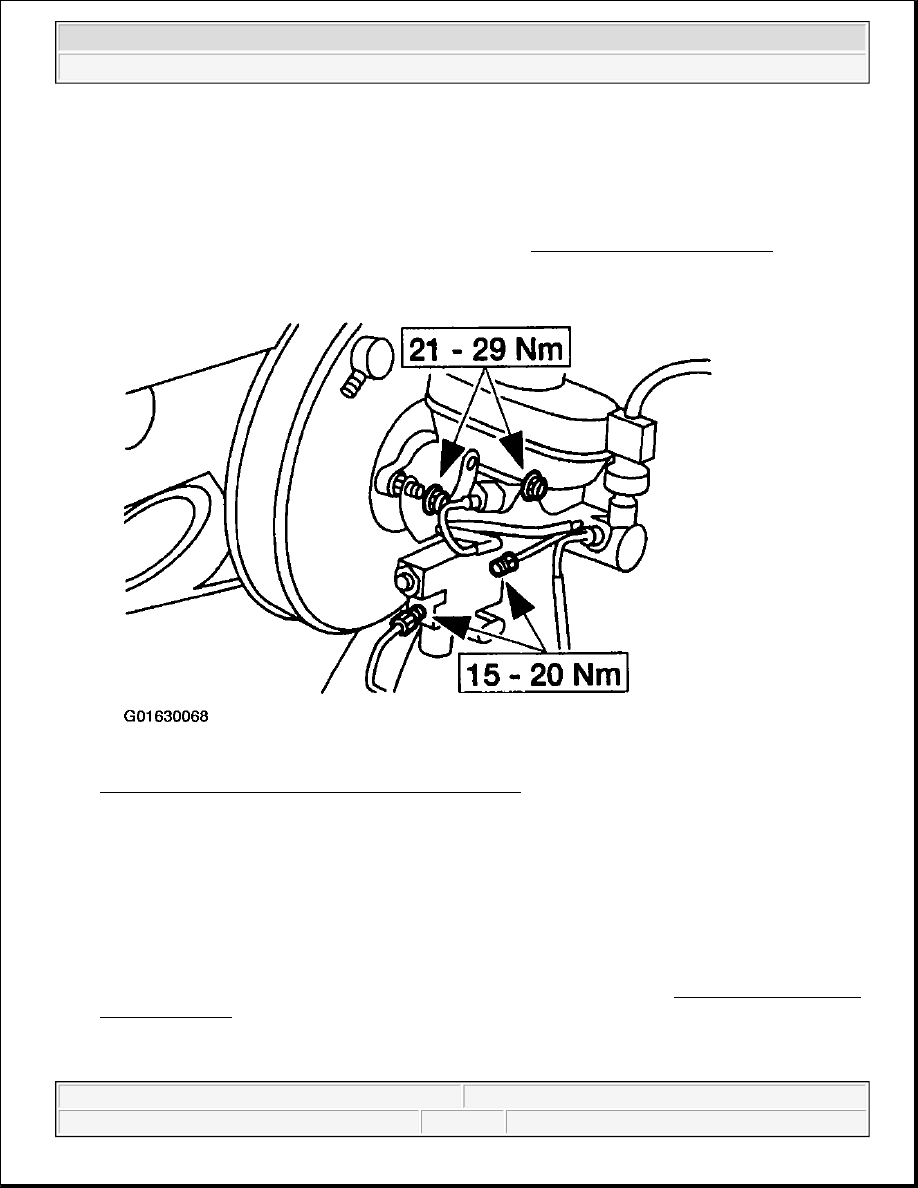

Fig. 41: Installing Rear Anti-Lock Brake System Valve
Courtesy of FORD MOTOR CO.

MODULE - ANTI-LOCK BRAKE CONTROL REMOVAL & INSTALLATION

1. Disconnect the battery ground cable.

2. Remove the instrument panel cluster panel. For additional information, refer to INSTRUMENT PANEL

AND CONSOLE .

3. Remove the anti-lock brake control module.

1. Disconnect the anti-lock brake control module electrical connector.

CAUTION: Electronic modules are sensitive to static electrical charges. If

exposed to these charges, damage may result.
