z

Driver safety belt warning chime is one chime per second.

z

Key-in-ignition warning is two chimes per second.

z

Headlamp-on warning is four chimes per second.

z

Door ajar warning is a single chime.

z

Air bag redundant is five chimes per second.

Safety Belt Warning Chime

The safety belt warning chime warns the driver safety belt is not fastened. The safety belt warning chime will
sound when the driver safety belt is not fastened or when the ignition switch is turned from the OFF/LOCK or
ACC to the RUN or START position.

The safety belt warning chime will stop sounding when:

z

the safety belt is fastened.

z

the ignition switch is switched from RUN or START to the OFF/LOCK or ACC position.

z

the chime has sounded for six seconds.

The safety belt warning chime inputs are:

z

ignition switch START position (battery potential on the START input)

z

ignition switch RUN position (battery potential on RUN and RUN/ACC inputs)

z

driver safety belt switch (grounded when not fastened, open circuit when fastened)

Belt Minder

The belt minder feature supplements the current safety belt warning function. The belt minder feature is enabled
after the current safety belt warning is complete. If the driver saftey belt is not buckled approximately five
seconds after the safety belt warning light had turned off, the belt minder reminds the driver that their safety belt
is unbuckled by intermittently sounding a chime and illuminating the safety belt warning lamp in the instrument
cluster. While activated, the belt minder alternates the chime and indicator from on for 6 seconds to off for 30
seconds.

The belt minder reminder stops when:

z

the driver safety belt is buckled.

z

the ignition is turned to OFF or ACC

z

five minutes have elapsed since belt minder has started.

Door Ajar Warning Chime

NOTE:

The belt minder feature is configurable. If configuring using a diagnostic tool,
refer to MODULE CONFIGURATION . To configure without using the special
tool, refer to BELT MINDER DEACTIVATING/ACTIVATING .



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Warning Devices - F150 Pickup



The door ajar warning tone warns that a door has become ajar. The door ajar warning tone is a single tone with
the duration of one second. The tone will sound when the driver or passenger door initially becomes ajar while
the ignition switch is in the RUN position.

The door ajar inputs are:

z

ignition switch RUN position (battery potential on RUN and RUN/ACC inputs)

z

door ajar switches (open circuit with door closed, grounded with door ajar).

Key-In-Ignition Warning Chime

The key-in-ignition warning chime warns that key is still in the ignition when the driver door is ajar. The key-
in-ignition warning chime will sound when:

z

GEM/CTM: driver door is ajar, the ignition switch is in the OFF/LOCK or ACC position and the key is in
the ignition.

The key-in-ignition warning chime will stop sounding when:

z

the driver door is closed.

z

the key is removed from the ignition.

z

the ignition switch is switched to the RUN position.

The key-in-ignition warning chime inputs are:

z

ignition switch RUN position (battery potential on RUN and RUN/ACC inputs)

z

ignition switch ACC position (battery potential on RUN/ACC input only)

z

key-in-ignition switch (grounded with key-in-ignition, open circuit key-out)

z

LH door ajar switch (open circuit with door closed, grounded with door ajar)

Headlamps Warning Chime

The headlamps warning chime warns that the headlamps are on when all the following conditions are met:

z

The driver door is ajar.

z

The headlamp switch position is in the PARK or HEAD position.

z

The ignition switch state is in the OFF/LOCK position.

z

The key is out of the ignition switch.

The headlamps warning chime will stop sounding when any one of the conditions above are removed.

The headlamps warning chime inputs are:

z

ignition switch OFF/LOCK position (open circuit on all ignition inputs)



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Warning Devices - F150 Pickup



z

headlamp switch (battery potential in PARK or HEAD position, open circuit when in OFF position)

z

driver door ajar switch (open circuit with door closed, grounded with door ajar)

z

key-in-ignition switch (grounded with key-in-ignition, open circuit with key-out)

Air Bag Redundant Chime

The restraint control module (RCM) chime warns that the air bag warning indicator is inoperative or an active
fault is present within the air bag system. The audible warning format will consist of five sets of tones, in one
second increments.

Inspection and Verification

1. Verify the customer concern.

2. Visually inspect for obvious signs of mechanical and electrical damage.

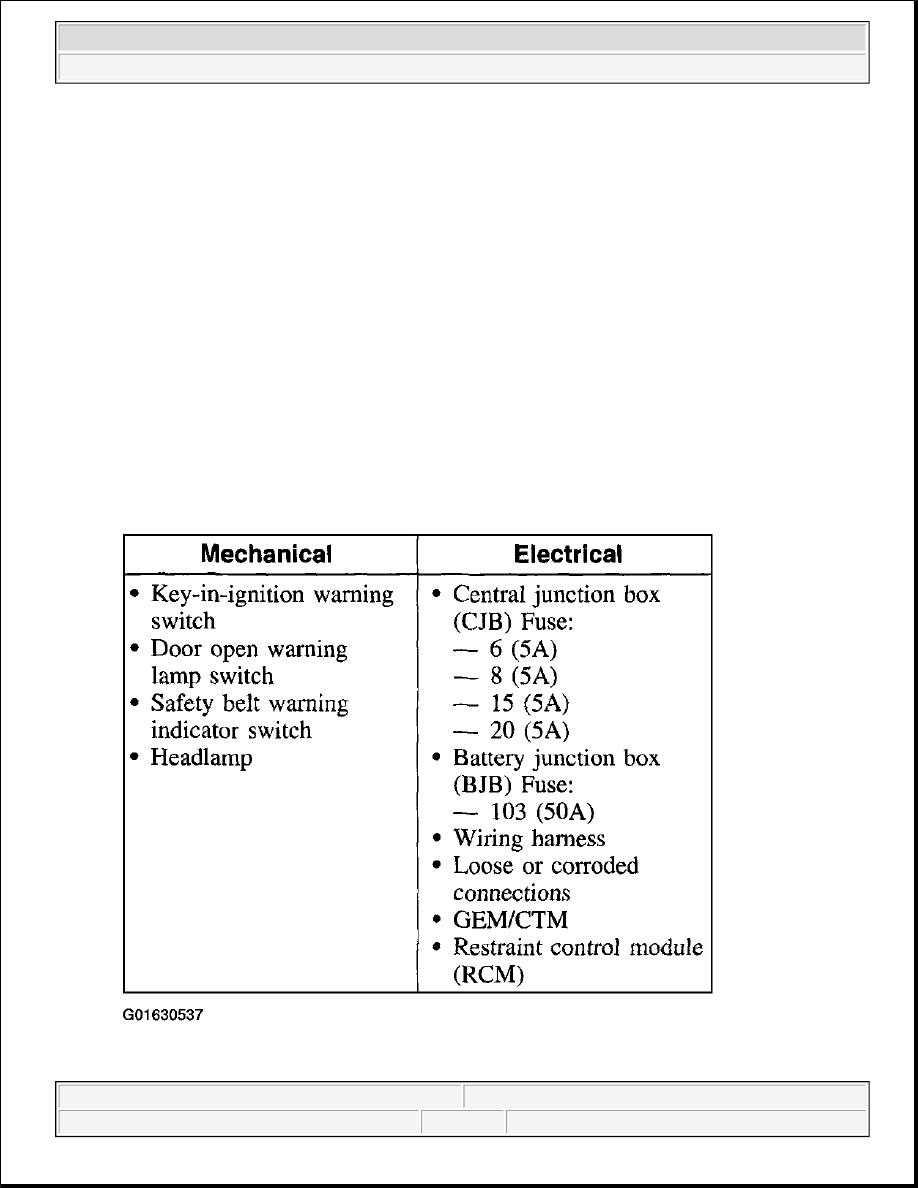

Visual Inspection Chart



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Warning Devices - F150 Pickup



Fig. 3: Visual Inspection Chart
Courtesy of FORD MOTOR CO.

3. If the concern remains after the inspection, connect the diagnostic tool to the data link connector (DLC)

located beneath the instrument panel and select the vehicle to be tested from the diagnostic tool menu. If
the diagnostic tool does not communicate with the vehicle:

z

Check that the program card is correctly installed.

z

Check the connections to the vehicle.

z

Check the ignition switch position.

4. If the diagnostic tool still does not communicate with the vehicle, refer to the diagnostic tool instruction.

5. Carry out the DATA LINK DIAGNOSTIC TEST. If the diagnostic tool responds with:

z

CKT914, CKT915 or CKT70 = ALL ECUS NO RESP/NOT EQUIP, refer to MODULE
COMMUNICATIONS NETWORK .

z

NO RESP/NOT EQUIP for GEM/CTM, go to Pinpoint Test A.

z

NO RESP/NOT EQUIP for RCM, refer to AIR BAG RESTRAINT SYSTEMS - F150 PICKUP .

z

SYSTEM PASSED, retrieve and record the continuous diagnostic trouble codes (DTCs), erase the
continuous DTCs and carry out self-test diagnostics for the RCM, GEM or CTM.

6. If the DTCs retrieved are related to the concern, go to GEM/CTM Module Diagnostic Trouble Code

(DTC) Index to continue diagnostics.

7. If no DTCs related to the concern are retrieved, proceed to the Symptom Chart to continue diagnostics.

GEM/CTM Diagnostic Trouble Code (DTC) Index

GEM/CTM Diagnostic Trouble Code (DTC) Index

GEM/CTM DIAGNOSTIC TROUBLE CODE (DTC) INDEX

DTC

Description

Source

Action

B1302

Accessory Delay Relay Coil

Circuit Failure

GEM

REFER to GLASS, FRAMES AND

MECHANISMS - F150 .

B1304

Accessory Delay Relay Coil

Circuit Short to Battery

GEM

REFER to GLASS, FRAMES AND

MECHANISMS - F150 .

B1313

Battery Saver Relay Coil

Circuit Failure

GEM/CTM

REFER to INTERIOR LIGHTING - F150 .

B1315

Battery Saver Relay Coil

Circuit Short to Battery

GEM/CTM

REFER to INTERIOR LIGHTING - F150 .

B1317

Battery Voltage High

GEM/CTM

REFER to GENERATORS & REGULATORS -

F150 PICKUP .

B1318

Battery Voltage Low

GEM/CTM

REFER to GENERATORS & REGULATORS -

F150 PICKUP .

B1322 Driver Door Ajar Circuit Short

to Ground

GEM/CTM

REFER to INTERIOR LIGHTING - F150 .

B1323 Door Ajar Lamp Circuit Failure GEM/CTM

REFER to INSTRUMENT CLUSTER-

CONVENTIONAL - F150 .
