Ford F150 Pickup. Instruction - part 307

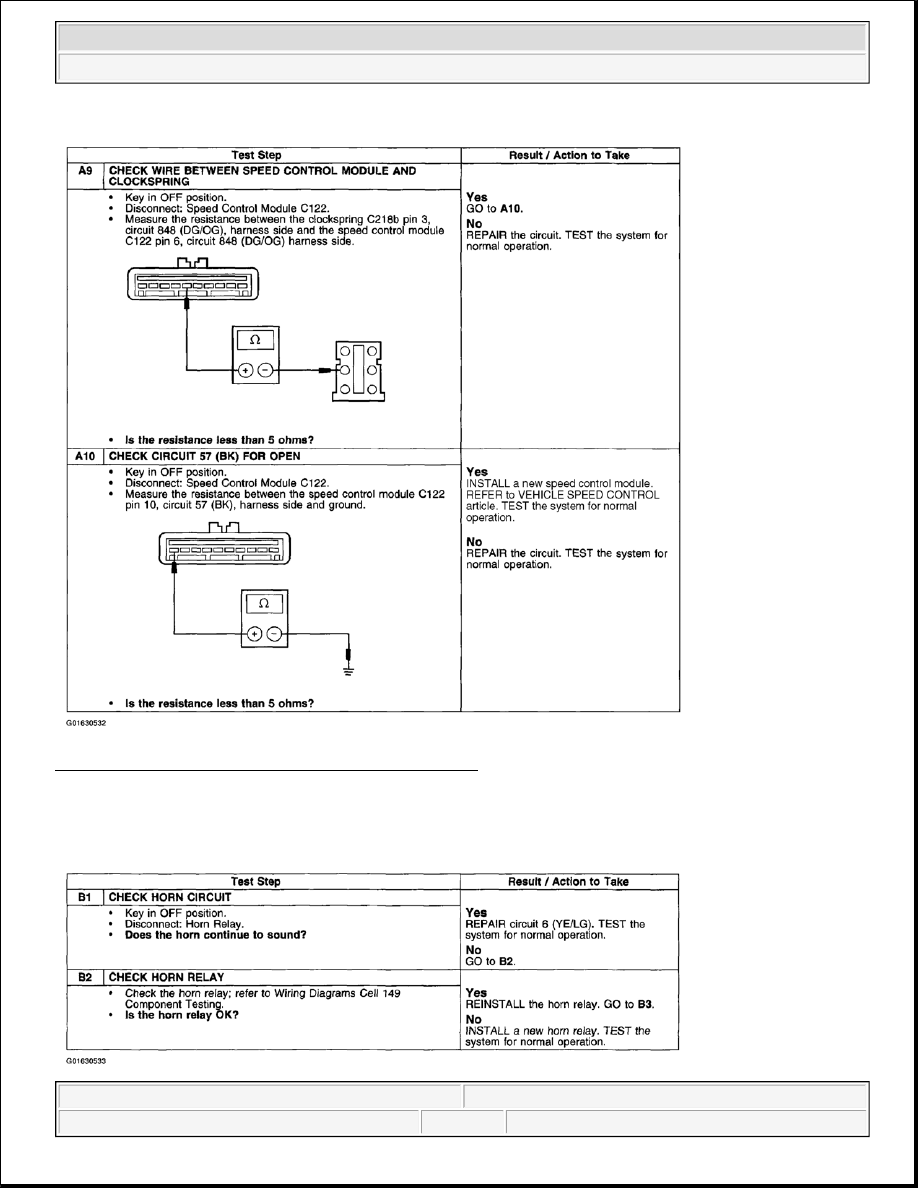

Fig. 9: Pinpoint Test A: Horn Is Inoperative (A9 - A10)
Courtesy of FORD MOTOR CO.

PINPOINT TEST B: HORN IS ALWAYS ON



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Horn - F150 Pickup



Fig. 10: Pinpoint Test B: Horn Is Always On (B1 - B2)
Courtesy of FORD MOTOR CO.

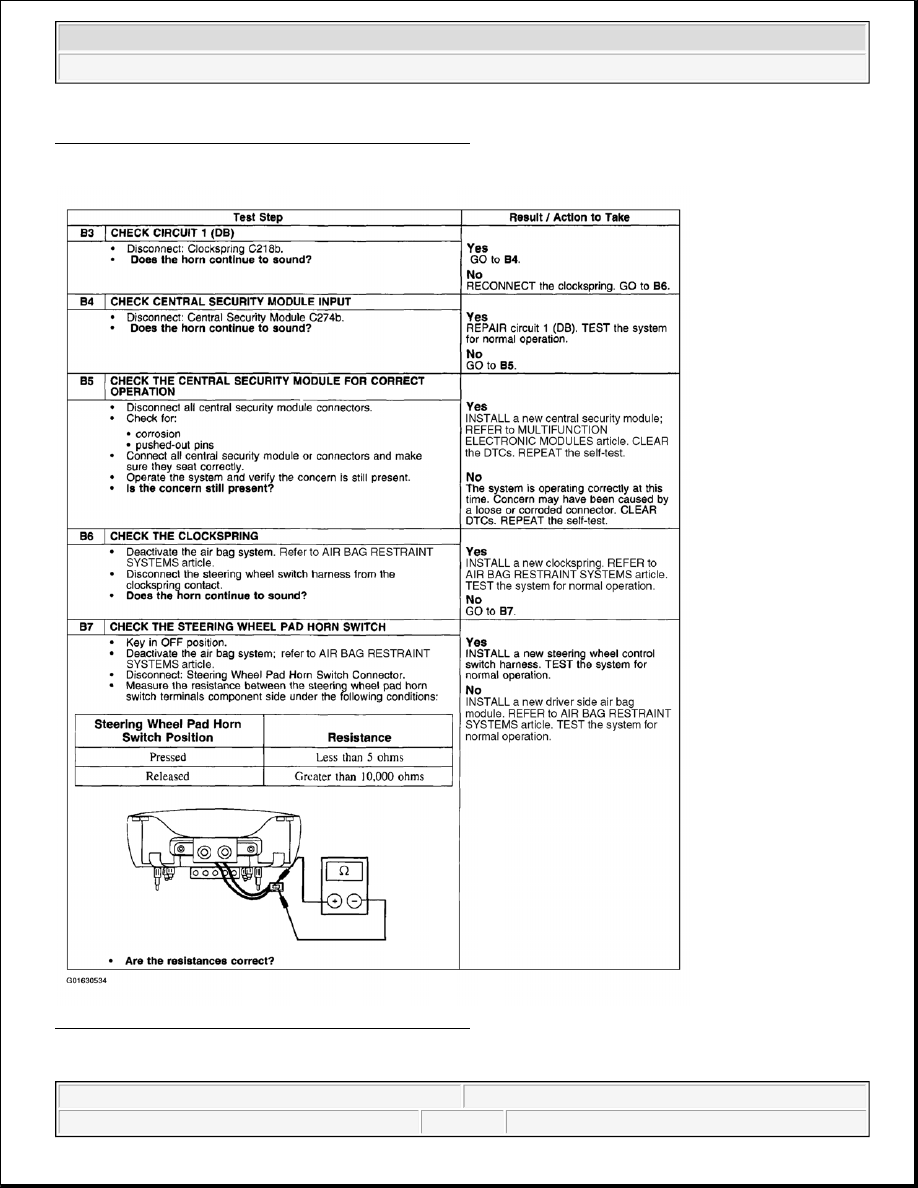

Fig. 11: Pinpoint Test B: Horn Is Always On (B3 - B7)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Horn - F150 Pickup



2003 STEERING

Steering Column Switches - F150 Pickup

SPECIFICATIONS

TORQUE SPECIFICATIONS

Fig. 1: Torque Specifications
Courtesy of FORD MOTOR CO.

DESCRIPTION & OPERATION

STEERING COLUMN SWITCHES

Steering Column Switches Component Location



2003 Ford Pickup F150

2003 STEERING Steering Column Switches - F150 Pickup





2003 Ford Pickup F150

2003 STEERING Steering Column Switches - F150 Pickup

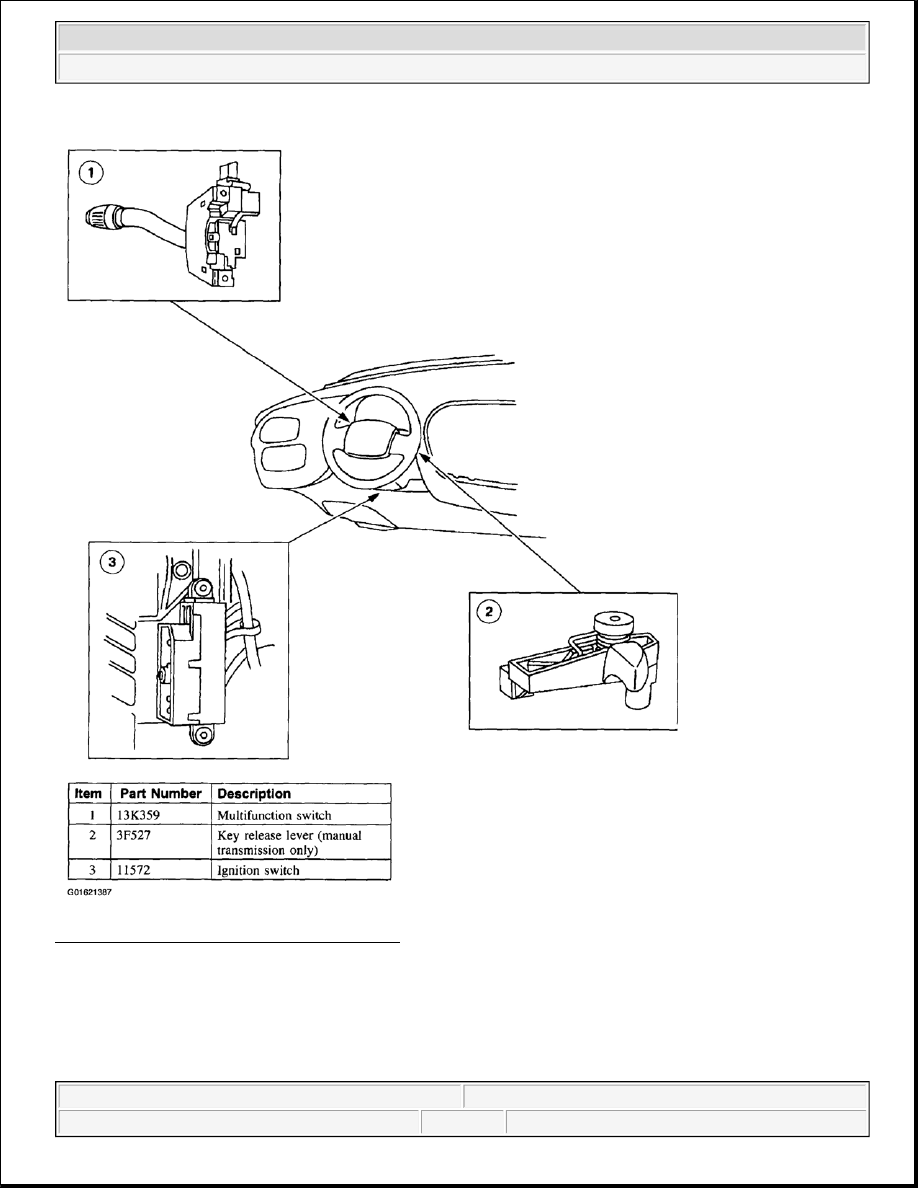

Fig. 2: Identifying Steering Column Switches
Courtesy of FORD MOTOR CO.

The integrated multifunction switch is mounted to the LH side of the steering column and controls the turn
signal, headlamp dimmer/flash-to-pass, windshield wiper/washer and hazard warning.

The ignition switch is mounted below the steering column and is activated using the ignition key and rotating



2003 Ford Pickup F150

2003 STEERING Steering Column Switches - F150 Pickup
