Ford F150 Pickup. Instruction - part 303

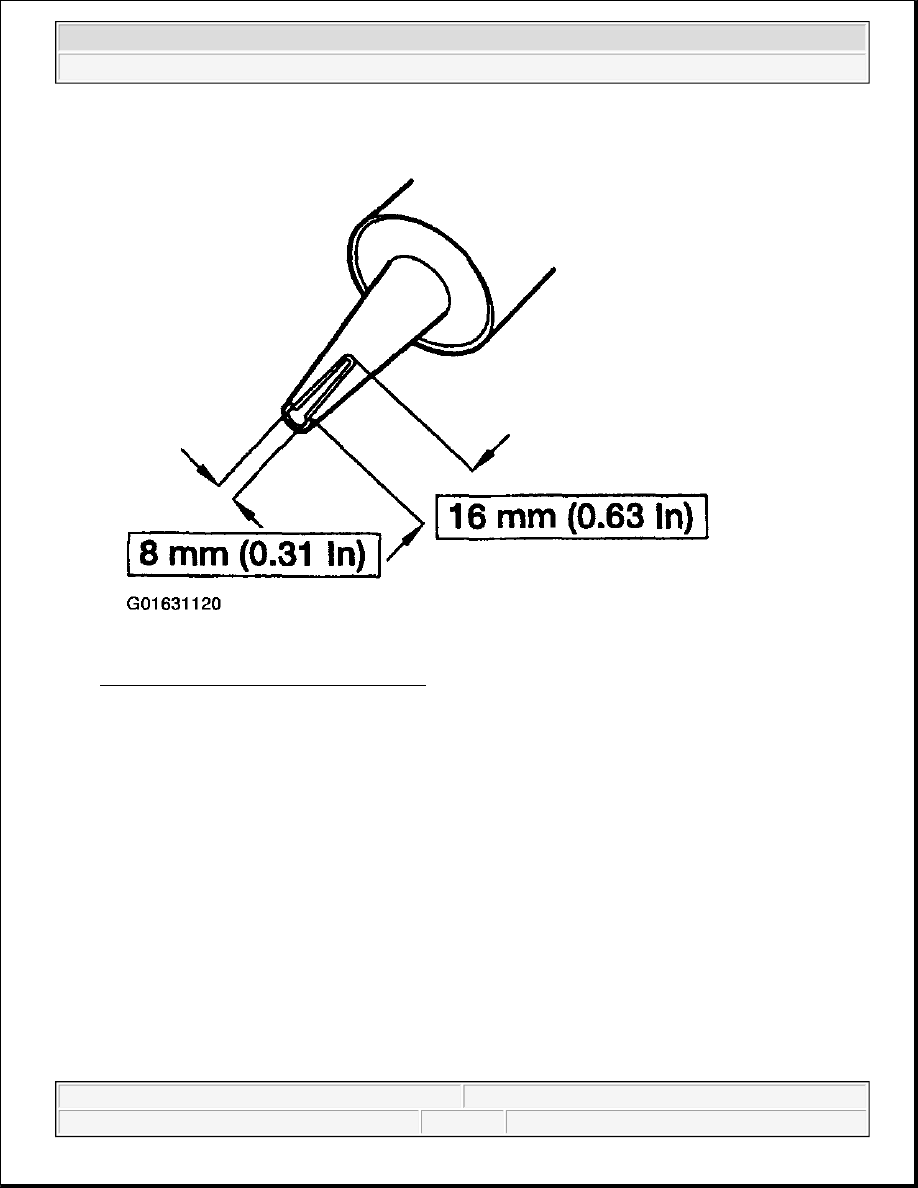

Fig. 134: Cutting Urethane Applicator Tip
Courtesy of FORD MOTOR CO.

CAUTION: If a vehicle is to be driven within 24 hours of urethane adhesive

application, Urethane Adhesive Essex U-216 meeting Ford
specification WSB-M2G316-B must be used due to its one hour cure
time.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Glass, Frames and Mechanisms - F150 Pickup



Fig. 135: Applying A Bead Of Urethane Adhesive
Courtesy of FORD MOTOR CO.

10. Apply a bead of Urethane Adhesive Essex 400 HV or Essex U-216 meeting Ford specification WSB-

M2G316-B to the pinch weld just outside the foam dam.

11. Install the upper windshield weatherstrip.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Glass, Frames and Mechanisms - F150 Pickup

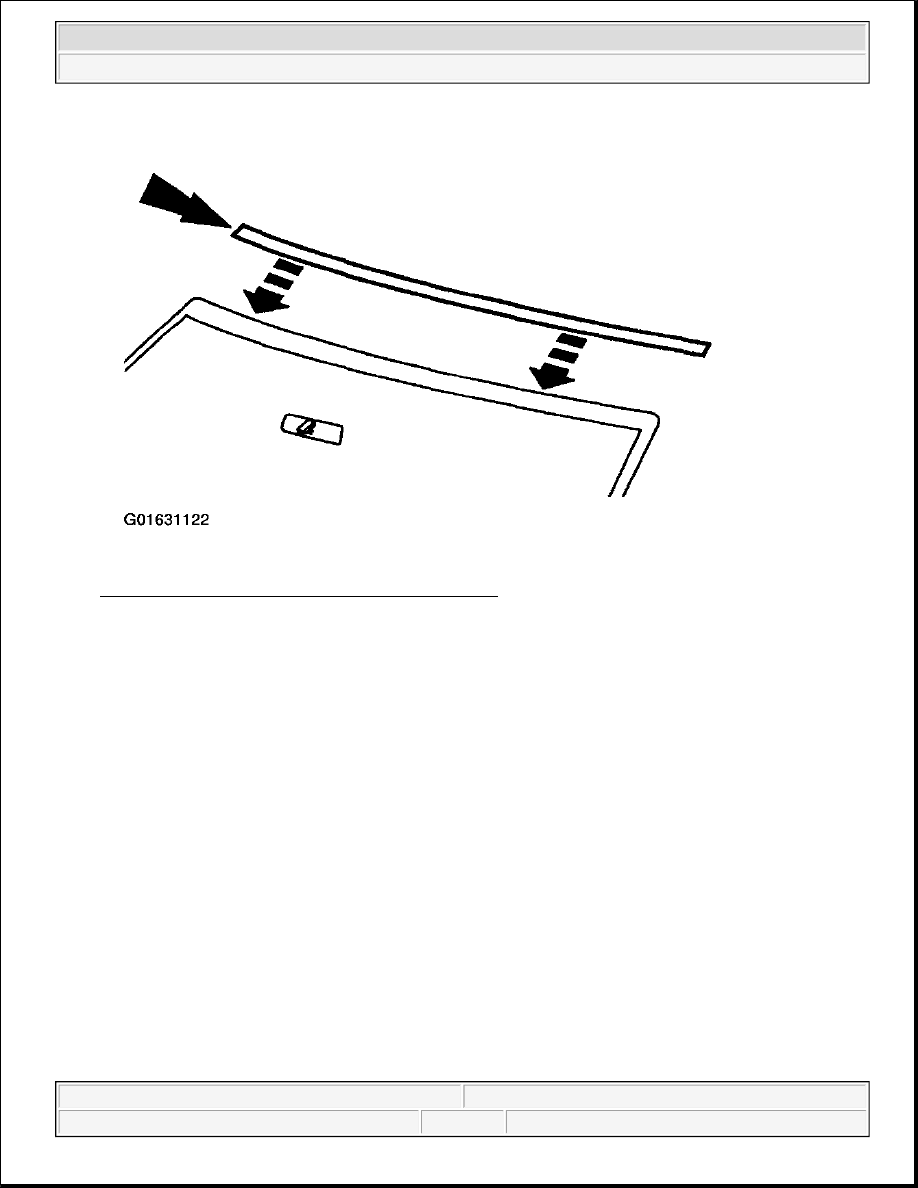

Fig. 136: Installing Upper Windshield Weatherstrip
Courtesy of FORD MOTOR CO.

CAUTION: Open the windows to prevent the windshield glass from being

pushed out by air pressure if a door is closed.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Glass, Frames and Mechanisms - F150 Pickup

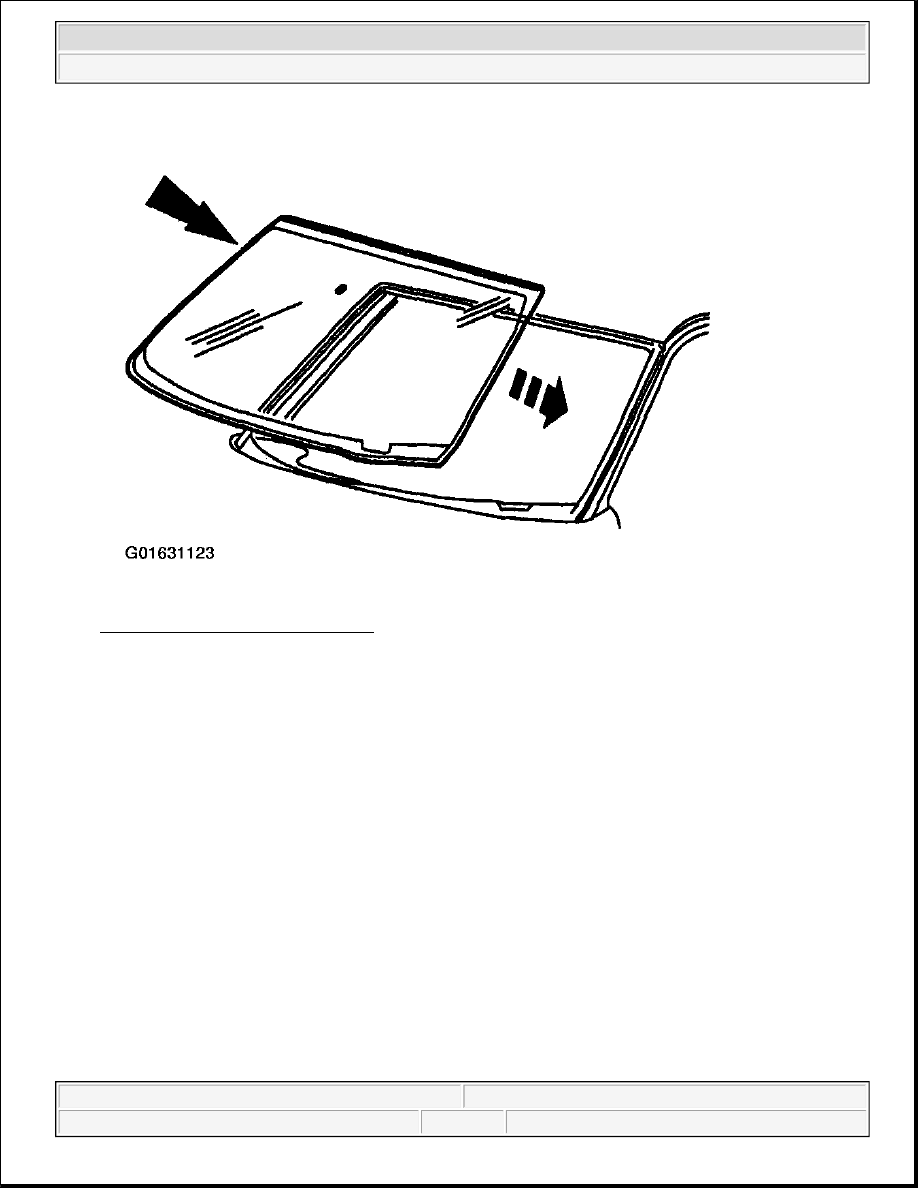

Fig. 137: Installing windshield glass
Courtesy of FORD MOTOR CO.

12. Using the alignment marks, install the windshield glass.

13. Check the installation for air and water leaks through the urethane bond and add urethane adhesive where

needed.

14. Paddle the excess urethane adhesive from the two sides of the windshield glass.

15. If necessary, remove excess urethane adhesive from the outside surface of the windshield glass.

16. Install the LH and RH windshield moldings.

NOTE:

Use one continuous stroke when removing the excess urethane adhesive.
