Ford F150 Pickup. Instruction - part 301

Fig. 126: Removing LH And RH Sun Visor Clips
Courtesy of FORD MOTOR CO.

8. Lower the front portion of the headliner.

9. Remove the upper windshield weatherstrip.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Glass, Frames and Mechanisms - F150 Pickup

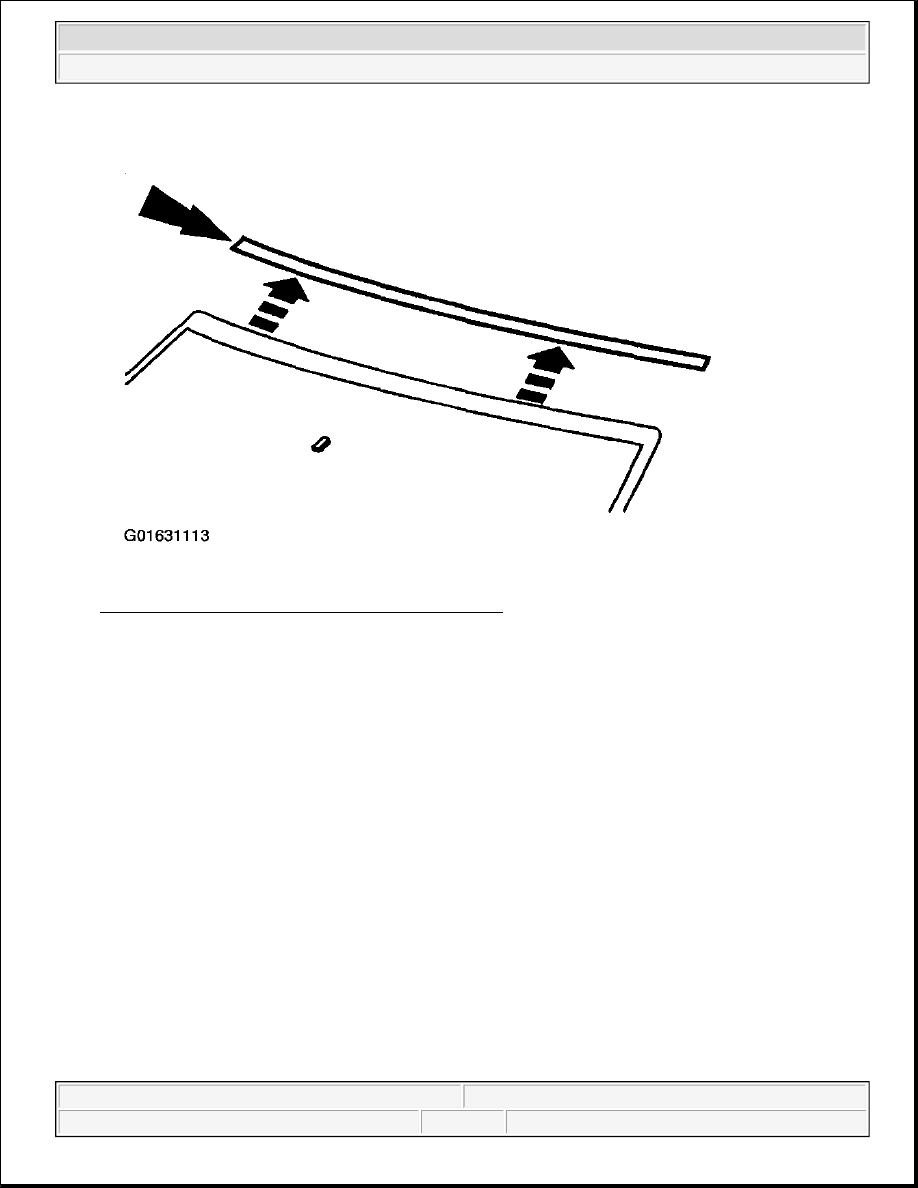

Fig. 127: Removing Upper Windshield Weatherstrip
Courtesy of FORD MOTOR CO.

10. Remove the LH and RH windshield moldings.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Glass, Frames and Mechanisms - F150 Pickup

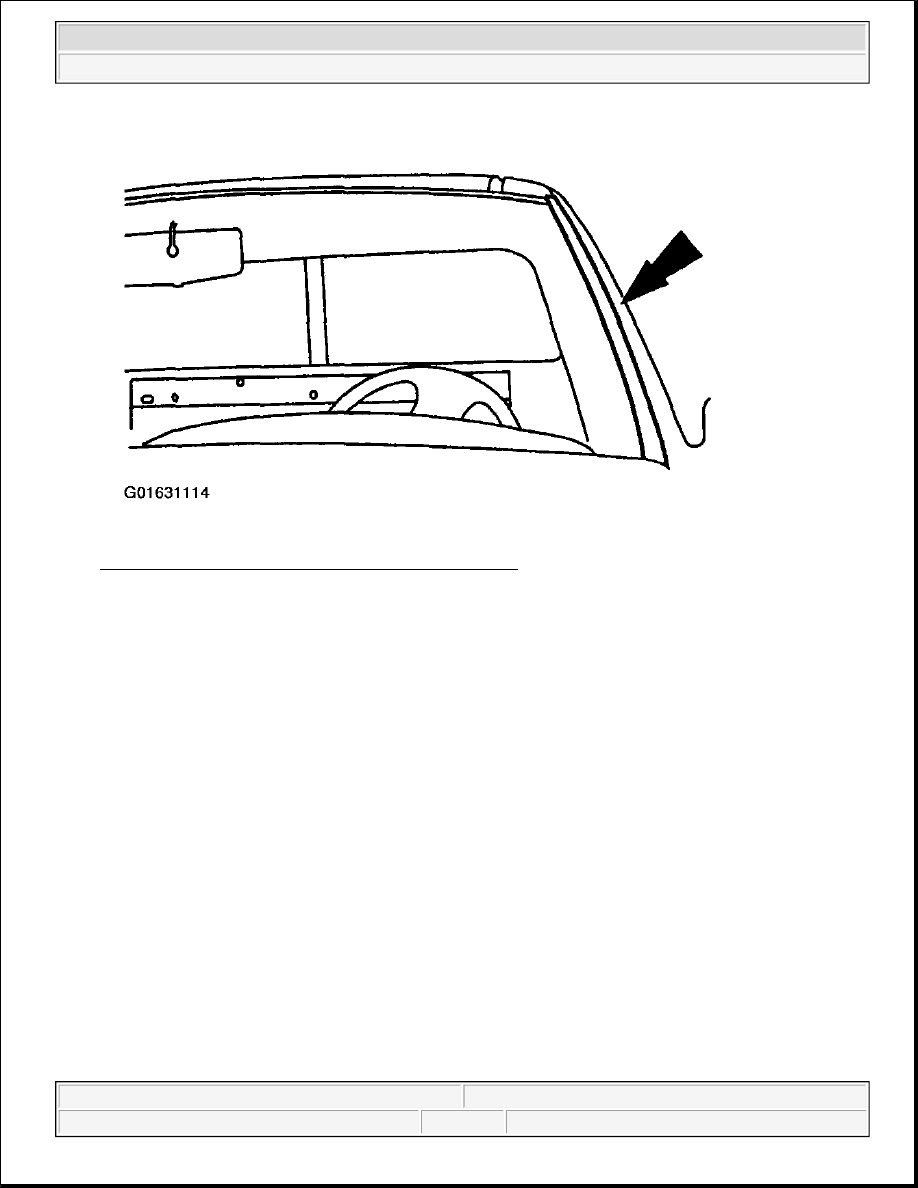

Fig. 128: Removing LH And RH Windshield Moldings
Courtesy of FORD MOTOR CO.

11. Mark the outside of the windshield glass with a wax pencil to avoid damaging the glass stops when

cutting urethane adhesive.

12. Using a soft brush or vacuum, remove any dirt and foreign material from the pinch weld.

13. Using special tool, cut the urethane adhesive from the windshield glass.

z

Insert the blade into the urethane at the top middle and work toward the bottom corners.

CAUTION: Care must be taken to avoid scratching the pinch weld.

NOTE:

Lubricate the urethane adhesive with water to aid Interior Auto Glass Cut-
Out Knife Kit when cutting the urethane adhesive.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Glass, Frames and Mechanisms - F150 Pickup

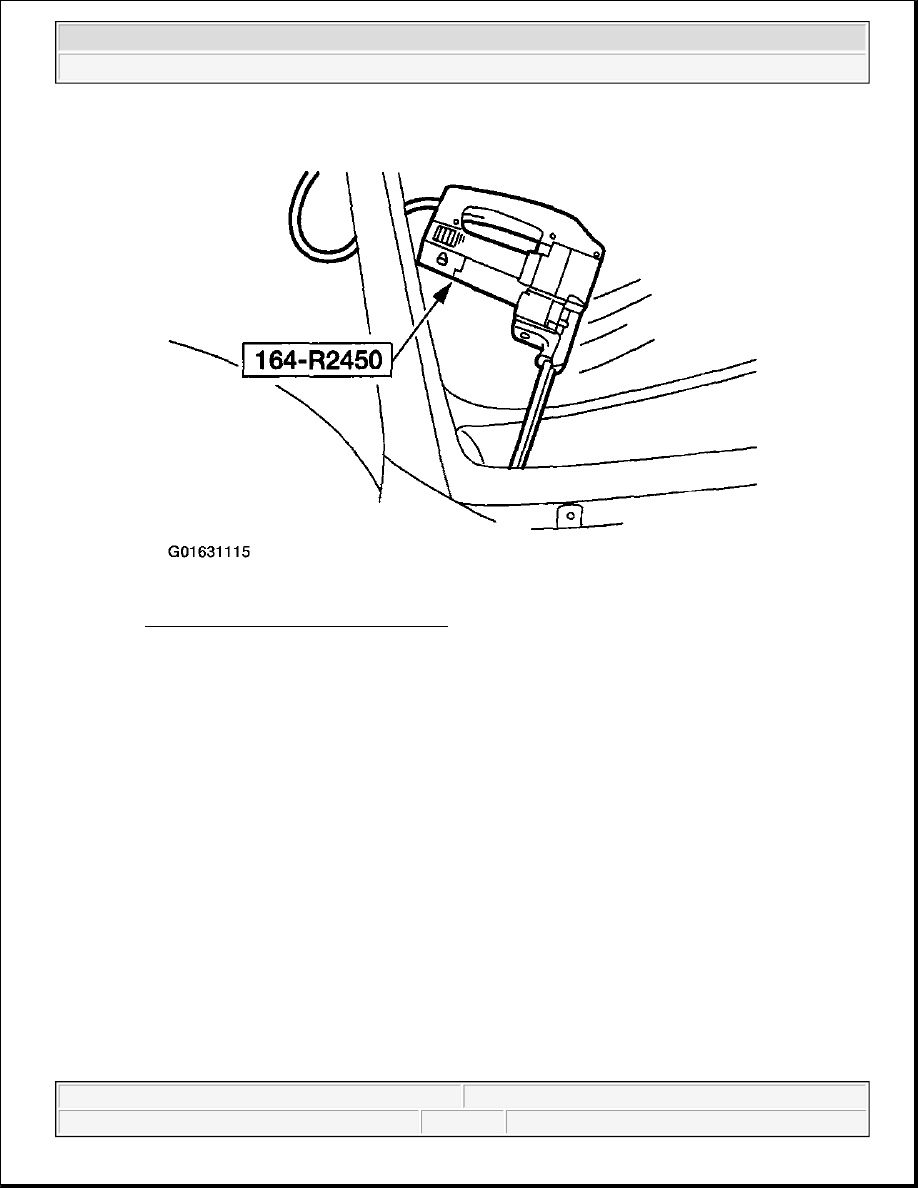

Fig. 129: Inserting Blade Into Urethane
Courtesy of FORD MOTOR CO.

14. Using the special tool, distance the windshield from the body.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Glass, Frames and Mechanisms - F150 Pickup
