Ford F150 Pickup. Instruction - part 282

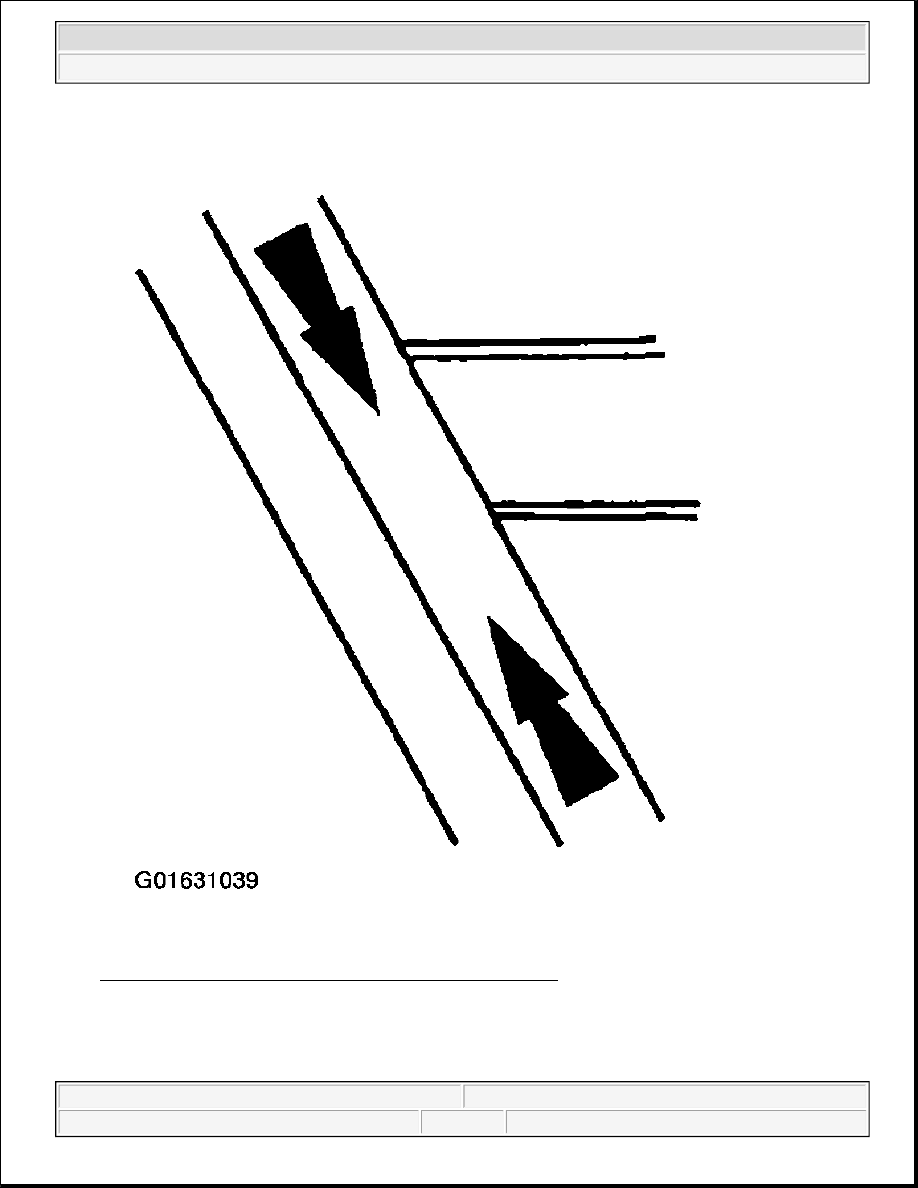

Fig. 53: Identifying Bus Bar Area Serviced With Steel Wool
Courtesy of FORD MOTOR CO.

1. Clean the bus bar in the area to be serviced with steel wool (3/0 to 4/0 grade).



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Glass, Frames and Mechanisms - F150 Pickup

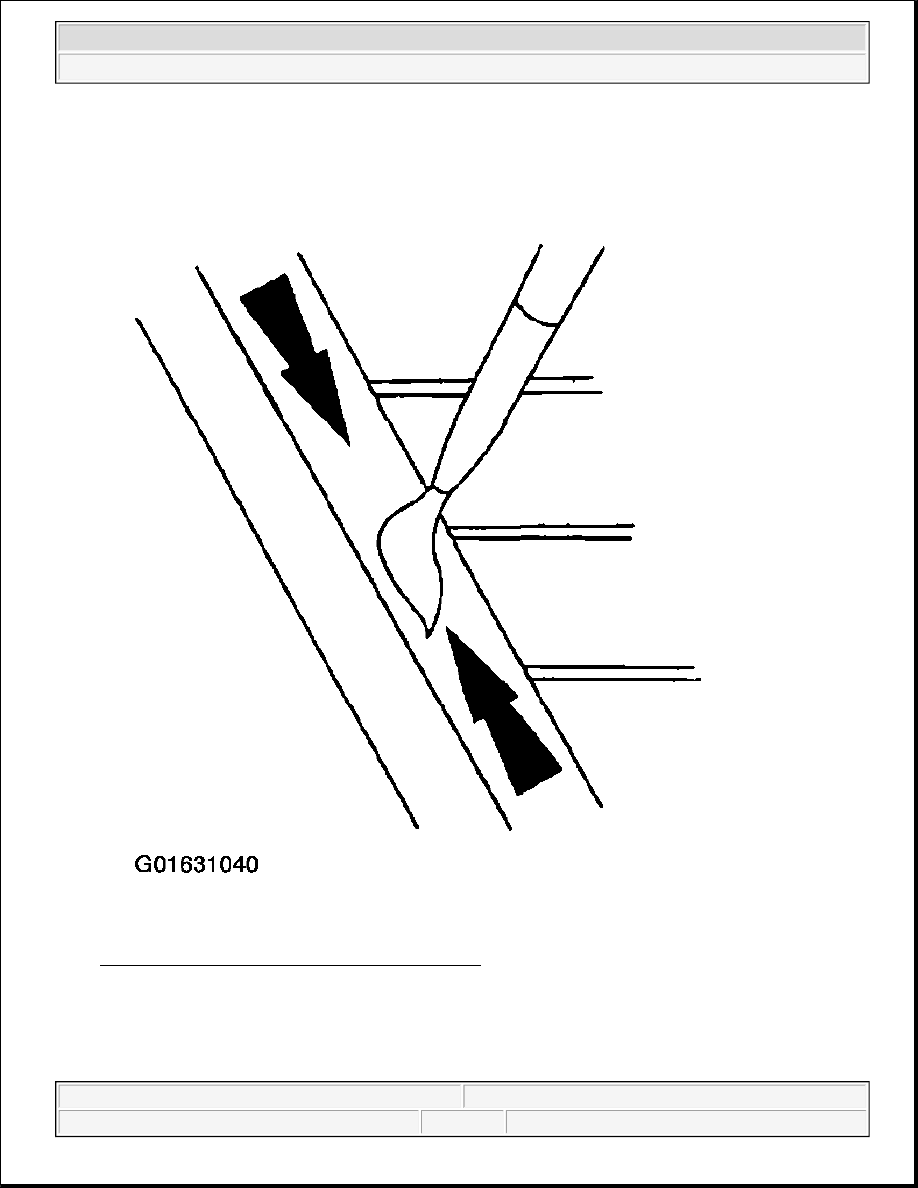

Fig. 54: Applying Rear Window Defroster Repair
Courtesy of FORD MOTOR CO.

2. Apply three coats of rear window defroster repair.

NOTE:

Allow 10 minutes of drying time between the coats.

CAUTION: Do not overheat the rear window glass or damage to the rear window



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Glass, Frames and Mechanisms - F150 Pickup



glass may occur.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Glass, Frames and Mechanisms - F150 Pickup





2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Glass, Frames and Mechanisms - F150 Pickup
