Ford F150 Pickup. Instruction - part 281

Fig. 47: Marking Location Of Grid Break
Courtesy of FORD MOTOR CO.

5. Using cellulose tape, mask the area directly above and below the grid break. The break area should be at

the center of the mask.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Glass, Frames and Mechanisms - F150 Pickup



Fig. 48: Masking Area Directly Above And Below Grid Break
Courtesy of FORD MOTOR CO.

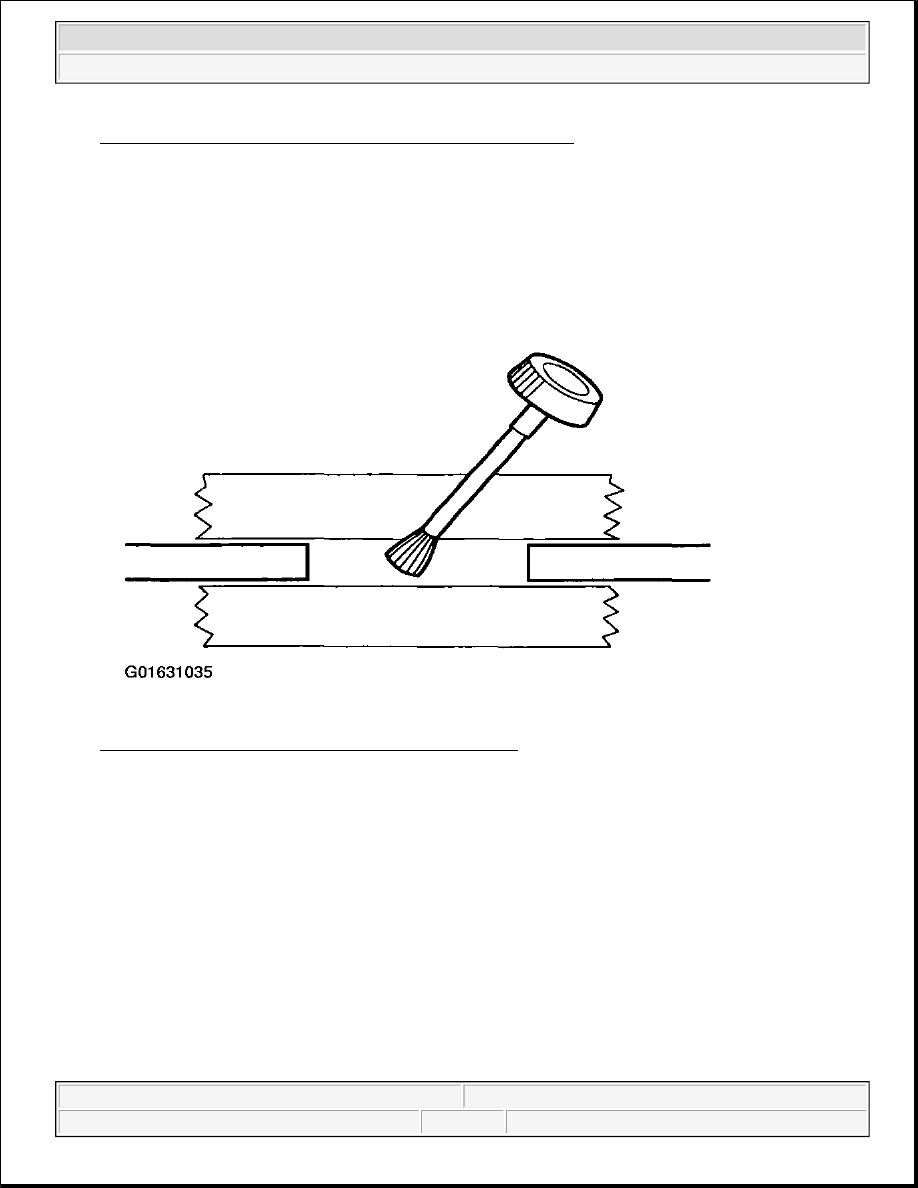

Fig. 49: Applying Repair Coating To Grid Break Area
Courtesy of FORD MOTOR CO.

6. Apply the repair coating to the grid break area in several smooth, continuous strokes. Extend the repair

coating at least 6.35 mm (0.25 inch) on both sides of the break area.

NOTE:

If the brown layer is not broken or missing, apply only the silver grid repair
compound to the break.

NOTE:

Allow at least five minutes of drying time between applications.

NOTE:

If both the brown and silver layers of the grid are broken or missing, apply
a coating of the brown touch-up paint across the break area first. Several
applications may be necessary to achieve a color match.

NOTE:

Extend the repair coating at least 6.35 mm (0.25 inch) on both sides of the
break area.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Glass, Frames and Mechanisms - F150 Pickup



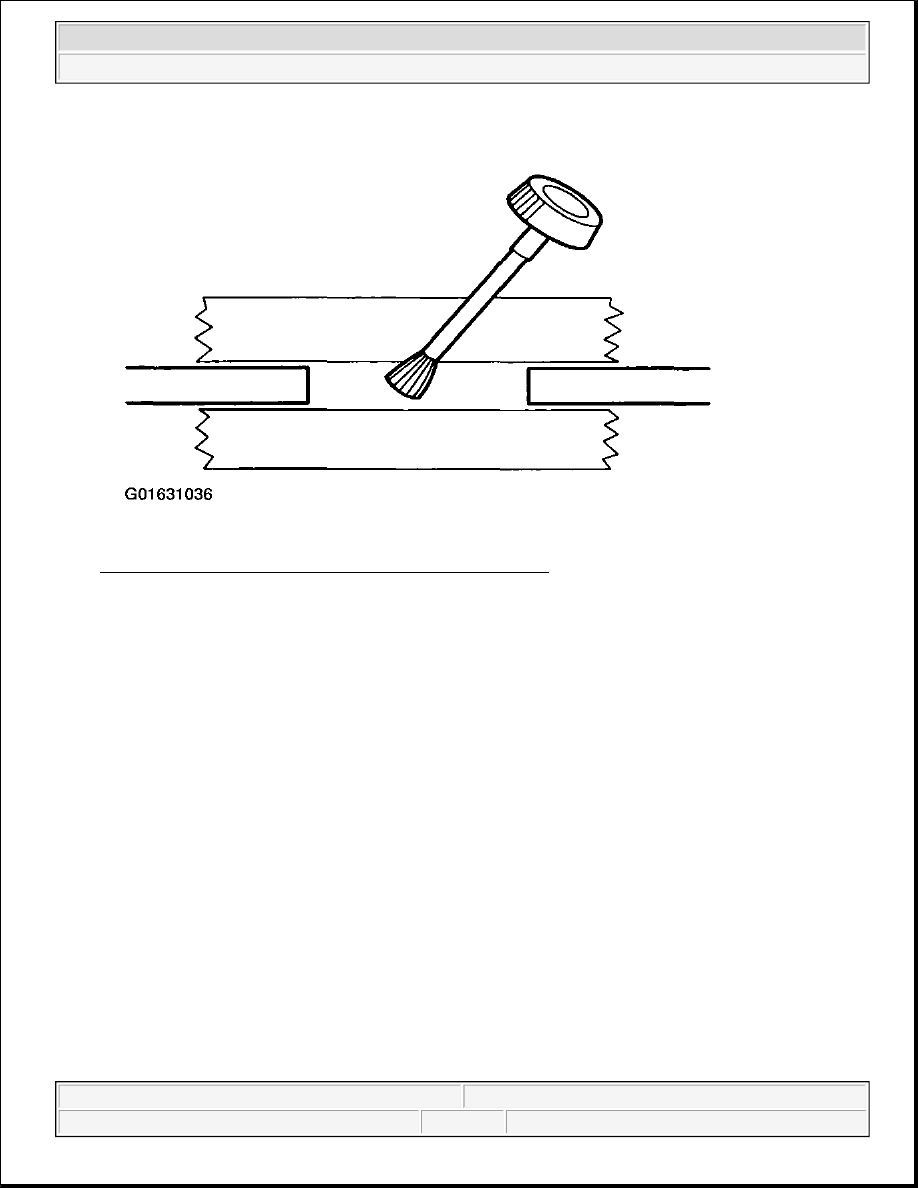

Fig. 50: Applying Applications Of Grid Repair Compound
Courtesy of FORD MOTOR CO.

7. Apply three applications of the grid repair compound.

8. After five minutes or after the repair area has dried completely, remove the mask.

9. Remove any excess repair compound above or below the grid line with a razor blade.

10. After optimum hardness is achieved, clean the repaired area with a non-alcohol based window cleaner.

LEAD TERMINAL REPAIR

Special Tool(s)

CAUTION: Be careful not to damage the grid line with the razor blade. If this

occurs, additional repair may be necessary.

NOTE:

The repair coating will air-dry in approximately one minute and can be
energized within three minutes.

NOTE:

Optimum adhesion occurs after approximately 24 hours.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Glass, Frames and Mechanisms - F150 Pickup



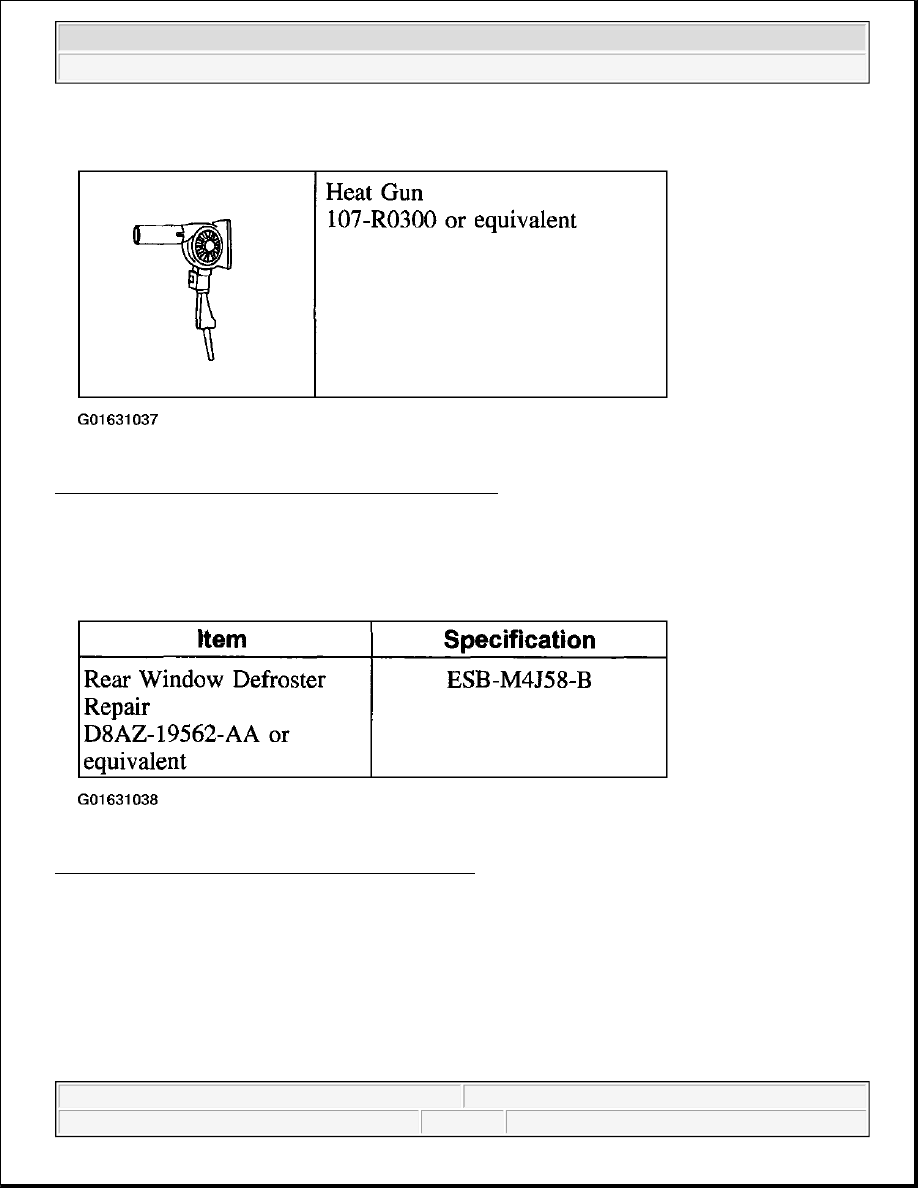

Fig. 51: Identifying Lead Terminal Repair Special Tool(s)
Courtesy of FORD MOTOR CO.

Material

Fig. 52: Glass Frame And Mechanisms Material Chart
Courtesy of FORD MOTOR CO.

NOTE:

The rear window glass must be at room temperature at the time of the
repair.
