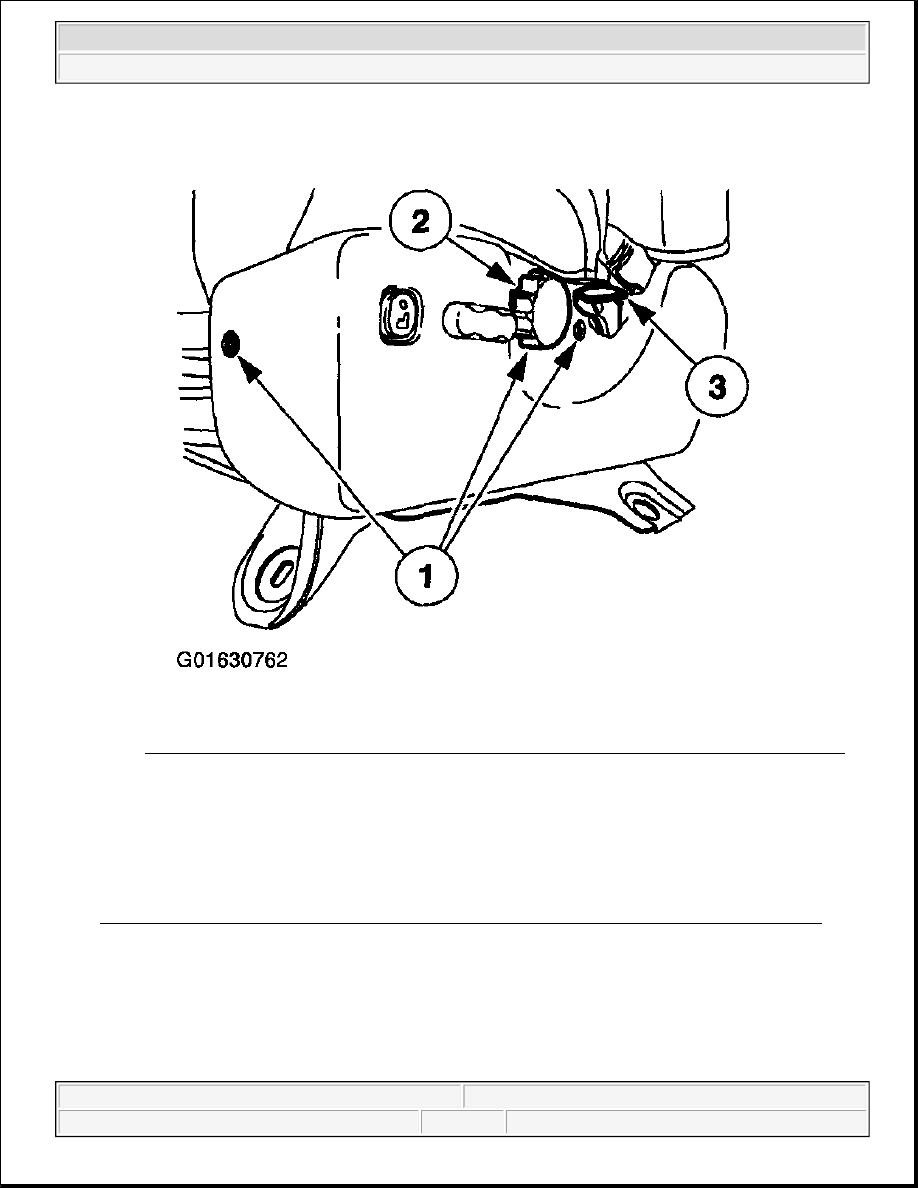

Fig. 158: Installing Seat Adjuster Control Knobs, Covers And Seat Side Trim Panel Screws
Courtesy of FORD MOTOR CO.

5. Reactivate the supplemental restraint system (SRS) deactivation/reactivation procedure. Refer to

SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEACTIVATION AND REACTIVATION .

6. With all the restraint system diagnostic tools removed, prove out the supplemental restraint system (SRS).

WARNING:

To reduce the risk of serious personal injury, read and follow all
warnings, cautions, notes and instructions in the supplemental
restraint system (SRS) deactivation/reactivation procedure.

WARNING:

The restraint system diagnostic tool is for restraint system service
only. Remove from the vehicle prior to road use. Failure to remove
could result in injury and possible violation of vehicle safety
standards.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup



Refer to SYSTEM OPERATION CHECK .

FRONT SEAT BACKREST - SEAT INTEGRATED RESTRAINTS (SIR)

Removal

1. Disconnect the battery ground cable (14301) and wait at least one minute.

2. Deactivate the supplemental restraint system (SRS). Refer to SUPPLEMENTAL RESTRAINT

SYSTEM (SRS) DEACTIVATION AND REACTIVATION .

WARNING:

Always wear safety glasses when repairing an air bag supplemental
restraint system (SRS) vehicle and when handling an airbag module. This
will reduce the risk of injury in the event of an accidental deployment.

WARNING:

After deployment, the air bag surface can contain deposits of sodium
hydroxide, a product of the gas generant combustion that is irritating to
the skin. Wash your hands with soap and water afterwards.

WARNING:

The safety belt pretensioner is a pyrotechnic device. Always wear safety
glasses when repairing an air bag equipped vehicle and when handling a
safety belt buckle pretensioner or safety belt retractor pretensioner.
Never probe a pretensioner electrical connector. Doing so could result in
pretensioner or air bag deployment and could result in personal injury.

NOTE:

The 40 percent seat is shown, the 60 percent seat is similar.

WARNING:

To avoid accidental deployment and possible personal injury, the
backup power supply must be depleted before repairing or replacing
any front or side air bag supplemental restraint system (SRS)
components and before servicing, replacing, adjusting or striking
components near the front or side air bag sensors, such as doors,
instrument panel, console, door latches, strikers, seats and hood
latches.
To deplete the backup power supply energy, disconnect the battery
ground cable and wait at least one minute. Be sure to disconnect
auxiliary batteries and power supplies (if equipped).

WARNING:

To reduce the risk of serious personal injury, read and follow all
warnings, cautions, notes, and instructions in the supplemental
restraint system (SRS) deactivation/reactivation procedure.

WARNING:

To reduce the risk of serious personal injury, read and follow all
warnings, cautions, notes, and instructions in the seat removal and



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup



3. Remove the affected seat. Refer to FRONT SEAT-WITH SEAT INTEGRATED RESTRAINTS

(SIR) .

4. Remove the affected front seat cushion. Refer to FRONT SEAT CUSHION-SEAT INTEGRATED

RESTRAINTS (SIR) .

5. Remove the safety belt pretensioner attachment nut and release the safety pretensioner from the seat.

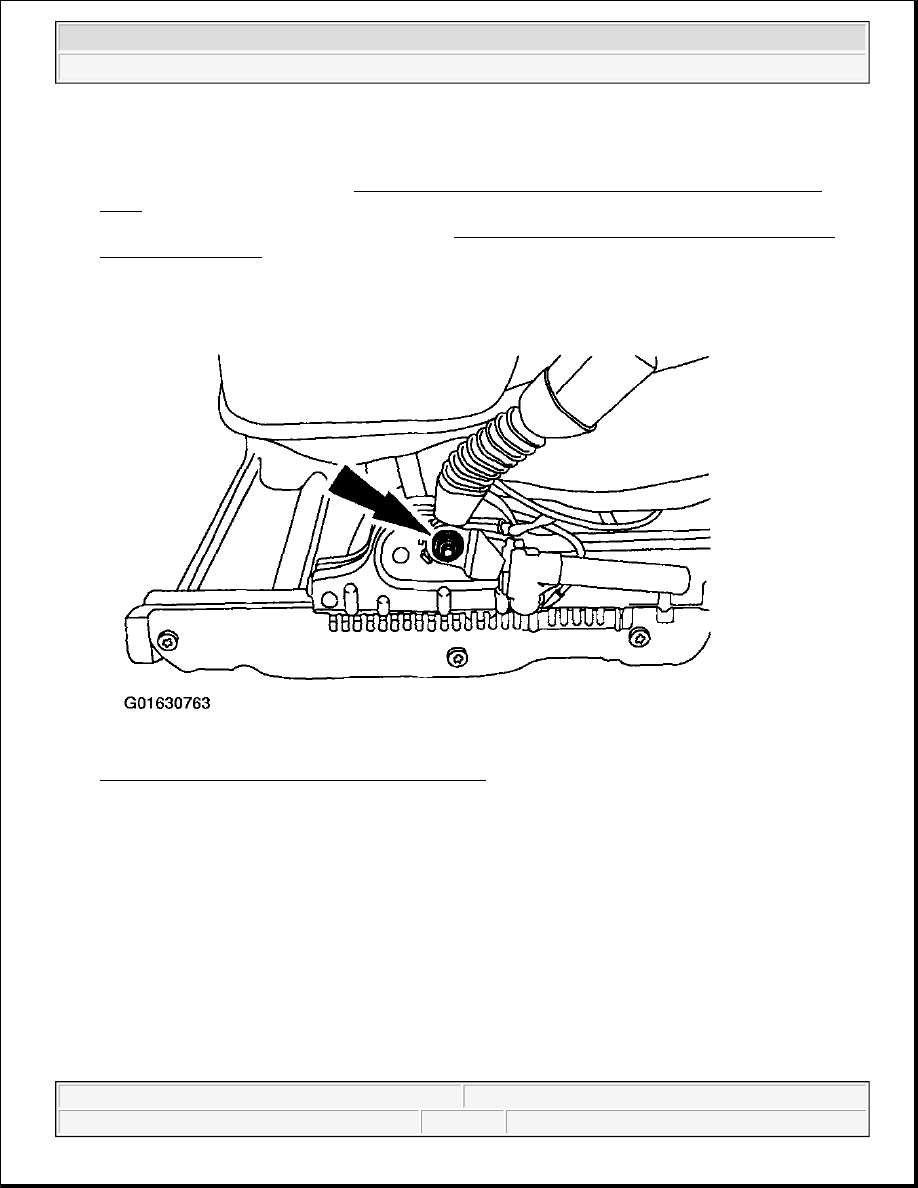

Fig. 159: Releasing Safety Pretensioner From Seat
Courtesy of FORD MOTOR CO.

6. Disconnect lumbar adjuster control cable, remove the front seat backrest recliner bolt and safety belt

anchor nut.

1. Release the lumbar adjuster control cable from its two attachment points. Remove the tie strap that

secures the cable to the frame.

2. Remove the front seat backrest recliner bolt.

3. Remove safety belt anchor nut.

installation procedure.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup

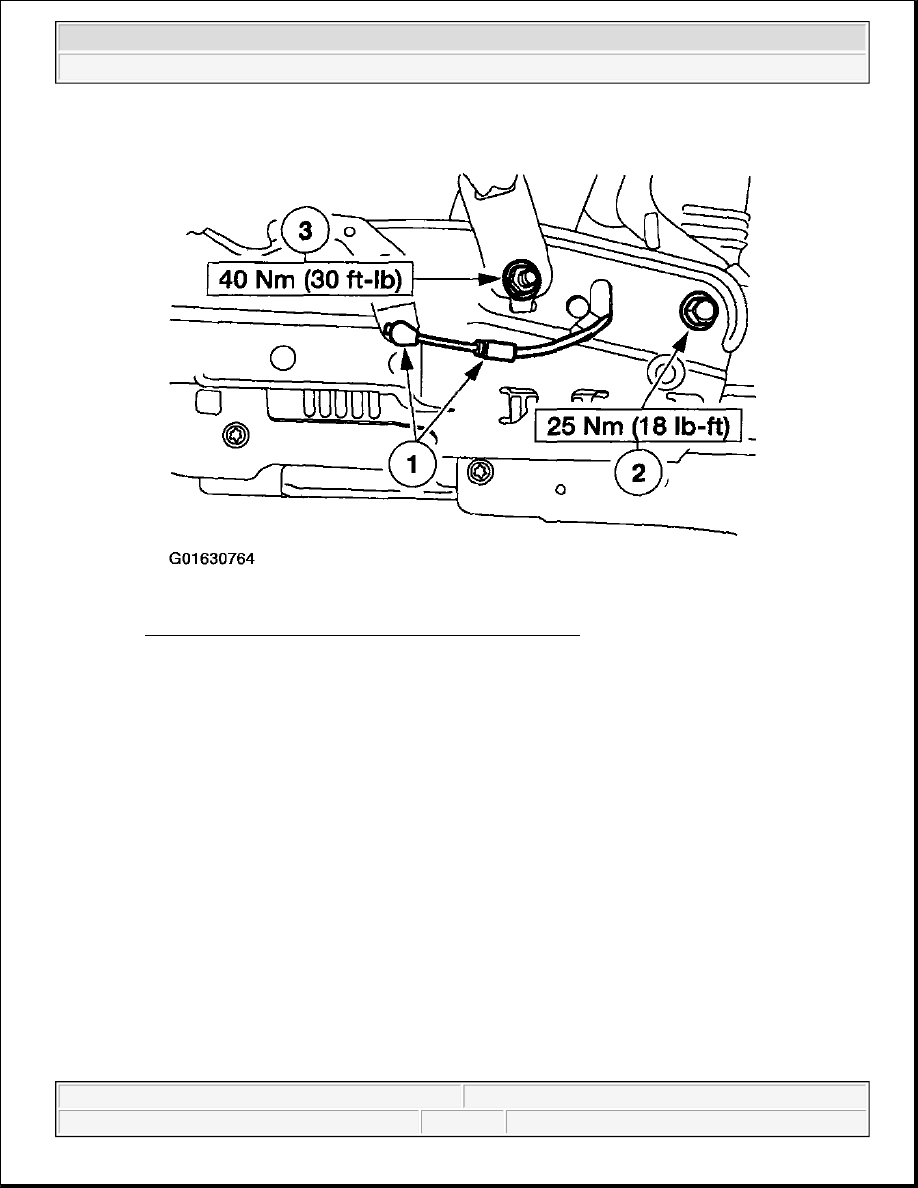

Fig. 160: Disconnecting Lumbar Adjuster Control Cable
Courtesy of FORD MOTOR CO.

NOTE:

Discard the two front seat backrest pivot bolts and install new units during
reassembly.
