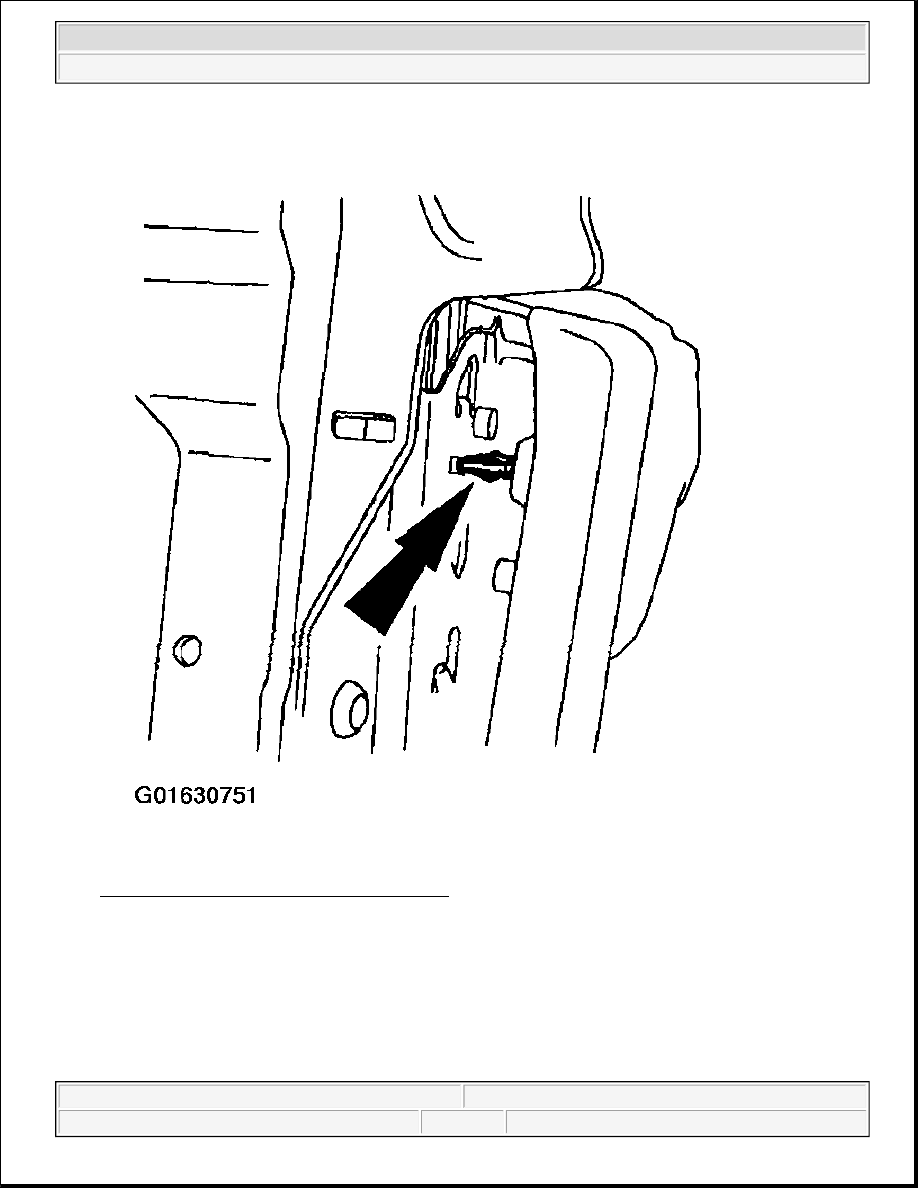

Fig. 147: Installing Side Shield Rear Retainer
Courtesy of FORD MOTOR CO.

4. Position the lumbar adjuster control. Install the two mounting screws.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup



Fig. 148: Installing Two Mounting Screws
Courtesy of FORD MOTOR CO.

5. Install the seat adjuster control knobs, covers and the seat side trim panel screws.

1. Install the three seat side trim panel attachment screws.

2. Install the lumbar control knob.

3. Install the seat recliner handle screw and handle.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup

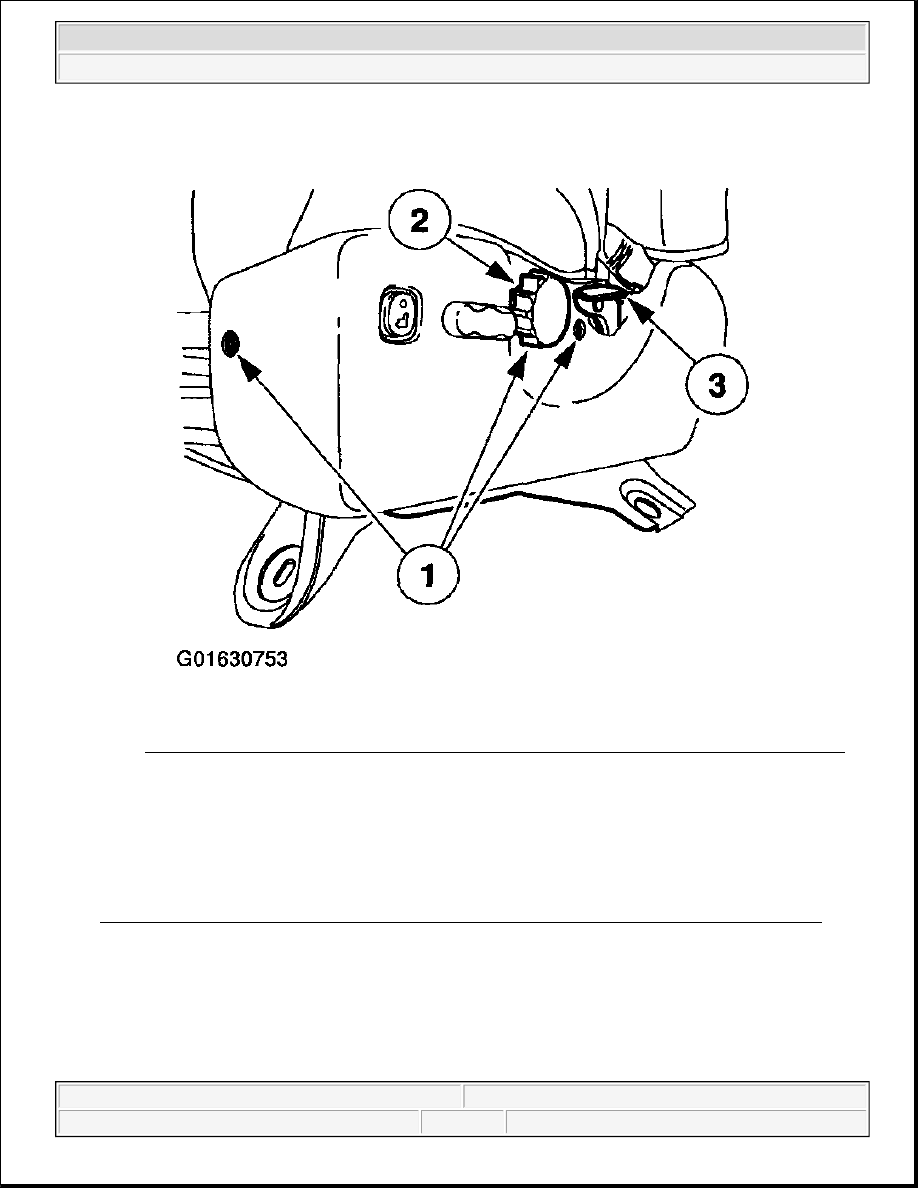

Fig. 149: Installing Seat Adjuster Control Knobs, Covers And Seat Side Trim Panel Screws
Courtesy of FORD MOTOR CO.

6. Reactivate the supplemental restraint system (SRS) deactivation/reactivation procedure. Refer to

SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEACTIVATION AND REACTIVATION .

7. With all the restraint system diagnostic tools removed, prove out the supplemental restraint system (SRS).

WARNING:

To reduce the risk of serious personal injury, read and follow all
warnings, cautions, notes and instructions in the supplemental
restraint system (SRS) deactivation/reactivation procedure.

WARNING:

The restraint system diagnostic tool is for restraint system service
only. Remove from the vehicle prior to road use. Failure to remove
could result in injury and possible violation of vehicle safety
standards.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup



Refer to SYSTEM OPERATION CHECK .

8. Check the active restraints for correct operation. Refer to SAFETY BELT SYSTEM .

SEAT BACKREST - REAR SEAT

Removal

1. Fold down both rear seat cushions.

2. Remove the rear seat back (66600).

1. Push in on the wire on the bottom of both sides to disengage.

2. Lift the rear seat back upward and remove.

Fig. 150: Removing Rear Seat Back
Courtesy of FORD MOTOR CO.

Installation

1. Install the lower wires into the channels located on the rear wall.

2. Locate the upper outer and middle wires into the upper snaps and push down.

3. Check the active restraint system for correct operation. Refer to SAFETY BELT SYSTEM .

HEATED SEAT SWITCH - SEAT INTEGRATED RESTRAINTS (SIR)



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup
