Fig. 143: Disconnecting Seat Control Switch Electrical Connector
Courtesy of FORD MOTOR CO.

8. Remove the two screws. Pull the power seat adjuster control from the trim panel.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup

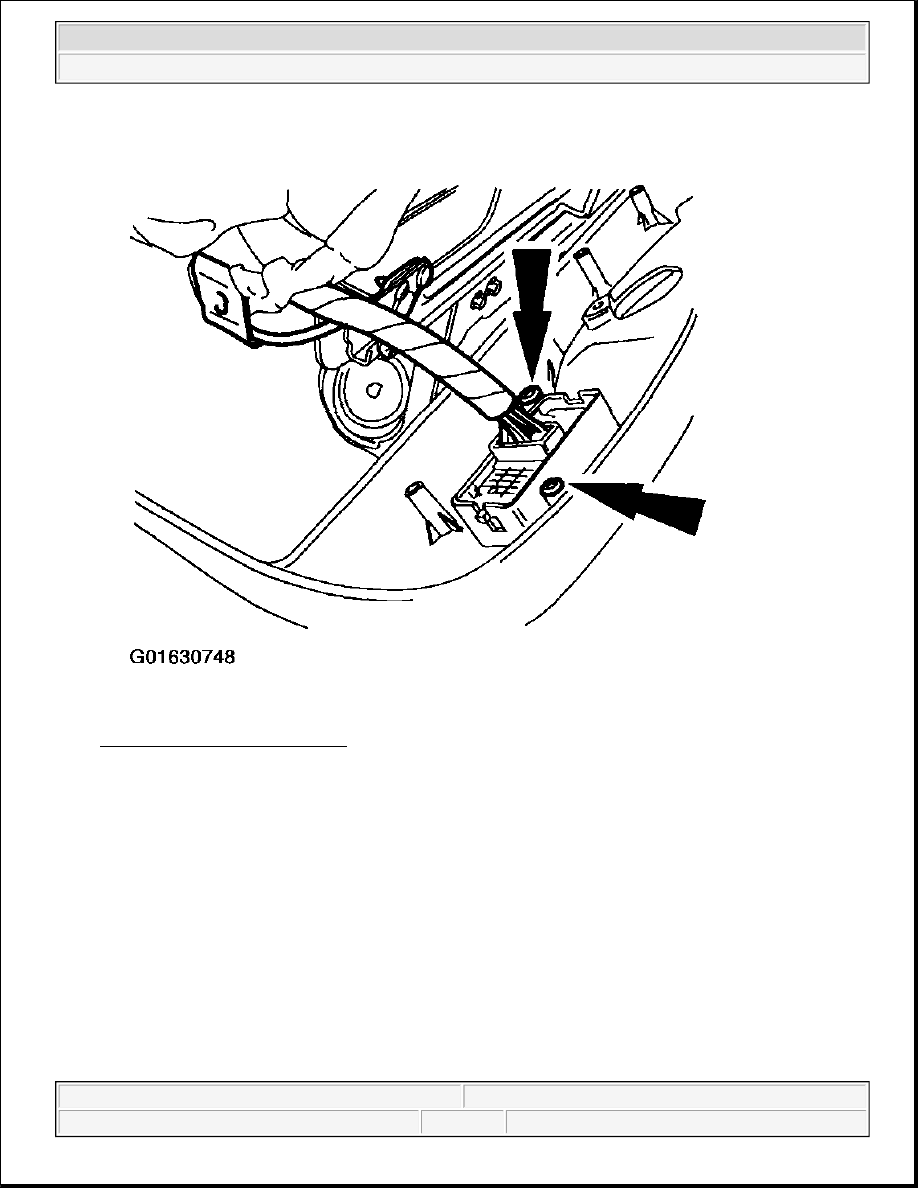

Fig. 144: Removing Two Screws
Courtesy of FORD MOTOR CO.

Installation

1. Position the seat control switch and install the two screws.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup

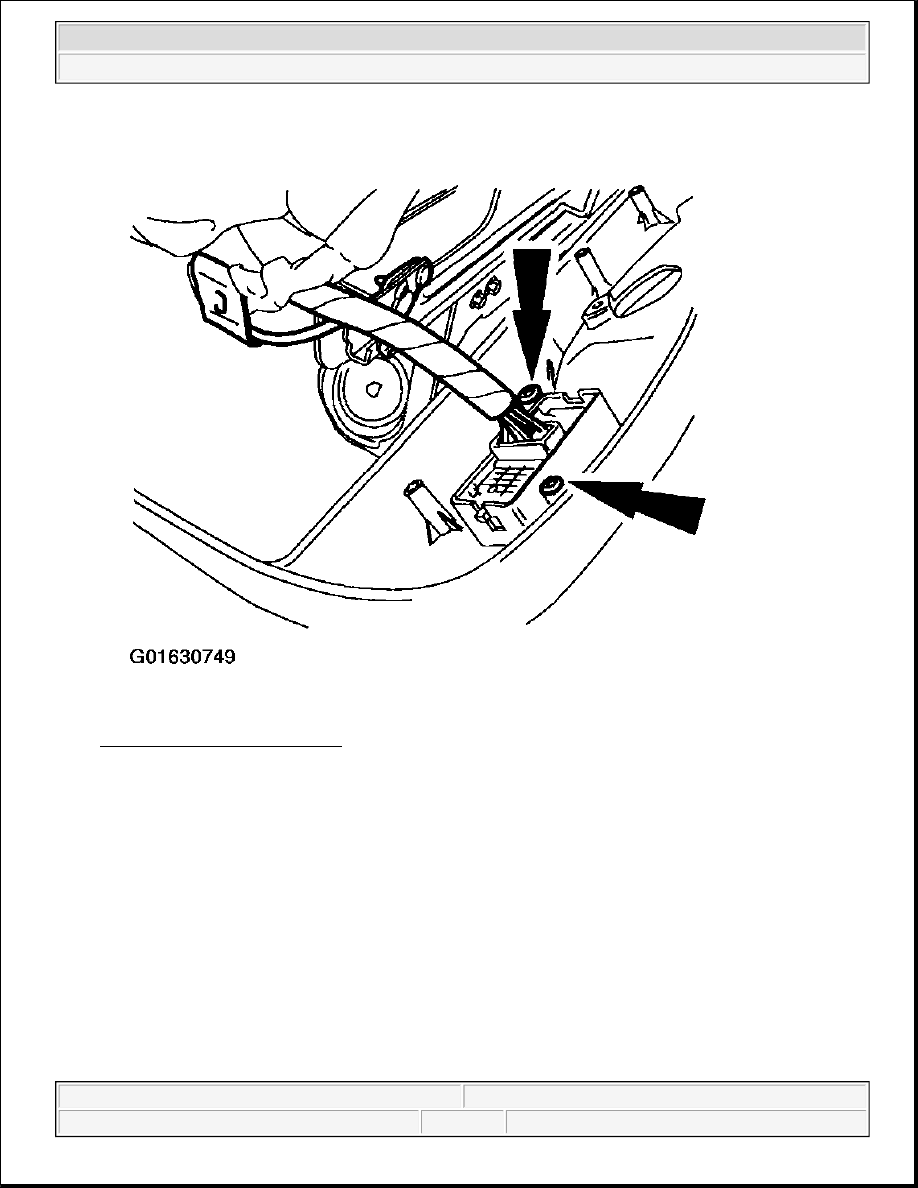

Fig. 145: Installing Two Screws
Courtesy of FORD MOTOR CO.

2. Connect the seat control switch electrical connector.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup



Fig. 146: Connecting Seat Control Switch Electrical Connector
Courtesy of FORD MOTOR CO.

3. Install the side shield rear retainer.
