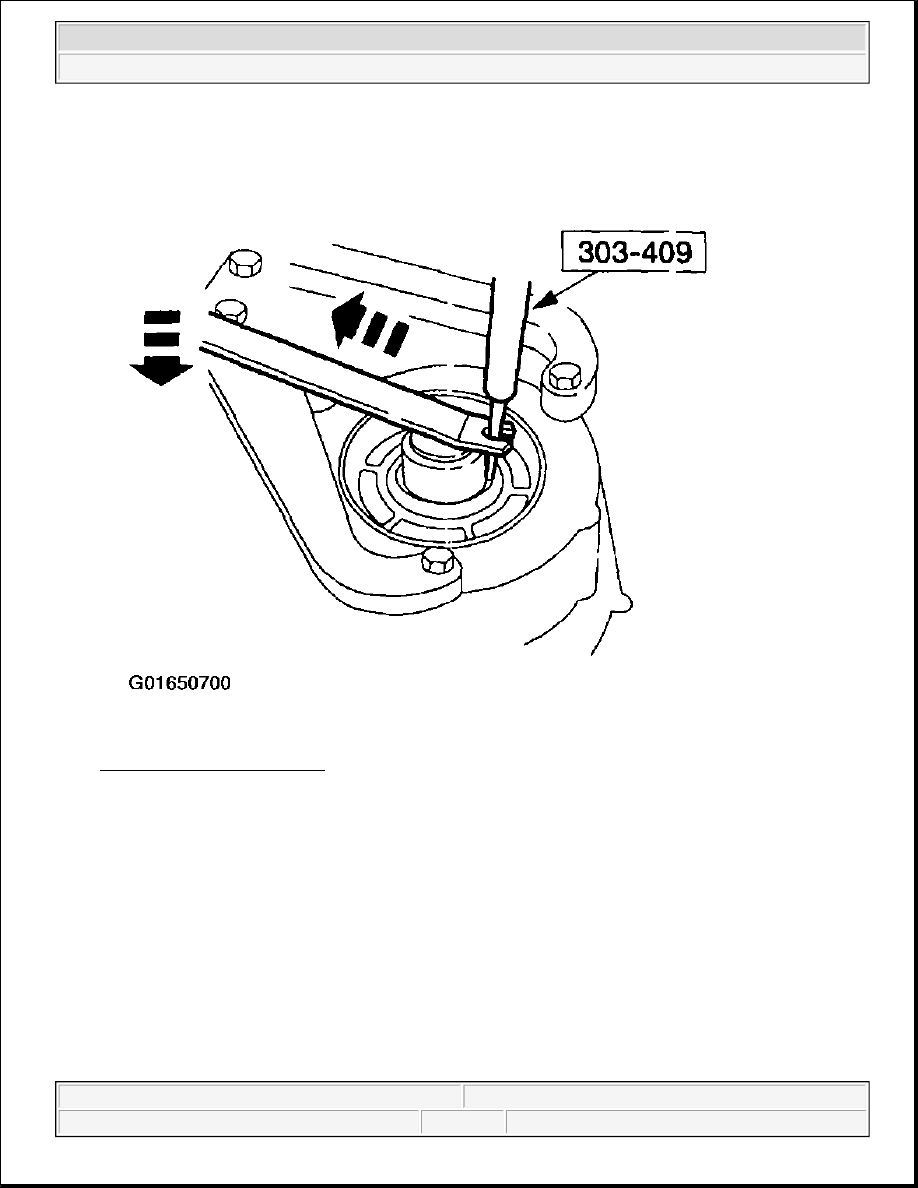

27. Using the special tool, remove the input seal.

Fig. 67: Removing Input Seal
Courtesy of FORD MOTOR CO.

CAUTION: Do not let the front planet carrier fall while removing the snap ring.



2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - F150 Pickup



Fig. 68: Removing Front Planet Carrier
Courtesy of FORD MOTOR CO.

28. Remove the front planet carrier.

1. Remove the front planet carrier snap ring.

2. Remove the front planet carrier.

29. If necessary, using the special tools, remove the bushing from the front planet.



2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - F150 Pickup



Fig. 69: Removing Front Planet Carrier Bushing
Courtesy of FORD MOTOR CO.

30. Using a drift and a hammer, remove the needle bearing, if necessary.



2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - F150 Pickup



Fig. 70: Removing Needle Bearing
Courtesy of FORD MOTOR CO.

31. Remove the ring gear.

1. Remove the ring gear snap ring.

2. Remove the ring gear.
