Ford F150 Pickup. Instruction - part 187

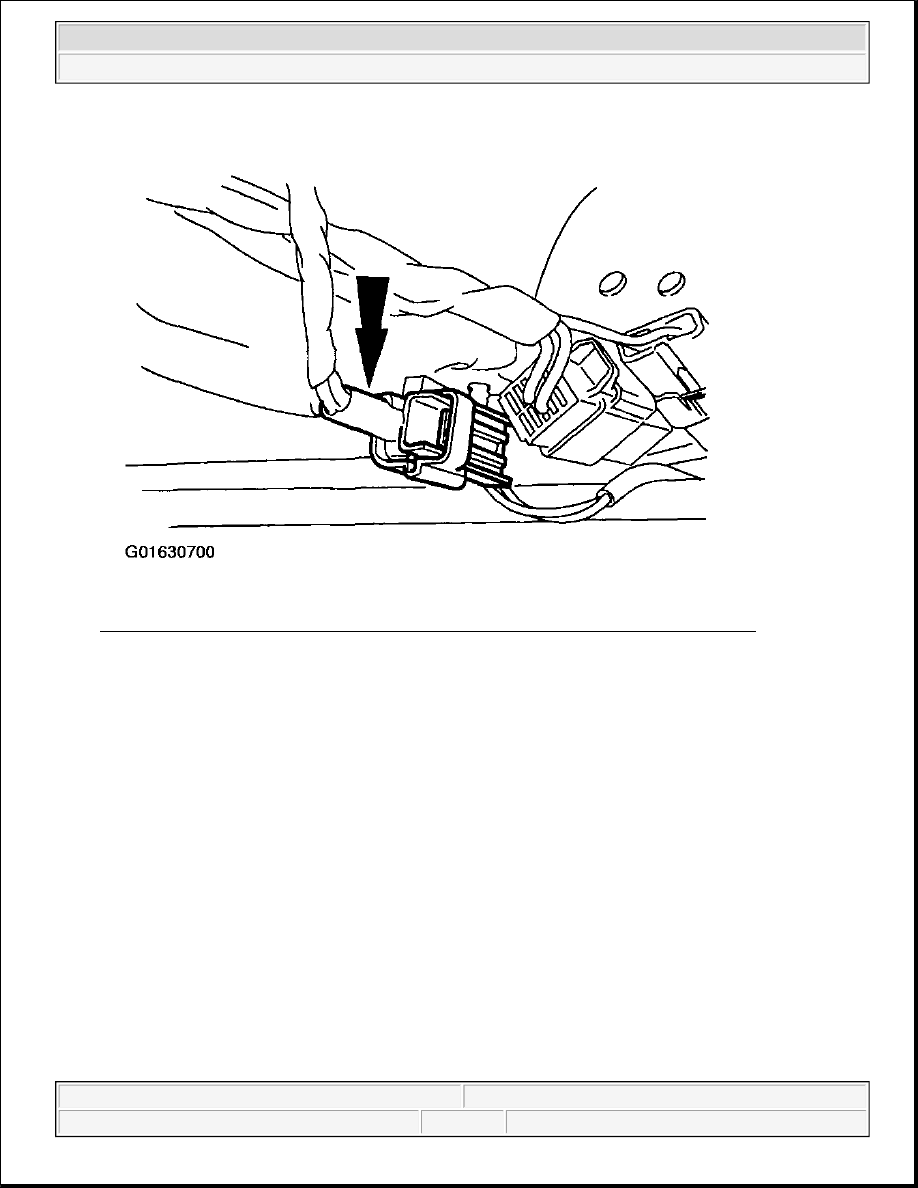

Fig. 96: Connecting Driver Seat Safety Belt Buckle Pretensioner Electrical Connector
Courtesy of FORD MOTOR CO.

20. From under the passenger seat, remove the restraint system diagnostic tool from the passenger seat safety

belt buckle pretensioner floor electrical connector.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup

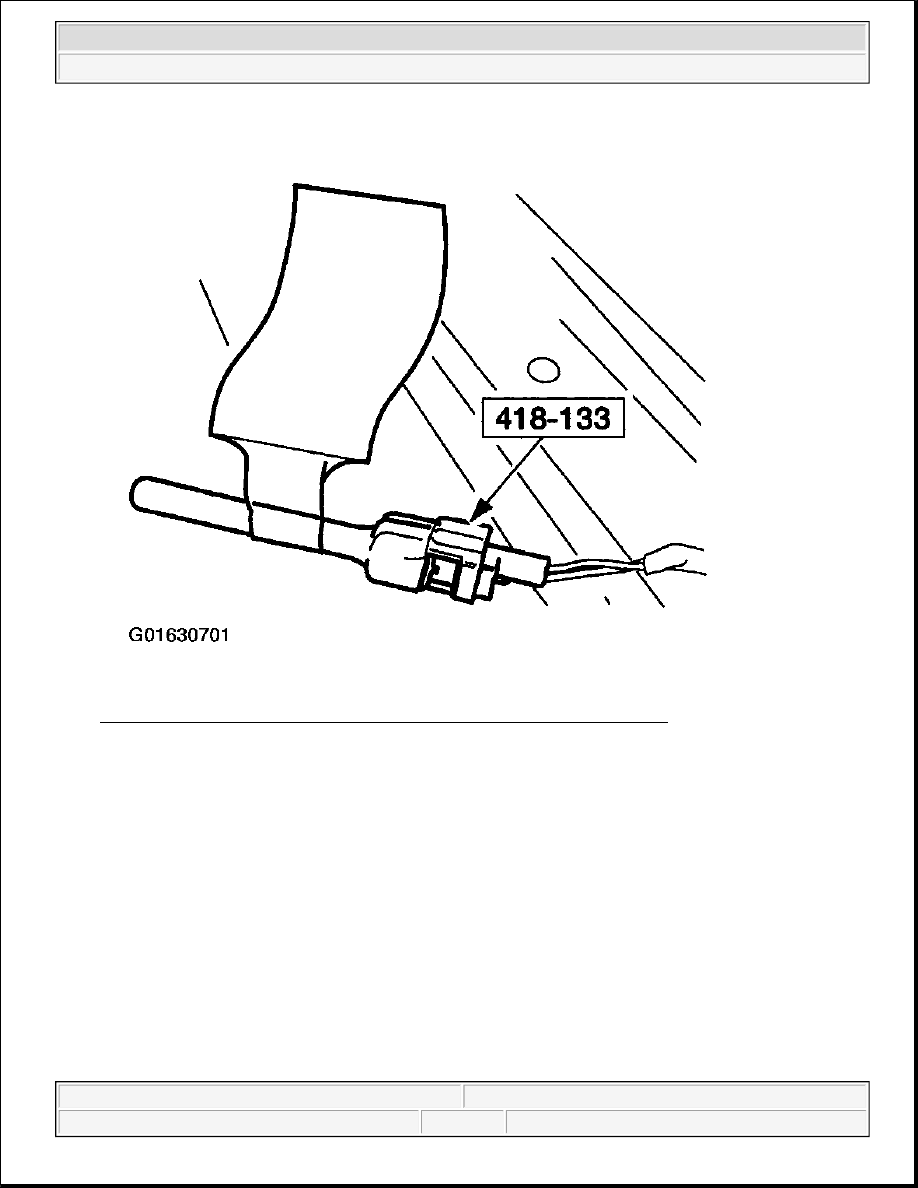

Fig. 97: Removing Restraint System Diagnostic Tool From Passenger Seat
Courtesy of FORD MOTOR CO.

21. From under the passenger seat, connect the passenger seat safety belt buckle pretensioner electrical

connector.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup

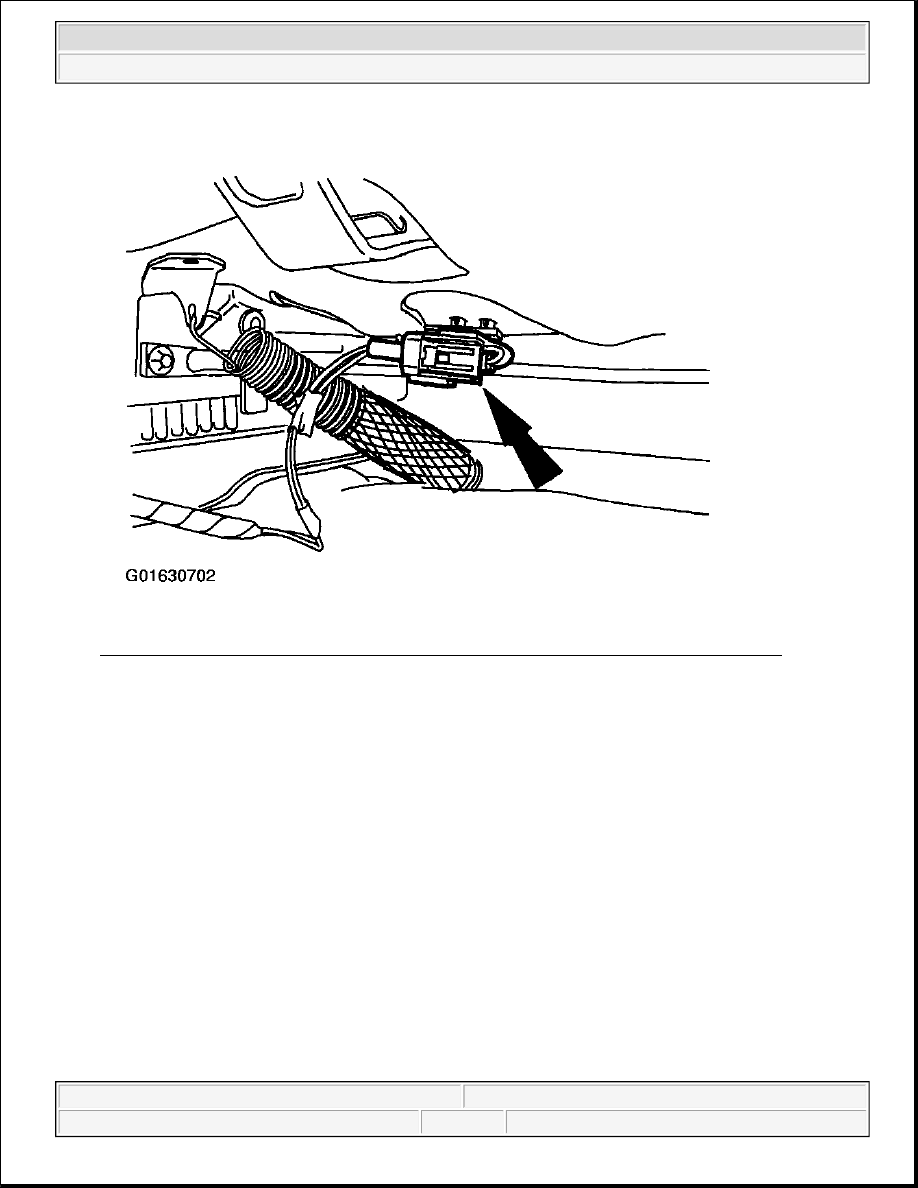

Fig. 98: Connecting Passenger Seat Safety Belt Buckle Pretensioner Electrical Connector
Courtesy of FORD MOTOR CO.

SuperCab with safety belt retractor pretensioners

22. Remove the driver safety belt retractor pretensioner bolt.

23. Remove the restraint system diagnostic tool from the driver side safety belt retractor pretensioner

electrical connector.

24. Connect the driver safety belt retractor pretensioner electrical connector.

25. Position the driver safety belt retractor pretensioner back in place and install the bolt to 40 Nm (30 lb-ft).

26. Install the driver door scuff plate.

27. Remove the passenger safety belt retractor pretensioner bolt.

28. Remove the restraint system diagnostic tool from the passenger side safety belt retractor pretensioner

electrical connector.

29. Connect the passenger safety belt retractor pretensioner electrical connector.

30. Position the passenger safety belt retractor pretensioner back in place and install the bolt to 40 Nm (30 lb-

ft).

31. Install the passenger door scuff plate.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup



Regular cab with safety belt retractor pretensioners

32. Remove the restraint system diagnostic tool from the driver side safety belt retractor pretensioner

electrical connector.

Fig. 99: Removing Restraint System Diagnostic Tool From Driver Side Safety Belt
Courtesy of FORD MOTOR CO.

33. Connect the driver side safety belt retractor pretensioner electrical connector.
