Ford F150 Pickup. Instruction - part 1864

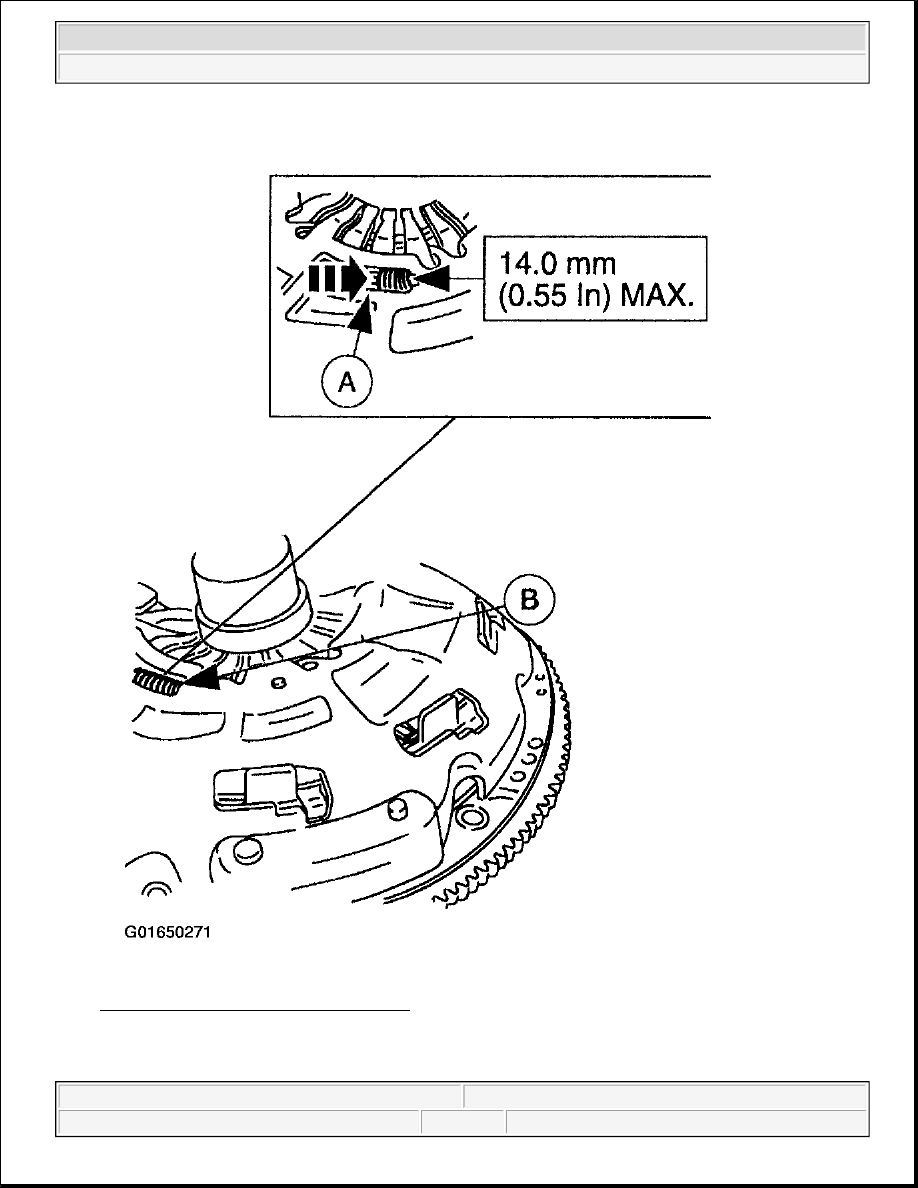

Fig. 40: Adjusting Clutch Pressure Plate
Courtesy of FORD MOTOR CO.

REMOVAL & INSTALLATION



2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission, Clutch & Transfer Case - General Information - F150 Pickup



DOWELS - FLYWHEEL

Removal

NOTE:

Take care not to damage the flywheel dowel holes or surface areas around
the flywheel dowel during removal.



2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission, Clutch & Transfer Case - General Information - F150 Pickup



Fig. 41: Locating Flywheel Dowels
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission, Clutch & Transfer Case - General Information - F150 Pickup



1. Remove the flywheel dowels by using a drift pin where the flywheel dowel is installed in an open hole

and locking pliers where the flywheel dowel is installed in a blind hole.

Installation

1. Install all flywheel dowels by driving them into place using a brass or plastic mallet.

DOWELS - FLYWHEEL HOUSING TO BLOCK

Removal

1. Remove the flywheel housing to block dowel (6397) using a drift pin where the flywheel housing to

block dowel is installed in an open hole and locking pliers where the flywheel housing to block dowel is
installed in a blind hole.

Installation

1. Install all flywheel housing to block dowels by driving them into place using a brass or plastic mallet.

NOTE:

Care should be taken to drive the flywheel dowel squarely into place until
fully seated and to not damage surrounding surface areas.

NOTE:

Take care not to damage the flywheel housing to block dowel holes or
surface areas around the flywheel housing to block dowel hole during
removal.

NOTE:

Care should be taken to drive the flywheel housing to block dowel
squarely into place until fully seated without damaging the surrounding
surface areas.



2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission, Clutch & Transfer Case - General Information - F150 Pickup
