1. Remove the flywheel. For additional information, refer to ENGINE SYSTEM - GENERAL

INFORMATION - F150 PICKUP

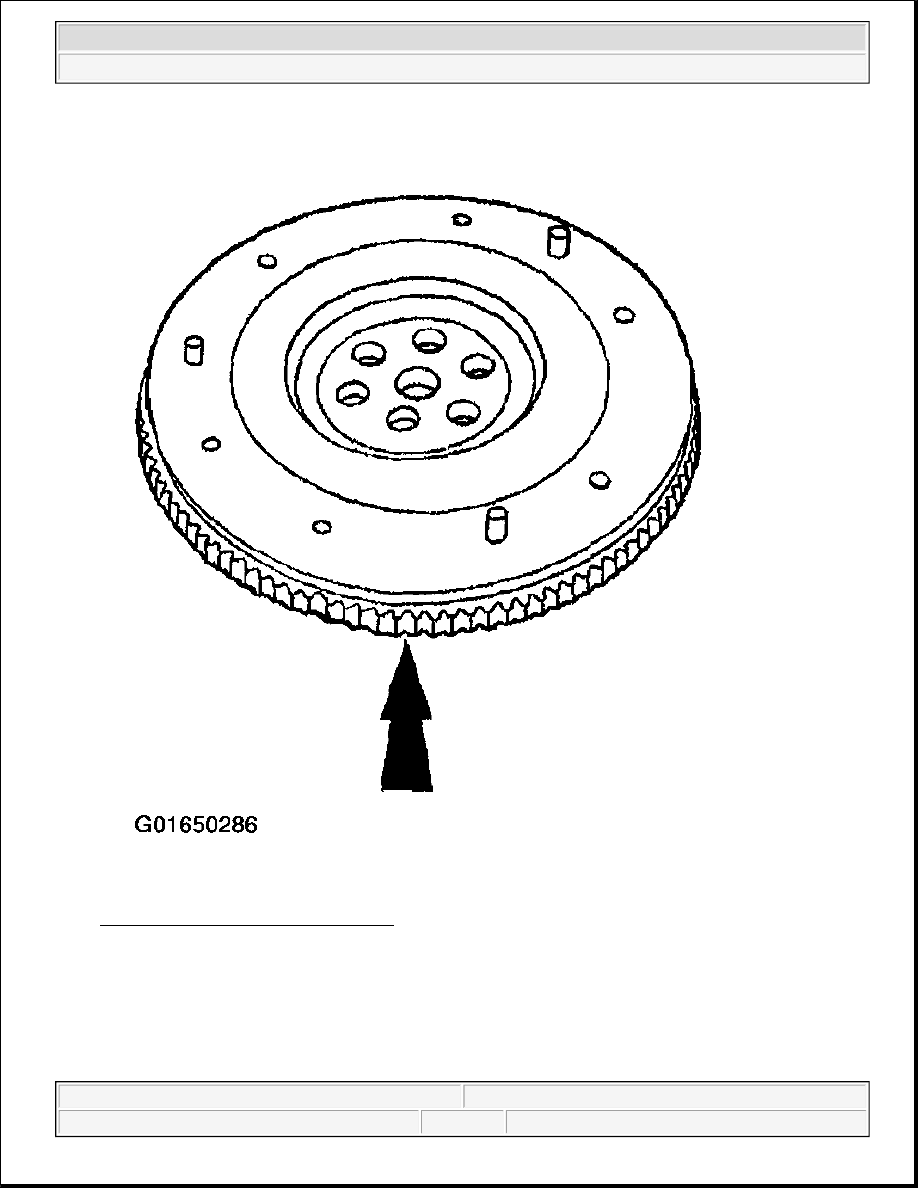

Fig. 13: Identifying Flywheel Ring Gear

CAUTION: Tap the flywheel ring gear evenly to prevent binding.



2003 Ford Pickup F150

2003 TRANSMISSIONS Clutch - F150 Pickup



Courtesy of FORD MOTOR CO.

2. Remove the flywheel ring gear from the flywheel.

z

Evenly heat the flywheel ring gear and use a brass drift to drive the flywheel ring gear from the
flywheel.

Installation

1. Evenly heat the flywheel ring gear.

2. Install the flywheel ring gear.

z

The bevel on the flywheel ring gear must face the rear of the flywheel.

z

Using a brass drift, install the flywheel ring gear onto the flywheel.

WARNING:

This procedure should be carried out only by a properly equipped and
experienced acetylene torch operator. To avoid personal injury, tongs
must be used or asbestos gloves worn when handling the heated flywheel
ring gear.

CAUTION: Do not heat the flywheel ring gear beyond 278°C (500°F). Use heat

indicating crayons to prevent over-heating.

CAUTION: Keep the torch moving to prevent hot spots.



2003 Ford Pickup F150

2003 TRANSMISSIONS Clutch - F150 Pickup

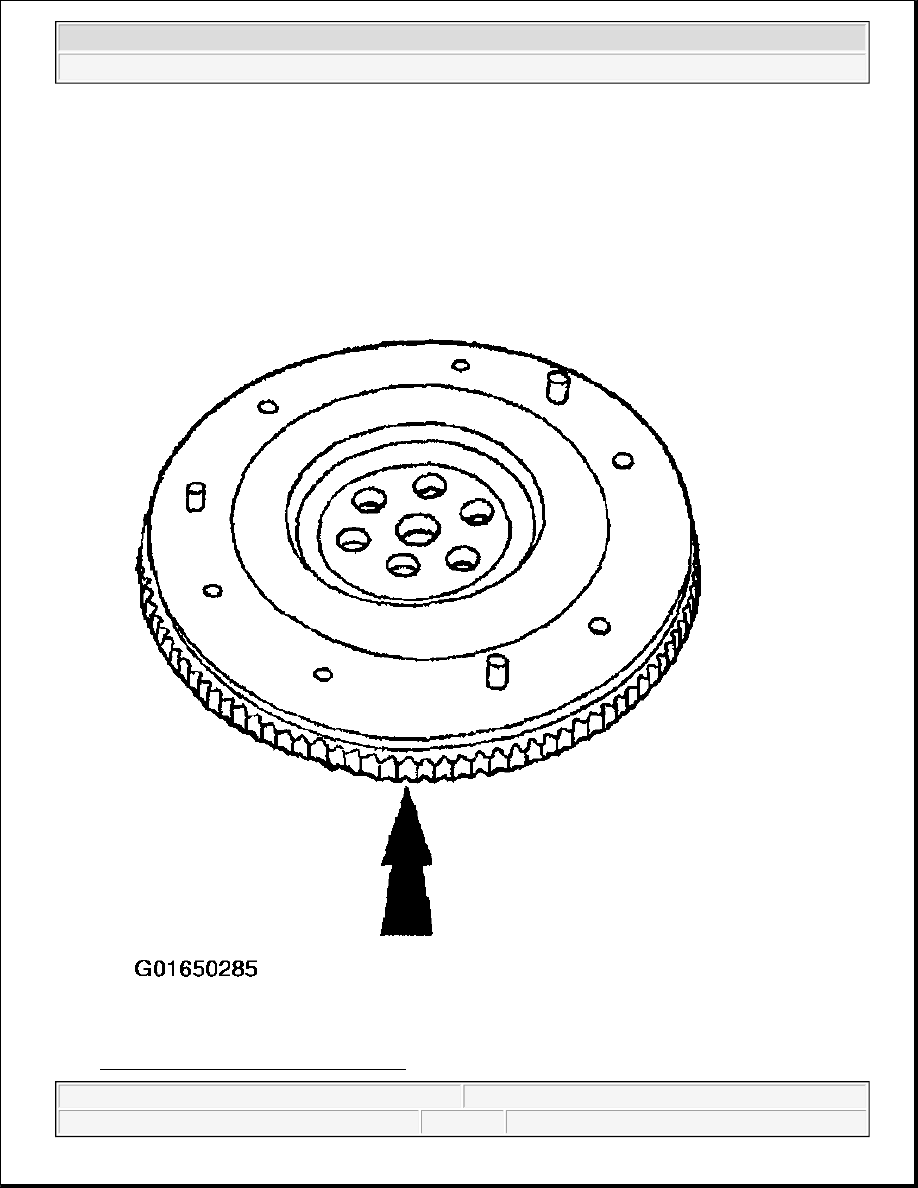

Fig. 14: Installing Flywheel Ring Gear
Courtesy of FORD MOTOR CO.

3. Install the flywheel. For additional information, refer to ENGINE SYSTEM - GENERAL

INFORMATION - F150 PICKUP .
