Ford F150 Pickup. Instruction - part 1780

Fig. 177: Installing Steering Column Lock Actuators
Courtesy of FORD MOTOR CO.

NOTE:

Coat all surfaces with ignition lock grease.



2003 Ford Pickup F150

2003 STEERING Steering Column - F150 Pickup

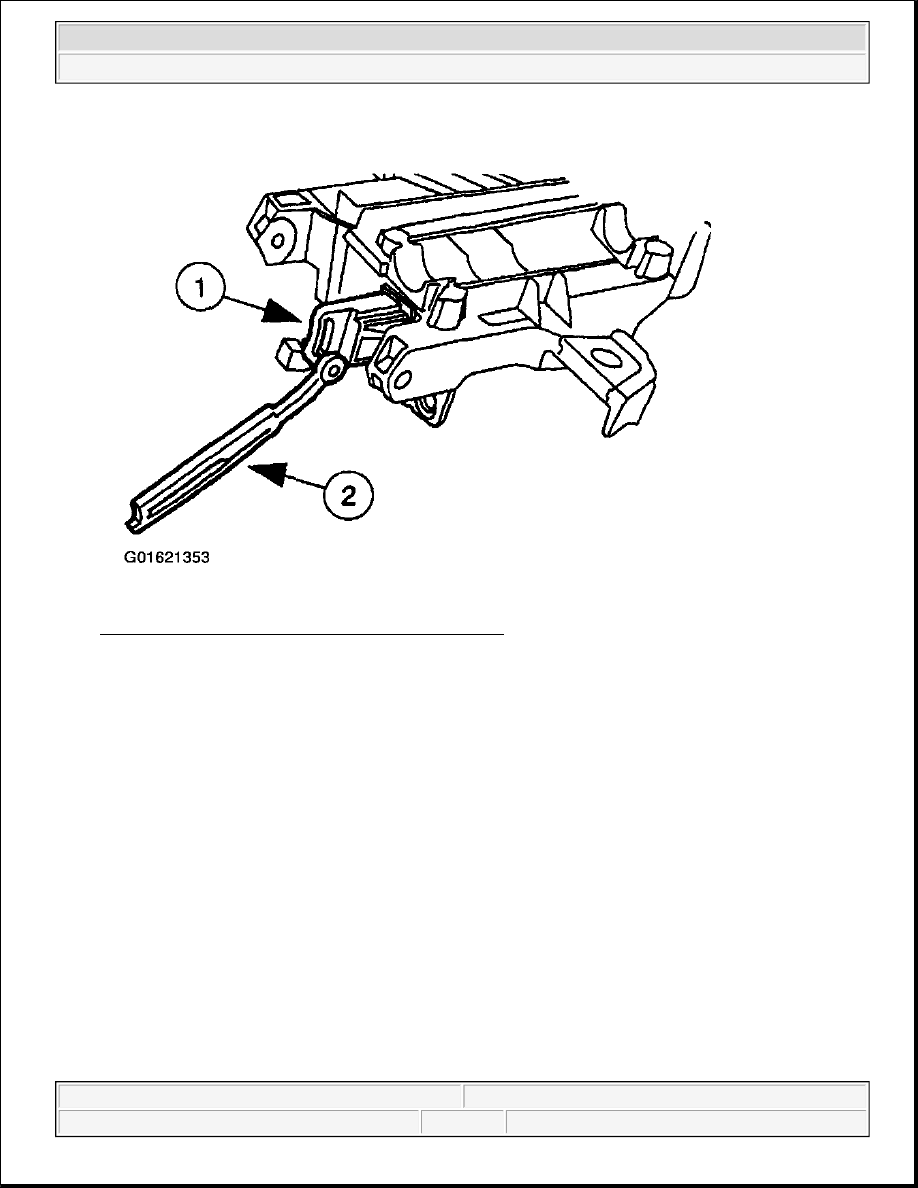

Fig. 178: Installing Steering Column Lock Pawl
Courtesy of FORD MOTOR CO.

2. Install the steering column lock pawl.

1. Position the steering column lock pawl.

2. Drive in the steering column lock lever pin (3B663).

3. Install the steering column lower bearing retainer (3D681).

1. Position the steering column lower bearing retainer.

2. Install the three bolts.



2003 Ford Pickup F150

2003 STEERING Steering Column - F150 Pickup

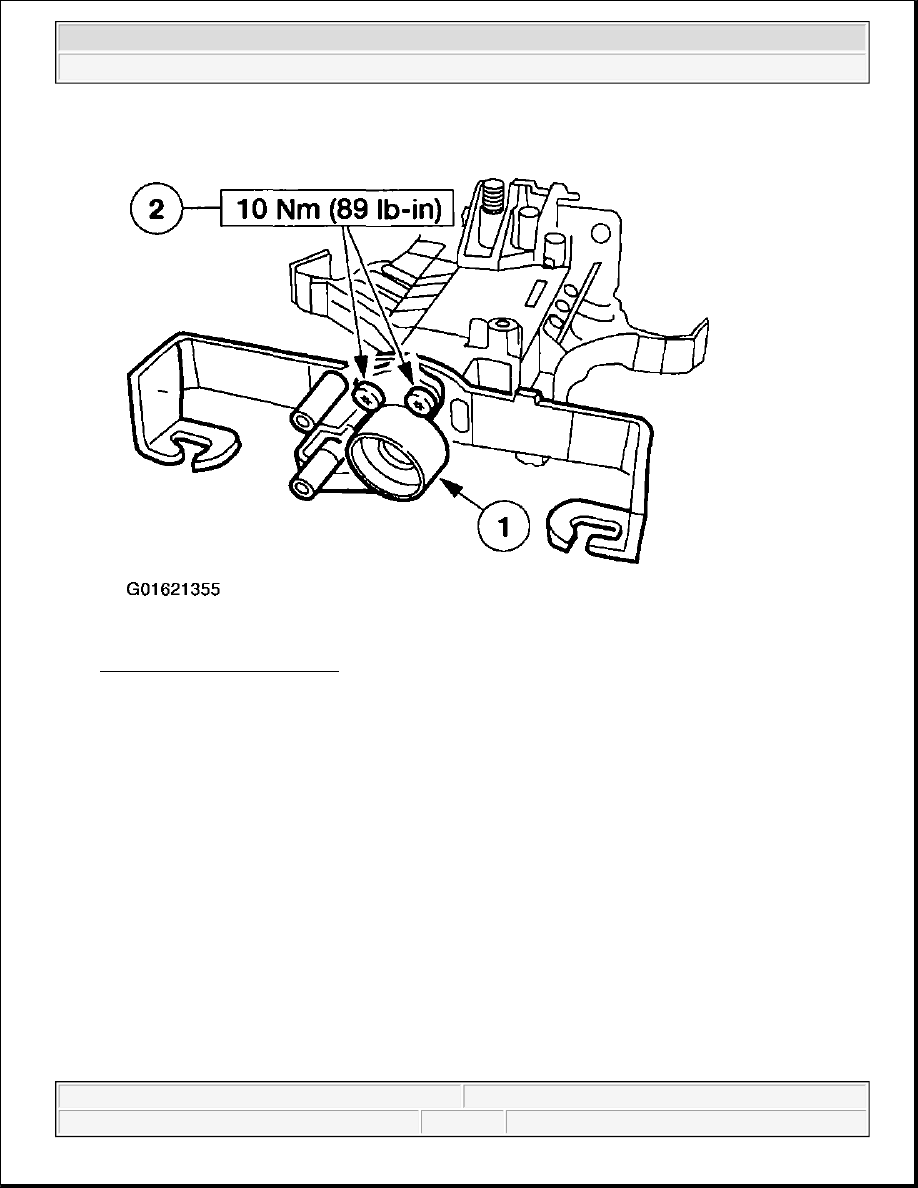

Fig. 179: Installing Three Bolts
Courtesy of FORD MOTOR CO.

NOTE:

The "UP" position of the bearing must be facing forward, toward the
engine.

NOTE:

Install the steering column bearing and sleeve so that the inner race is
visible when installed.



2003 Ford Pickup F150

2003 STEERING Steering Column - F150 Pickup



Fig. 180: Installing Steering Column Bearing & Sleeve
Courtesy of FORD MOTOR CO.

4. Install the steering column bearing and sleeve.



2003 Ford Pickup F150

2003 STEERING Steering Column - F150 Pickup
