Fig. 168: Removing Gearshift Lever Pin From Shift Tube
Courtesy of FORD MOTOR CO.

23. Remove the gearshift lever (7210).



2003 Ford Pickup F150

2003 STEERING Steering Column - F150 Pickup



Fig. 169: Removing Gearshift Lever
Courtesy of FORD MOTOR CO.

24. Remove the column shift selector lever plunger (7361).

z

If it is bent, install a new column shift selector lever plunger.



2003 Ford Pickup F150

2003 STEERING Steering Column - F150 Pickup

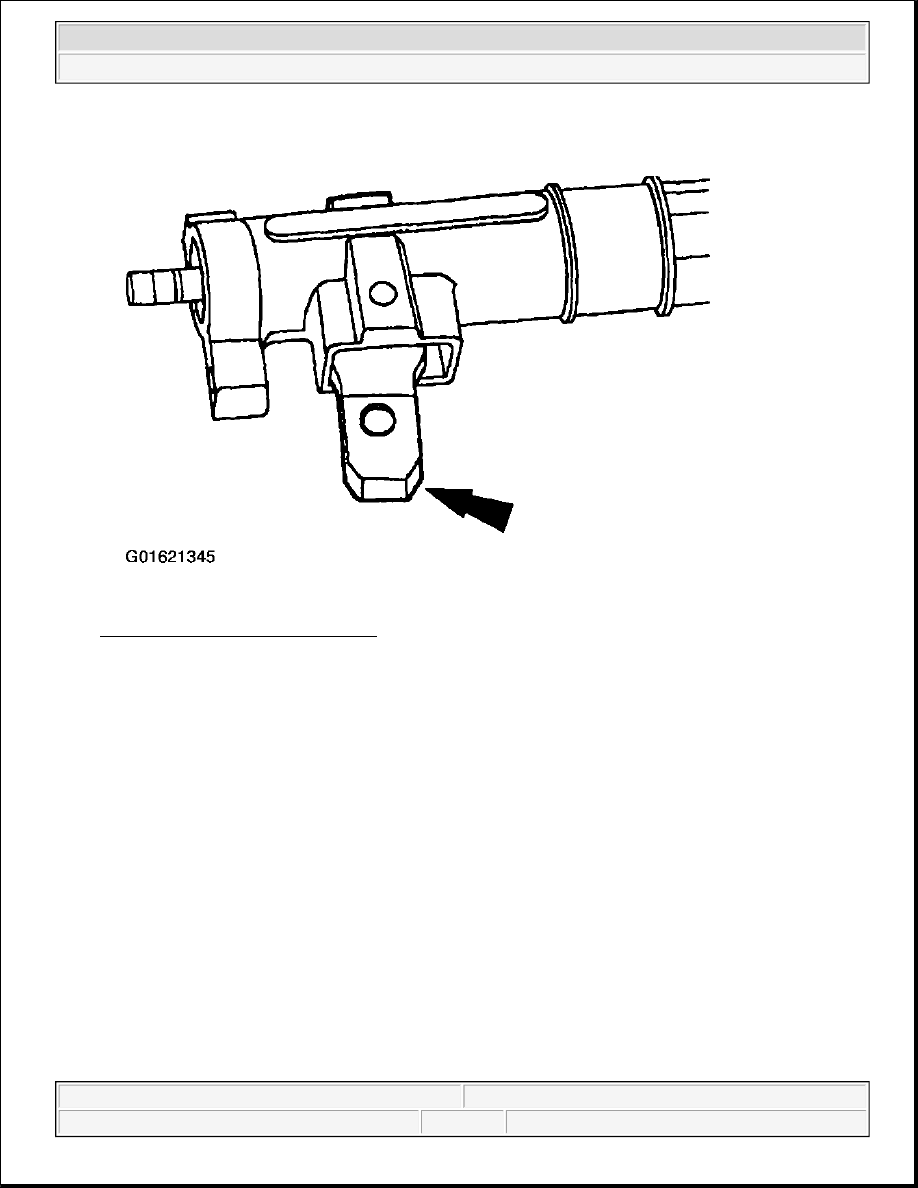

Fig. 170: Removing Column Shift Selector Lever Plunger
Courtesy of FORD MOTOR CO.

25. Remove the two gearshift lever socket bushings and the transmission control selector lever spring clip.

Fig. 171: Removing Two Gearshift Lever Socket Bushings & Transmission Control Selector Lever
Spring Clip
Courtesy of FORD MOTOR CO.

26. Remove the steering column lock pawl (3E691).

1. Drive out the steering column lock lever pin.



2003 Ford Pickup F150

2003 STEERING Steering Column - F150 Pickup



2. Remove the steering column lock pawl.

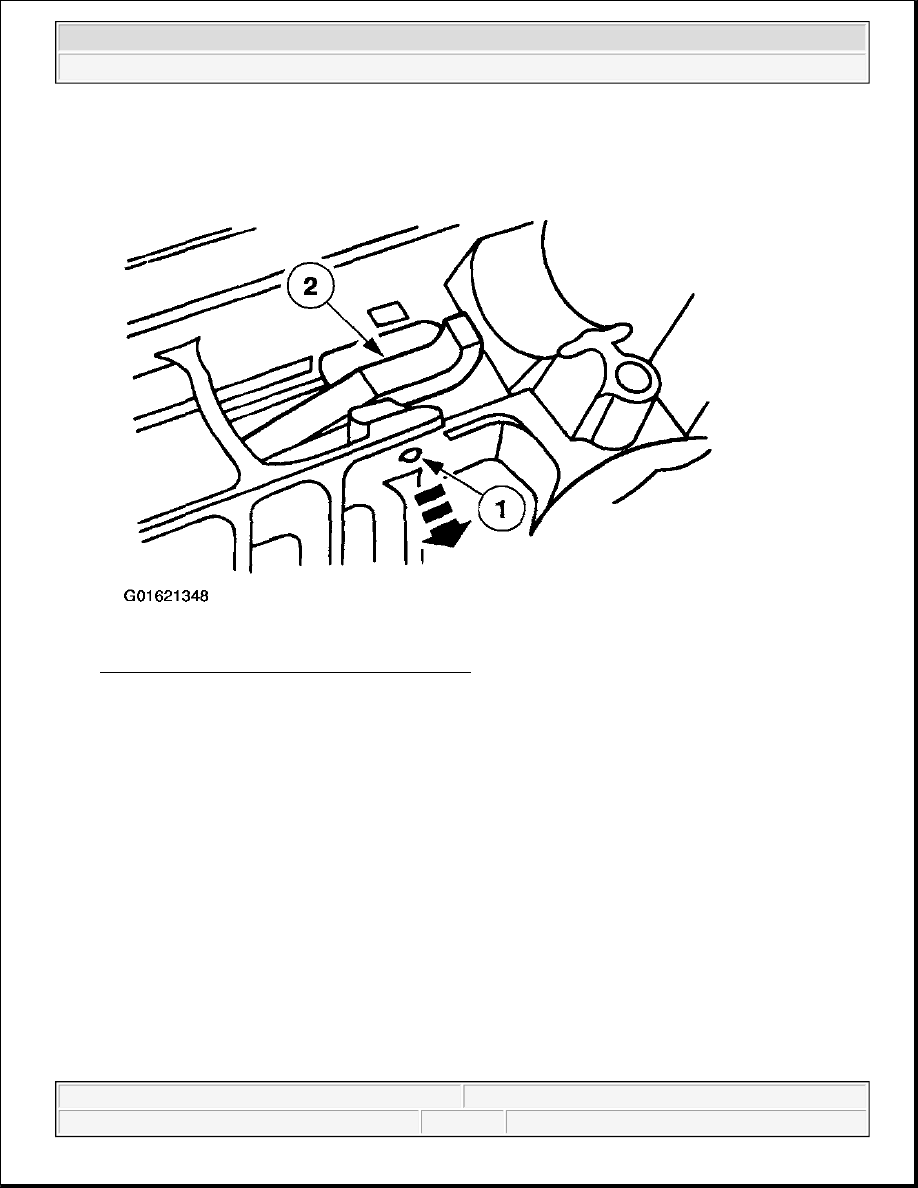

Fig. 172: Removing Steering Column Lock Pawl
Courtesy of FORD MOTOR CO.

27. Remove the ignition switch (11572).

1. Remove the bolts.

2. Remove the ignition switch.



2003 Ford Pickup F150

2003 STEERING Steering Column - F150 Pickup
