Ford F150 Pickup. Instruction - part 177

24. Push in to release the tab and disconnect the passenger safety belt retractor pretensioner electrical

connector.

25. Attach the restraint system diagnostic tool to the passenger side safety belt retractor pretensioner

electrical connector.

26. Position the passenger safety belt retractor pretensioner back in place and install the bolt to 40 Nm (30 lb-

ft).

27. Remove the driver door scuff plate.

28. Remove the driver safety belt retractor pretensioner bolt.

29. Push in to release the tab and disconnect the driver safety belt retractor pretensioner electrical connector.

30. Attach the restraint system diagnostic tool to the driver side safety belt retractor pretensioner electrical

connector.

31. Position the driver safety belt retractor pretensioner back in place and install the bolt to 40 Nm (30 lb-ft).

SuperCab with safety belt buckle pretensioners - seat integrated restraints (SIR)

32. From under the passenger seat, push in to release the tab and disconnect the passenger seat safety belt

buckle pretensioner electrical connector.

NOTE:

A SuperCab seat equipped with seat integrated restraints (SIR), will have
an integral; safety belt tower cap located to the outboard side of the
headrest. This style seat will be equipped with a safety belt buckle
pretensioner. All others will have a safety belt retractor pretensioner. For
additional information to identify a seat equipped with SIR, refer to
SAFETY BELT SYSTEM in the Description and Operation portion of that
article.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup

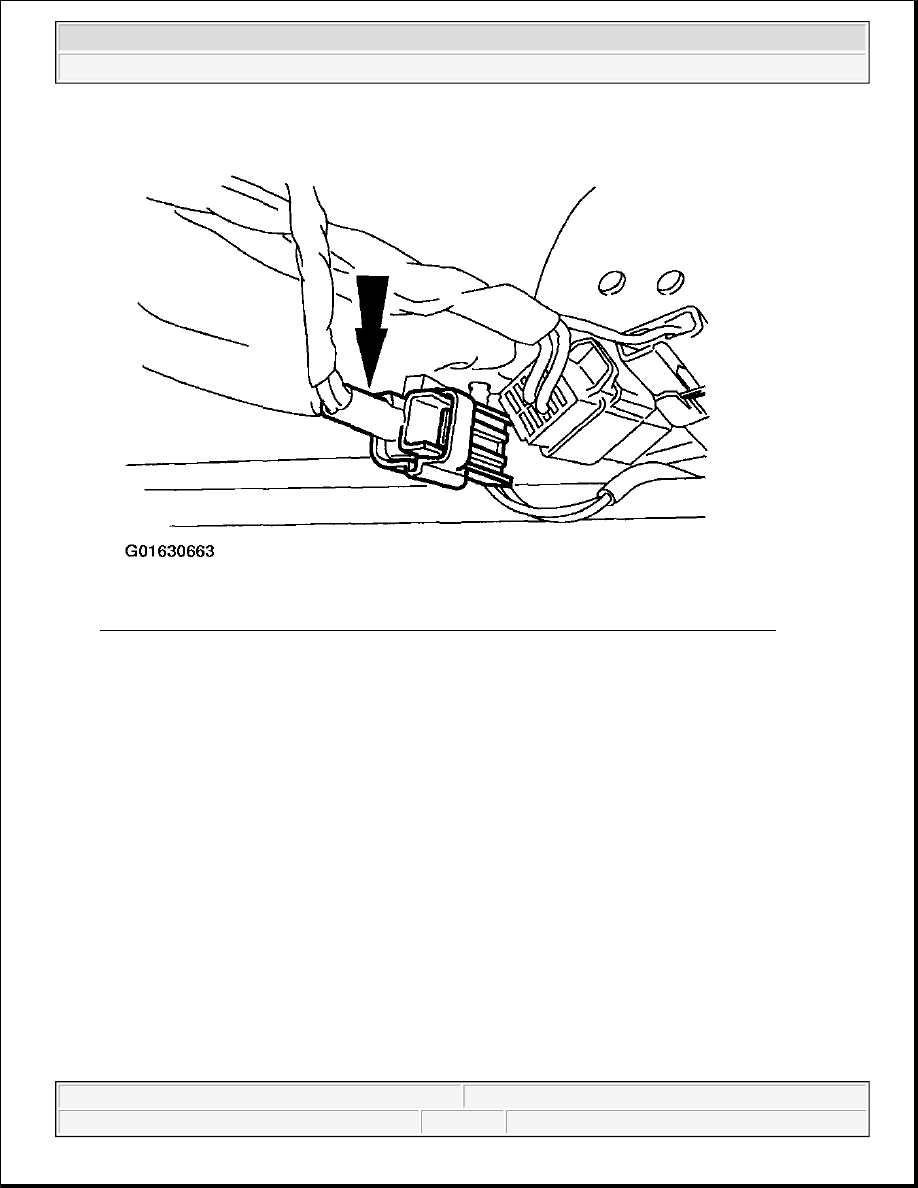

Fig. 57: Disconnecting Passenger Seat Safety Belt Buckle Pretensioner Electrical Connector
Courtesy of FORD MOTOR CO.

33. Attach the restraint system diagnostic tool to the passenger seat safety belt buckle pretensioner floor

electrical connector.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup



Fig. 58: Attaching Restraint System Diagnostic Tool To Passenger Seat Safety Belt Buckle
Courtesy of FORD MOTOR CO.

34. From under the driver seat, push in to release the tab and disconnect the driver seat safety belt buckle

pretensioner electrical connector.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup

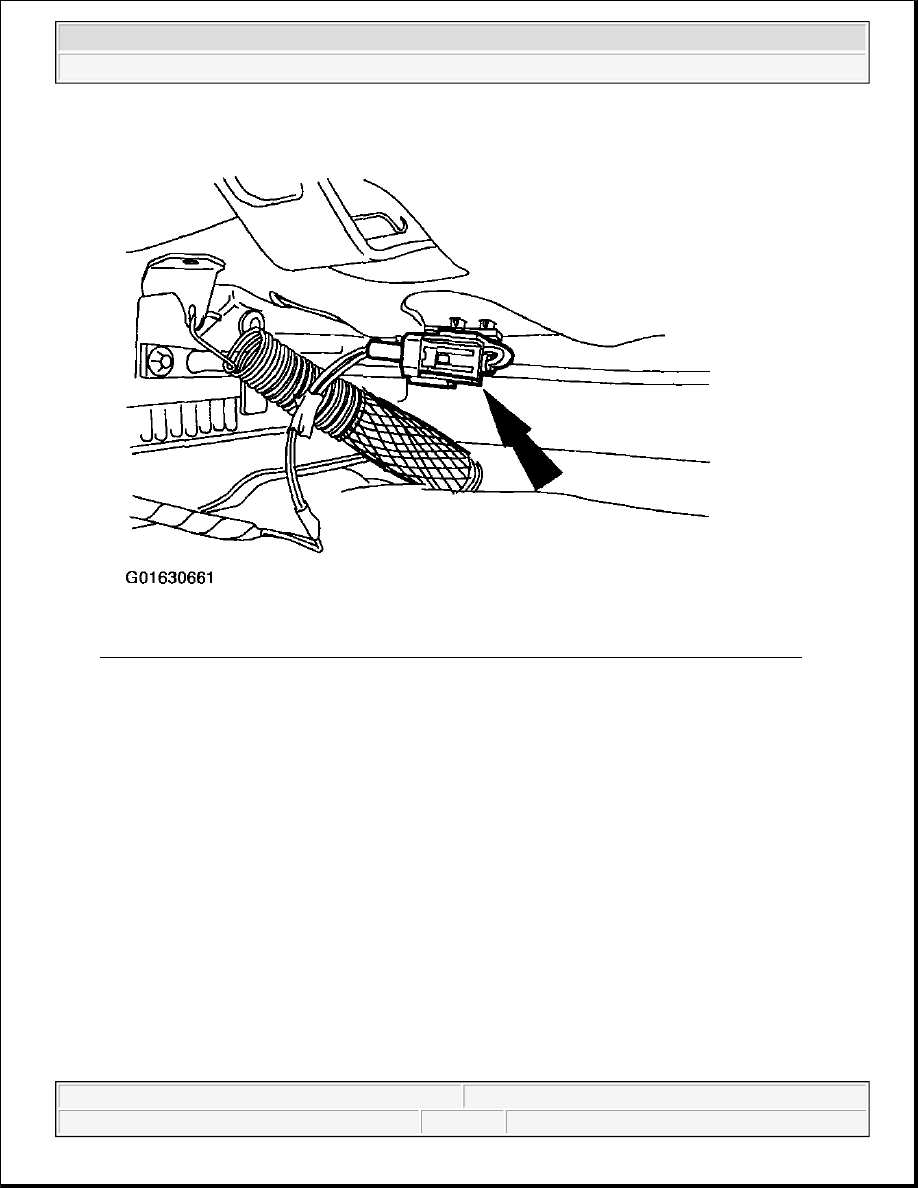

Fig. 59: Disconnecting Driver Seat Safety Belt Buckle Pretensioner Electrical Connector
Courtesy of FORD MOTOR CO.

35. Attach the restraint system diagnostic tool to the driver seat safety belt buckle pretensioner floor electrical

connector.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup
