Fig. 49: Removing Lower Corner Trim Panel
Courtesy of FORD MOTOR CO.

14. Push in to release the tab and disconnect the passenger side safety belt retractor pretensioner electrical

connector.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup



Fig. 50: Disconnecting Passenger Side Safety Belt Retractor Pretensioner Electrical Connector
Courtesy of FORD MOTOR CO.

15. Attach the restraint system diagnostic tool to the passenger side safety belt retractor pretensioner

electrical connector.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup

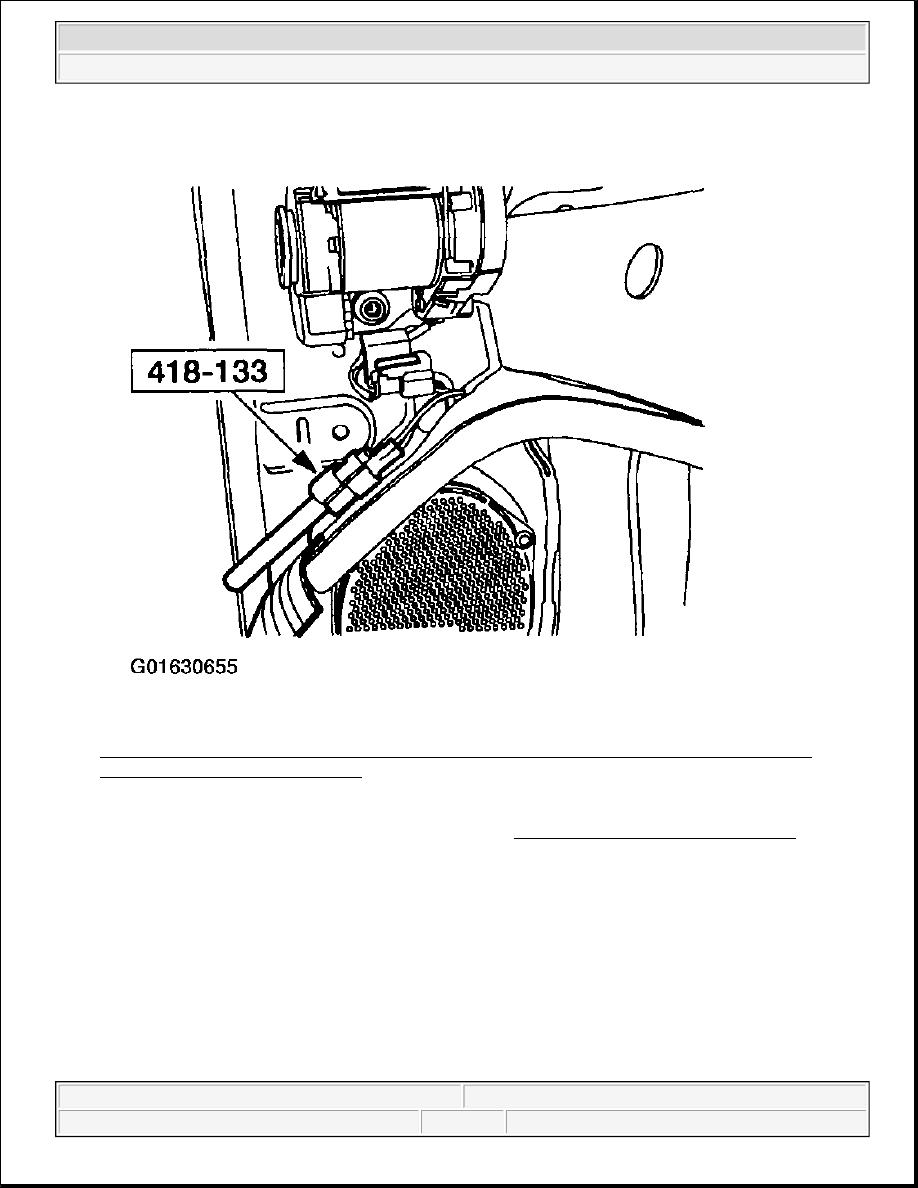

Fig. 51: Attaching Restraint System Diagnostic Tool To Passenger Side Safety Belt Retractor
Pretensioner Electrical Connector
Courtesy of FORD MOTOR CO.

16. Remove the driver side corner upper trim panel. Refer to TRIM PANEL -- CORNER, UPPER .

17. Remove the driver door scuff plate and weather-stripping.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup



Fig. 52: Removing Driver Door Scuff Plate And Weather-stripping
Courtesy of FORD MOTOR CO.

18. Remove the three pin-type retainers, pull out on the driver side lower corner trim panel near the door

jamb and release the lower corner trim panel from the vehicle.
