cylinder housing.

7. Position the steering column shaft in the steering column lock cylinder housing.

z

Install the steering column bearing tolerance ring on the steering column shaft.

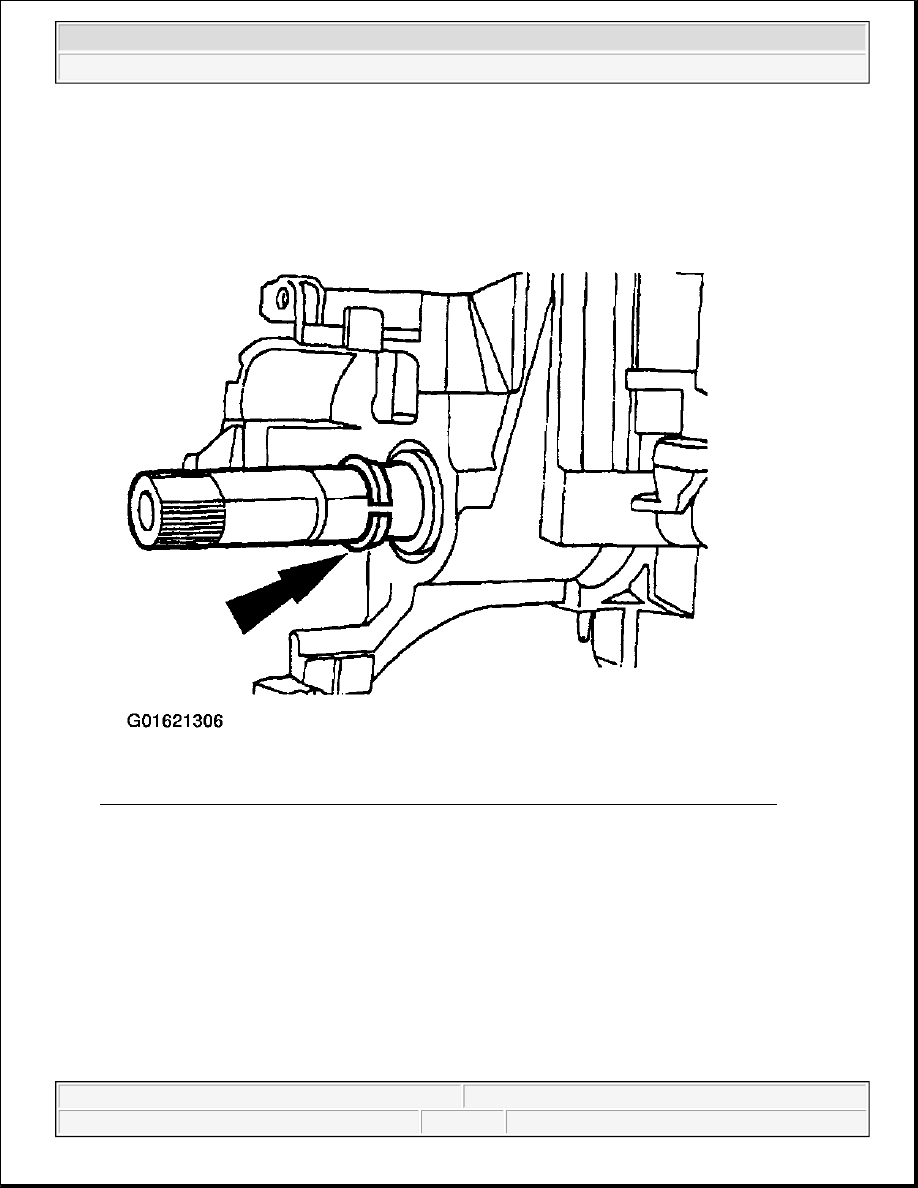

Fig. 130: Installing Steering Column Bearing Tolerance Ring On Steering Column Shaft
Courtesy of FORD MOTOR CO.

8. Install the steering column bearing sleeve.



2003 Ford Pickup F150

2003 STEERING Steering Column - F150 Pickup



Fig. 131: Installing Steering Column Bearing Sleeve
Courtesy of FORD MOTOR CO.

9. Install the steering column upper bearing spring.



2003 Ford Pickup F150

2003 STEERING Steering Column - F150 Pickup



Fig. 132: Installing Steering Column Upper Bearing Spring
Courtesy of FORD MOTOR CO.

10. Install the snap ring.



2003 Ford Pickup F150

2003 STEERING Steering Column - F150 Pickup

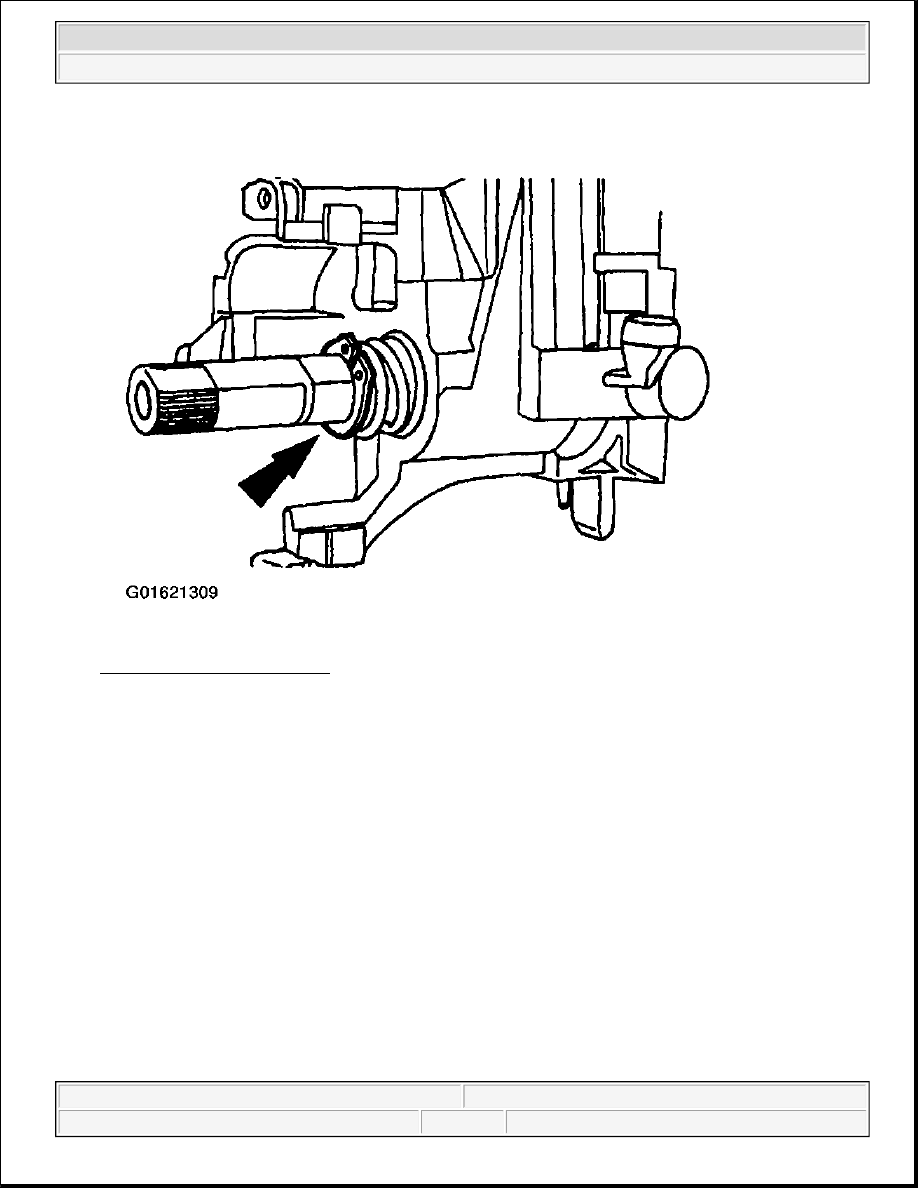

Fig. 133: Installing Snap Ring
Courtesy of FORD MOTOR CO.

11. Install the lock cylinder housing screws loosely and position the steering actuator housing in a vise.



2003 Ford Pickup F150

2003 STEERING Steering Column - F150 Pickup
