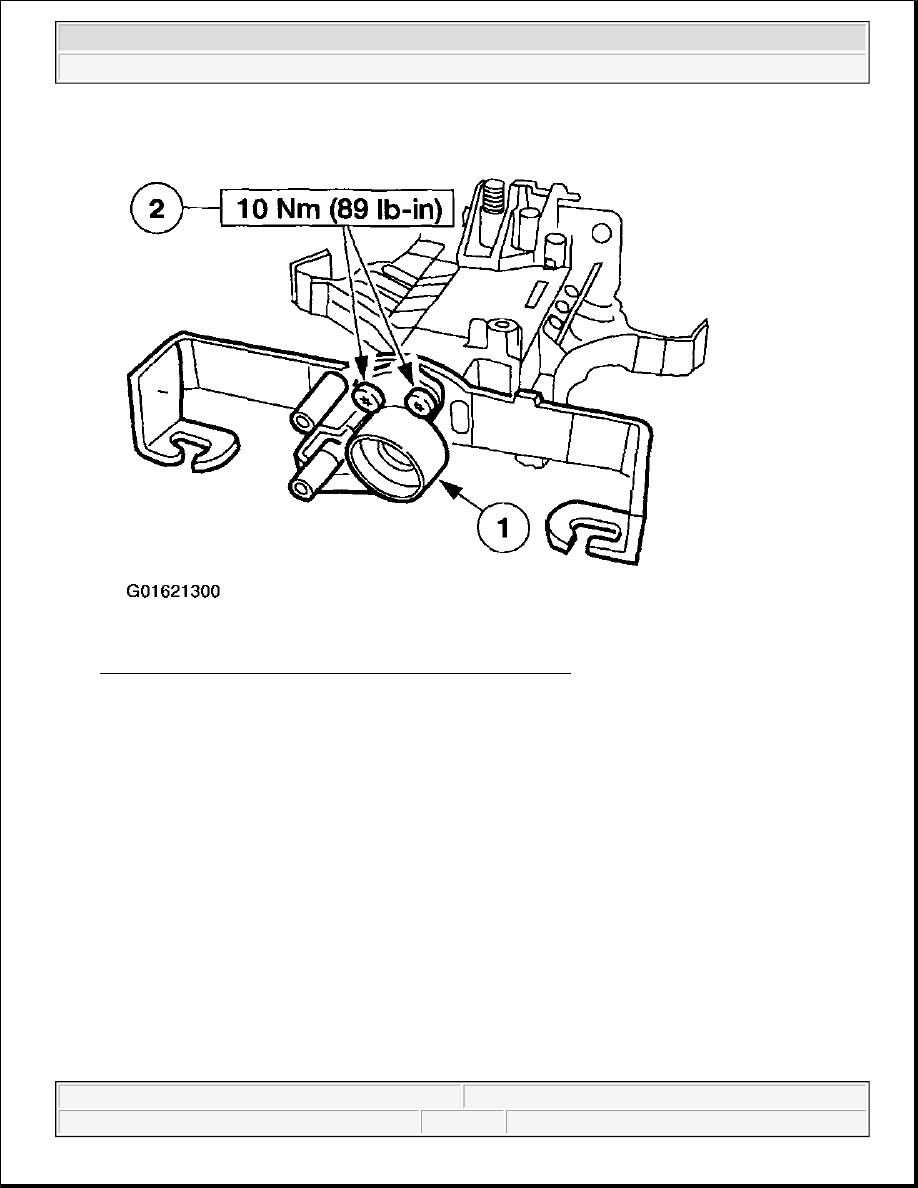

Fig. 124: Installing Steering Column Lower Bearing Retainer
Courtesy of FORD MOTOR CO.

NOTE:

The "UP" position of the bearing must be facing forward, toward the
engine.



2003 Ford Pickup F150

2003 STEERING Steering Column - F150 Pickup



Fig. 125: Installing Steering Column Bearing & Sleeve
Courtesy of FORD MOTOR CO.

3. Install the steering column bearing and sleeve.



2003 Ford Pickup F150

2003 STEERING Steering Column - F150 Pickup



4. Install the steering column bearing and sleeve so that the inner race is visible when installed.

CAUTION: Install the steering column bearing so that the inner race is visible

when installed.

NOTE:

Use an appropriate bearing installer or socket.



2003 Ford Pickup F150

2003 STEERING Steering Column - F150 Pickup

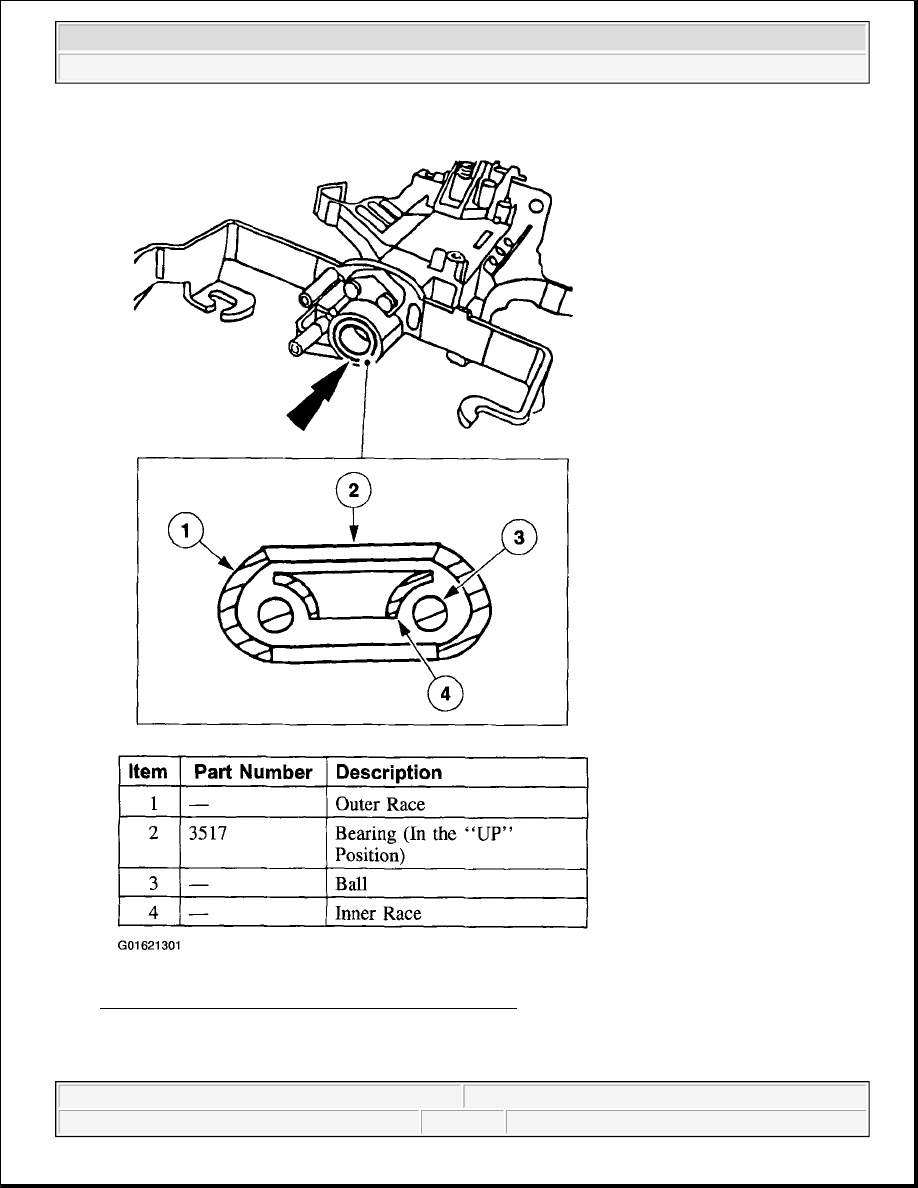

Fig. 126: Identifying/Installing Steering Column Bearing On Steering Column Lock Cylinder
Housing
Courtesy of FORD MOTOR CO.
