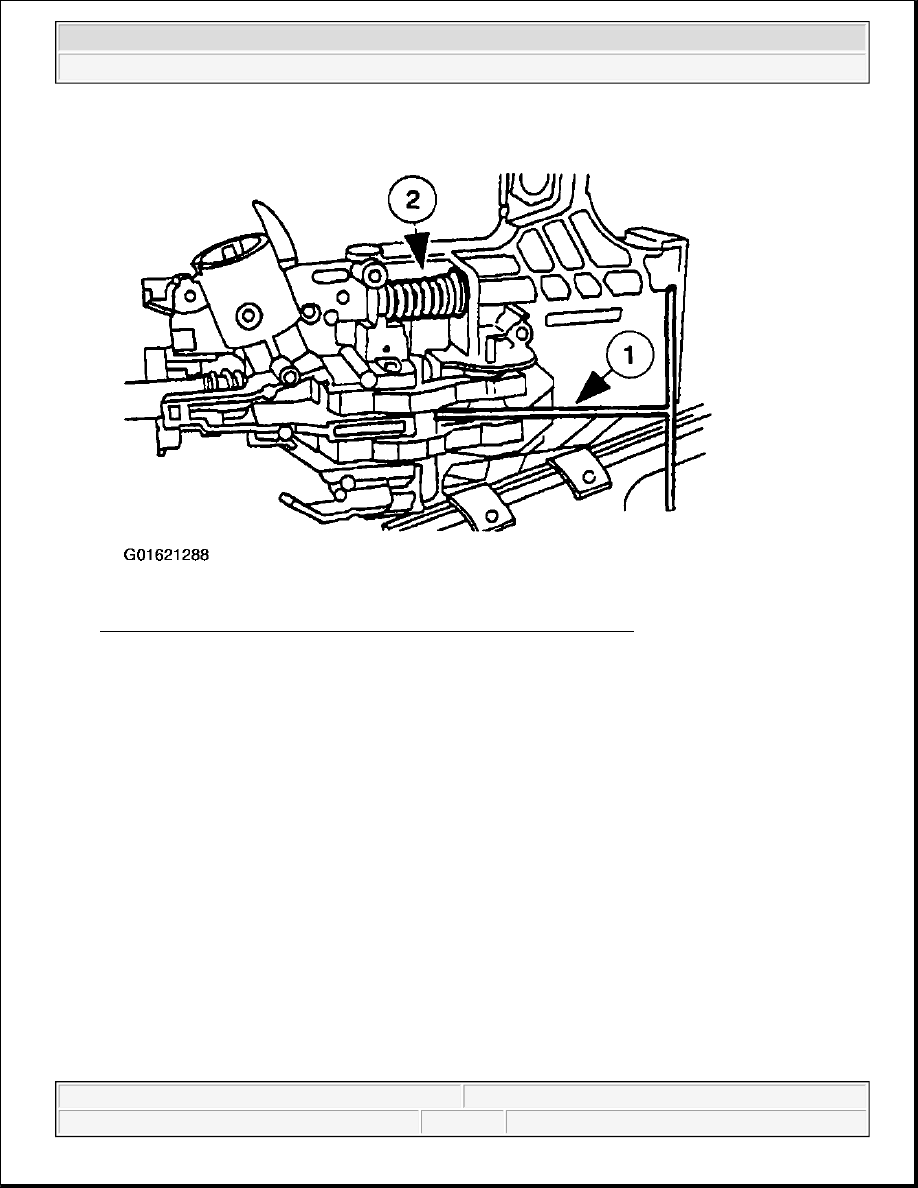

Fig. 112: Removing Lock Cylinder Housing & Steering Column Shaft
Courtesy of FORD MOTOR CO.

10. Remove the lock cylinder housing and the steering column shaft from the steering actuator housing

(3F723).

1. Pry up on the steering column lock left hand levers (3D653) using a shop fabricated tool.

2. On tilt steering columns, remove the steering column position spring (3D655)

11. Remove the turn signal cancel cam.



2003 Ford Pickup F150

2003 STEERING Steering Column - F150 Pickup

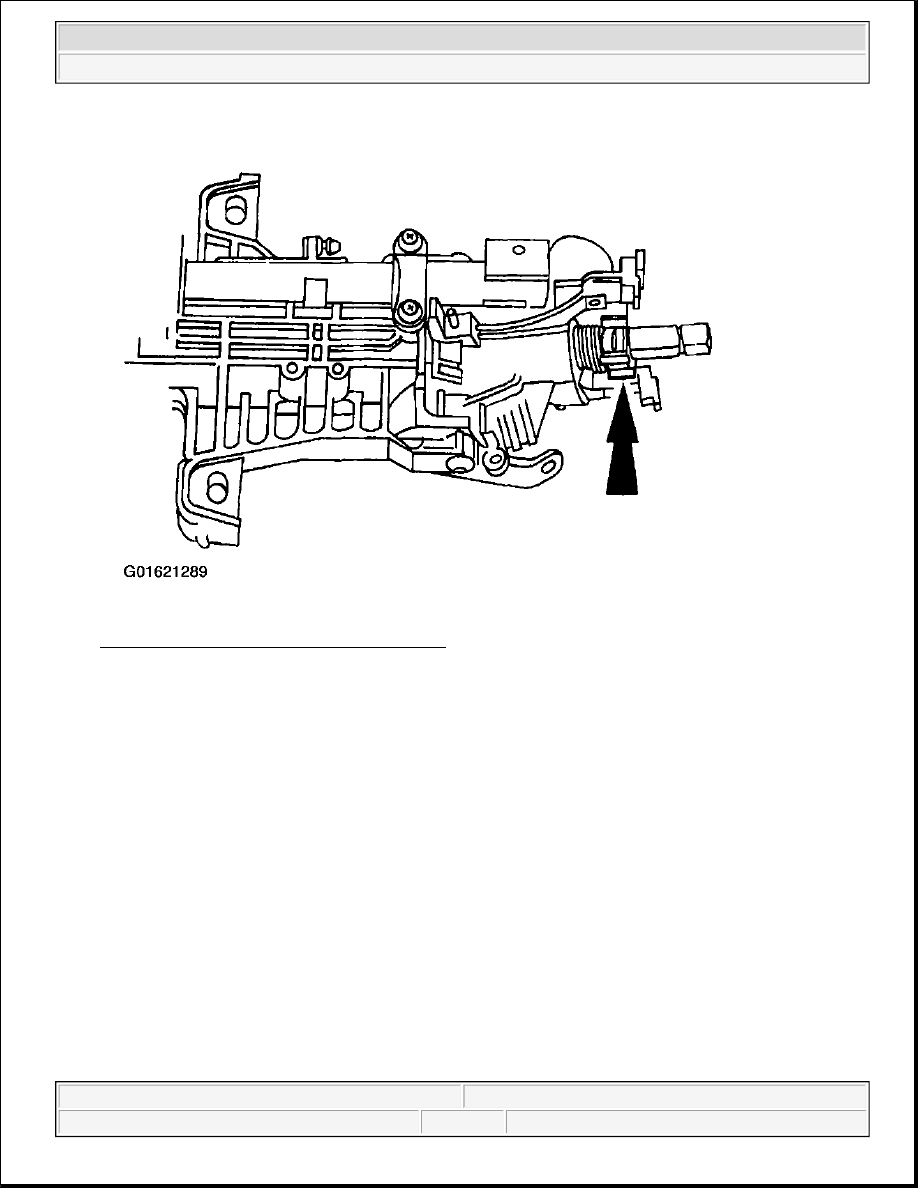

Fig. 113: Removing Turn Signal Cancel Cam
Courtesy of FORD MOTOR CO.

12. Remove the snap ring.



2003 Ford Pickup F150

2003 STEERING Steering Column - F150 Pickup

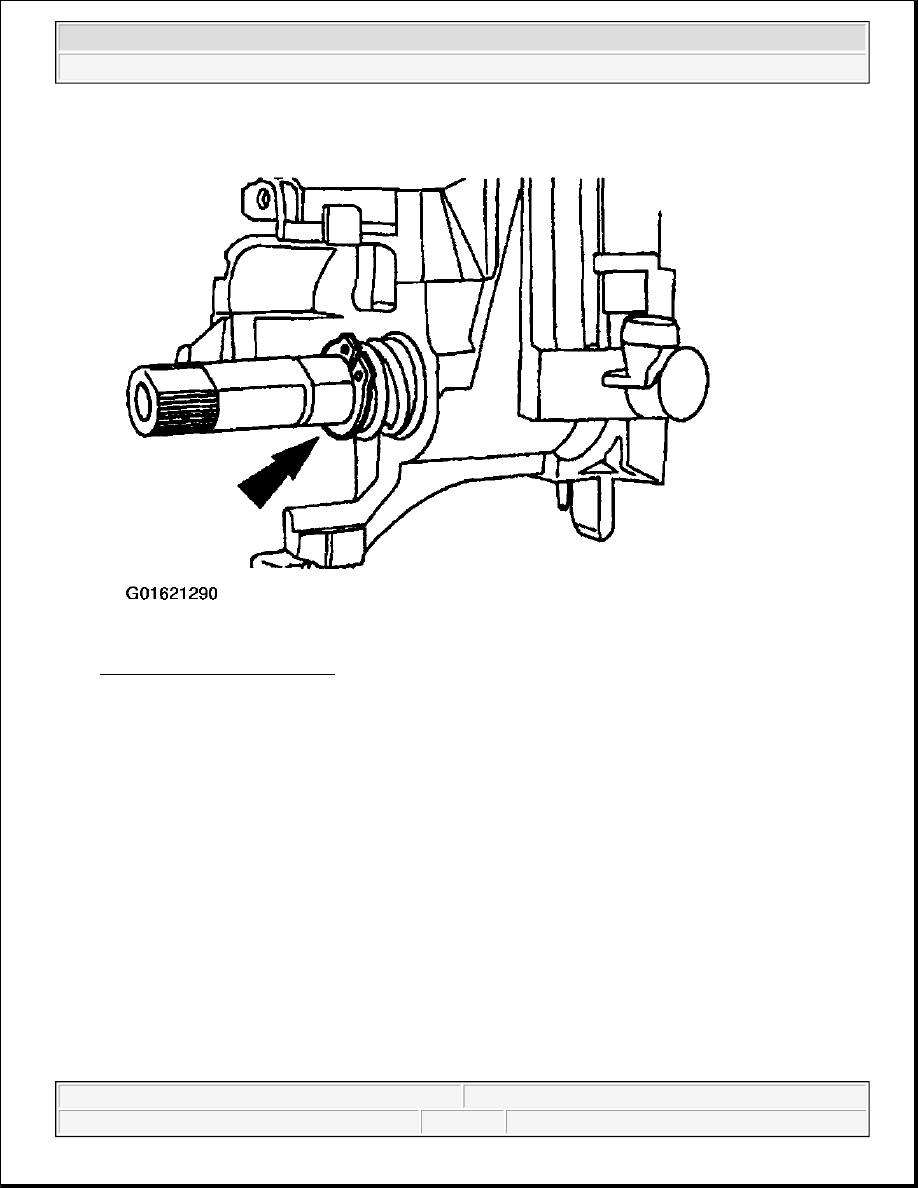

Fig. 114: Removing Snap Ring
Courtesy of FORD MOTOR CO.

13. Remove the steering column upper bearing spring (3520).



2003 Ford Pickup F150

2003 STEERING Steering Column - F150 Pickup

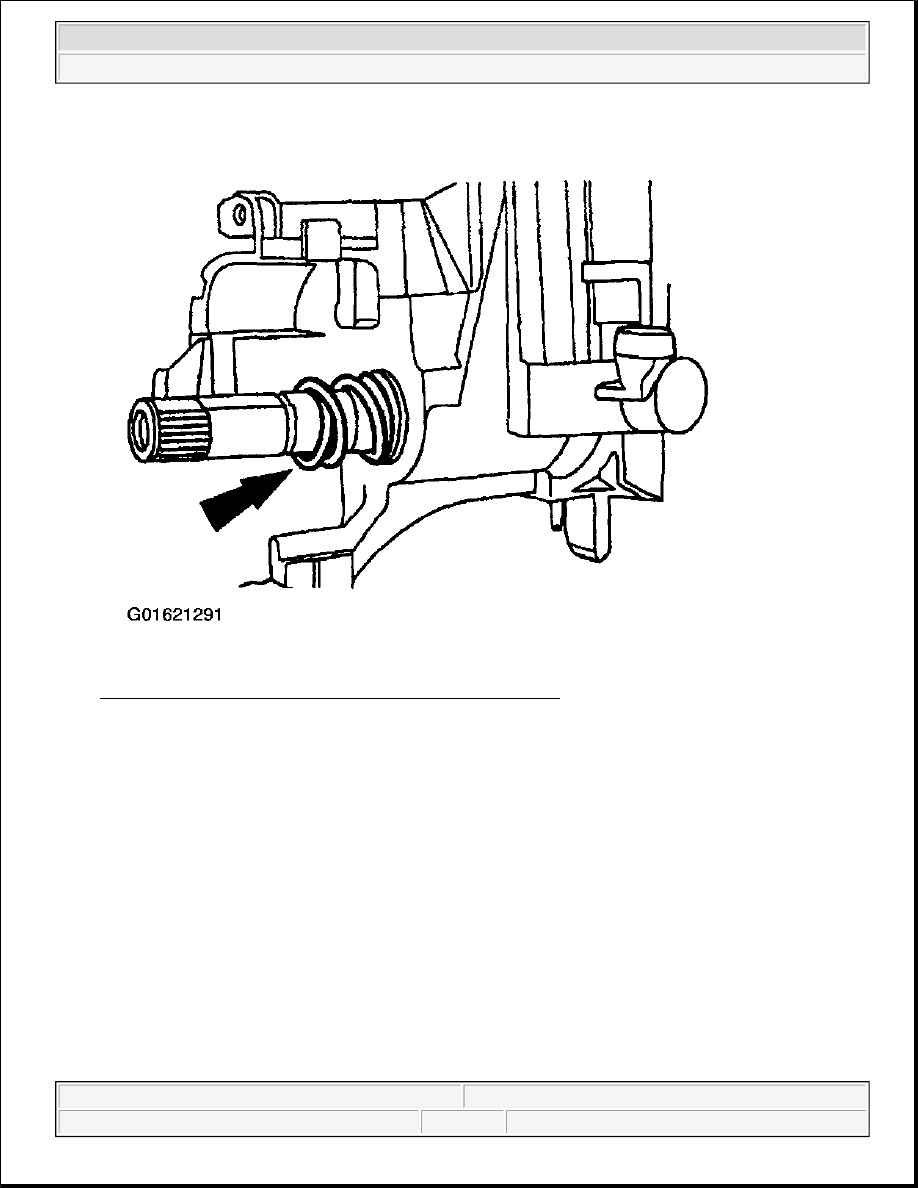

Fig. 115: Removing Steering Column Upper Bearing Spring
Courtesy of FORD MOTOR CO.

14. Remove the steering column bearing sleeve (3518).



2003 Ford Pickup F150

2003 STEERING Steering Column - F150 Pickup
