2. Remove the ignition switch.

Fig. 104: Removing Ignition Switch
Courtesy of FORD MOTOR CO.

3. Remove the bearing retainer (3C610).



2003 Ford Pickup F150

2003 STEERING Steering Column - F150 Pickup



Fig. 105: Removing Bearing Retainer
Courtesy of FORD MOTOR CO.

4. Remove the steering column lock housing bearing (3E700).



2003 Ford Pickup F150

2003 STEERING Steering Column - F150 Pickup

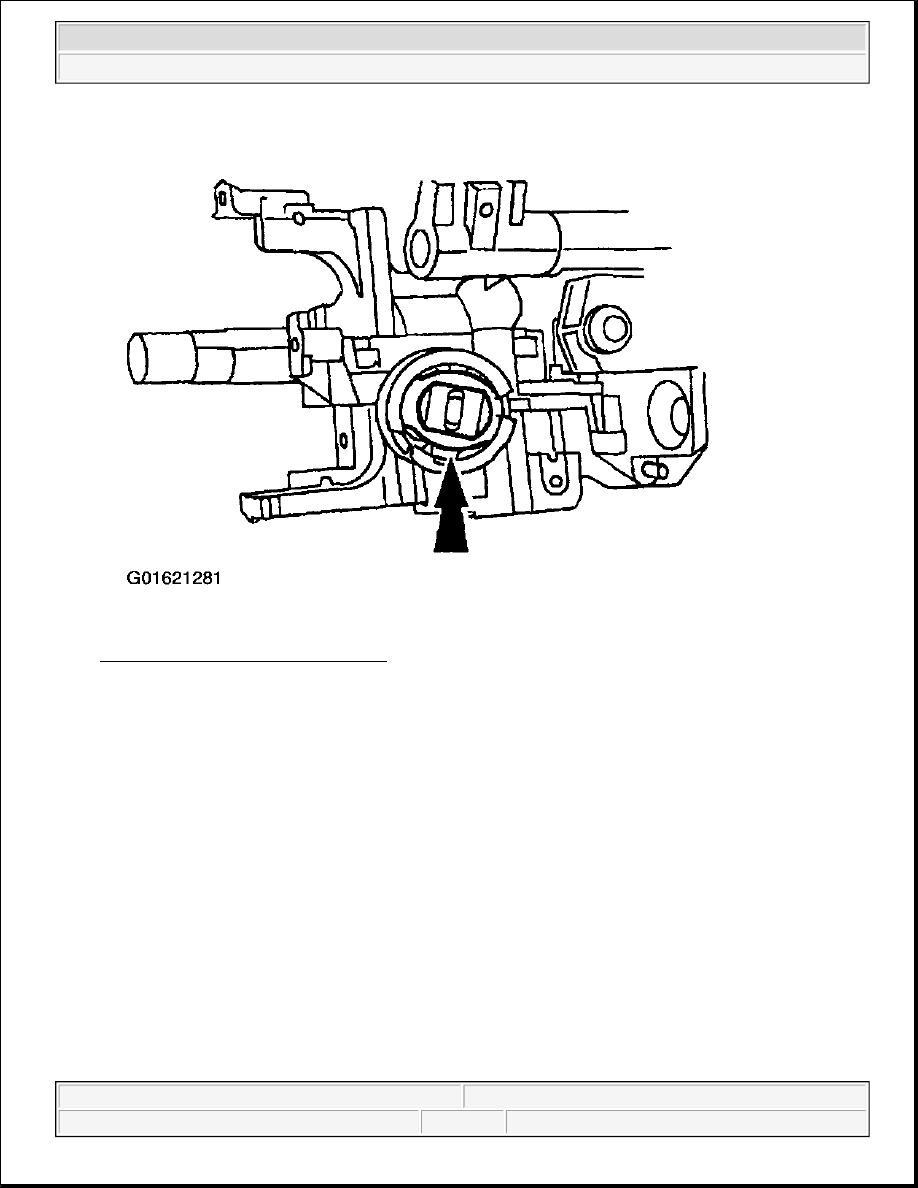

Fig. 106: Removing Steering Column Lock Housing Bearing
Courtesy of FORD MOTOR CO.

5. Remove the steering column lock gear (3E717).



2003 Ford Pickup F150

2003 STEERING Steering Column - F150 Pickup

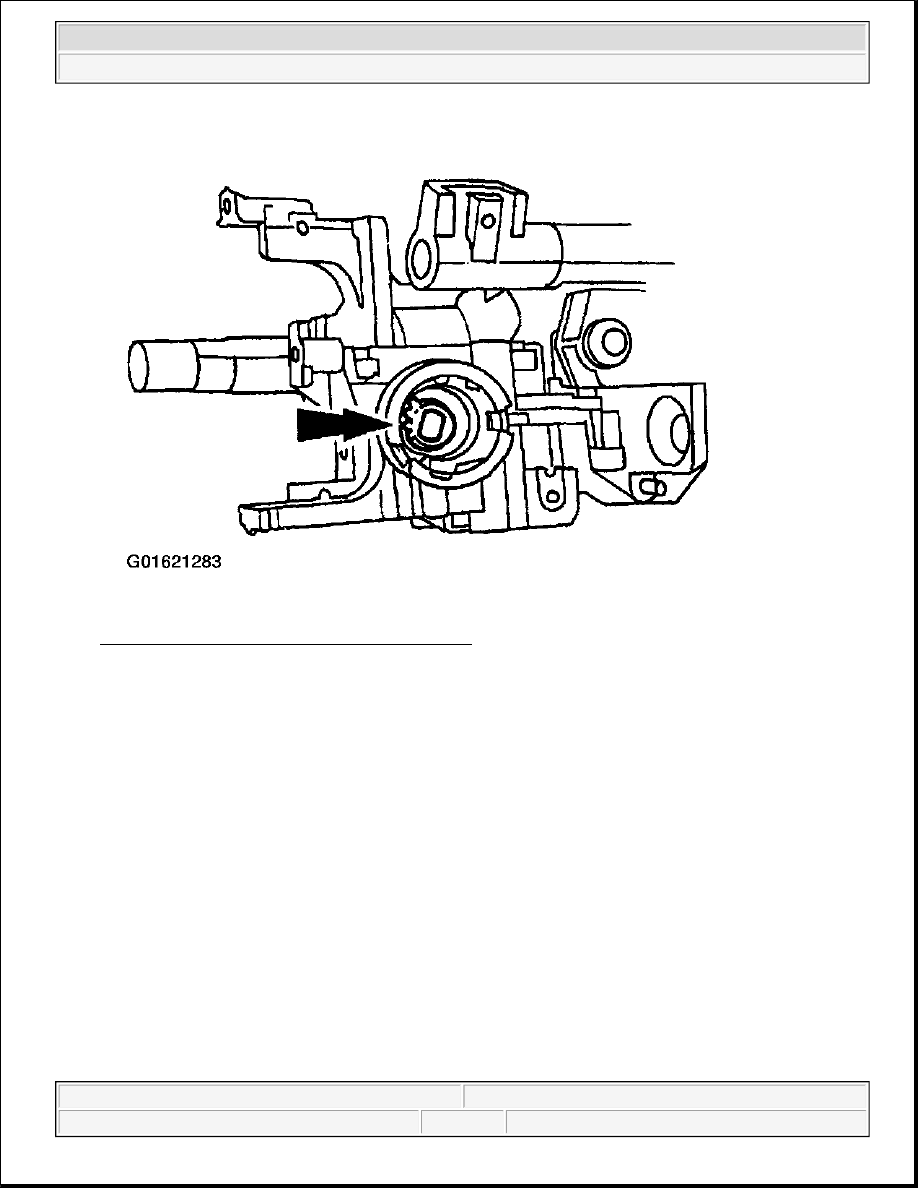

Fig. 107: Removing Steering Column Lock Gear
Courtesy of FORD MOTOR CO.

6. On fixed steering column equipped vehicles, remove the snap ring from the bottom of the steering

column shaft.



2003 Ford Pickup F150

2003 STEERING Steering Column - F150 Pickup
