Fig. 91: Removing Steering Column Cover Reinforcement
Courtesy of FORD MOTOR CO.

7. Remove the bolt and disconnect the ignition switch electrical connector.



2003 Ford Pickup F150

2003 STEERING Steering Column - F150 Pickup

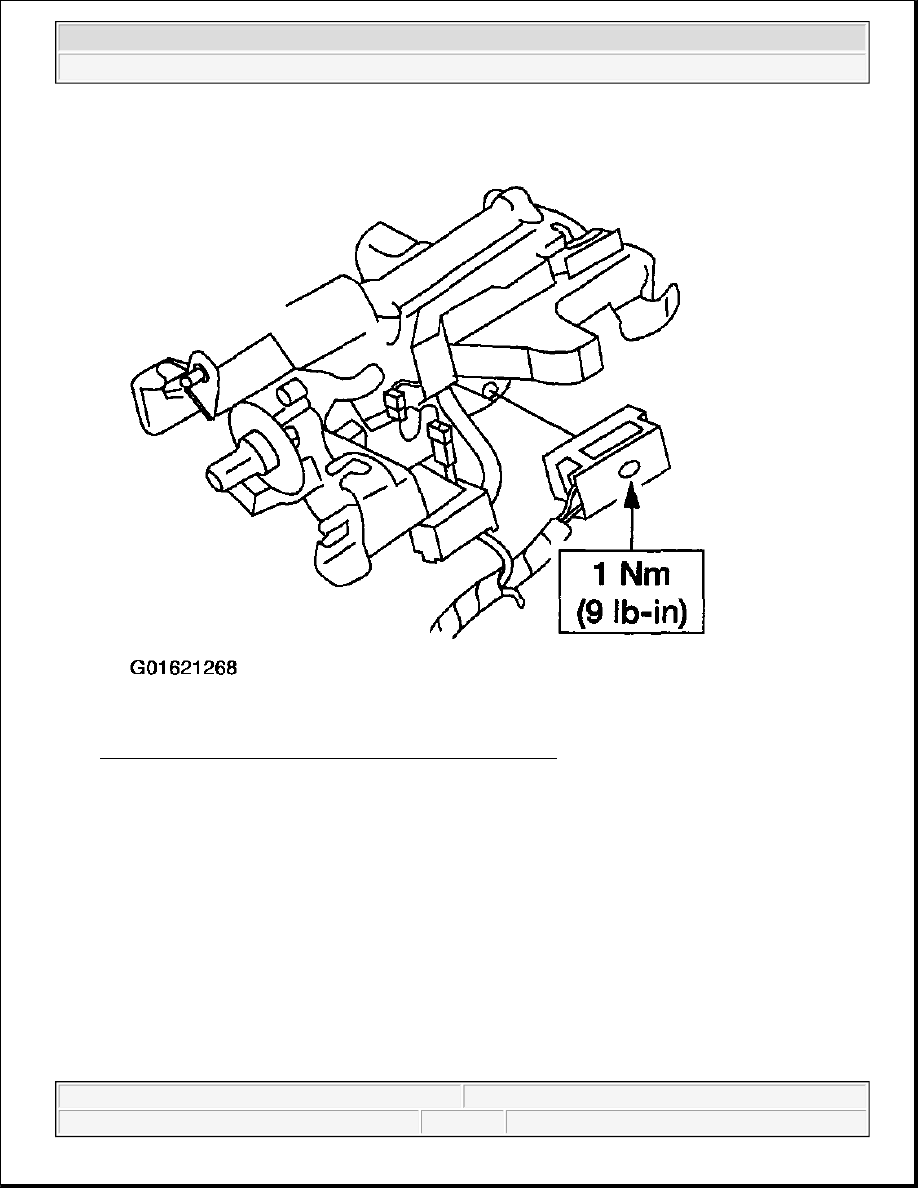

Fig. 92: Disconnecting Ignition Switch Electrical Connector
Courtesy of FORD MOTOR CO.

Vehicles With Automatic Transmission

8. Remove the transmission range indicator from the steering column (3C529).



2003 Ford Pickup F150

2003 STEERING Steering Column - F150 Pickup

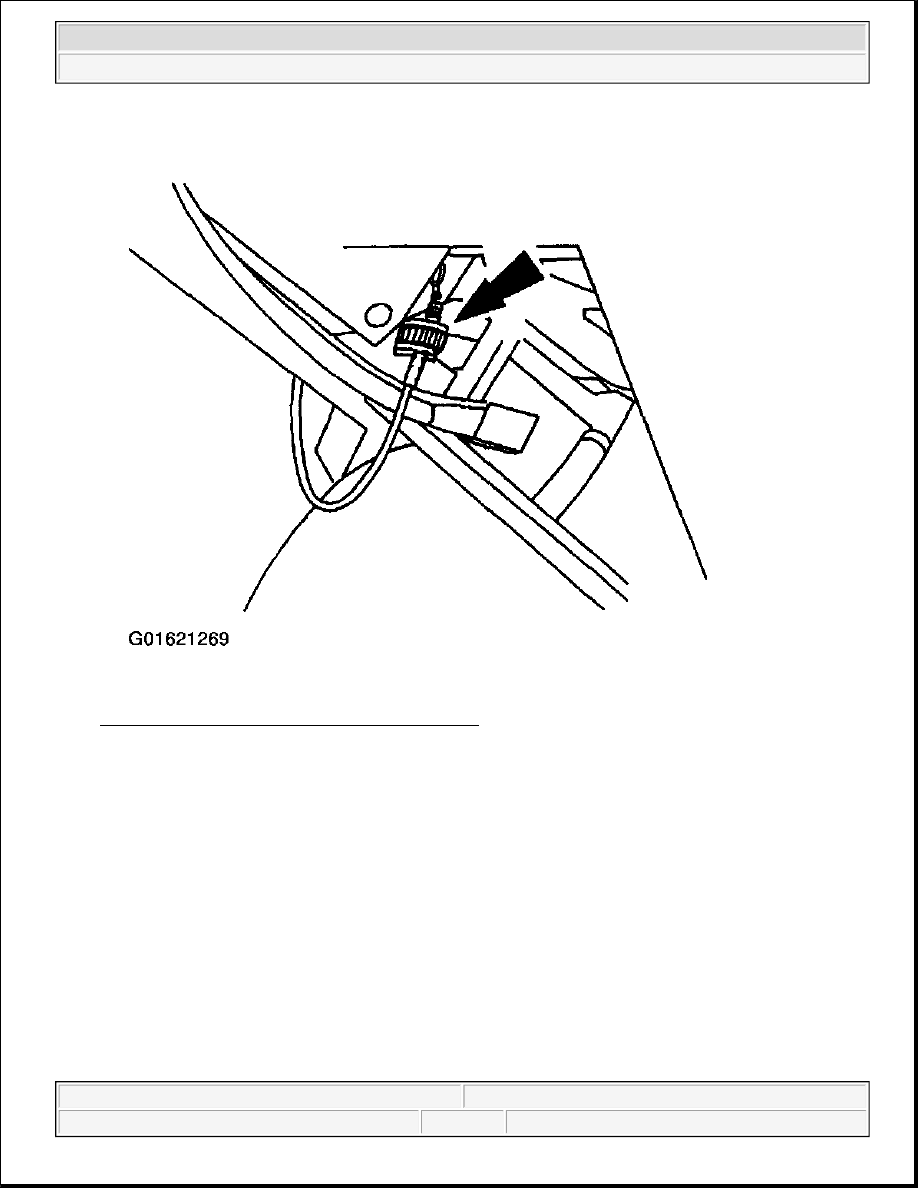

Fig. 93: Removing Transmission Range Indicator
Courtesy of FORD MOTOR CO.

9. Disconnect the shift cable from the steering column.

1. Disconnect the shift cable from the steering column shift tube lever.

2. Disconnect the shift cable from the steering column bracket.



2003 Ford Pickup F150

2003 STEERING Steering Column - F150 Pickup

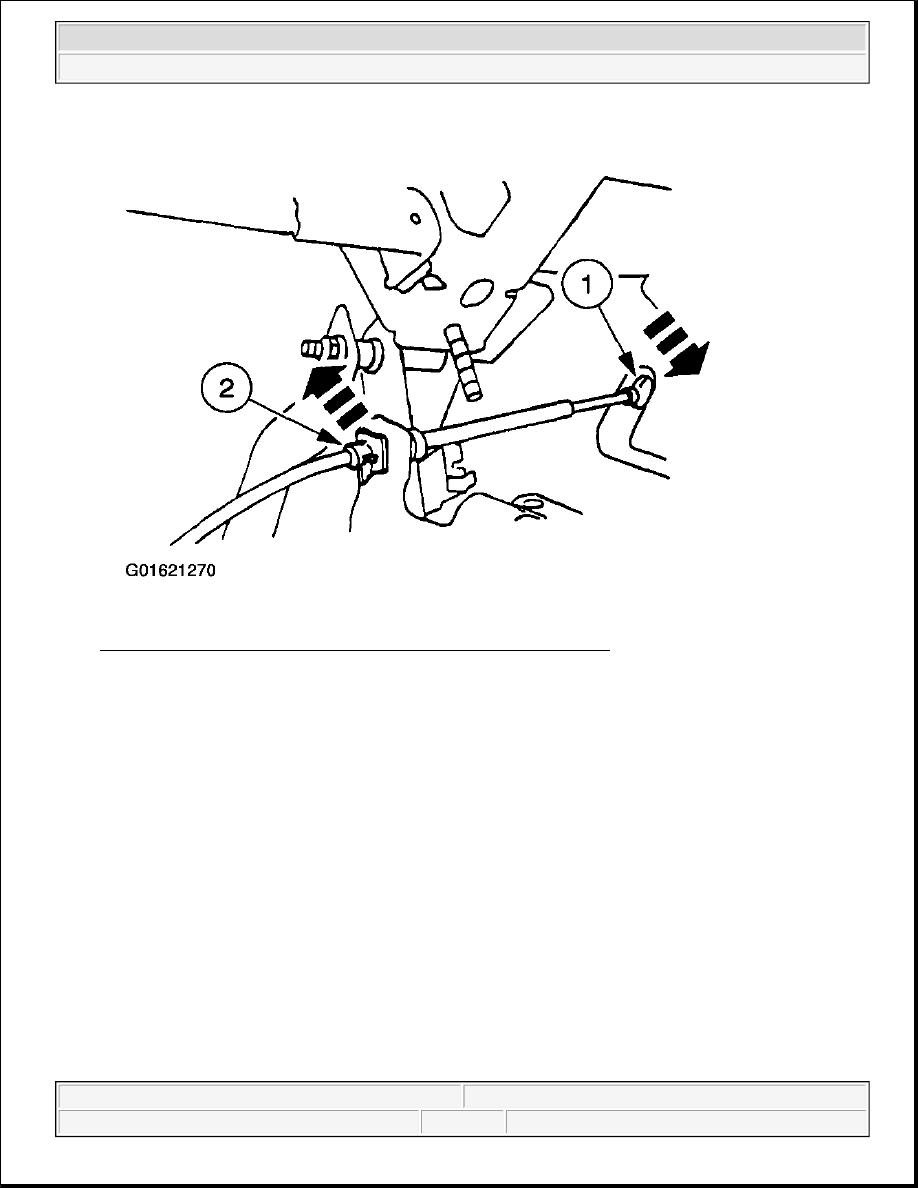

Fig. 94: Disconnecting Shift Cable From Steering Column Bracket
Courtesy of FORD MOTOR CO.

All Vehicles

10. Remove the steering column shaft bolt.

z

Discard the bolt.
