Fig. 43: Pulling Outward To Release Clips
Courtesy of FORD MOTOR CO.

NOTE:

The safety belt retractor pretensioner electrical connector has been
removed for clarity.



2003 Ford Pickup F150

2003 STEERING Steering Column - F150 Pickup

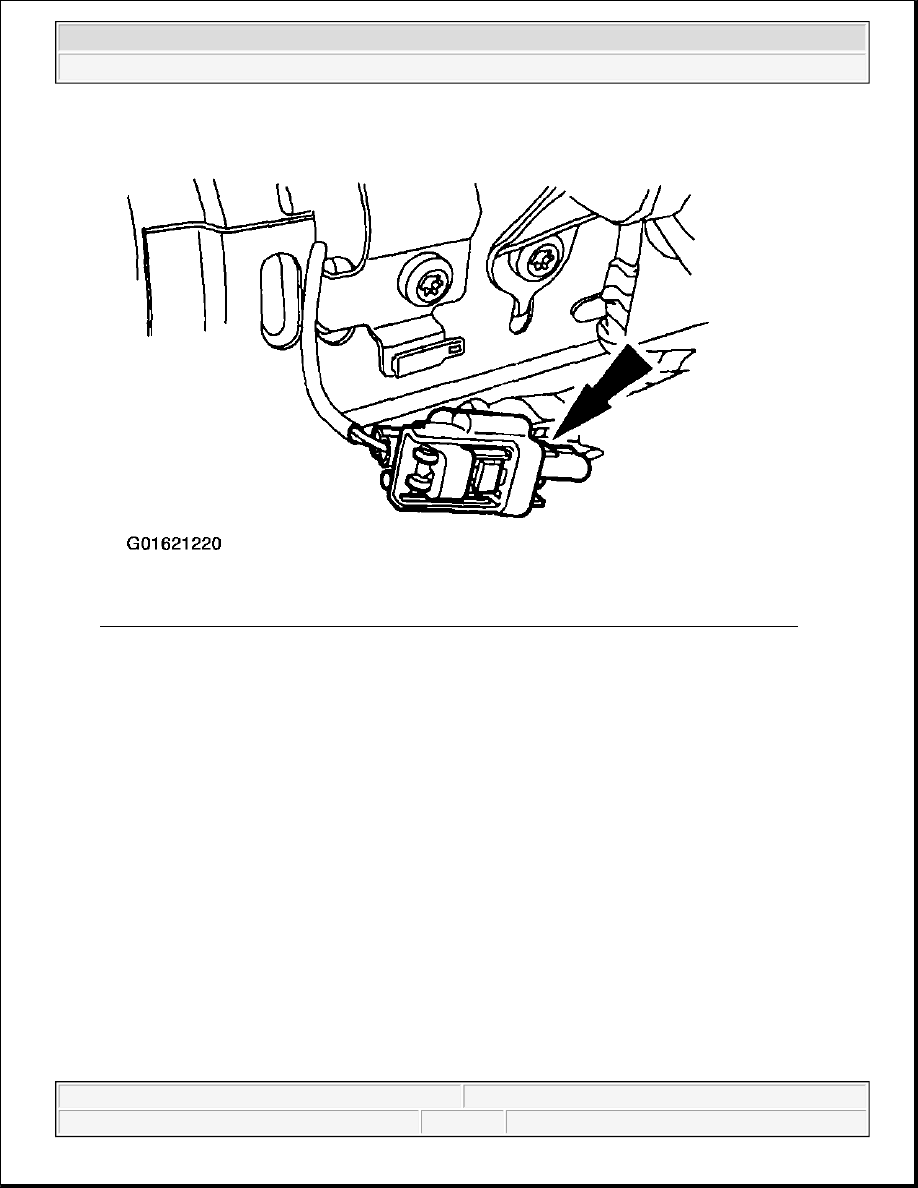

Fig. 44: Disconnecting Driver Side Safety Belt Retractor Pretensioner Electrical Connector
Courtesy of FORD MOTOR CO.

52. Push in to release the tab and disconnect the driver side safety belt retractor pretensioner electrical

connector.

53. Attach the restraint system diagnostic tool to the driver side safety belt retractor pretensioner electrical

connector.



2003 Ford Pickup F150

2003 STEERING Steering Column - F150 Pickup

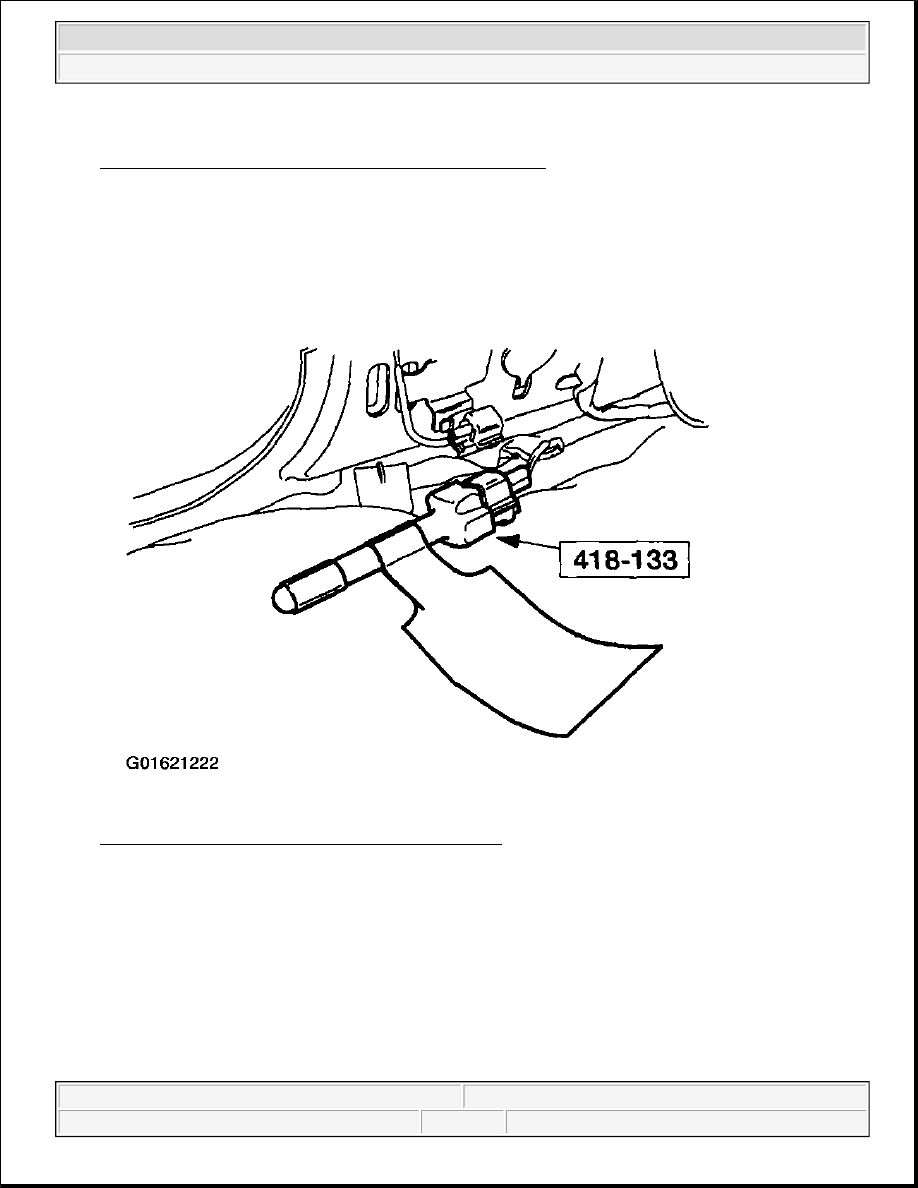

Fig. 45: Attaching Restraint System Diagnostic Tool
Courtesy of FORD MOTOR CO.

All Vehicles

54. Connect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND

CABLES - F150 PICKUP .

55. With the restraint system diagnostic tools installed at all deployable devices, prove out the Supplemental

Restraint System (SRS). For additional information, refer to AIR BAG RESTRAINT SYSTEMS - F150
PICKUP .

56. Disconnect the battery ground cable and wait at least one minute. For additional information, refer to

BATTERY, MOUNTING AND CABLES - F150 PICKUP .

Reactivation

All Vehicles

WARNING:

To reduce the risk of serious personal injury, read and follow all
warnings, cautions, and notes at the beginning of the deactivation
procedure.



2003 Ford Pickup F150

2003 STEERING Steering Column - F150 Pickup



1. Disconnect the battery ground cable and wait at least one minute. For additional information, refer to

BATTERY, MOUNTING AND CABLES - F150 PICKUP .

Supercrew With Safety Belt Retractor Pretensioners

2. Remove the restraint system diagnostic tool from the driver side safety belt retractor pretensioner

electrical connector.

Fig. 46: Removing Restraint System Diagnostic Tool
Courtesy of FORD MOTOR CO.

3. Connect the driver side safety belt retractor pretensioner electrical connector.



2003 Ford Pickup F150

2003 STEERING Steering Column - F150 Pickup
