Fig. 35: Disconnecting Passenger Side Safety Belt Retractor Pretensioner Electrical Connector
Courtesy of FORD MOTOR CO.

43. Push in to release the tab and disconnect the passenger side safety belt retractor pretensioner electrical

connector.

44. Attach the restraint system diagnostic tool to the passenger side safety belt retractor pretensioner

electrical connector.



2003 Ford Pickup F150

2003 STEERING Steering Column - F150 Pickup

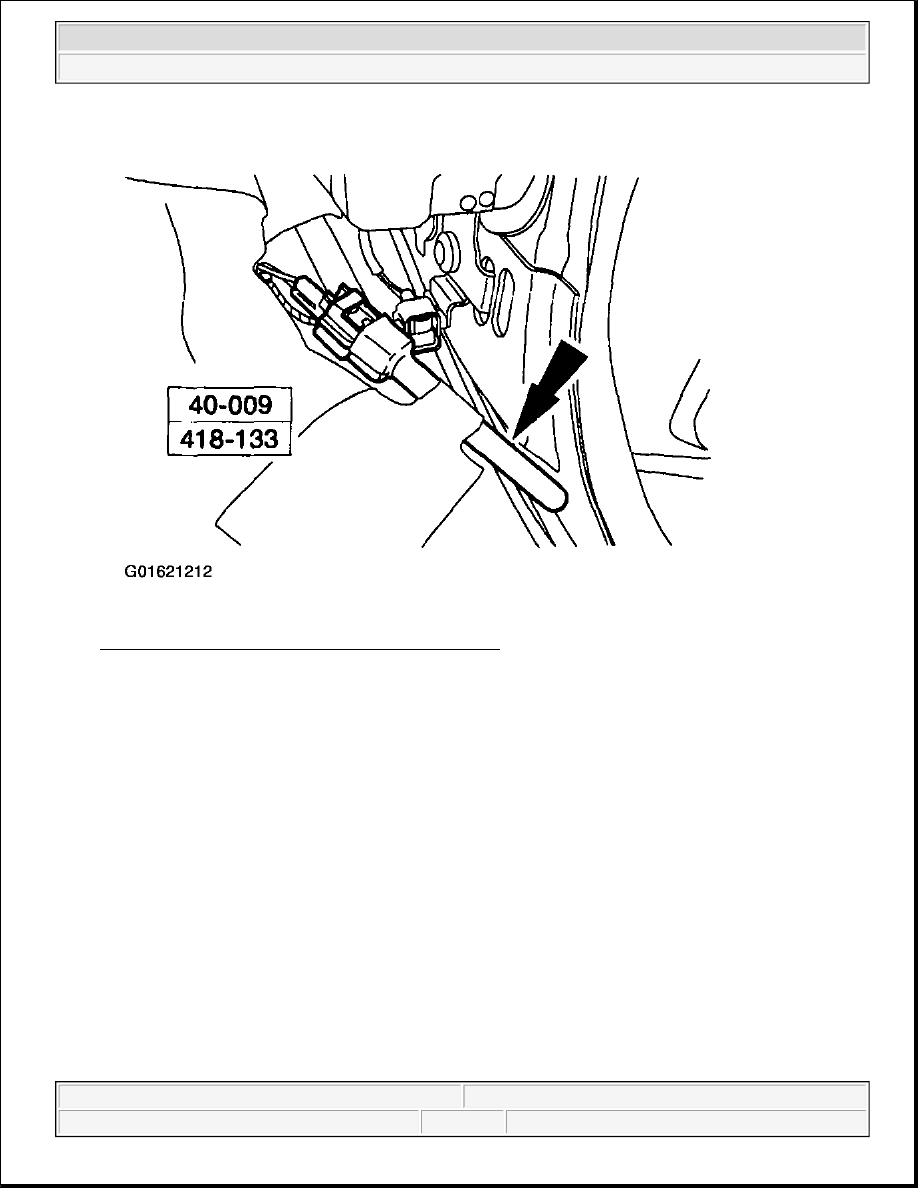

Fig. 36: Attaching Restraint System Diagnostic Tool
Courtesy of FORD MOTOR CO.

45. Remove the driver side front scuff plate.



2003 Ford Pickup F150

2003 STEERING Steering Column - F150 Pickup



Fig. 37: Removing Driver Side Front Scuff Plate
Courtesy of FORD MOTOR CO.

46. Remove the driver side rear scuff plate.



2003 Ford Pickup F150

2003 STEERING Steering Column - F150 Pickup



Fig. 38: Removing Driver Side Rear Scuff Plate
Courtesy of FORD MOTOR CO.

NOTE:

The safety belt guide has been removed for clarity.
