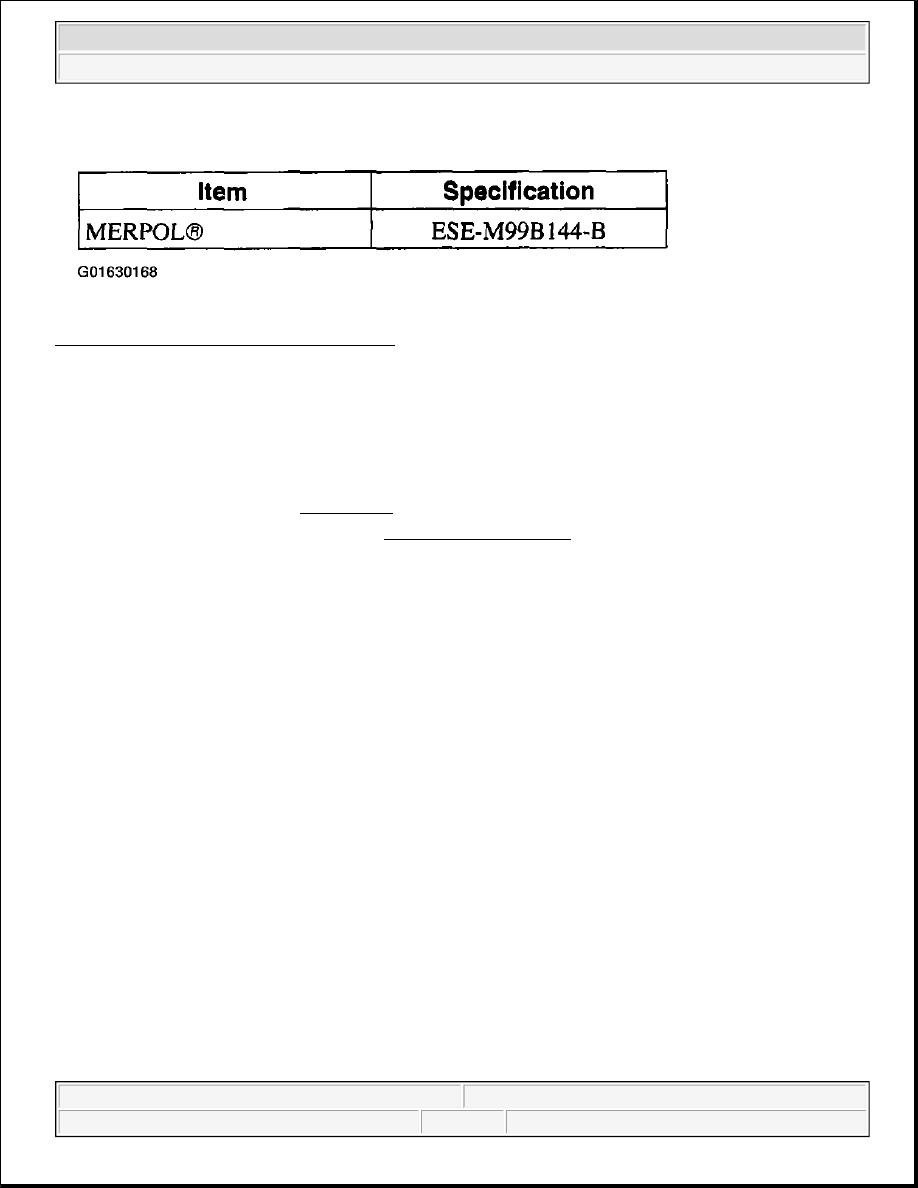

Fig. 11: Heater Core Material Specifications
Courtesy of FORD MOTOR CO.

Removal and Installation

1. Drain the radiator. Refer to DRAINING .

2. Remove the instrument panel. Refer to INSTRUMENT PANEL .

3. Disconnect the heater core hose coupling. Refer to CLIMATE CONTROL SYSTEM .

NOTE:

If a heater core leak is suspected, the heater core must be pressure leak tested
before it is removed from the vehicle. Refer to CLIMATE CONTROL SYSTEM .



2003 Ford Pickup F150

2003 HVAC Heating And Ventilation - F150 Pickup

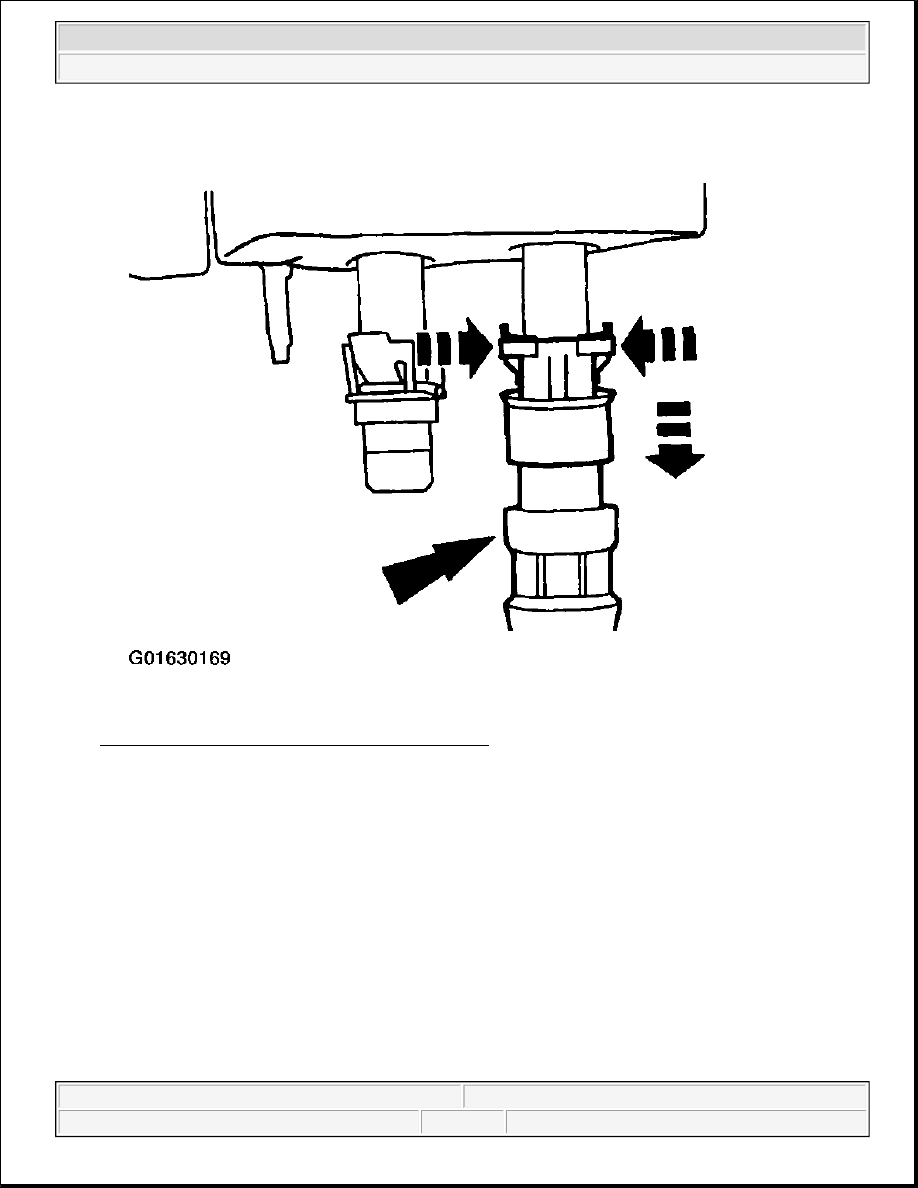

Fig. 12: Disconnecting Heater Core Hose Coupling
Courtesy of FORD MOTOR CO.

4. Remove the A/C plenum demister adapter.

1. Remove the screw.

2. Remove the A/C plenum demister adapter.



2003 Ford Pickup F150

2003 HVAC Heating And Ventilation - F150 Pickup



Fig. 13: Removing A/C Plenum Demister Adapter
Courtesy of FORD MOTOR CO.

5. Remove the screws and position aside the relay bracket.



2003 Ford Pickup F150

2003 HVAC Heating And Ventilation - F150 Pickup

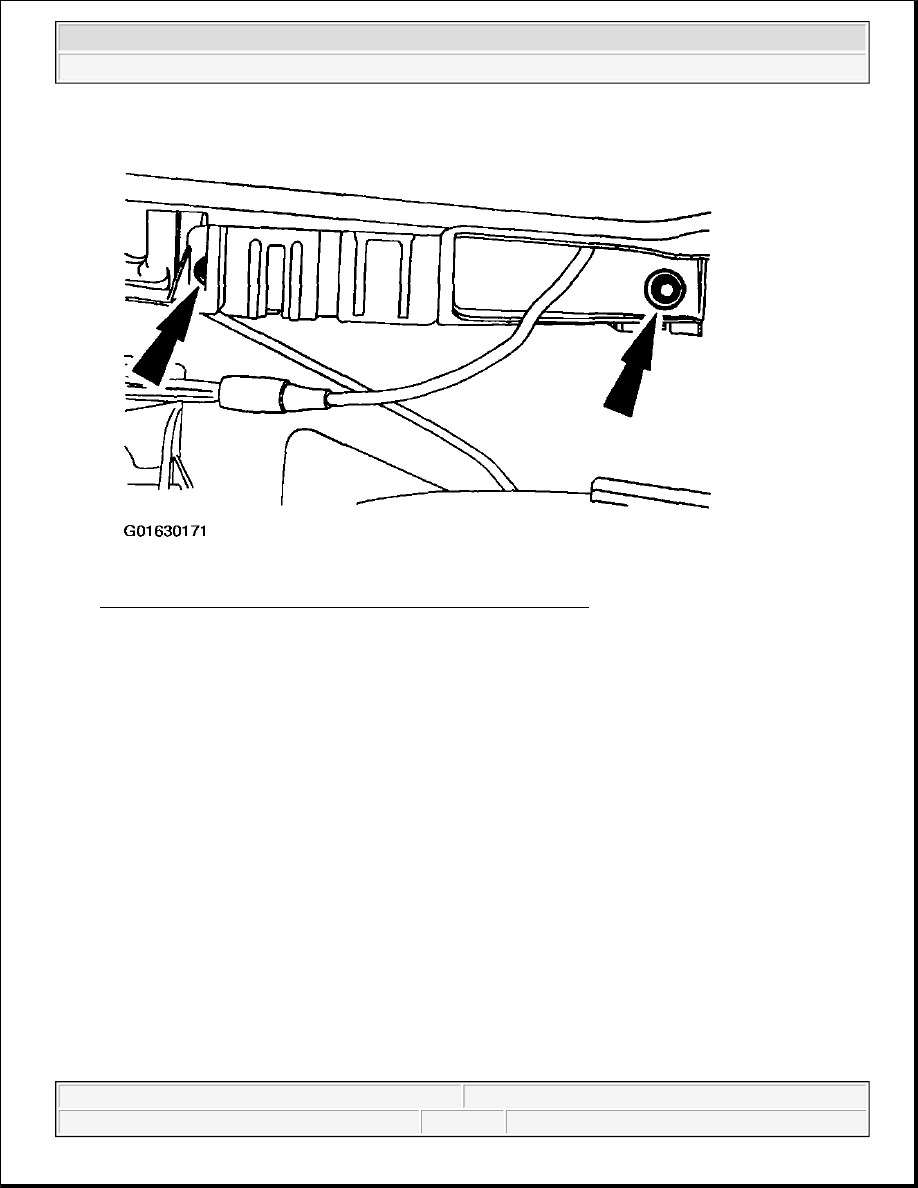

Fig. 14: Identifying Screw And Positioning Aside Relay Bracket
Courtesy of FORD MOTOR CO.

6. Disconnect the vacuum line.



2003 Ford Pickup F150

2003 HVAC Heating And Ventilation - F150 Pickup
