Ford F150 Pickup. Instruction - part 1709

Fig. 7: View Of Removing Aspirator Tube Extension
Courtesy of FORD MOTOR CO.

All Vehicles

9. Disconnect the electrical connector.



2003 Ford Pickup F150

2003 HVAC Heating And Ventilation - F150 Pickup



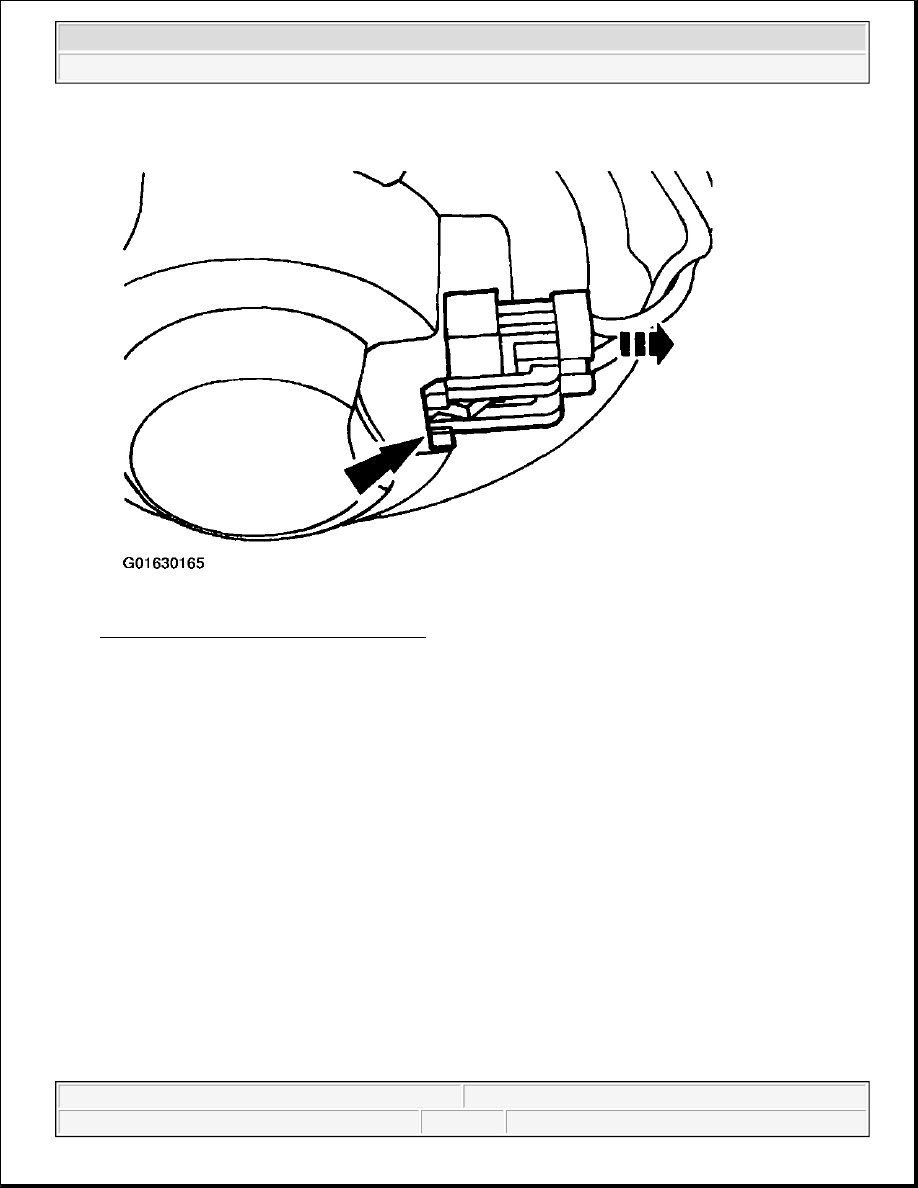

Fig. 8: Disconnecting Electrical Connector
Courtesy of FORD MOTOR CO.

10. Remove the screws and remove the blower motor.



2003 Ford Pickup F150

2003 HVAC Heating And Ventilation - F150 Pickup



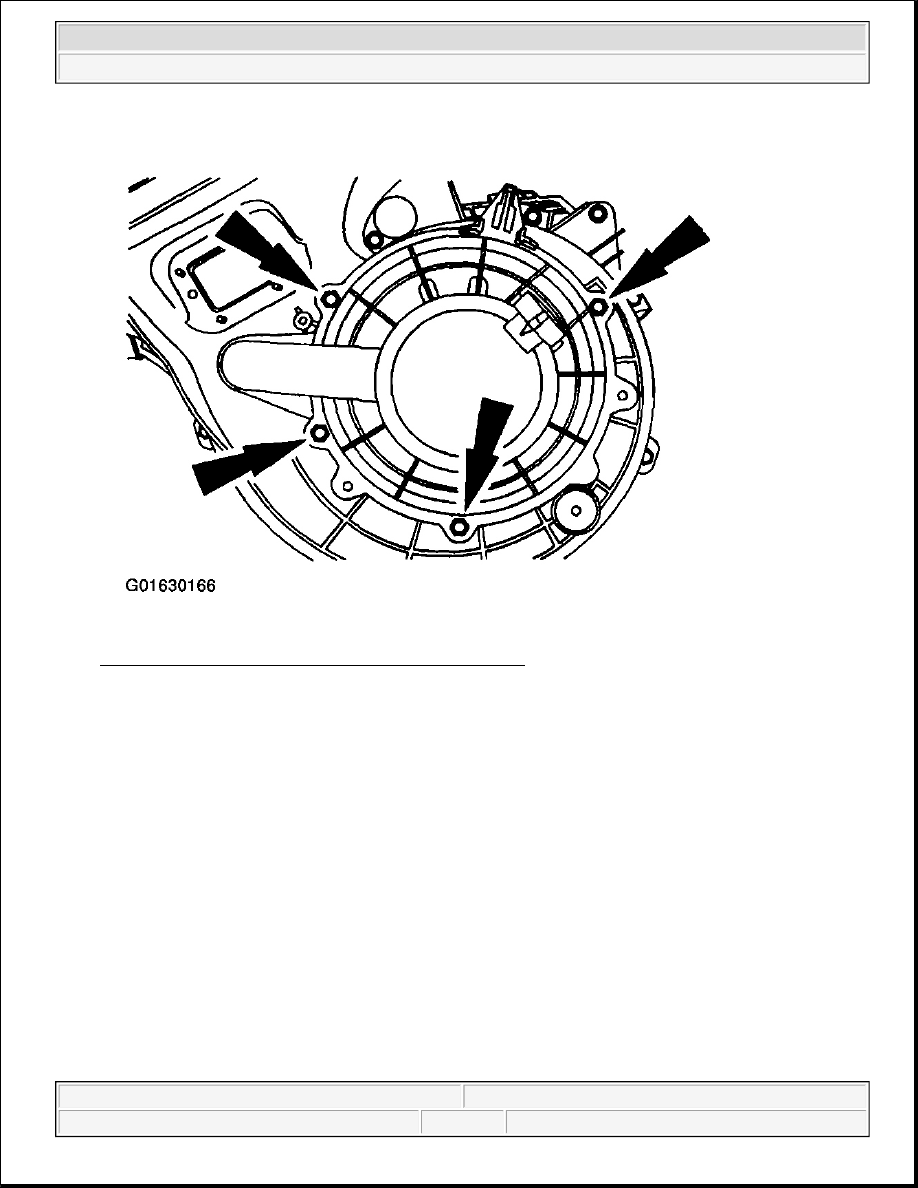

Fig. 9: Identifying Screws For Removing Blower Motor
Courtesy of FORD MOTOR CO.

11. Remove the wheel from the blower motor.

1. Remove the clip.

2. Remove the blower wheel.



2003 Ford Pickup F150

2003 HVAC Heating And Ventilation - F150 Pickup



Fig. 10: Identifying Clip And Blower Wheel
Courtesy of FORD MOTOR CO.

12. To install, reverse the removal procedure.
