Ford F150 Pickup. Instruction - part 1706

Fig. 113: Disconnecting Condenser Lower Fitting Nut
Courtesy of FORD MOTOR CO.

5. Remove the line bracket nut.

2003 Ford Pickup F150

2003 HVAC Air Conditioning - F150 Pickup

Fig. 114: Removing Line Bracket Nut
Courtesy of FORD MOTOR CO.

6. Remove the suction accumulator bracket clamp bolt.

2003 Ford Pickup F150

2003 HVAC Air Conditioning - F150 Pickup

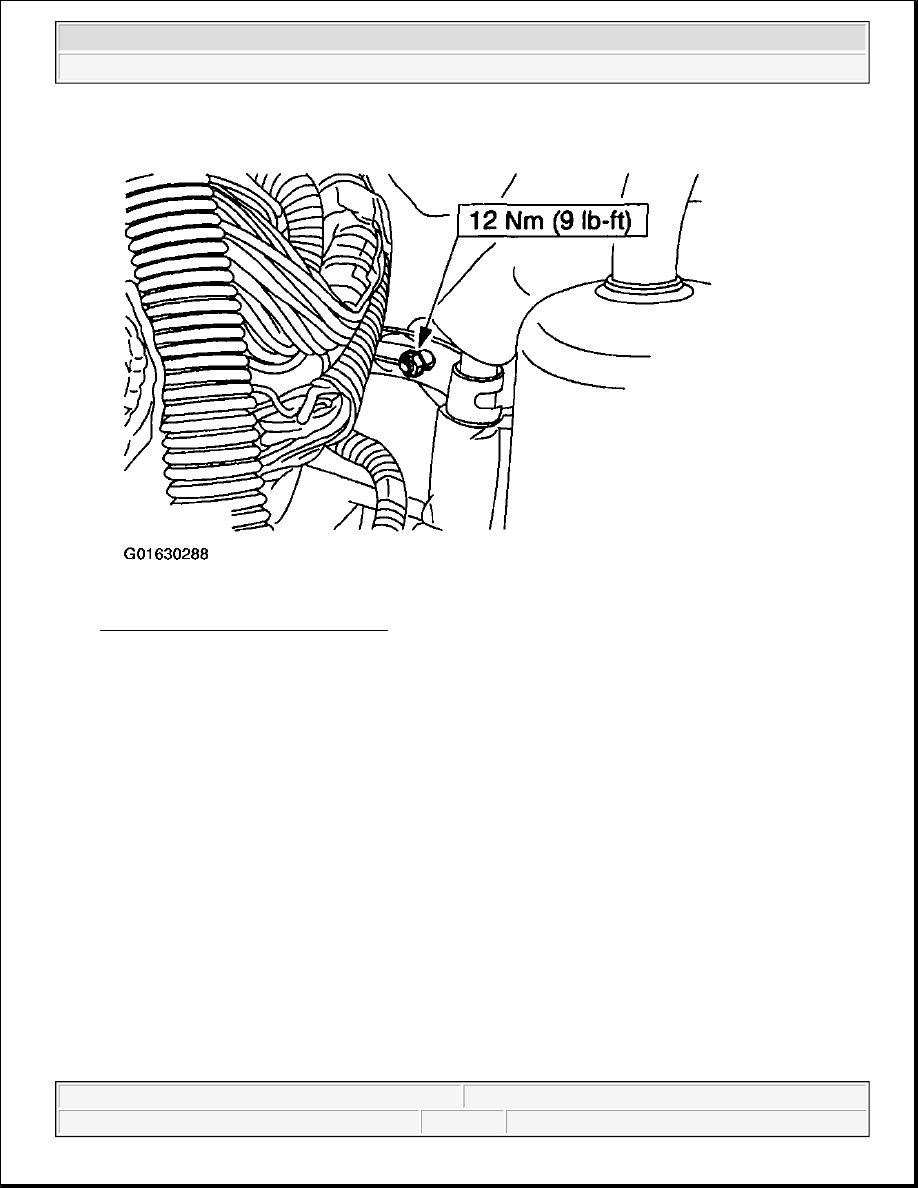

Fig. 115: Locating Suction Accumulator Bracket Clamp Bolt
Courtesy of FORD MOTOR CO.

7. Remove the condenser to evaporator line.

2003 Ford Pickup F150

2003 HVAC Air Conditioning - F150 Pickup

Fig. 116: Locating Condenser To Evaporator Line
Courtesy of FORD MOTOR CO.

8. To install, reverse the removal procedure.

2003 Ford Pickup F150

2003 HVAC Air Conditioning - F150 Pickup
