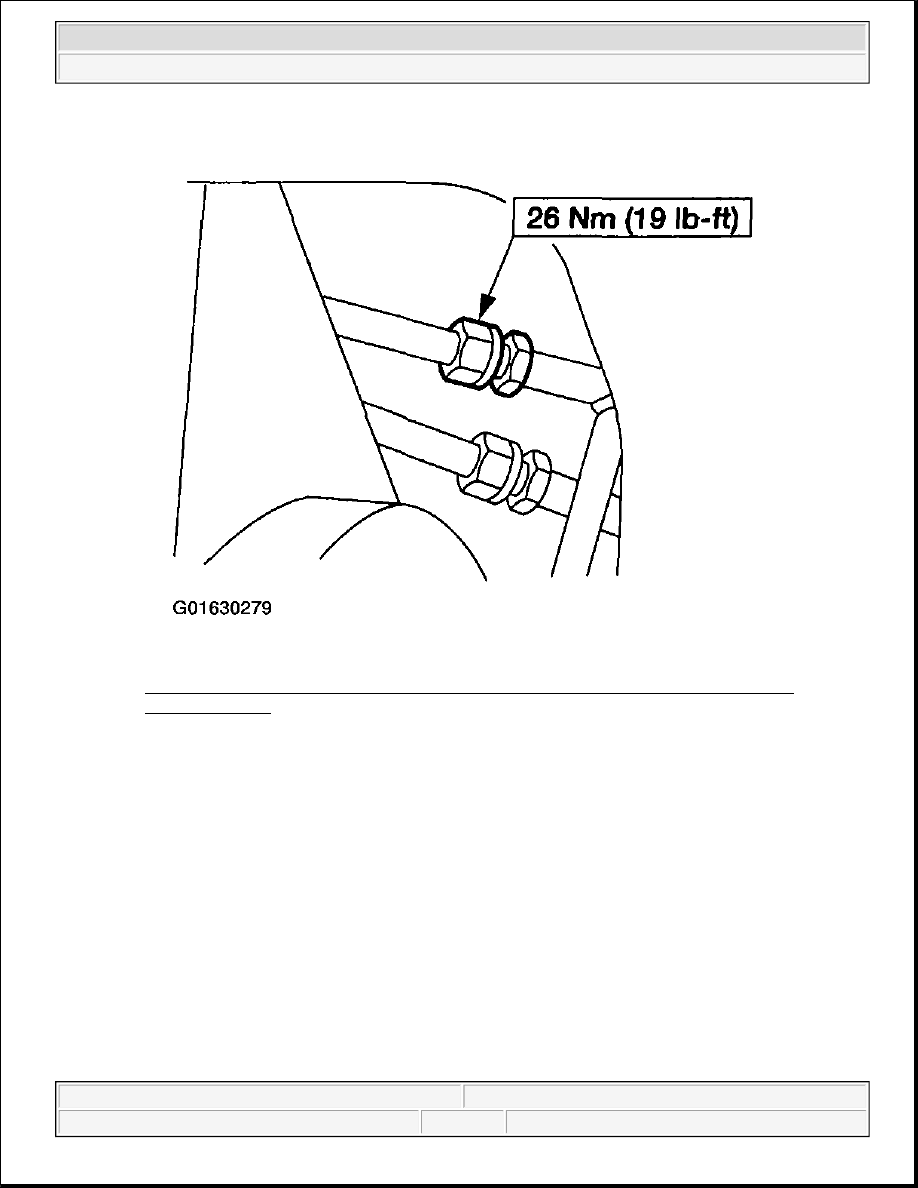

Fig. 105: Locating Nut For Disconnecting A/C Manifold And Tube Assembly At A/C
Condenser Core
Courtesy of FORD MOTOR CO.

7. Remove the nut.



2003 Ford Pickup F150

2003 HVAC Air Conditioning - F150 Pickup

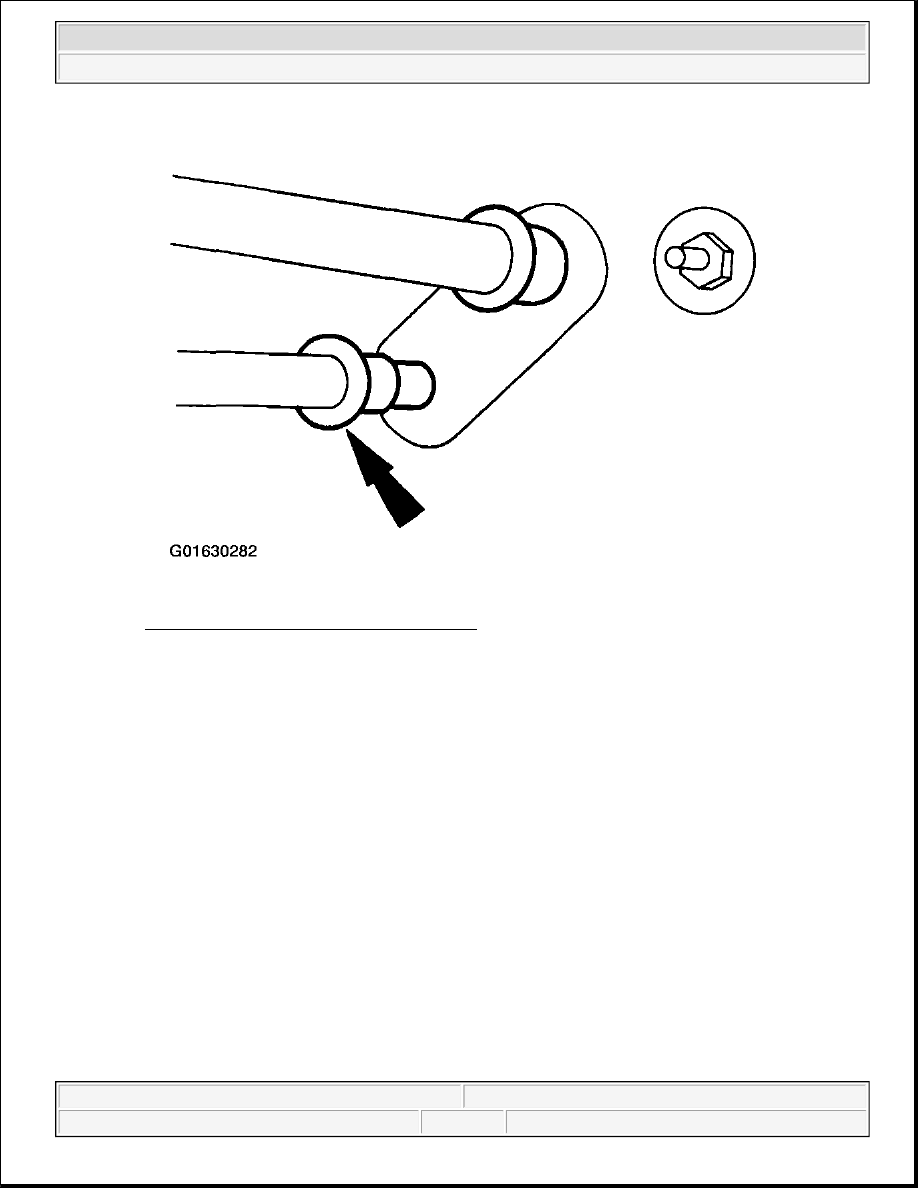

Fig. 106: Removing Nut
Courtesy of FORD MOTOR CO.

8. Remove the A/C pressure cutoff switch (19D594).

z

Discard the O-ring seal.



2003 Ford Pickup F150

2003 HVAC Air Conditioning - F150 Pickup



Fig. 107: Identifying A/C Pressure Cutoff Switch Removing Nut
Courtesy of FORD MOTOR CO.

9. Remove the A/C manifold and tube assembly.

10. To install, reverse the removal procedure.

z

Install new O-ring seals lubricated in clean PAG oil.

z

Lubricate the refrigerant system with the correct amount of clean PAG oil. Refer to CLIMATE
CONTROL SYSTEM .

11. Evacuate, leak test and charge the refrigerant system. Refer to CLIMATE CONTROL SYSTEM .

LINE - 4.2L

Removal and Installation

1. Recover the refrigerant. Refer to CLIMATE CONTROL SYSTEM .

2. Disconnect the condenser to evaporator line spring lock coupling from the A/C evaporator core (19860).

z

Discard the O-ring seals.



2003 Ford Pickup F150

2003 HVAC Air Conditioning - F150 Pickup



Fig. 108: Identifying Spring Lock Coupling
Courtesy of FORD MOTOR CO.

3. Disconnect the condenser lower fitting.

z

Discard the O-ring seal.

NOTE:

Use a backup wrench to hold the line during disconnection to prevent
damage to the condenser to evaporator line.
