Fig. 93: Removing Condenser Core
Courtesy of FORD MOTOR CO.

7. To install, reverse the removal procedure.

z

Install new O-rings lubricated in clean PAG oil.

z

Lubricate the refrigerant system with the correct amount of clean PAG oil. Refer to CLIMATE
CONTROL SYSTEM .

MANIFOLD AND TUBE ASSEMBLY - 4.2L

Material



2003 Ford Pickup F150

2003 HVAC Air Conditioning - F150 Pickup



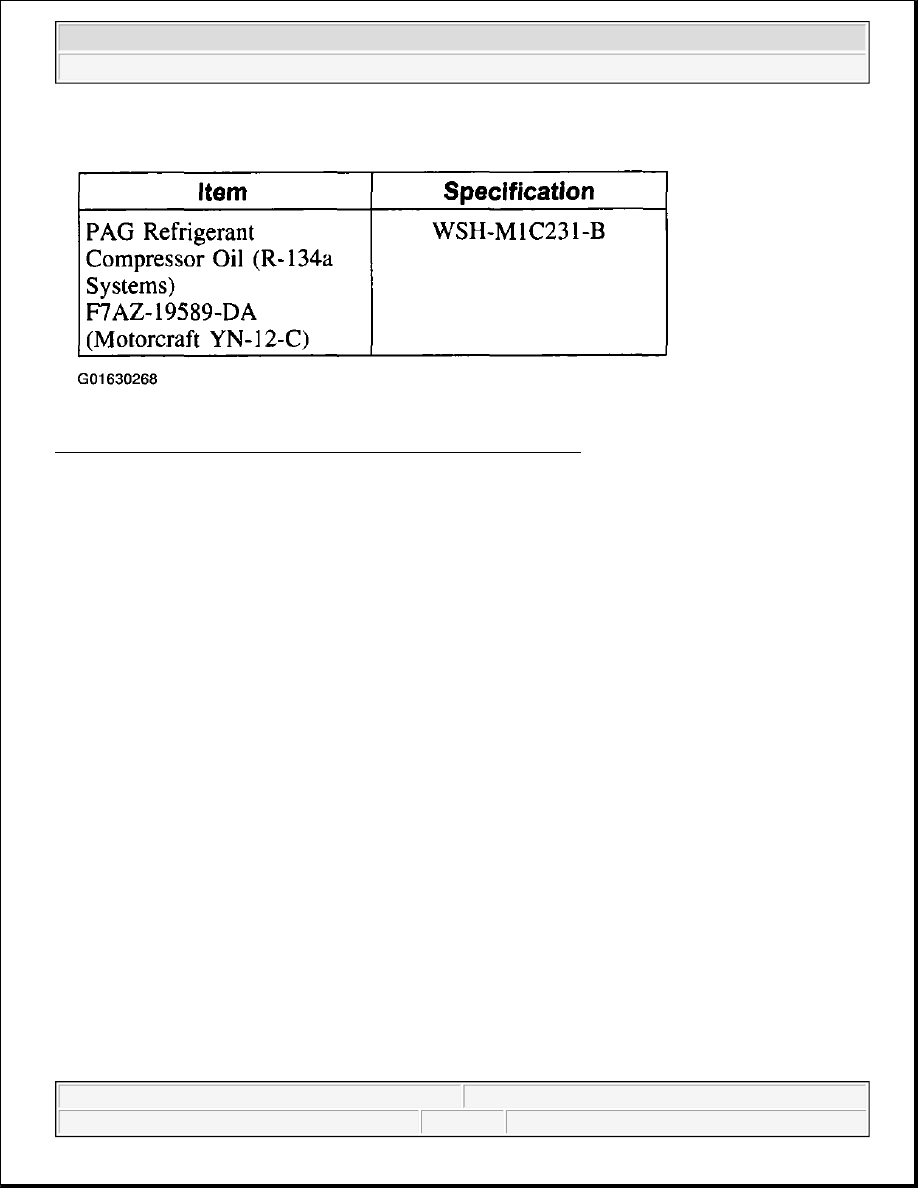

Fig. 94: Manifold And Tube Assembly - 4.2L Material Specifications
Courtesy of FORD MOTOR CO.

Removal and Installation

1. Disconnect the battery ground cable.

2. Recover the refrigerant. Refer to CLIMATE CONTROL SYSTEM .

3. Remove the bolt and detach the manifold and tube assembly.

z

Discard the O-ring seals.



2003 Ford Pickup F150

2003 HVAC Air Conditioning - F150 Pickup



Fig. 95: Identifying Bolt For Detaching Manifold And Tube Assembly
Courtesy of FORD MOTOR CO.

4. Disconnect the A/C pressure cutoff switch electrical connector.



2003 Ford Pickup F150

2003 HVAC Air Conditioning - F150 Pickup



Fig. 96: Disconnecting A/C Pressure Cutoff Switch Electrical Connector
Courtesy of FORD MOTOR CO.

5. Disconnect the manifold and tube fitting.

z

Discard the O-ring seal.



2003 Ford Pickup F150

2003 HVAC Air Conditioning - F150 Pickup
