Ford F150 Pickup. Instruction - part 1695

Fig. 67: Identifying Accumulator Bracket Clamping Bolt
Courtesy of FORD MOTOR CO.

6. Disconnect the suction accumulator/drier spring lock coupling from the A/C evaporator core (19860).

Refer to CLIMATE CONTROL SYSTEM .

z

Discard the O-ring seals.



2003 Ford Pickup F150

2003 HVAC Air Conditioning - F150 Pickup



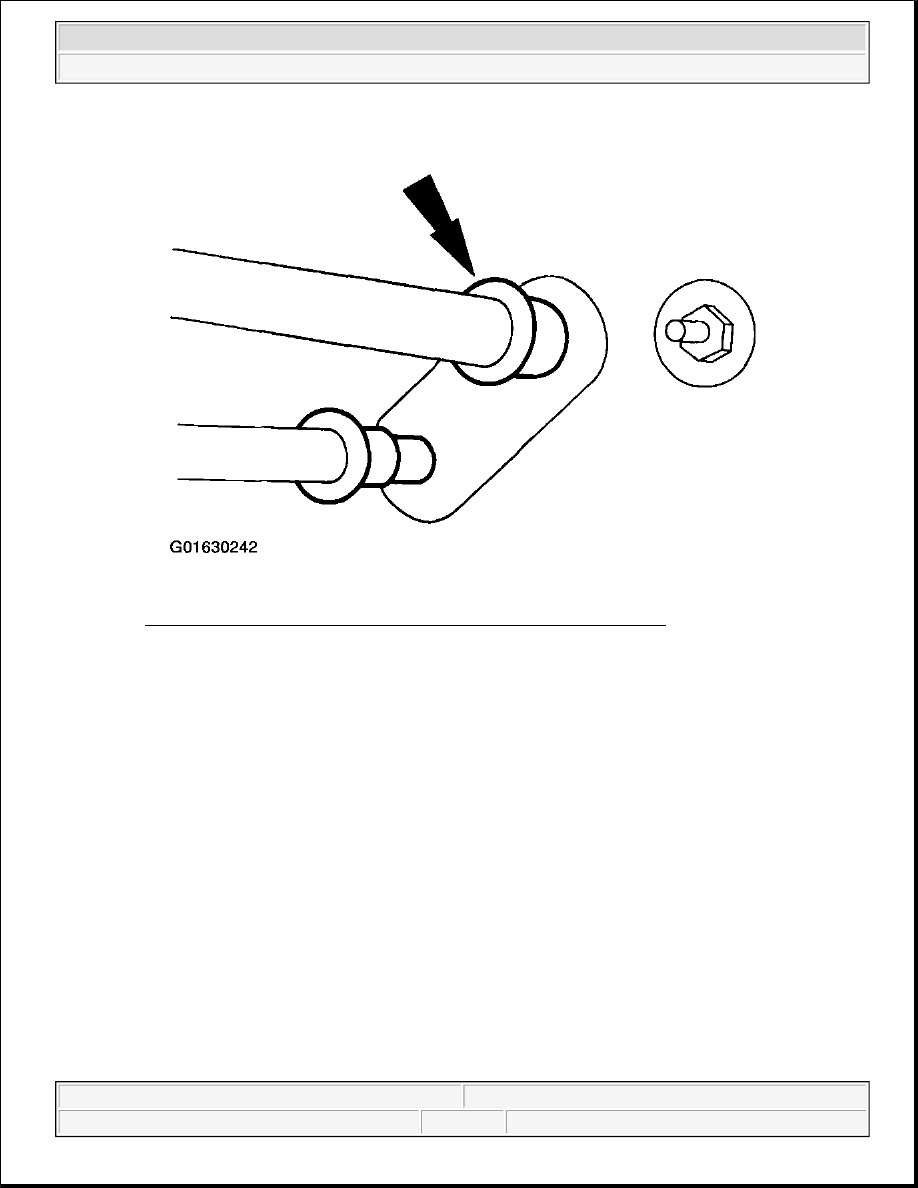

Fig. 68: Locating Suction Accumulator/Drier Spring Lock Coupling
Courtesy of FORD MOTOR CO.

7. Remove the suction accumulator.



2003 Ford Pickup F150

2003 HVAC Air Conditioning - F150 Pickup



Fig. 69: Removing Suction Accumulator
Courtesy of FORD MOTOR CO.

8. Remove the A/C cycling switch (19E561) from the top of the suction accumulator (19C836).



2003 Ford Pickup F150

2003 HVAC Air Conditioning - F150 Pickup



Fig. 70: Identifying A/C Cycling Switch
Courtesy of FORD MOTOR CO.

9. To install, reverse the removal procedure.

z

Install new O-rings lubricated in clean PAG oil.

z

Lubricate the refrigerant system with the correct amount of clean PAG oil. Refer to CLIMATE
CONTROL SYSTEM .

10. Evacuate, charge and leak test the refrigerant system. Refer to CLIMATE CONTROL SYSTEM .

SUCTION ACCUMULATOR - 4.6L AND 5.4L
