Ford F150 Pickup. Instruction - part 1570

Fig. 339: Identifying A/C Clutch Relay Circuits & Connector Terminals (Blackwood, Econoline 4.2L,
Excursion, Expedition, F250-F550 & Navigator)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Self-Diagnostics - CNG, Flex-Fuel & Gasoline

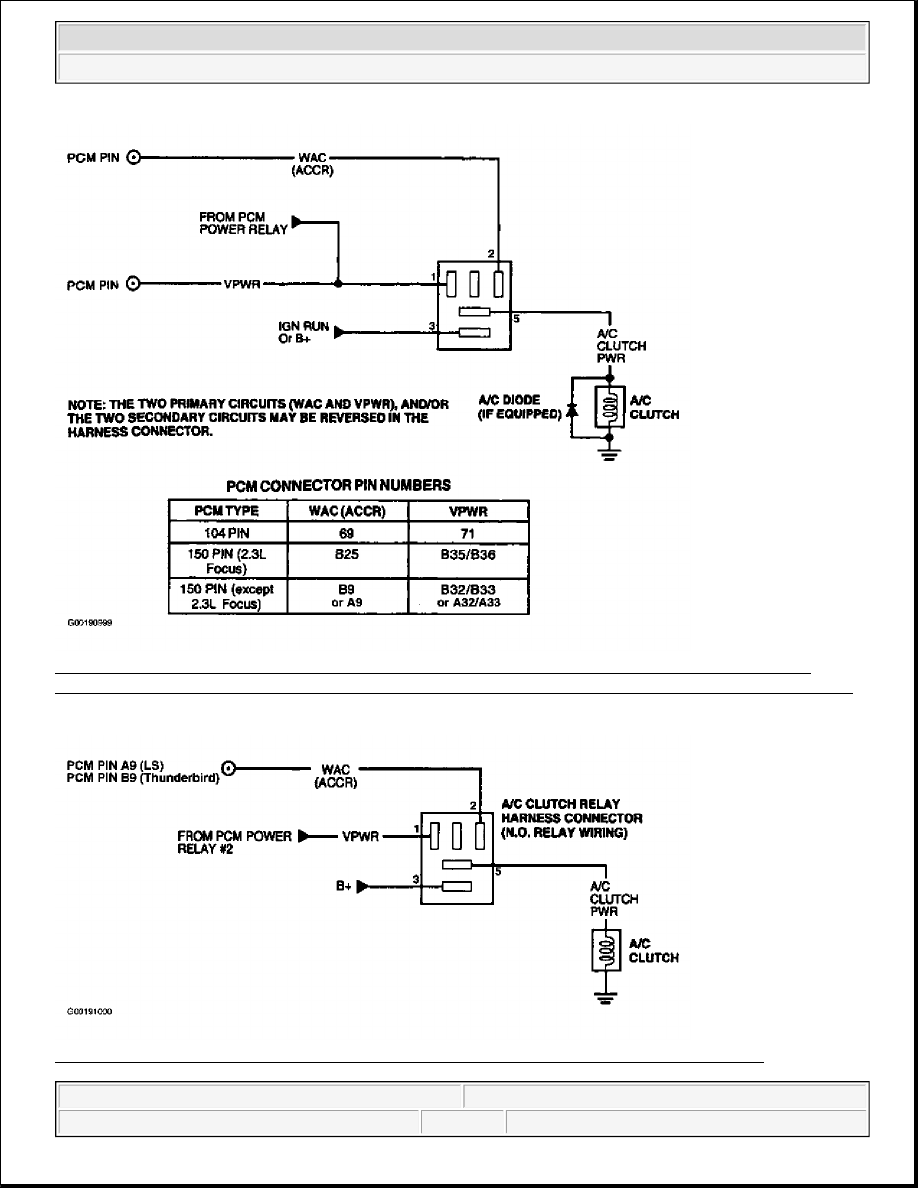

Fig. 340: Identifying A/C Clutch Relay Circuits & Connector Terminals (Aviator, Crown Victoria,
Escape, Explorer, Focus, Grand Marquis, Mountaineer, Ranger, Sable, Taurus, Town Car & Windstar)
Courtesy of FORD MOTOR CO.

Fig. 341: Identifying A/C Clutch Relay Circuits & Connector Terminal (LS & Thunderbird)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Self-Diagnostics - CNG, Flex-Fuel & Gasoline

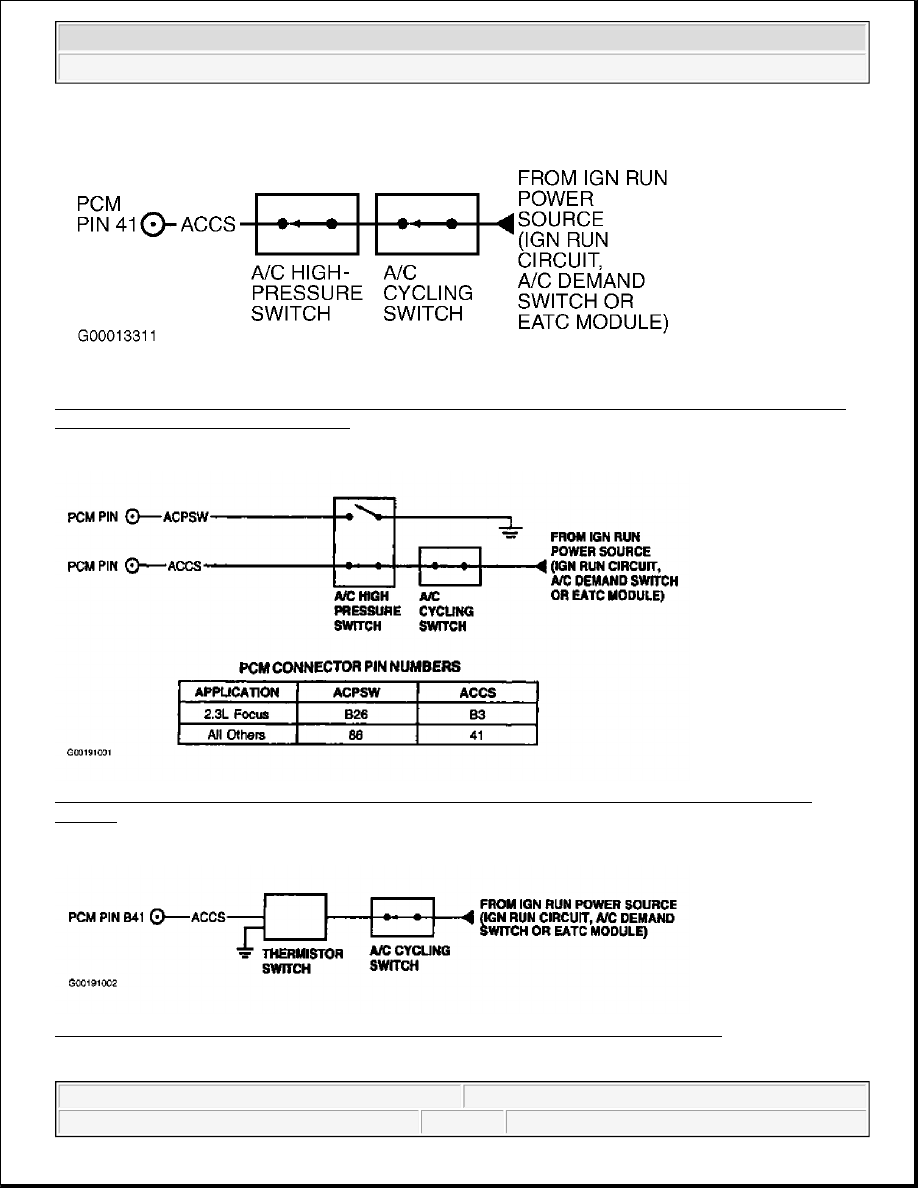

Fig. 342: Identifying ACCS Circuits & Connector Terminals (Blackwood, Econoline 4.2L, Excursion &
F150 Without Visctronic Cooling Fan)
Courtesy of FORD MOTOR CO.

Fig. 343: Identifying ACCS and ACPSW Circuits & Connector Terminals (Escape, Focus, Sable &
Taurus)
Courtesy of FORD MOTOR CO.

Fig. 344: Identifying ACCS Circuits & Connector Terminals (Expedition & Navigator)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Self-Diagnostics - CNG, Flex-Fuel & Gasoline

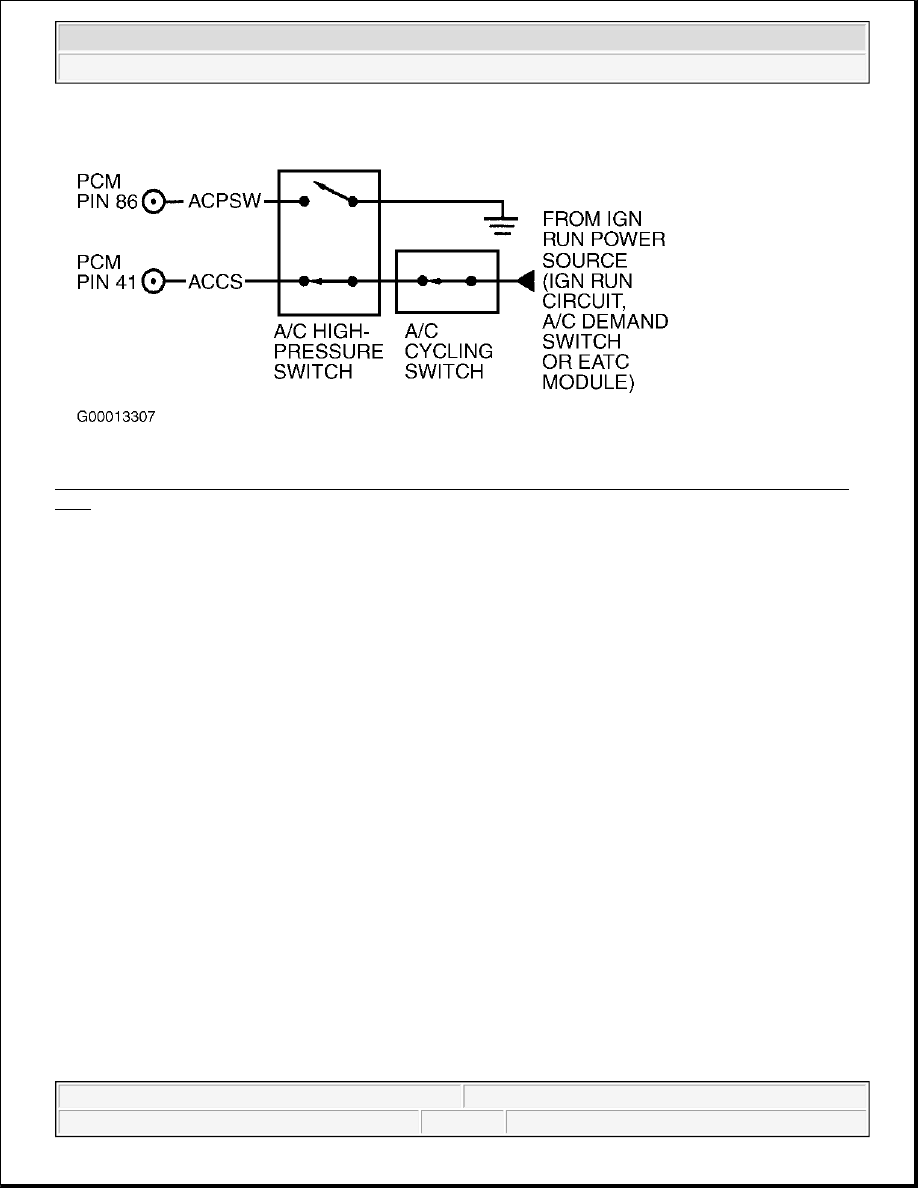

Fig. 345: Identifying ACPSW & ACCS Circuits & Connector Terminals (F150 With Visctronic Cooling
Fan)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Self-Diagnostics - CNG, Flex-Fuel & Gasoline
