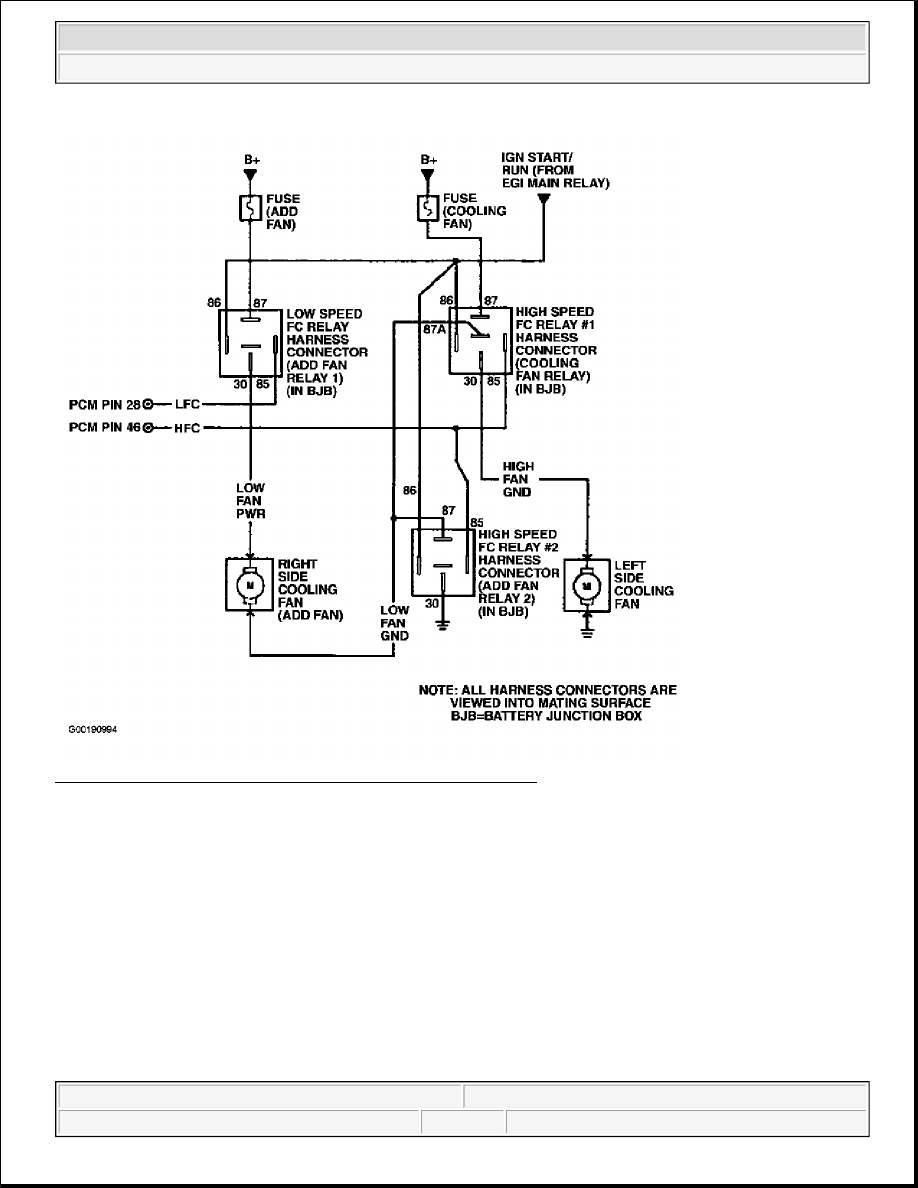

Fig. 323: Identifying Cooling Fan Circuits (Escape 3.0L - Early)
Courtesy of FORD MOTOR CO.

2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Self-Diagnostics - CNG, Flex-Fuel & Gasoline

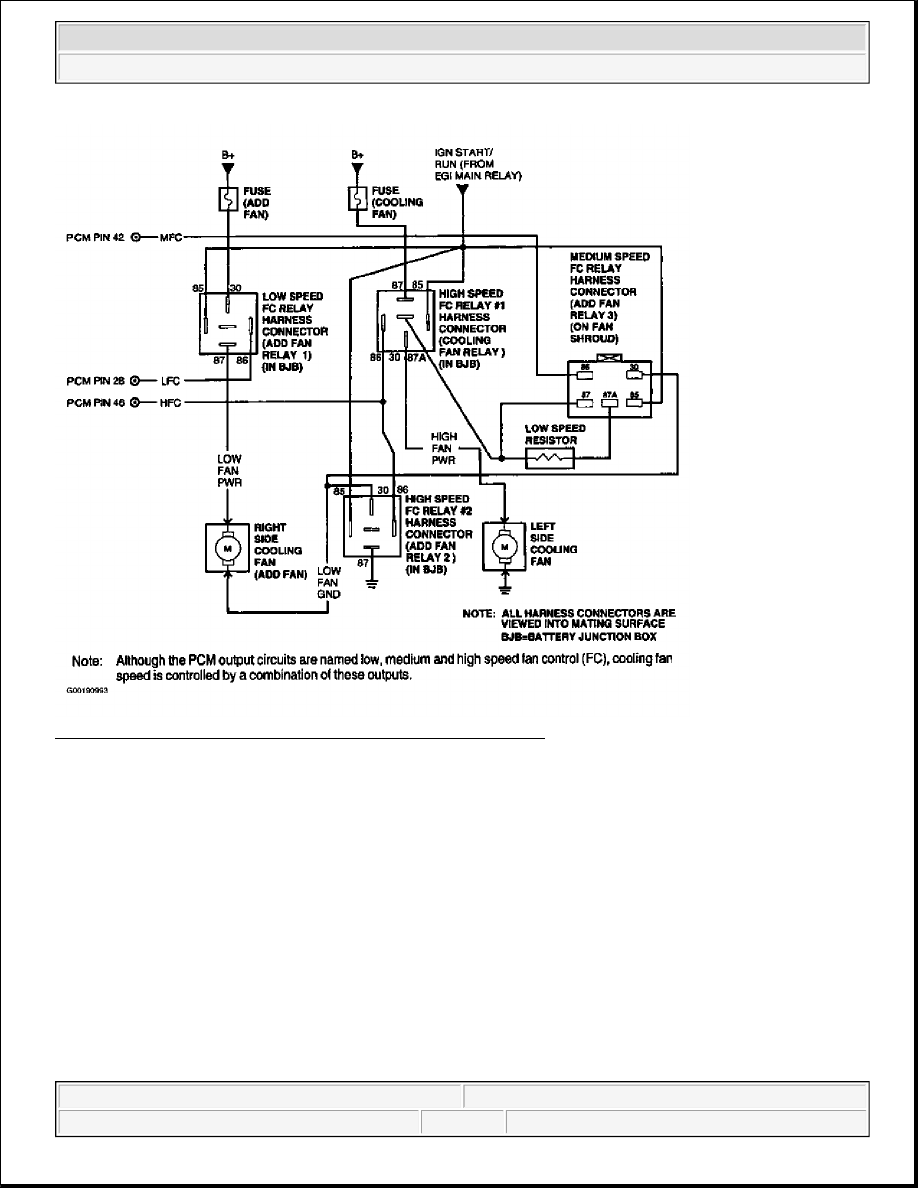

Fig. 324: Identifying Cooling Fan Circuits (Escape 3.0L - Late)
Courtesy of FORD MOTOR CO.

2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Self-Diagnostics - CNG, Flex-Fuel & Gasoline

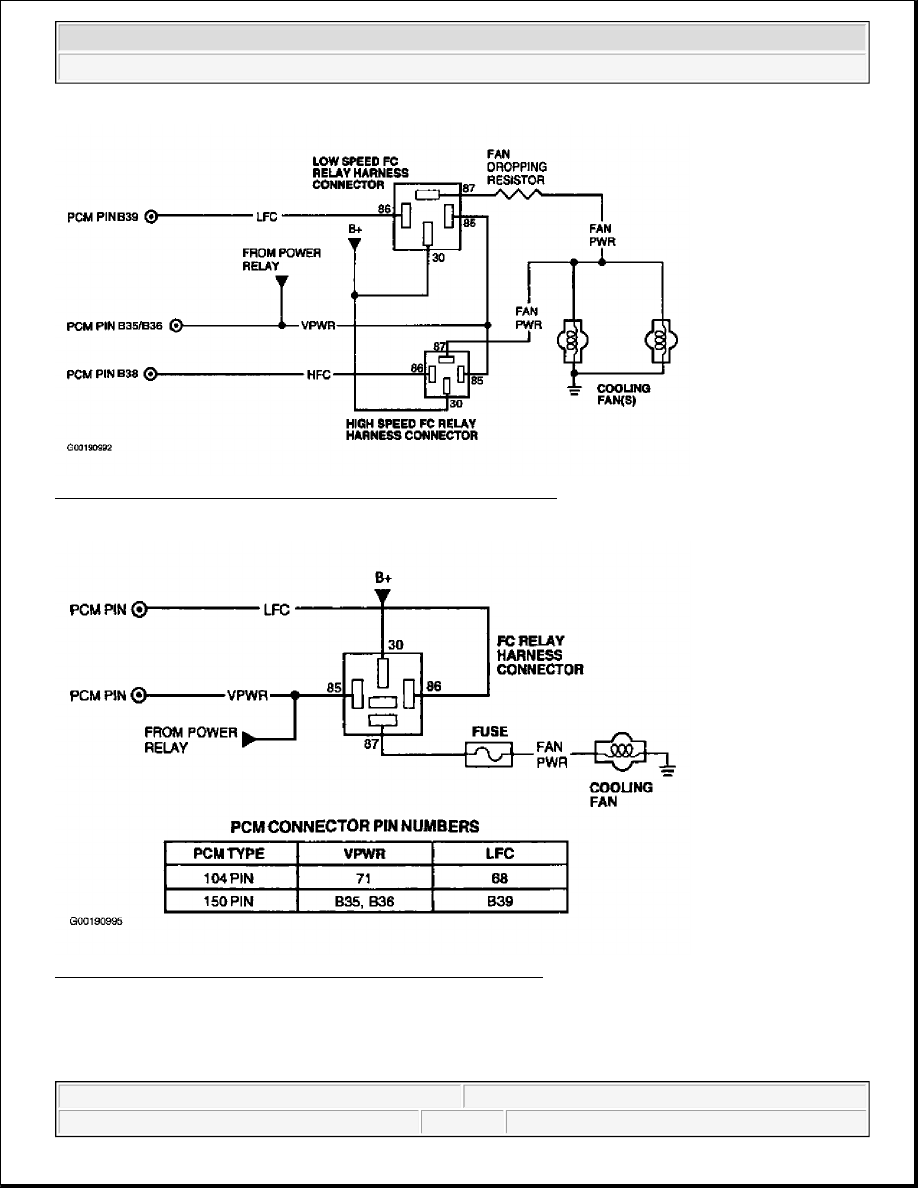

Fig. 325: Identifying Cooling Fan Circuits (Focus 2.0L With A/C)
Courtesy of FORD MOTOR CO.

2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Self-Diagnostics - CNG, Flex-Fuel & Gasoline

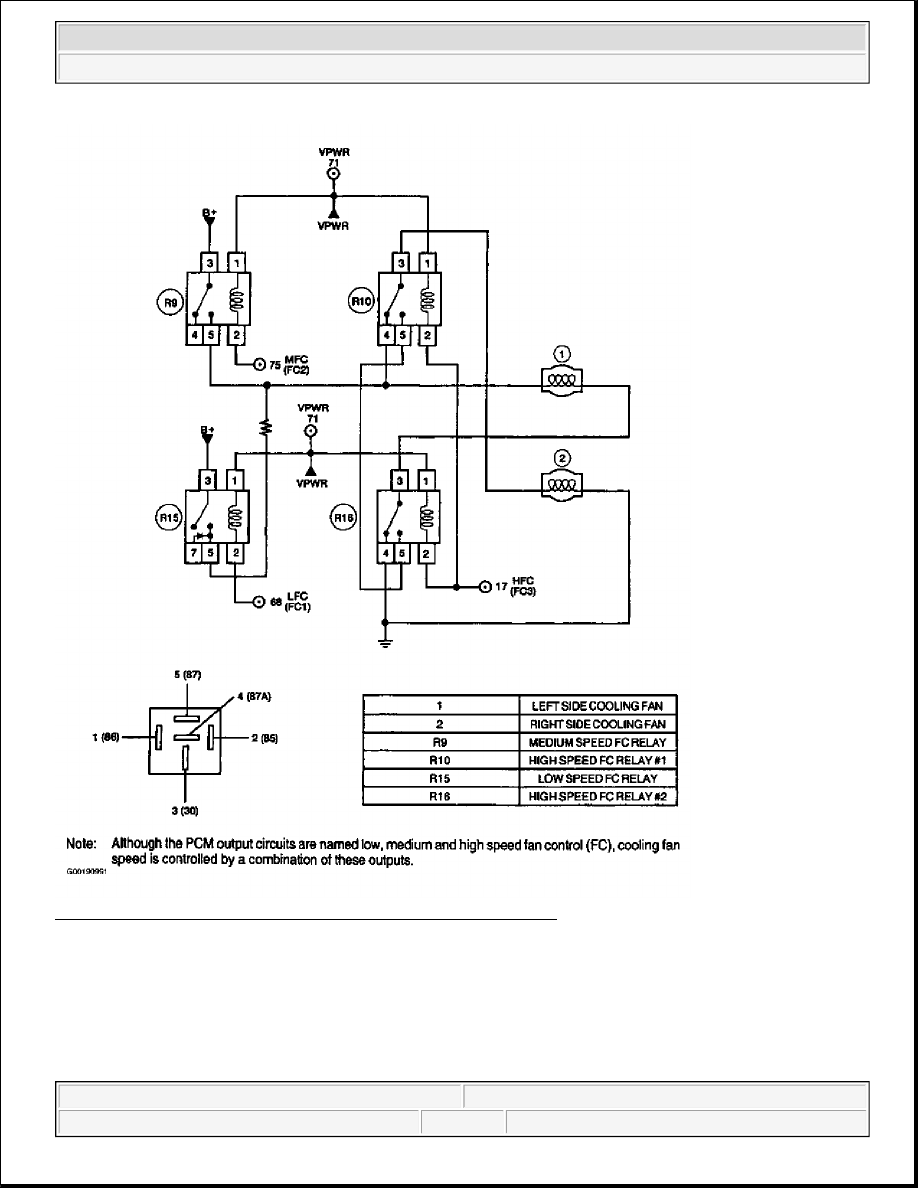

Fig. 326: Identifying Cooling Fan Circuits (Focus 2.3L With A/C)
Courtesy of FORD MOTOR CO.

Fig. 327: Identifying Cooling Fan Circuits (Focus Without A/C)
Courtesy of FORD MOTOR CO.
