Ford F150 Pickup. Instruction - part 152





Fig. 14: Pinpoint Test C: A Single Mirror Does Not Function With Switch Logic (C3 & C4)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Rear View Mirrors - F150 Pickup



Fig. 15: Pinpoint Test C: A Single Mirror Does Not Function With Switch Logic (C4 Cont. & C5)
Courtesy of FORD MOTOR CO.

PINPOINT TEST D: AUTO DIMMING MIRROR DOES NOT OPERATE CORRECTLY

Fig. 16: Pinpoint Test D: Auto Dimming Mirror Does Not Operate Correctly (D1)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Rear View Mirrors - F150 Pickup

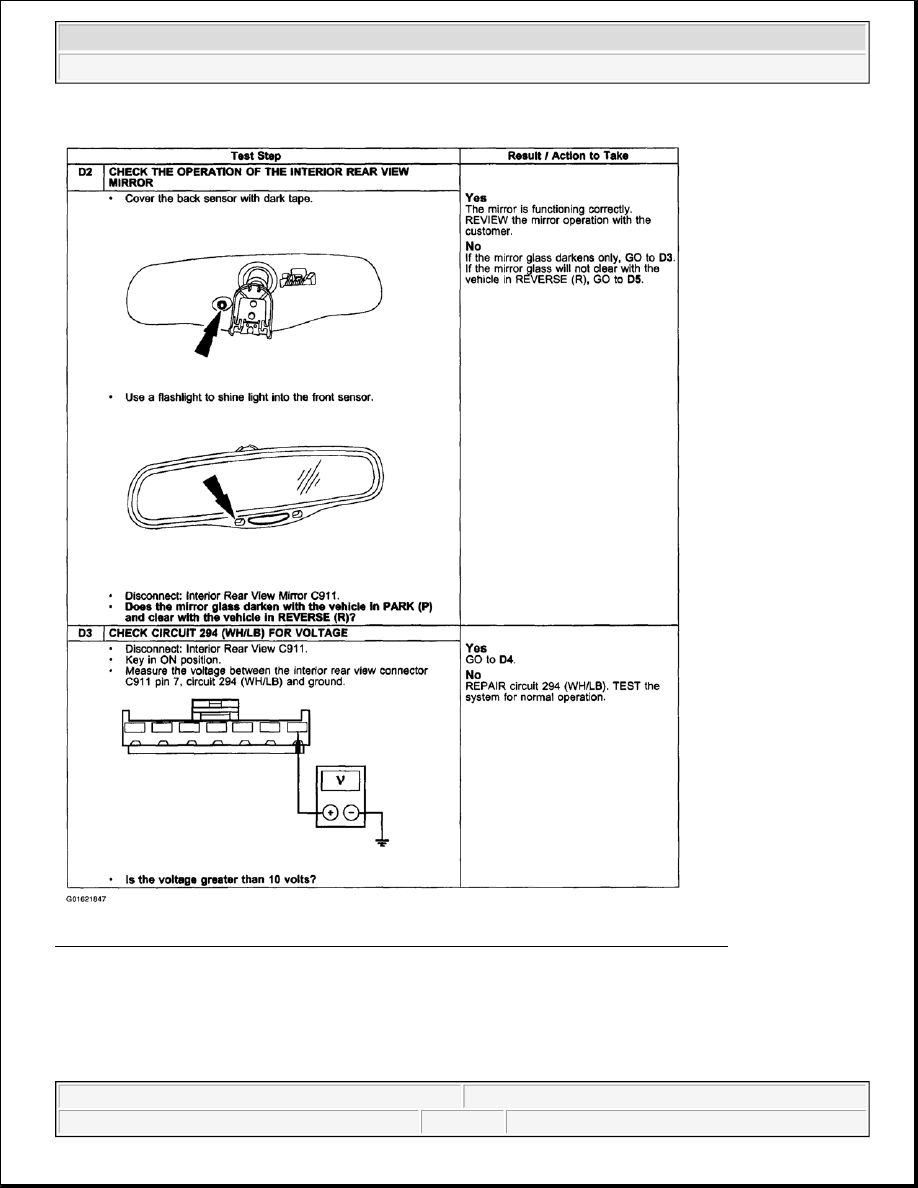

Fig. 17: Pinpoint Test D: Auto Dimming Mirror Does Not Operate Correctly (D2 & D3)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Rear View Mirrors - F150 Pickup

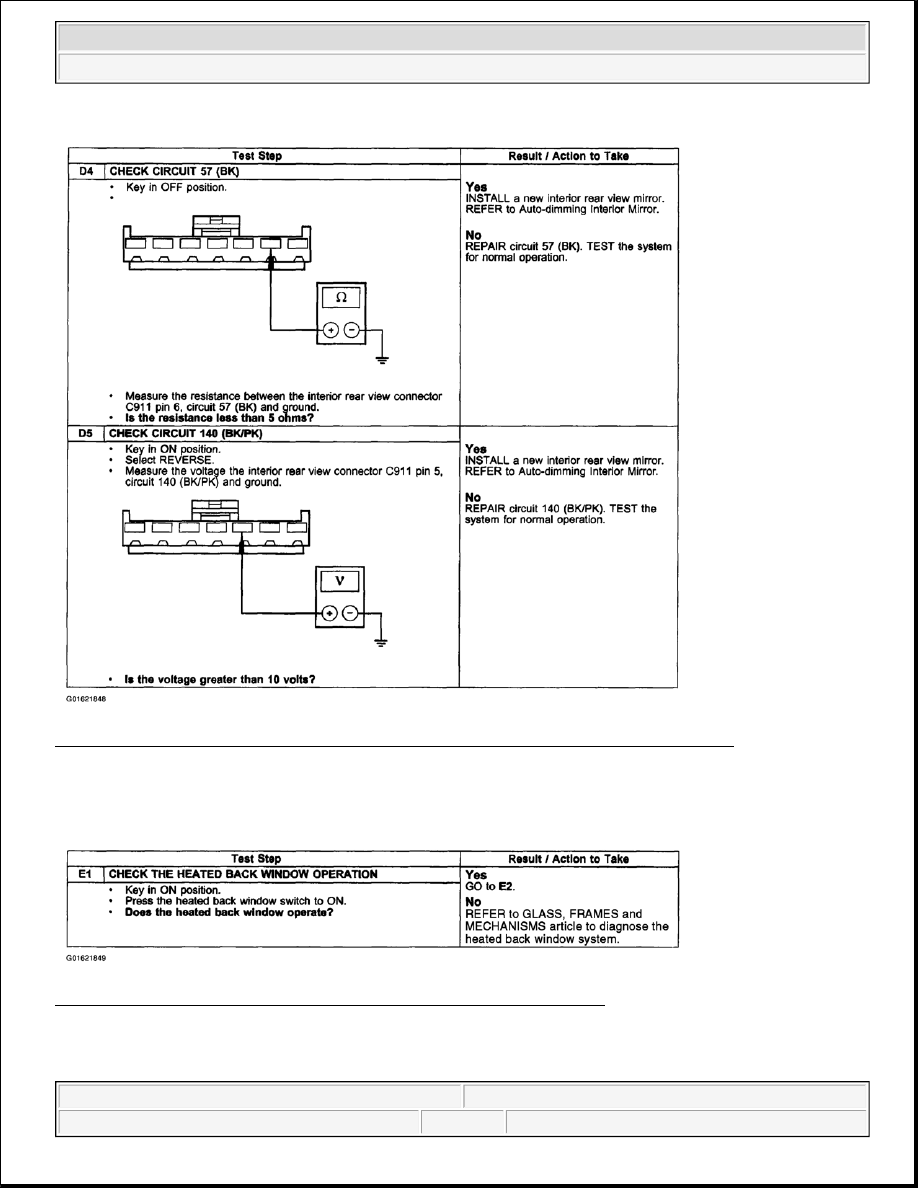

Fig. 18: Pinpoint Test D: Auto Dimming Mirror Does Not Operate Correctly (D4 To D5)
Courtesy of FORD MOTOR CO.

PINPOINT TEST E: HEATED EXTERIOR MIRROR DOES NOT DEFROST

Fig. 19: Pinpoint Test E: Heated Exterior Mirror Does Not Defrost (E1)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Rear View Mirrors - F150 Pickup
