Ford F150 Pickup. Instruction - part 150

z

is a instruction-set day/night mirror

z

is available optionally as an auto-dimming (electrochromic) mirror on Lariat

The exterior rear view mirror switch:

z

is located on the driver door control panel

The exterior rear view mirrors:

z

are controlled instructionly or by optional exterior rear view mirror switch

z

are of foldaway design

z

may be heated

The exterior rear view mirror is available with a mirror mounted turn signal assembly. Refer to EXTERIOR
LIGHTING .

DIAGNOSIS AND TESTING

REAR VIEW MIRRORS

Refer to POWER MIRRORS for schematic and connector information.

Special Tool(s)

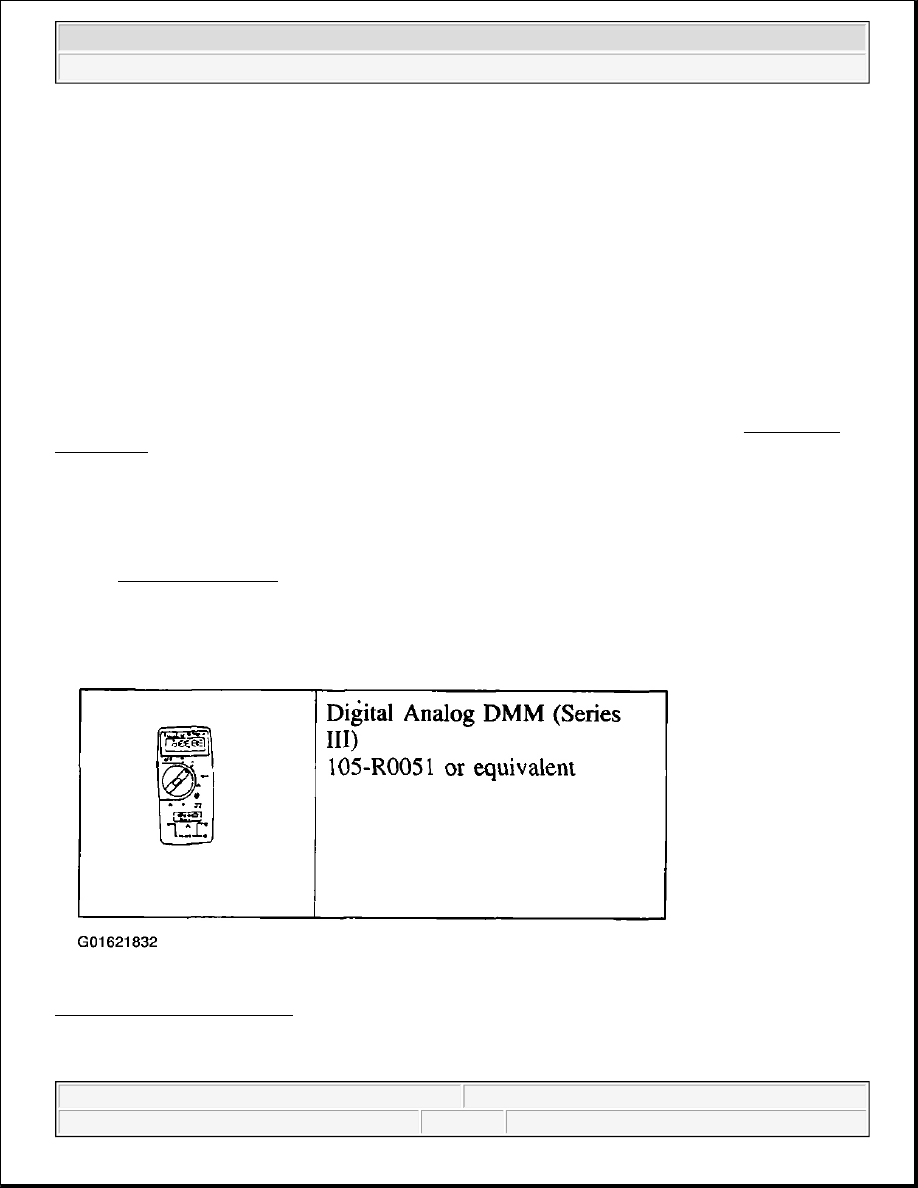

Fig. 3: Identifying Special Tool
Courtesy of FORD MOTOR CO.

INSPECTION AND VERIFICATION



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Rear View Mirrors - F150 Pickup



1. Verify the customer concern by operating the power outside rear view mirrors or auto-dimming interior

rear view mirror.

2. Visually inspect for obvious signs of mechanical and electrical damage.

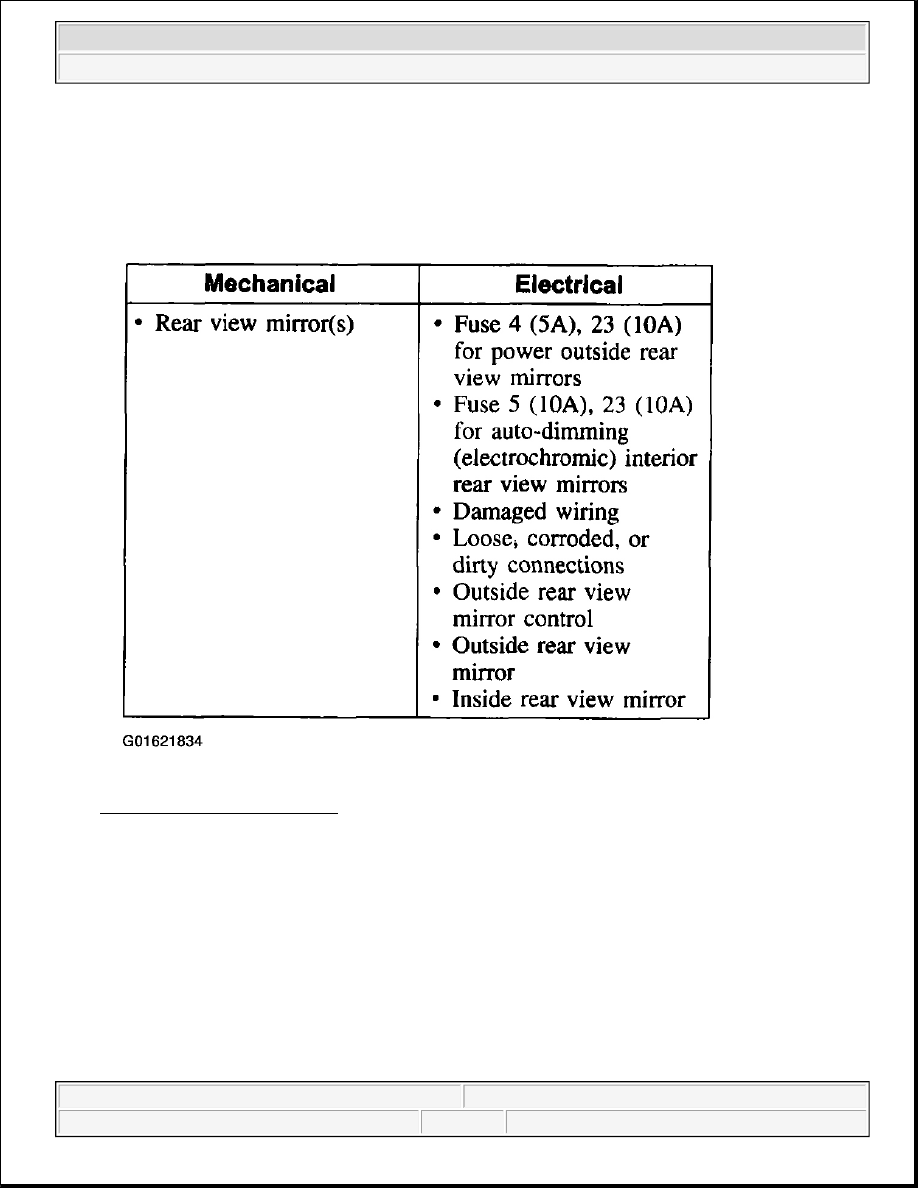

Fig. 4: Visual Inspection Chart
Courtesy of FORD MOTOR CO.

3. If the concern is not visually evident, verify the symptom and GO to Symptom Chart.

Symptom Chart



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Rear View Mirrors - F150 Pickup



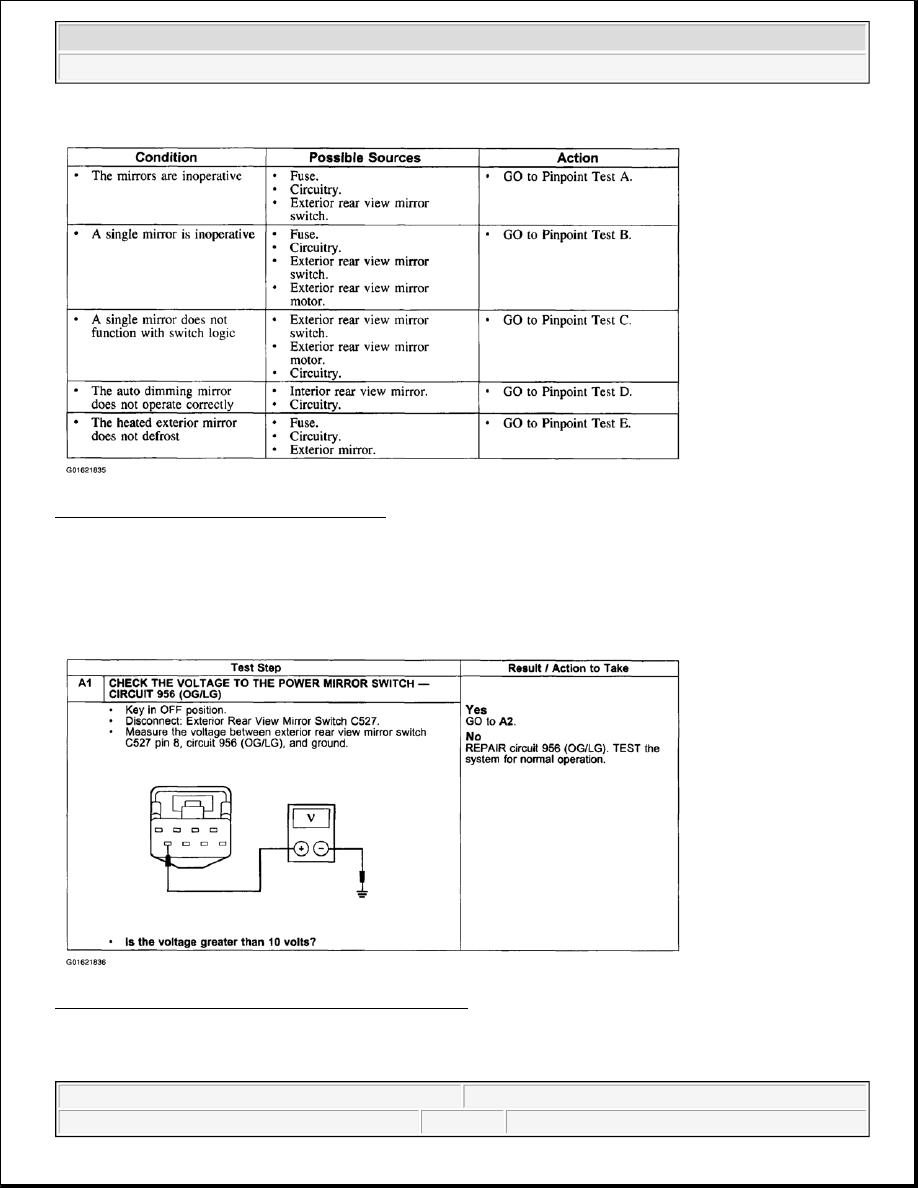

Fig. 5: Rear View Mirrors Symptom Chart
Courtesy of FORD MOTOR CO.

Pinpoint Tests

PINPOINT TEST A: MIRRORS ARE INOPERATIVE

Fig. 6: Pinpoint Test A: Mirrors Are Inoperative (A1)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Rear View Mirrors - F150 Pickup

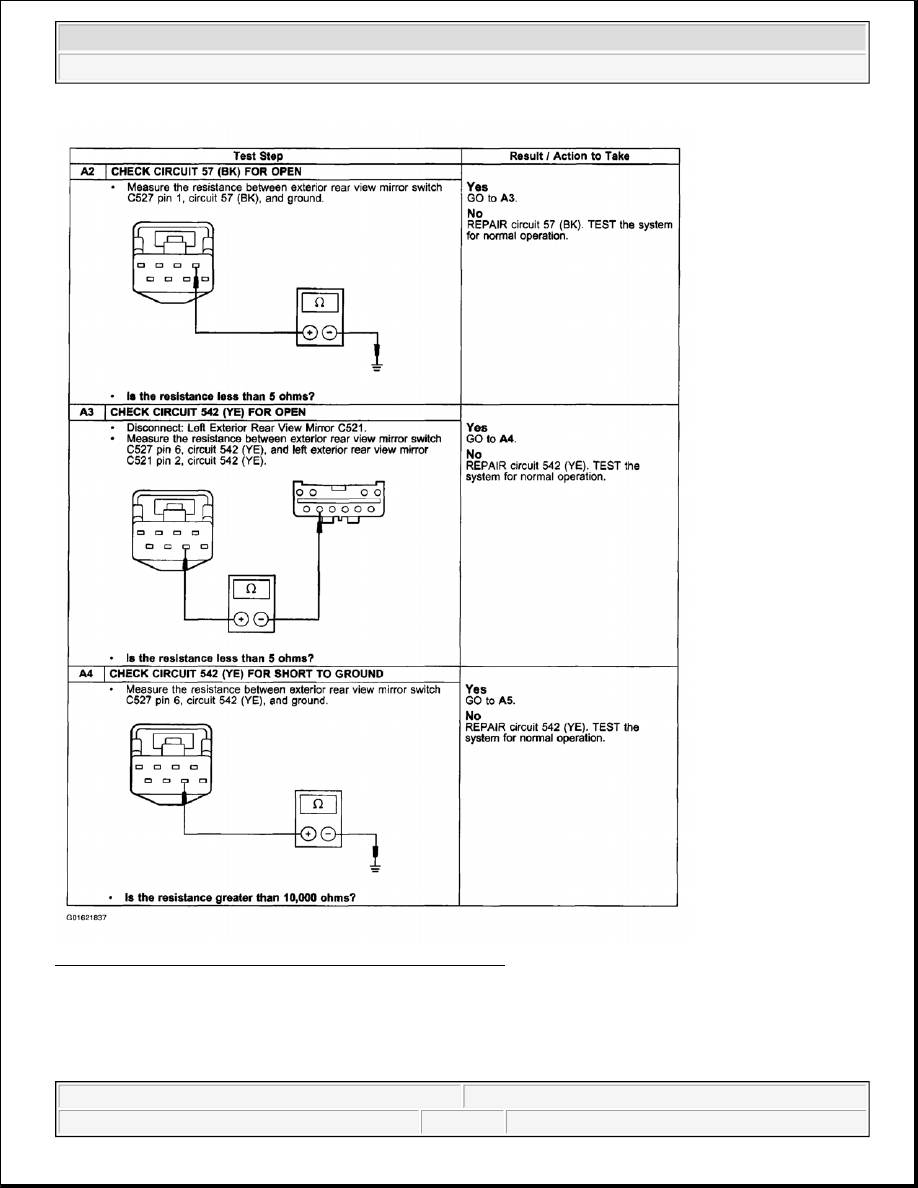

Fig. 7: Pinpoint Test A: Mirrors Are Inoperative (A2 - A4)
Courtesy of FORD MOTOR CO.
