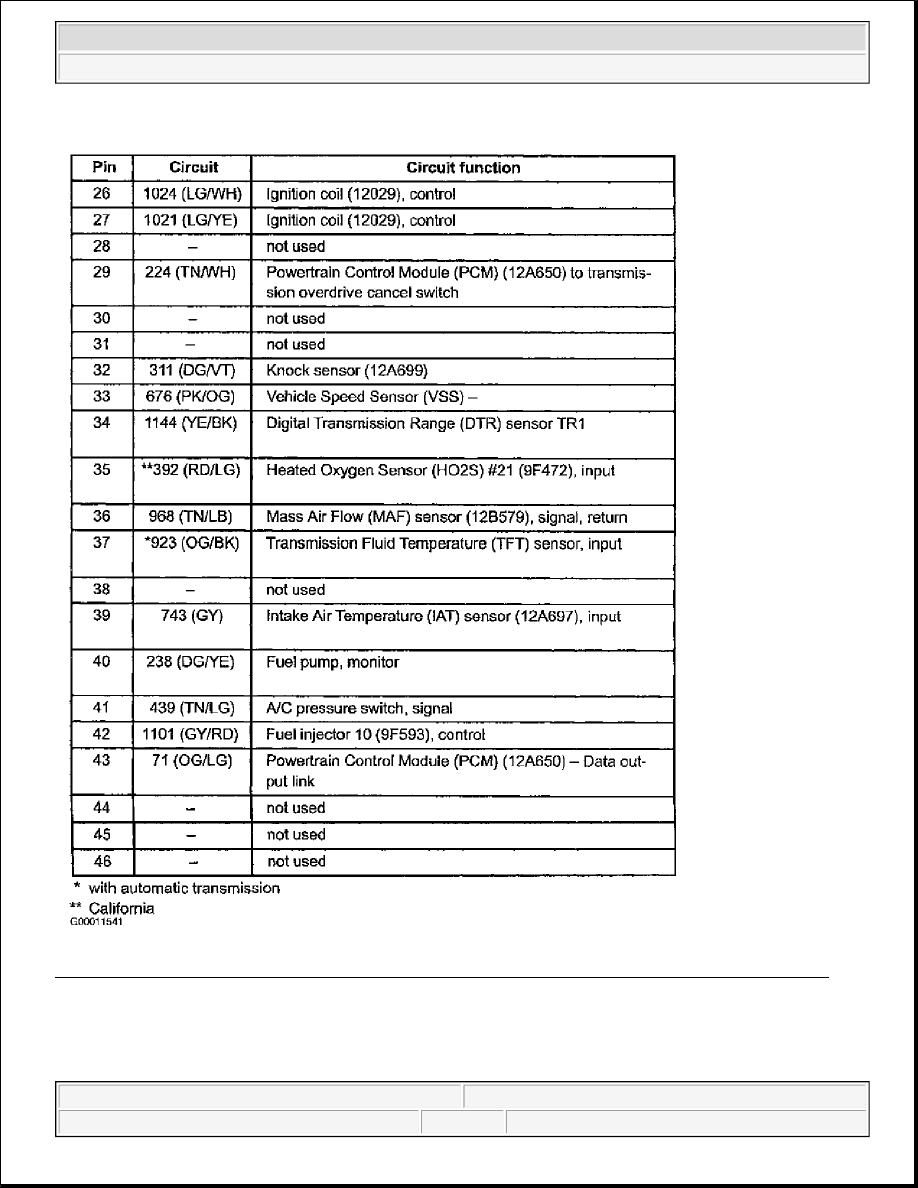

Fig. 87: Identifying PCM Connector Circuit Functions (2 Of 4 - Excursion & F250-F550 Super Duty)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Self-Diagnostics - CNG, Flex-Fuel & Gasoline

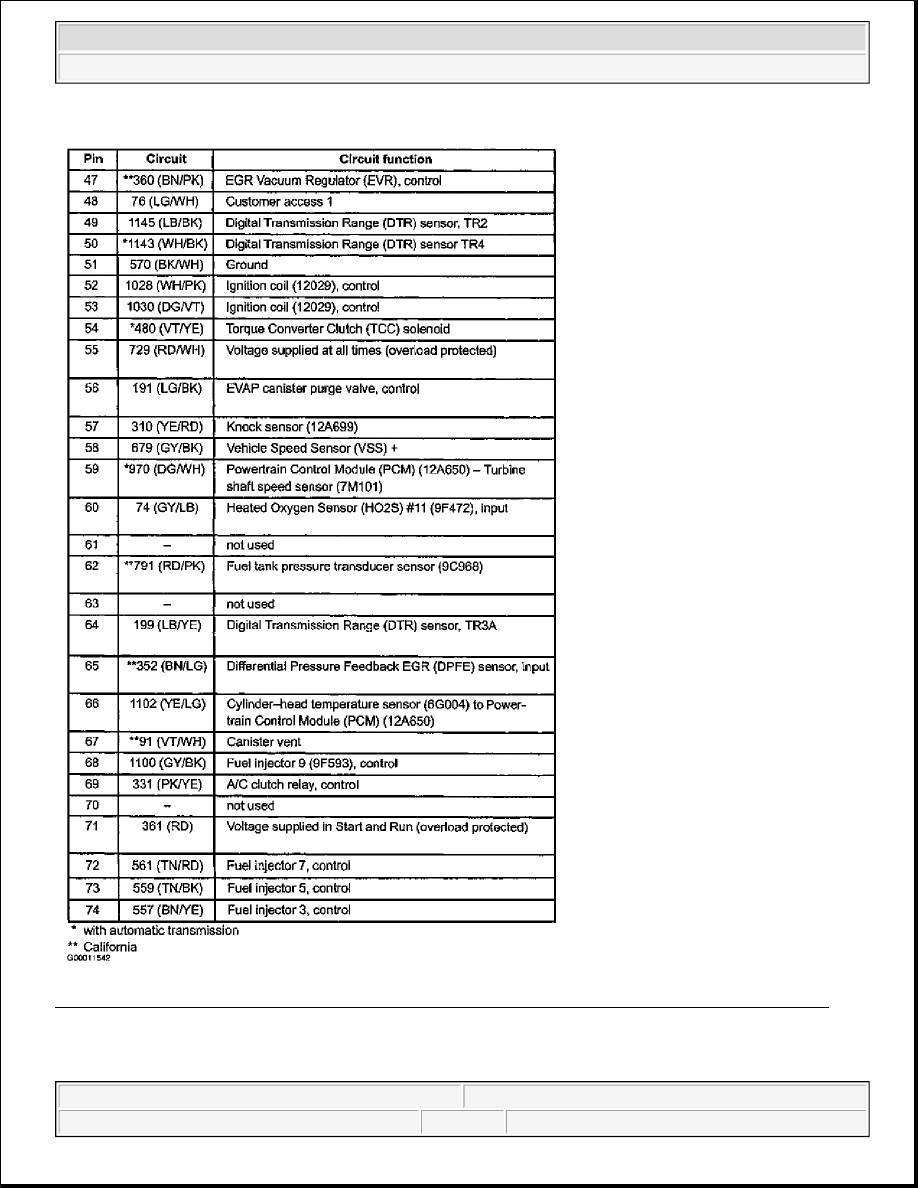

Fig. 88: Identifying PCM Connector Circuit Functions (3 Of 4 - Excursion & F250-F550 Super Duty)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Self-Diagnostics - CNG, Flex-Fuel & Gasoline



Fig. 89: Identifying PCM Connector Circuit Functions (4 Of 4 - Excursion & F250-F550 Super Duty)
Courtesy of FORD MOTOR CO.

EXPEDITION & NAVIGATOR



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Self-Diagnostics - CNG, Flex-Fuel & Gasoline



EXPEDITION & NAVIGATOR PCM CONNECTOR IDENTIFICATION

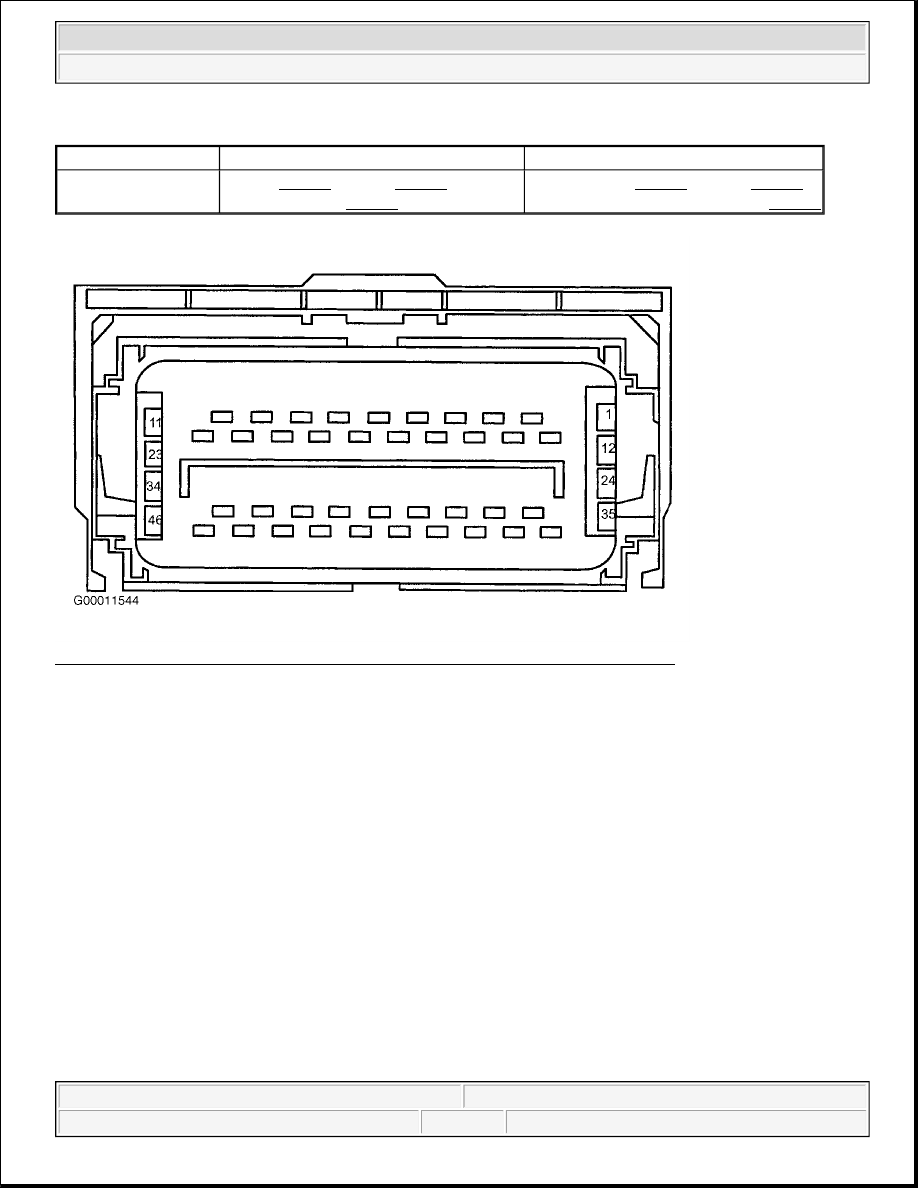

Fig. 90: Identifying PCM Connector C175B Terminals (Expedition & Navigator)
Courtesy of FORD MOTOR CO.

Application

Terminal Identification

Circuit Function

Expedition &
Navigator

C175B Fig. 90, C175E Fig. 92 & C175T

Fig. 94

C175B Fig. 91, C175E Fig. 93 &

C175T Fig. 95
