Ford F150 Pickup. Instruction - part 1435



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Self-Diagnostics - CNG, Flex-Fuel & Gasoline

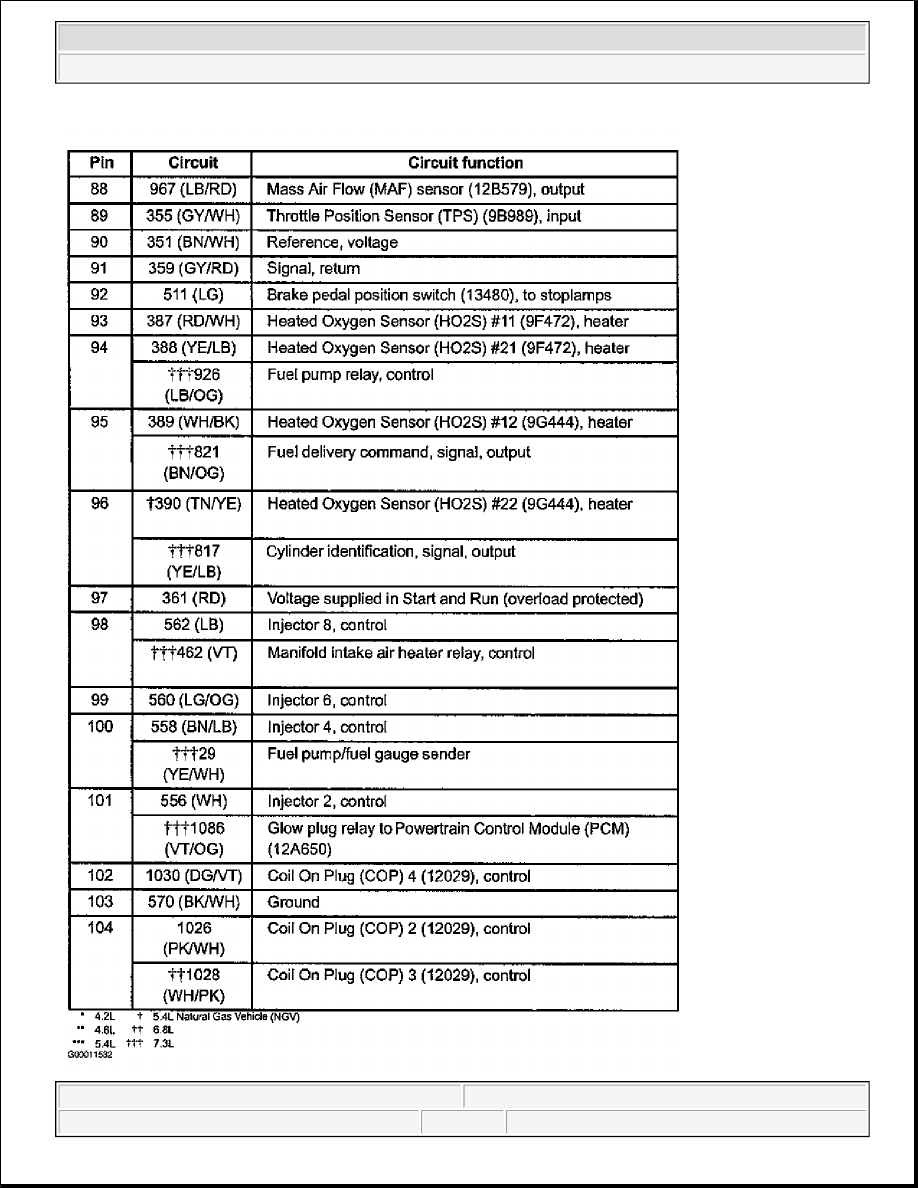

Fig. 80: Identifying PCM Connector Circuit Functions (6 Of 6 - "E" Series)
Courtesy of FORD MOTOR CO.

ESCAPE

ESCAPE PCM CONNECTOR IDENTIFICATION

Application

Terminal Identification

Circuit Function

Escape



Fig. 81-Fig. 85



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Self-Diagnostics - CNG, Flex-Fuel & Gasoline

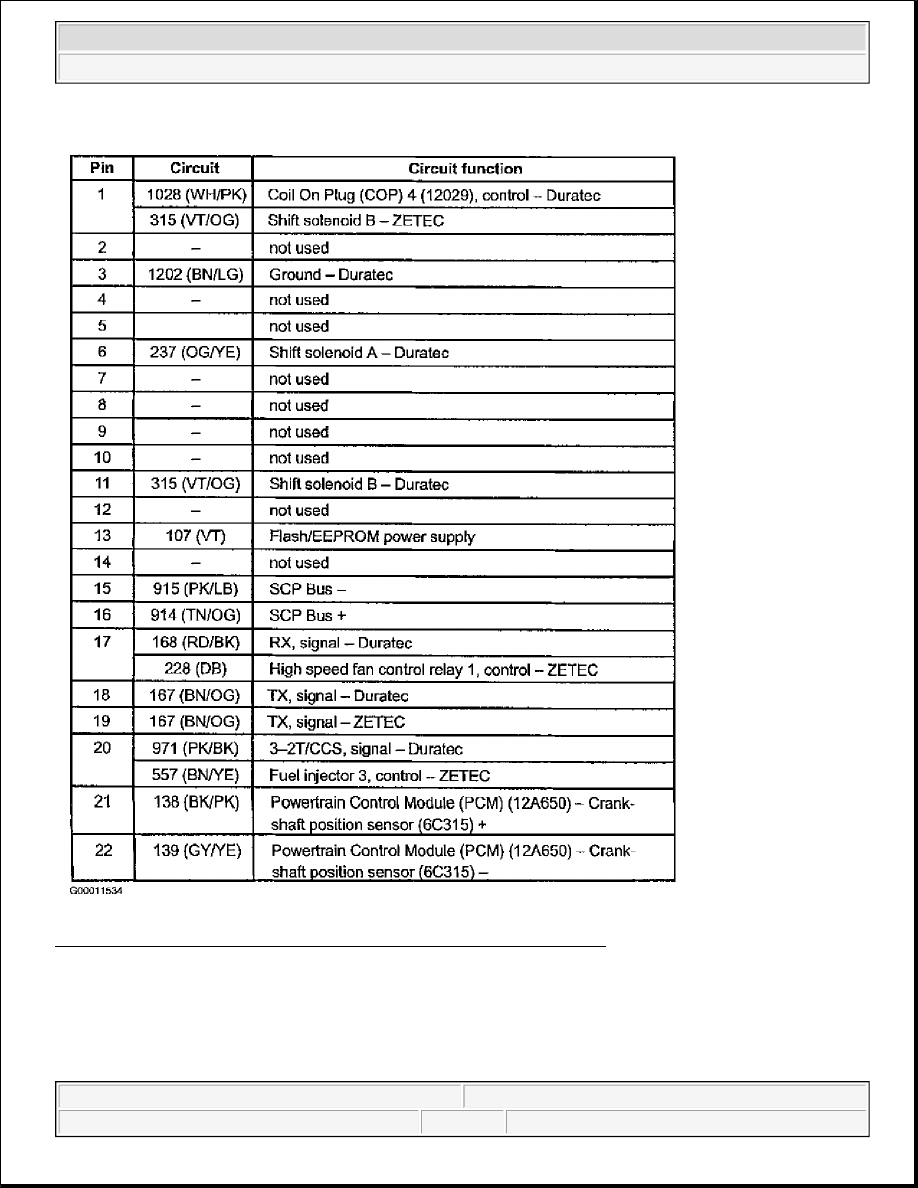

Fig. 81: Identifying PCM Connector Circuit Functions (1 Of 5 - Escape)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Self-Diagnostics - CNG, Flex-Fuel & Gasoline

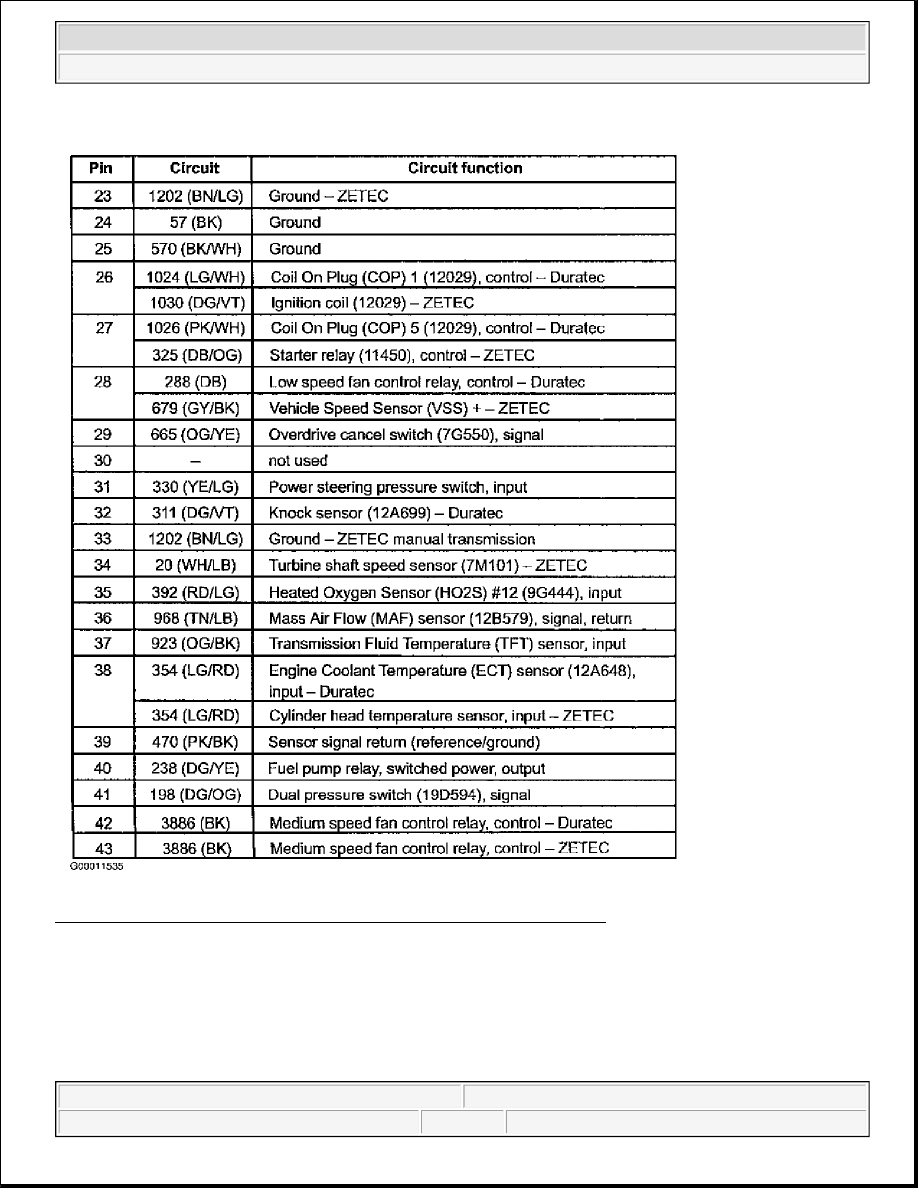

Fig. 82: Identifying PCM Connector Circuit Functions (2 Of 5 - Escape)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Self-Diagnostics - CNG, Flex-Fuel & Gasoline
