Ford F150 Pickup. Instruction - part 1387





Fig. 9: Identifying Compuvalve Connector C1294 Circuit Functions (2 Of 2)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Self-Diagnostics - Bi-Fuel - Gasoline/LPG

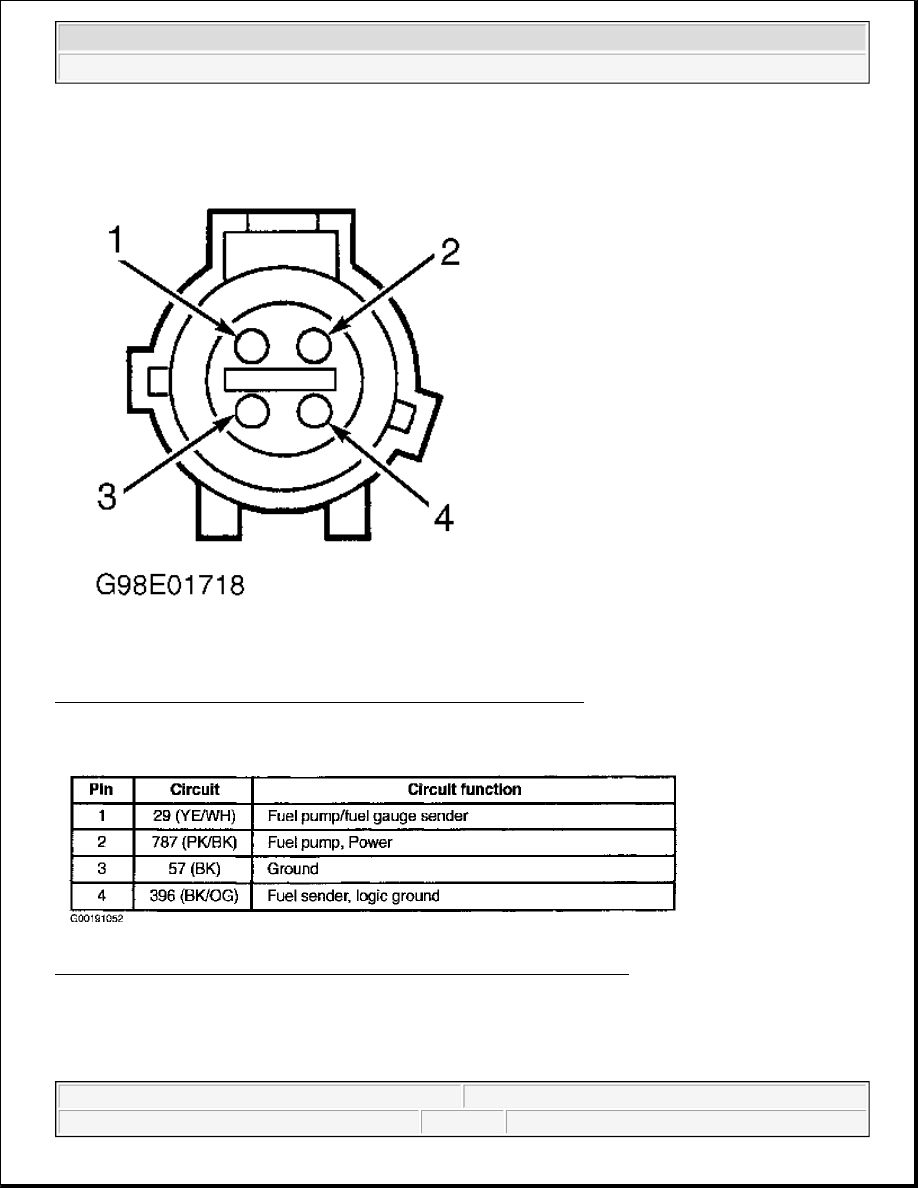

Fig. 10: Identifying Fuel Pump Harness Connector C463F Terminals
Courtesy of FORD MOTOR CO.

Fig. 11: Identifying Fuel Pump Harness Connector C463 Circuit Functions
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Self-Diagnostics - Bi-Fuel - Gasoline/LPG

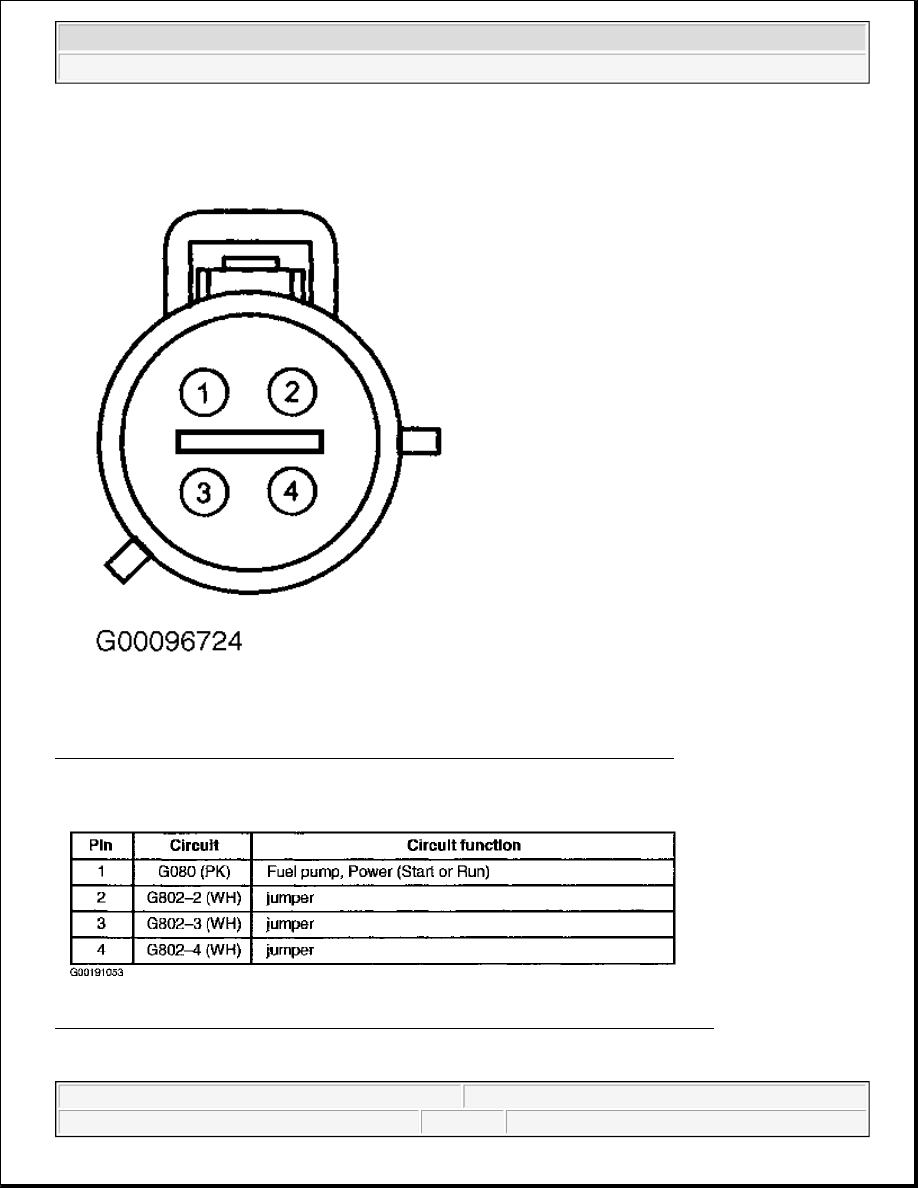

Fig. 12: Identifying Fuel Pump Intercept Harness Connector C4131M Terminals
Courtesy of FORD MOTOR CO.

Fig. 13: Identifying Fuel Pump Intercept Harness Connector C4131 Circuit Functions
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Self-Diagnostics - Bi-Fuel - Gasoline/LPG



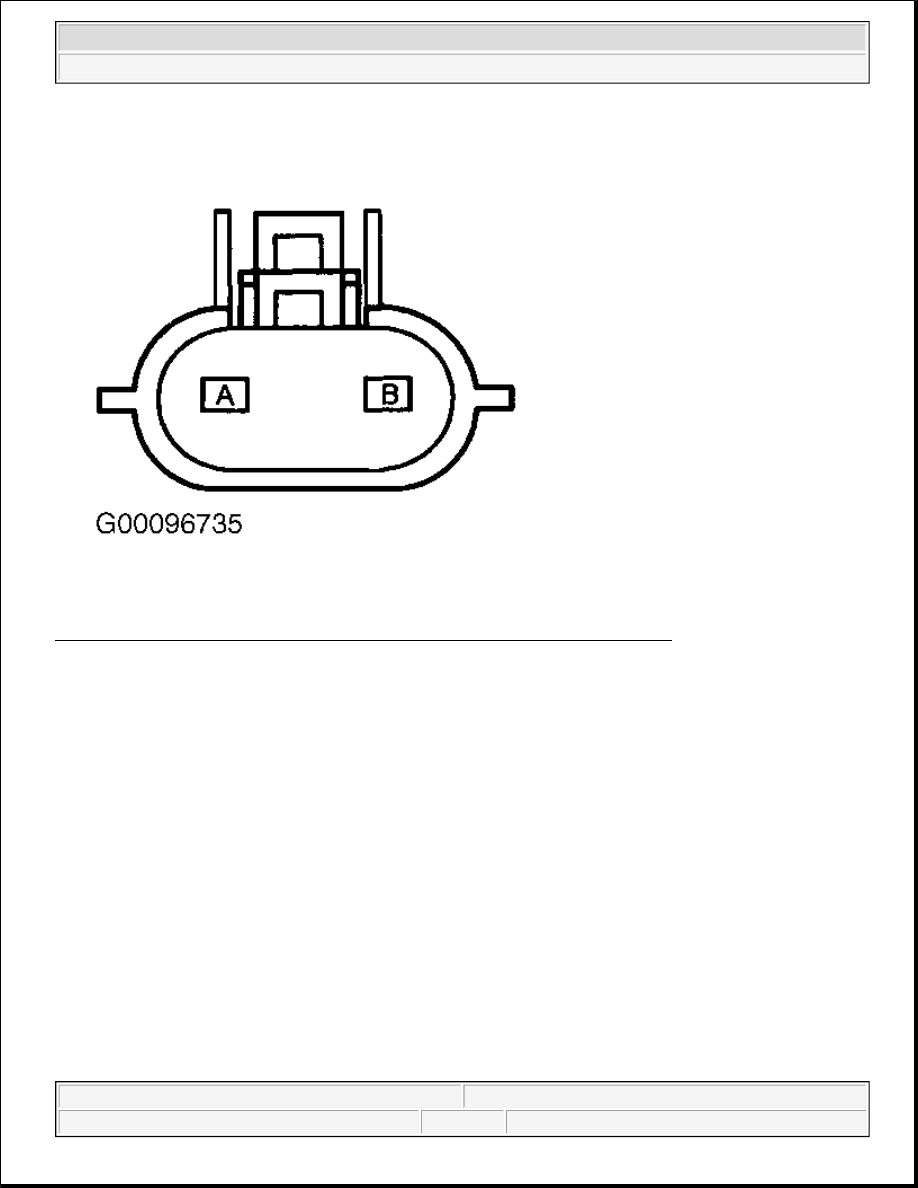

Fig. 14: Identifying Fuel Tank Temperature Sensor Connector C4130 Terminals
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Self-Diagnostics - Bi-Fuel - Gasoline/LPG
