Ford F150 Pickup. Instruction - part 1386





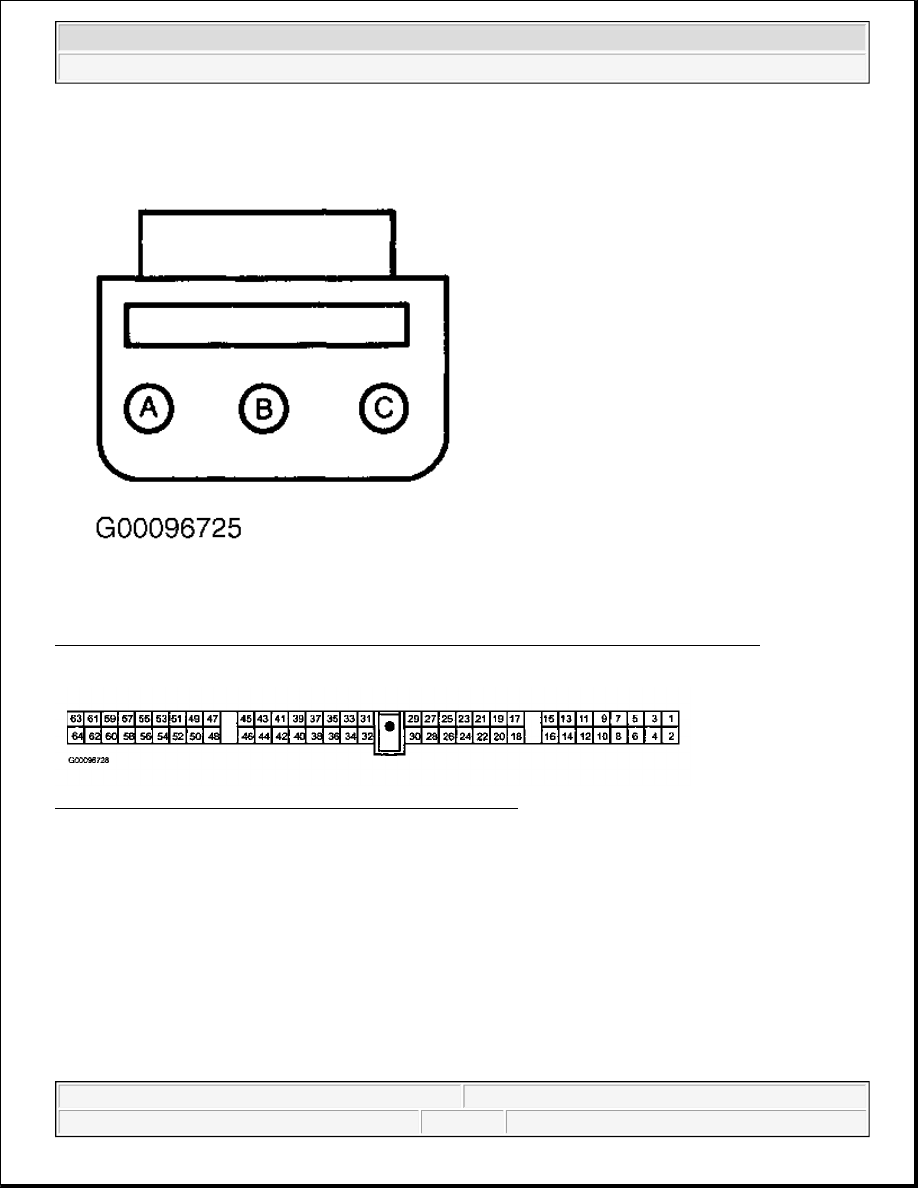

Fig. 4: Identifying Bi-Fuel Relay Module Harness Connector C4001F Terminals
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Self-Diagnostics - Bi-Fuel - Gasoline/LPG



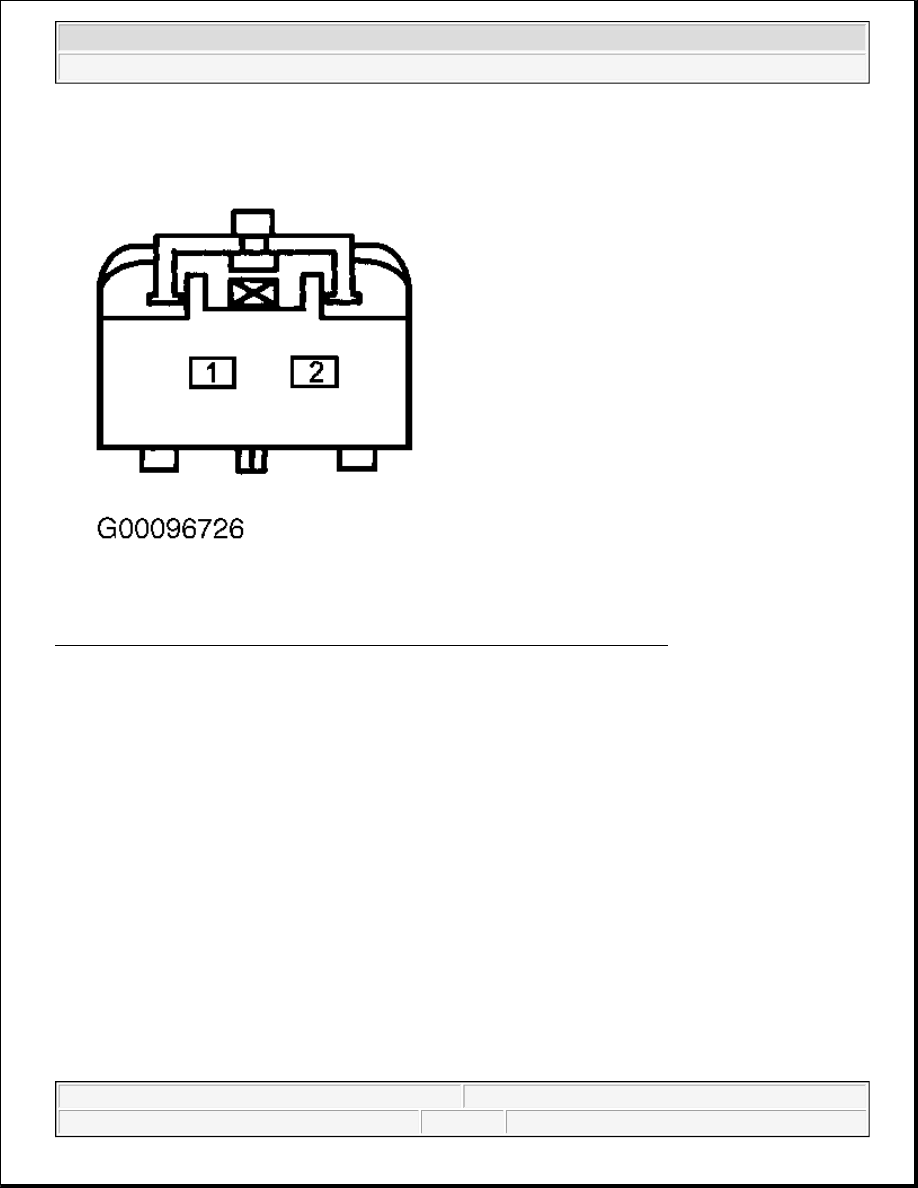

Fig. 5: Identifying Bi-Fuel Relay Module Fuses & Relay Terminals
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Self-Diagnostics - Bi-Fuel - Gasoline/LPG



Fig. 6: Identifying Bi-Fuel Relay Module Power Supply Harness Connector C495 Terminals
Courtesy of FORD MOTOR CO.

Fig. 7: Identifying Compuvalve Connector C1294 Terminals
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Self-Diagnostics - Bi-Fuel - Gasoline/LPG



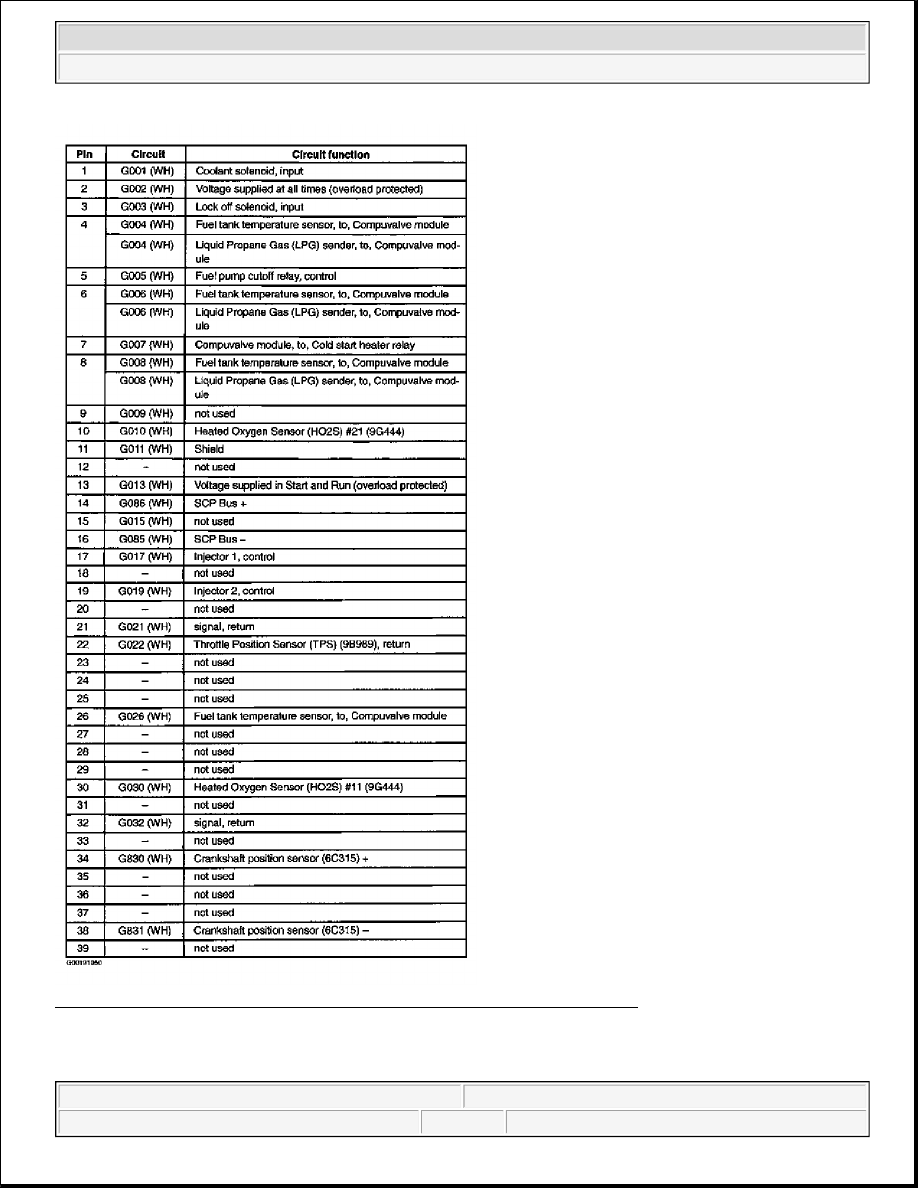

Fig. 8: Identifying Compuvalve Connector C1294 Circuit Functions (1 Of 2)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Self-Diagnostics - Bi-Fuel - Gasoline/LPG
