Ford F150 Pickup. Instruction - part 1245

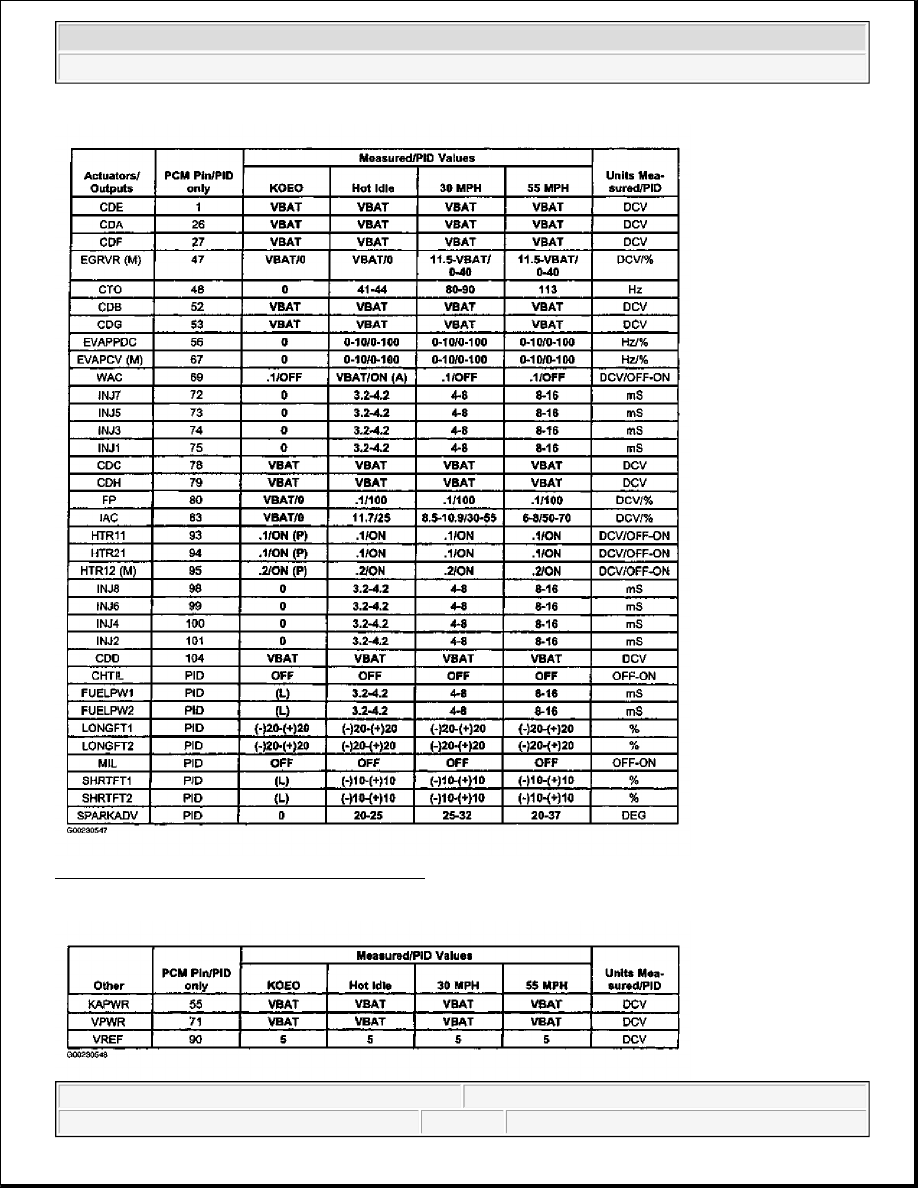

Fig. 65: 5.4L F250/F350 Pickup (M/T) - Outputs
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Pin Voltage/PID Value Charts - Econoline & Pickup - Gasoline & CNG



Fig. 66: 5.4L F250/F350 Pickup (M/T) - Other
Courtesy of FORD MOTOR CO.

Fig. 67: 5.4L F250/F350 Pickup (M/T) - Generic OBD-II Values
Courtesy of FORD MOTOR CO.

Typical Diagnostic Reference Value Charts - 5.4L Pickup Supercharged (A/T)



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Pin Voltage/PID Value Charts - Econoline & Pickup - Gasoline & CNG

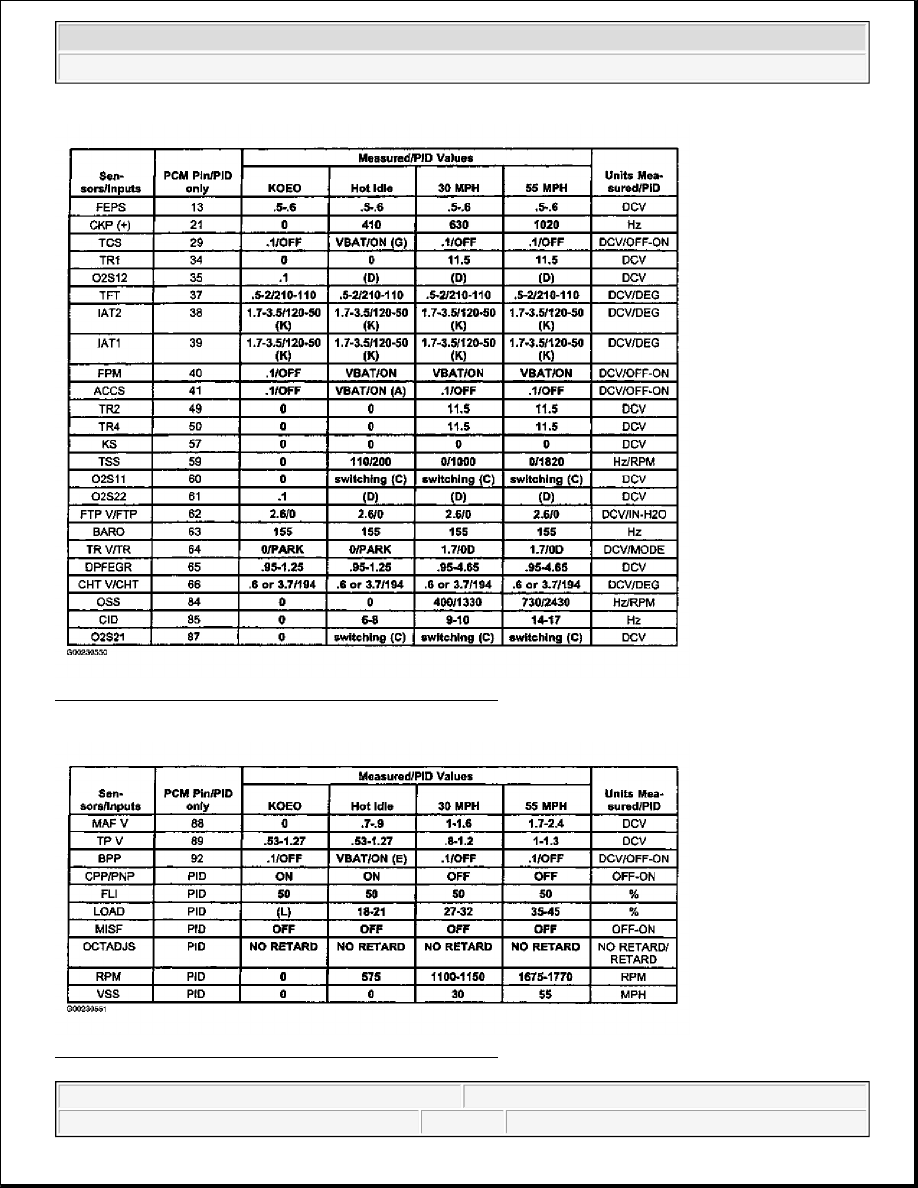

Fig. 68: 5.4L Pickup Supercharged (A/T) - Inputs (1 Of 2)
Courtesy of FORD MOTOR CO.

Fig. 69: 5.4L Pickup Supercharged (A/T) - Inputs (2 Of 2)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Pin Voltage/PID Value Charts - Econoline & Pickup - Gasoline & CNG



Fig. 70: 5.4L Pickup Supercharged (A/T) - Outputs (1 Of 2)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Pin Voltage/PID Value Charts - Econoline & Pickup - Gasoline & CNG
