Ford F150 Pickup. Instruction - part 1243

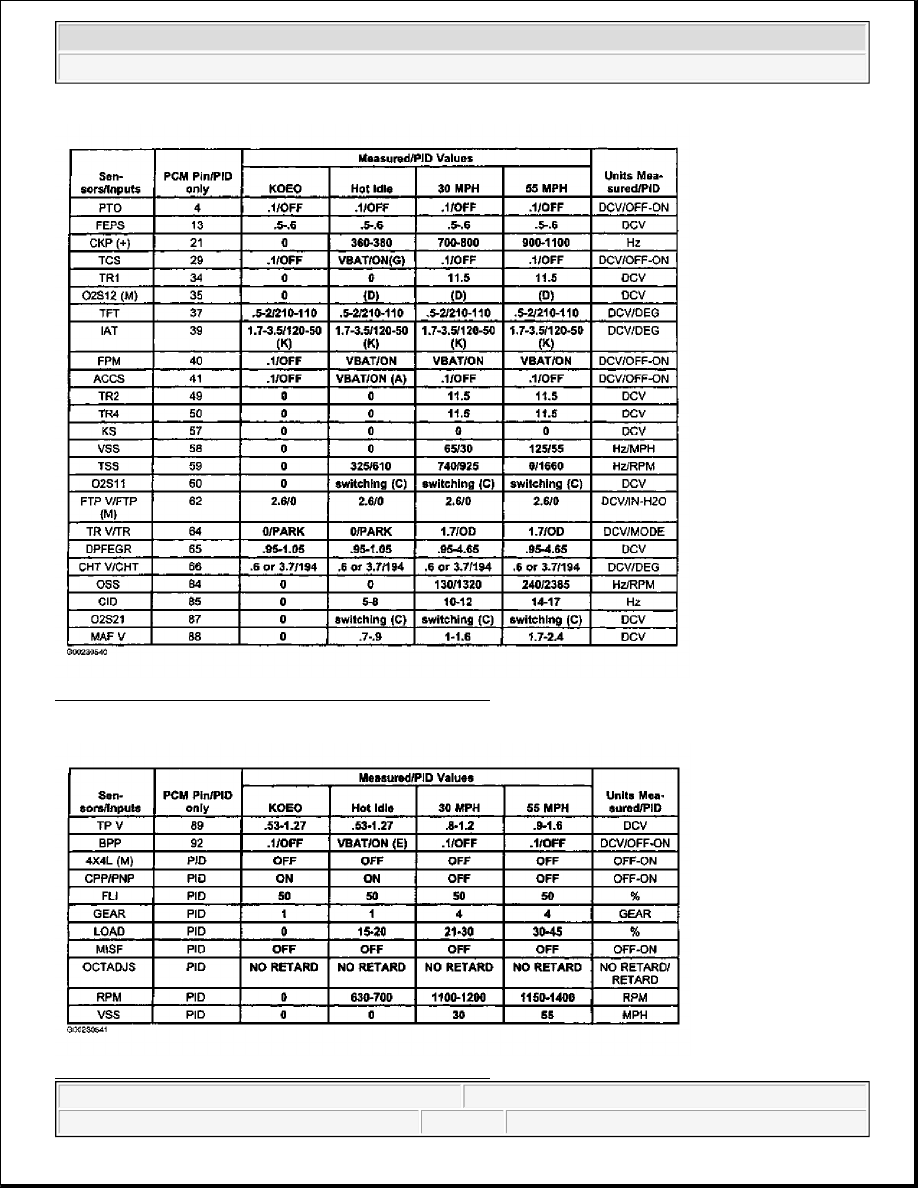

Fig. 53: 5.4L Pickup (4R100) - Inputs (2 Of 2)
Courtesy of FORD MOTOR CO.

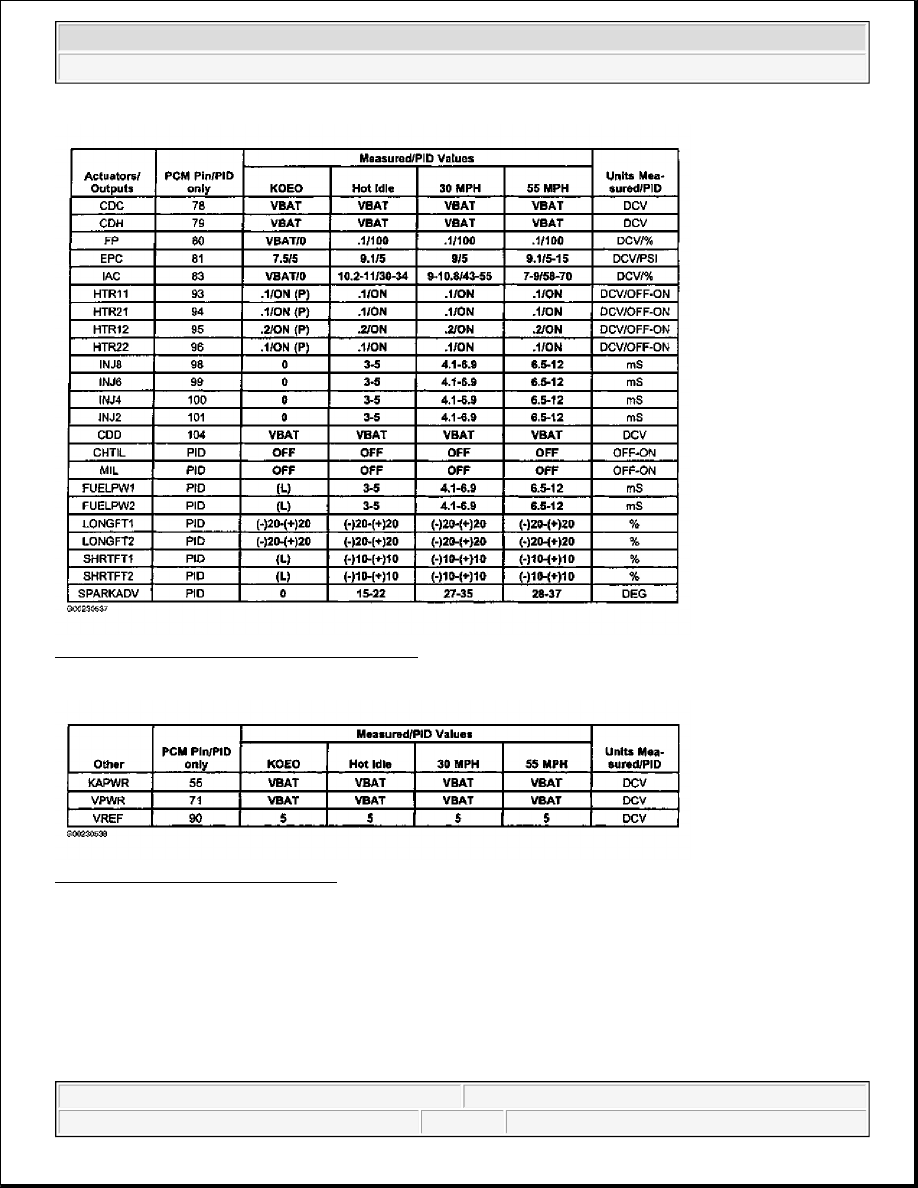

Fig. 54: 5.4L Pickup (4R100) - Outputs (1 Of 2)
Courtesy of FORD MOTOR CO.

2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Pin Voltage/PID Value Charts - Econoline & Pickup - Gasoline & CNG

Fig. 55: 5.4L Pickup (4R100) - Outputs (2 Of 2)
Courtesy of FORD MOTOR CO.

Fig. 56: 5.4L Pickup (4R100) - Other
Courtesy of FORD MOTOR CO.

2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Pin Voltage/PID Value Charts - Econoline & Pickup - Gasoline & CNG

Fig. 57: 5.4L Pickup (4R100) - Generic OBD-II Values
Courtesy of FORD MOTOR CO.

Typical Diagnostic Reference Value Charts - 5.4L F250/F350 Pickup (With 4R100 Transmission)

2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Pin Voltage/PID Value Charts - Econoline & Pickup - Gasoline & CNG

Fig. 58: 5.4L F250/F350 Pickup (4R100) - Inputs (1 Of 2)
Courtesy of FORD MOTOR CO.

Fig. 59: 5.4L F250/F350 Pickup (4R100) - Inputs (2 Of 2)

2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Pin Voltage/PID Value Charts - Econoline & Pickup - Gasoline & CNG
